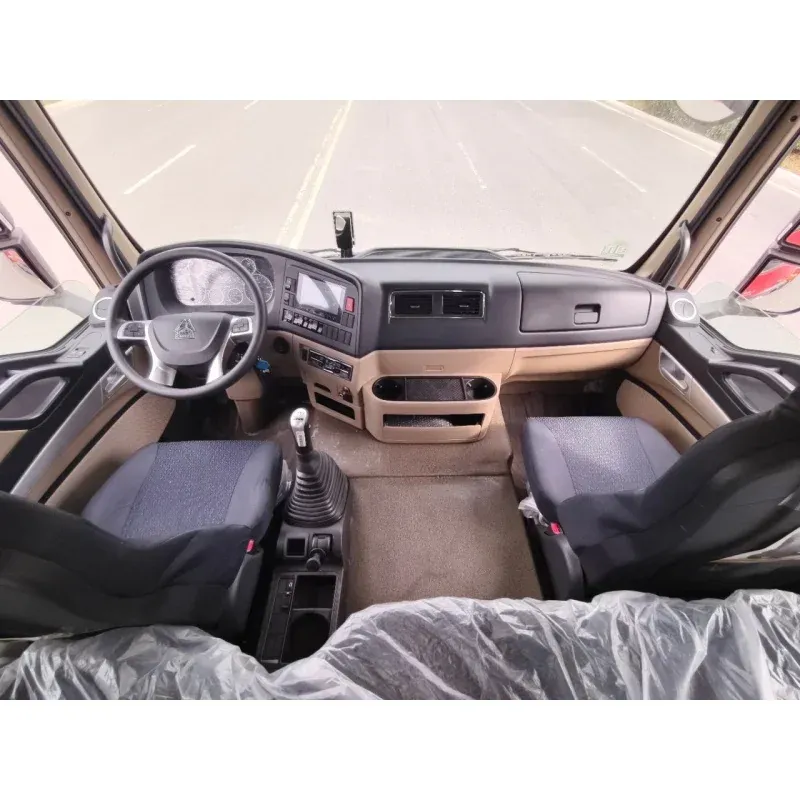

Truck-mounted crane on Howo chassis, 14T — photo 1 of 6

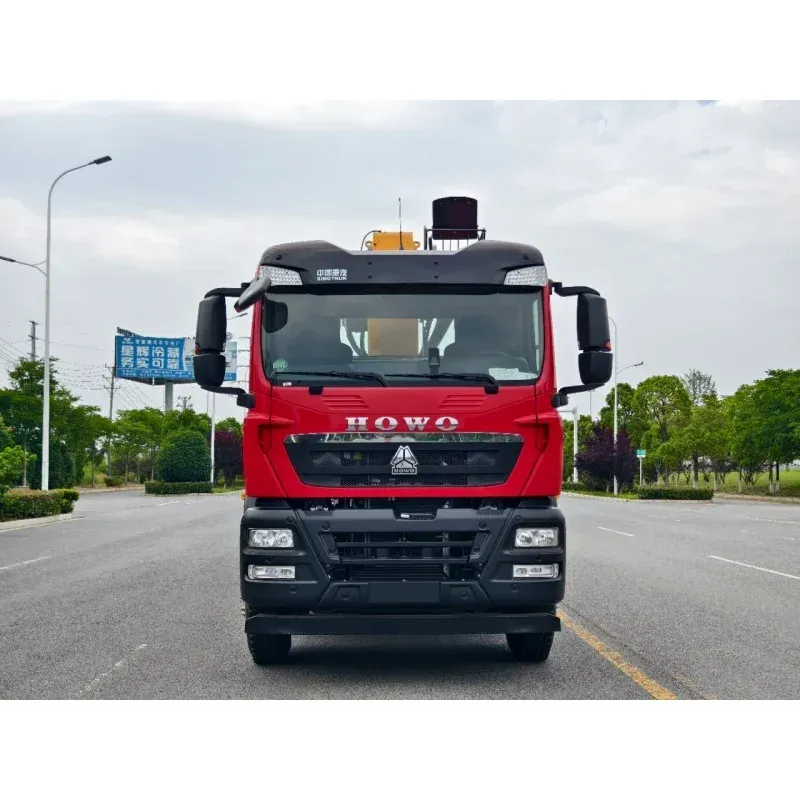

Truck-mounted crane on Howo chassis, 14T — photo 2 of 6
Truck-mounted crane on Howo chassis, 14T — photo 3 of 6

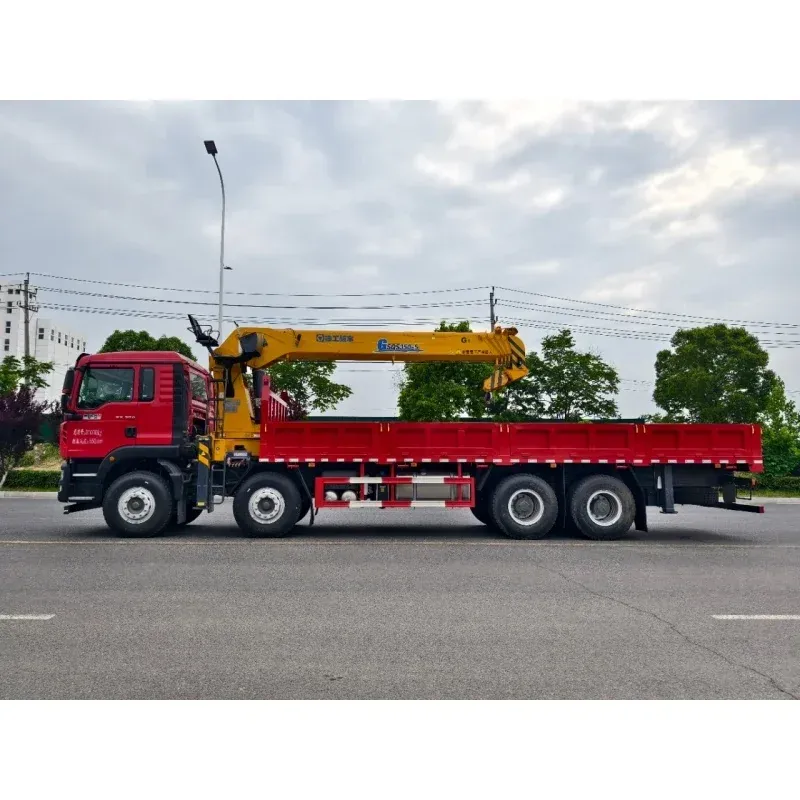

Truck-mounted crane on Howo chassis, 14T — photo 4 of 6

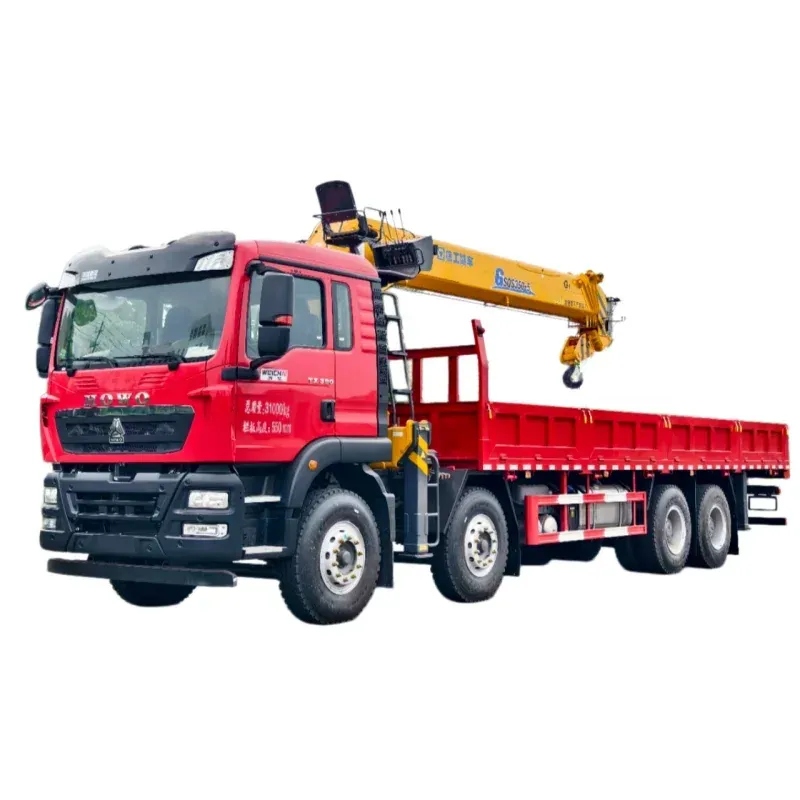

Truck-mounted crane on Howo chassis, 14T — photo 5 of 6

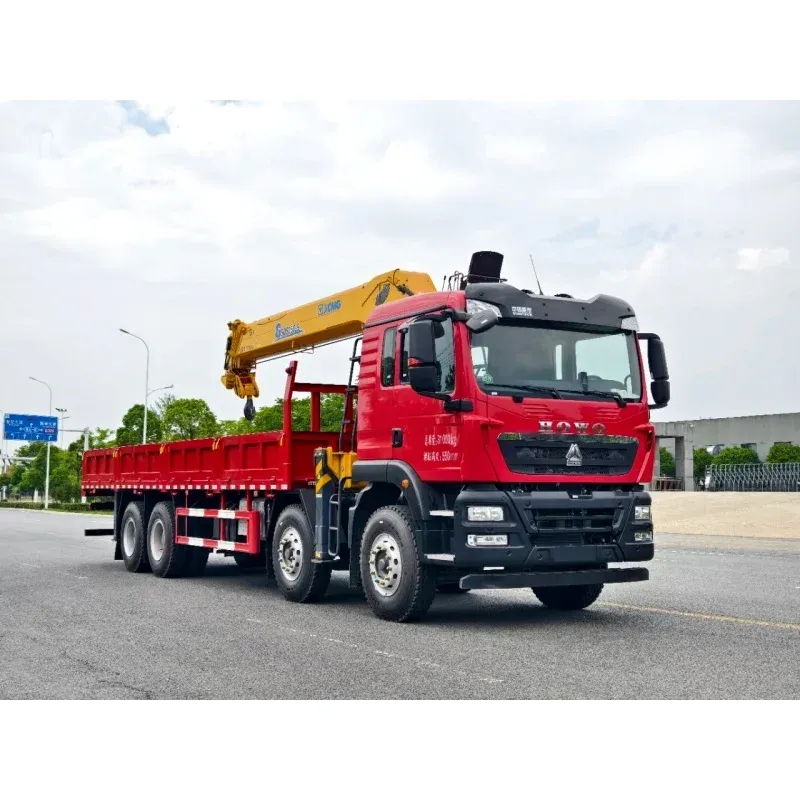

Truck-mounted crane on Howo chassis, 14T — photo 6 of 6
Telescopic-Boom Truck-Mounted Cranes

Truck-Mounted Crane on SINOTRUK — 14 t, Straight-Boom, Specification on Request (Ref. TMC-HW2602)

14 t crane on a SINOTRUK HOWO chassis, up to 21.5 m lifting height. Full specification, load chart and FOB price on request.

Short answer. This is a 14 t truck-mounted crane on a SINOTRUK HOWO chassis, using a hydraulic straight arm boom rather than a knuckle boom. It is rated to a 21.5 m maximum lifting height with a 7,800 mm span on four hydraulic outriggers, and the build is listed at 21,000 kg on 12.00R20 tyres with a Weichai engine and Huade hydraulics. Drive configuration is 8x4, with left-hand drive standard and right-hand drive available on request; the crane make is XCMG.
Published by Truck Crane China — we build truck-mounted cranes, grab trucks and wrecker trucks on Chinese chassis for export.

This is a 14 t truck-mounted crane on a SINOTRUK HOWO chassis. Boom sections and working radius are confirmed on the quotation.
Left-hand drive is standard on this build; right-hand drive is available on request. Tell us the market and we confirm the steering and the emission configuration before the order is placed.

Complete Specifications

Parameter
Value
Capacity
14 Ton Crane
Max. lifting capacity
14 t
Chassis brand
SINOTRUK HOWO
Boom type
Hydraulic Straight Arm
Outrigger
4 Hydraulic Outriggers
Tire
12.00R20
Crane make
XCMG
Warranty
2 Years
Hydraulic Cylinder Brand
Huade
Hydraulic Pump Brand
Huade
Hydraulic Valve Brand
Huade
Engine brand
Weichai
Machinery Test Report
Provided
Video outgoing-inspection
Provided
Place of origin
China (Hubei)
Max. lifting height
21.5 m
Span
7,800 mm
Weight
21,000 kg
Rated lifting moment
Specification on request

Options and Configuration

Parameter
Value
Type
Truck Mounted Crane Mobile Crane Truck
Drive type
8x4 / LHD / RHD
Color
Customer Requirements / White / Yellow / Green / Black / Blue
Unique Selling Point
High operating efficiency
Application
Truck Crane Mobile Crane Hydraulic Crane


Questions buyers ask about this 14 t SINOTRUK HOWO truck crane

What is the crane capacity and boom type on this build?
A 14 t capacity crane with a hydraulic straight arm boom.
How high does it lift and what span does it cover?
A 21.5 m maximum lifting height with a 7,800 mm span on four hydraulic outriggers.
What is its rated lifting moment?
Specification on request.
What chassis and drive configuration is it built on?
A SINOTRUK HOWO chassis in 8x4, with left-hand drive standard and right-hand drive available on request.
What tyres, engine and hydraulic components are fitted?
12.00R20 tyres, a Weichai engine, and Huade hydraulic cylinder, pump and valve, under a 2-year warranty.
What does the build weigh?
The build is listed at 21,000 kg.

Send the destination country, the load you handle and the reach you need. You will get the full build back: chassis, crane, body, the load chart for the crane we propose, and the price.

Questions on this truck

Ask for the specification sheet and the FOB price.

Tell us the model you are looking at and we come back with the full specification, the delivery time after deposit and the FOB price for your port. Where the table above is not complete for this model, ask us for the full specification sheet.

WhatsApp — fastest reply

+86 158 0912 4321

Send a message any time. Anything received outside working hours (GMT+8) is answered the next working morning.

Email — specifications and documents

[email protected]

For drawings, quotations, shipping documents and technical questions.
