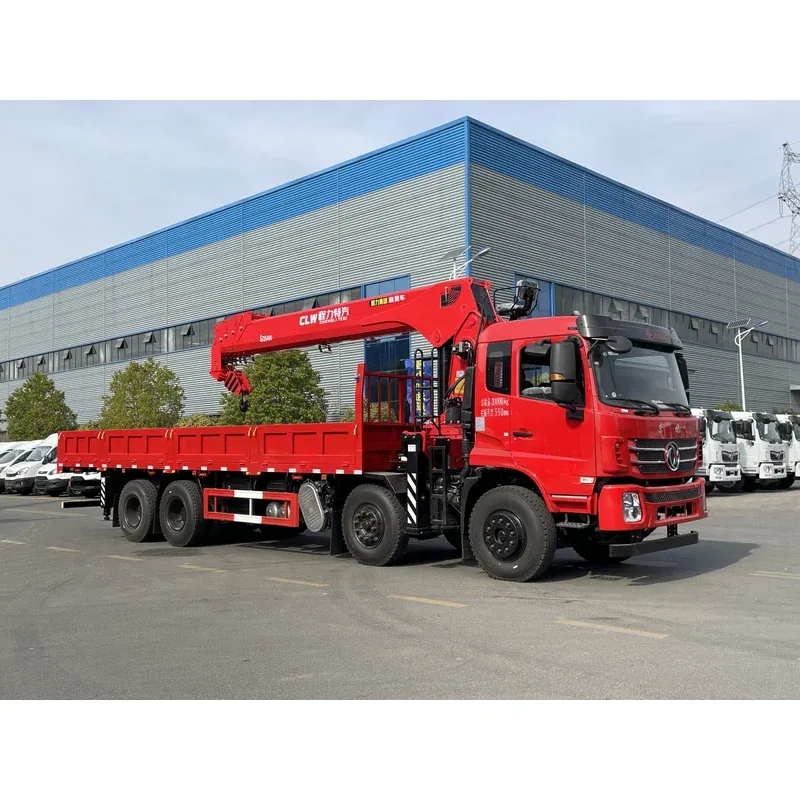

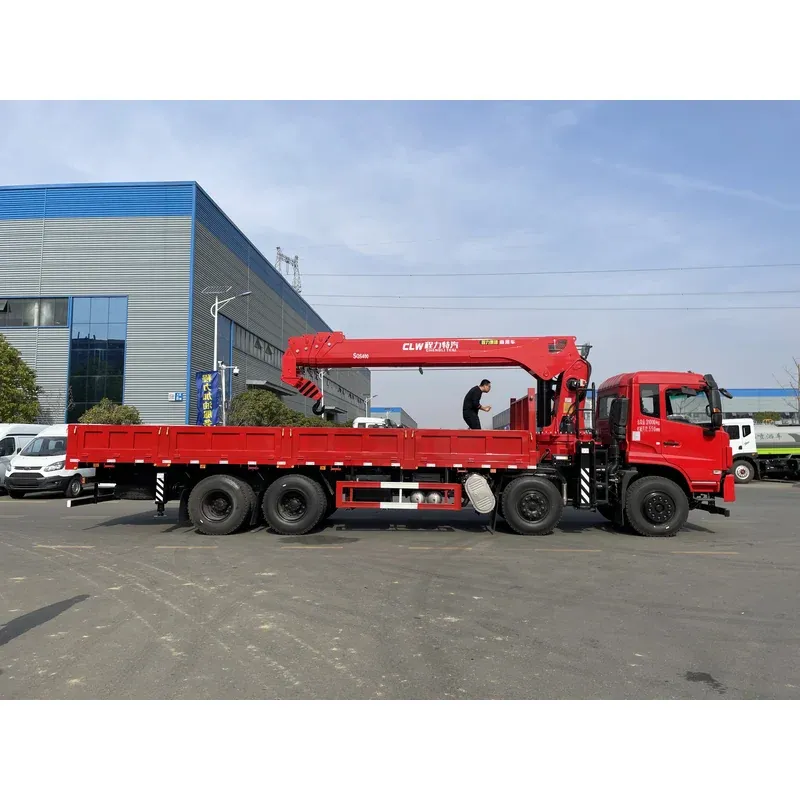

WHHC SQS400-5 Truck-Mounted Crane — 16 t / 400 kN·m, 5-Section Telescopic Boom
Sixteen tonnes, 22.5 m of lift and 20.4 m of reach. The heavy end of the range — for 8x4 chassis doing the work that a smaller machine would be asked to do twice.
Complete Specifications
Parameter | Value |
|---|---|
Lifting Performance | |
Max. rated lifting capacity | 16000 kg |
Max. lifting moment | 400.0 kN·m |
Boom sections | 5 |
Boom length | 5.4 – 20.4 m |
Max. working radius | 20.4 m |
Max. lifting height (basic boom) | 6 m |
Max. lifting height (boom fully extended) | 22.5 m |
Max. lifting height | 22 m |
Outrigger span | 2.45 – 7.5 m |
Outrigger type | H-type |
Slewing range | 360° (any position) |
Slewing speed | ＜2.5 r/min |
Boom raising time | ＜20 s |
Boom extending time | ＜25 s |
Extension speed | 0.8 * |
Luffing range | 1–75 * |
Boom raising angular speed | 3 * |
Hook lifting speed | 8 m/min |
Hydraulic System | |
System pressure | 24 MPa |
System flow | 100 L/min |
Oil tank capacity | ≮150 L |
Structure | |
Wire rope diameter | 14 mm |
Wire rope length | 150 m |
Crane weight | ＜7500 kg |
Boom section form | Octagonal |
Mounting space | 1250 mm |
Operating Environment & Configuration | |
Recommended truck | Trucks of 10 t load capacity and above |
Safety device | Anti-two-block alarm |
Working temperature | -15 ℃ ～ 40 ℃ |
Lifting Capacity Chart (Load Chart)
Working radius (m) | 2.5 | 5.0 | 8.0 | 10.0 | 15.0 | 18.0 | 20.4 |
|---|---|---|---|---|---|---|---|
Lifting capacity (kg) | 16000 | 7500 | 4500 | 1500 | 1100 | 900 | 500 |
