Truck-Mounted Cranes

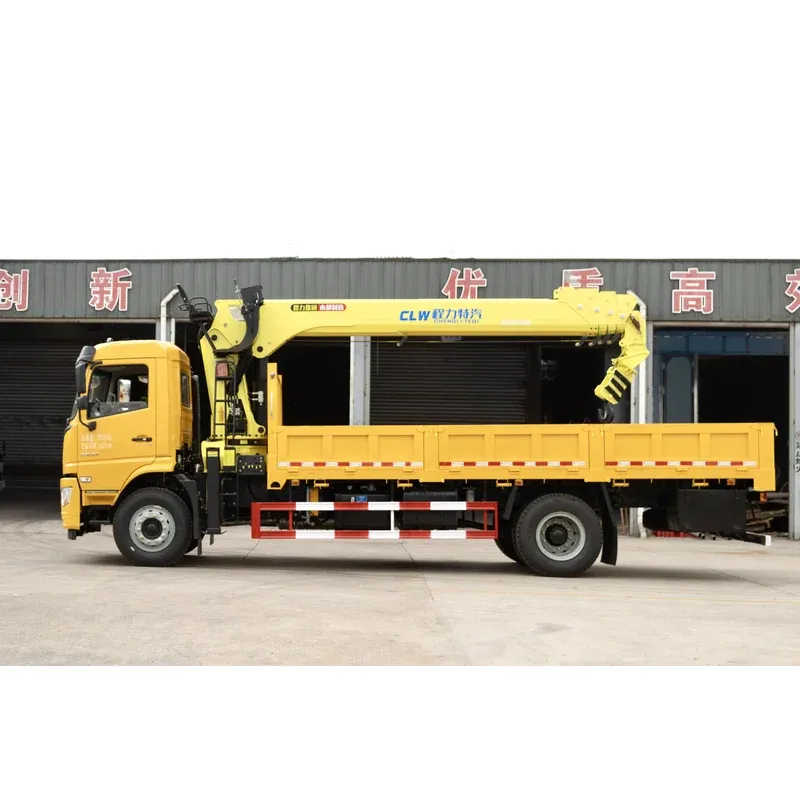

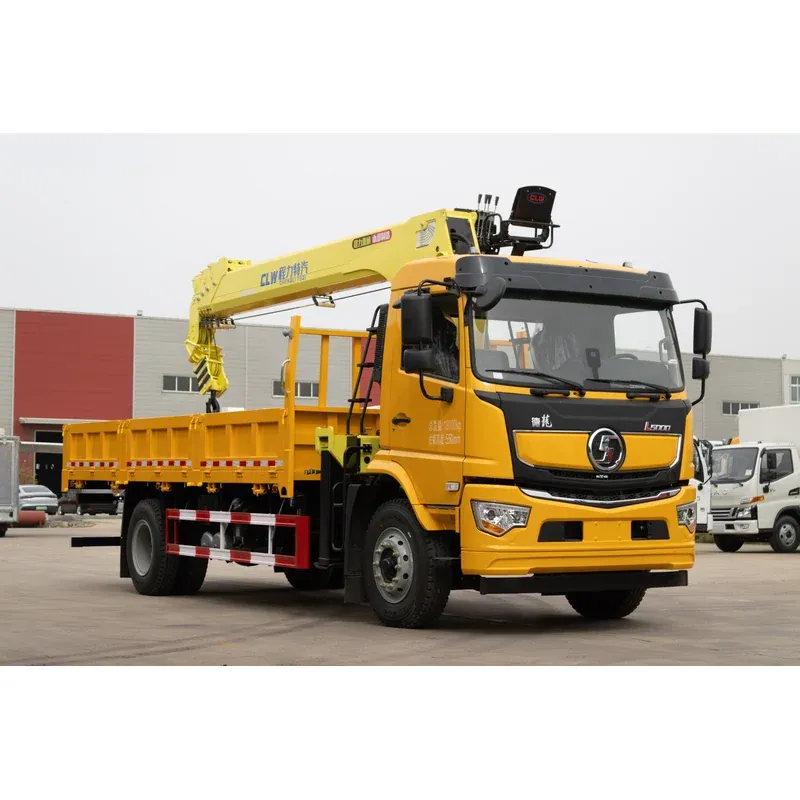

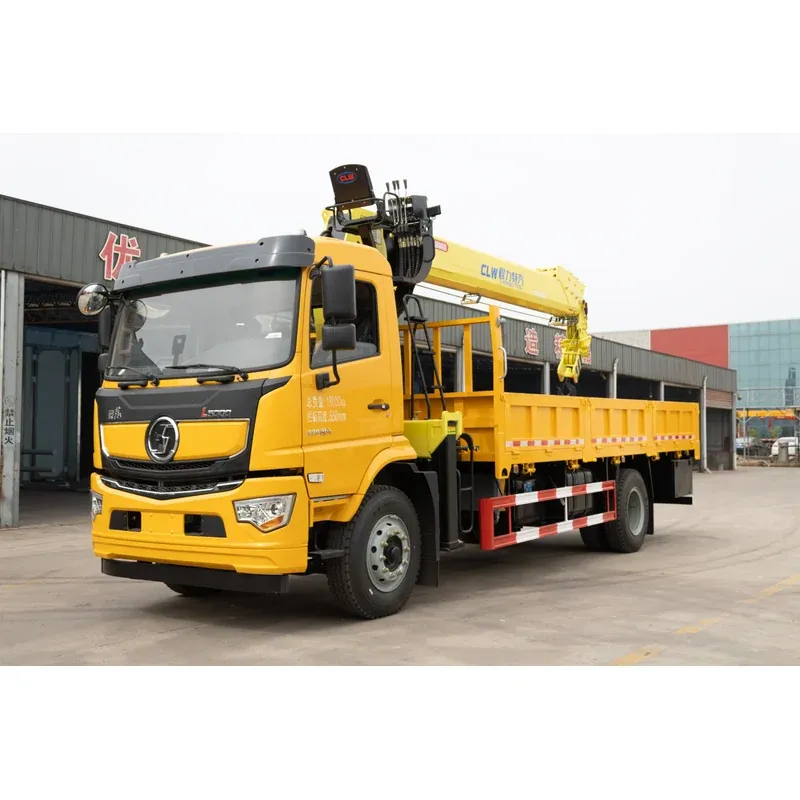

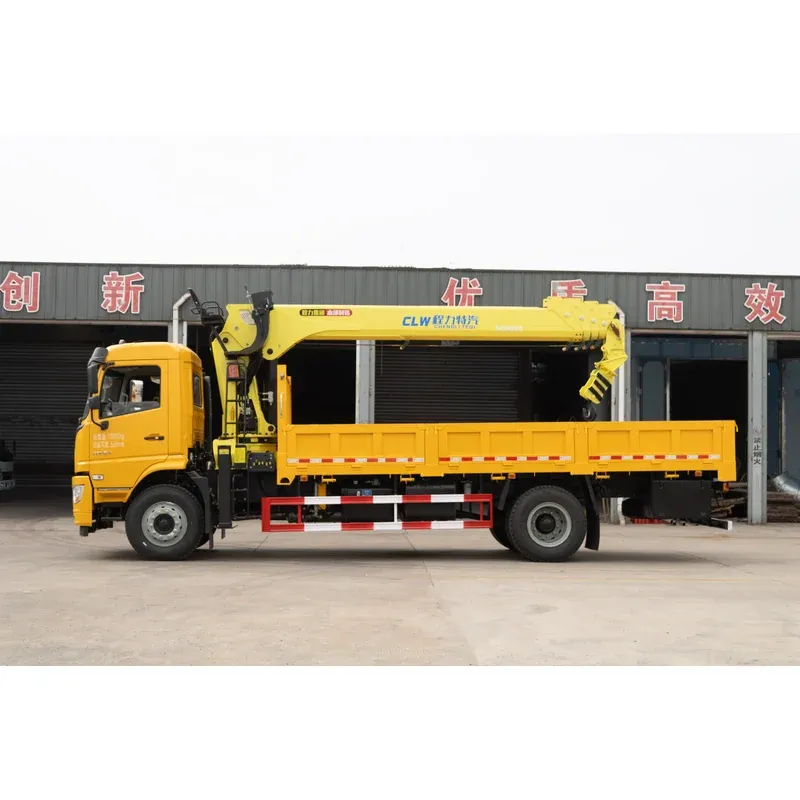

WHHC SQS200-5 Truck-Mounted Crane — 8 t / 200 kN·m, 5-Section Telescopic Boom
Five sections, 17.6 m of reach. The heavy-duty workhorse for 6x4 and 8x4 chassis — built for mining, infrastructure and timber work that runs all day.
Complete Specifications
Parameter | Value |
|---|---|
Lifting Performance | |
Max. rated lifting capacity | 8000 kg |
Max. lifting moment | 200.0 kN·m |
Boom sections | 5 |
Boom length | 5.3 – 17.6 m |
Max. working radius | 17.6 m |
Max. lifting height (basic boom) | 6 m |
Max. lifting height (boom fully extended) | 19 m |
Max. lifting height | 19.6 m |
Outrigger span | 2.3 – 5.7 m |
Outrigger type | H-type |
Slewing range | 360° (any position) |
Slewing speed | ＜2.5 r/min |
Boom raising time | ＜20 s |
Boom extending time | ＜25 s |
Extension speed | 0.2 * |
Luffing range | 1–75 * |
Boom raising angular speed | 3 * |
Hook lifting speed | 8.33 m/min |
Hydraulic System | |
System pressure | 24 MPa |
System flow | 100 L/min |
Oil tank capacity | ≮120 L |
Structure | |
Wire rope diameter | 10 mm |
Wire rope length | 130 m |
Crane weight | ＜3700 kg |
Boom section form | Octagonal |
Mounting space | 1200 mm |
Operating Environment & Configuration | |
Recommended truck | Trucks of 9 t load capacity and above |
Safety device | Anti-two-block alarm |
Working temperature | -15 ℃ ～ 40 ℃ |
Lifting Capacity Chart (Load Chart)
Working radius (m) | 2.5 | 4.0 | 6.0 | 8.0 | 10.0 | 12.0 | 14.0 | 17.6 |
|---|---|---|---|---|---|---|---|---|
Lifting capacity (kg) | 8000 | 3600 | 3000 | 2100 | 1900 | 1400 | 1100 | 500 |
