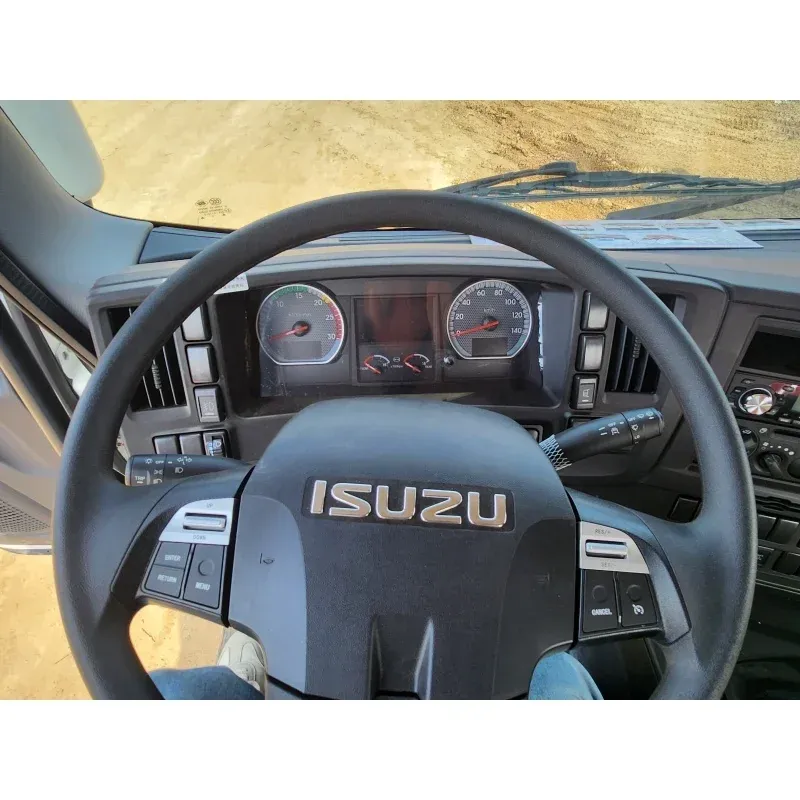

Truck-mounted crane on Isuzu chassis, 12T — photo 1 of 6

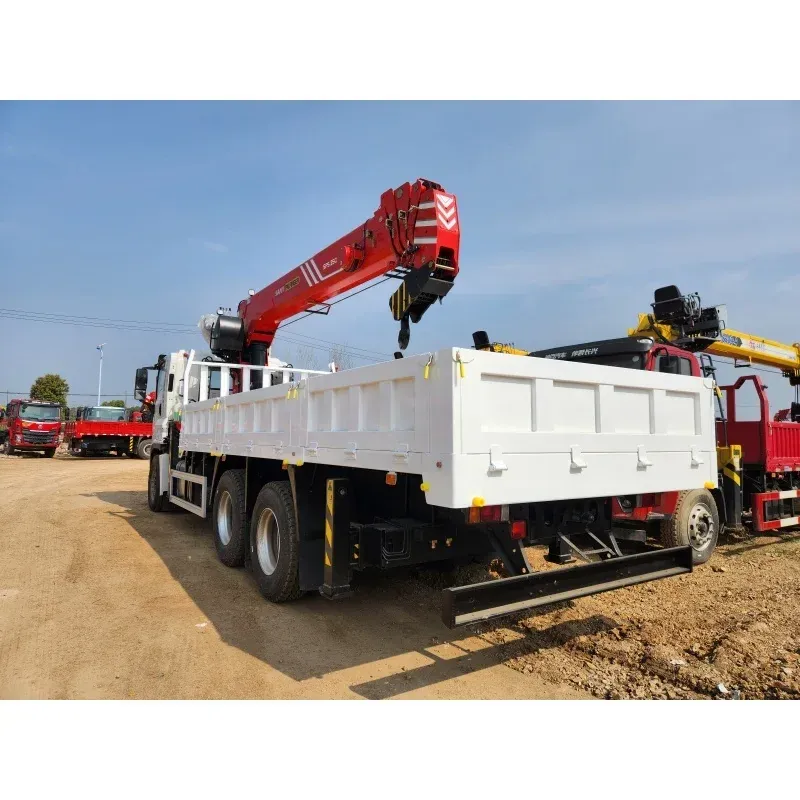

Truck-mounted crane on Isuzu chassis, 12T — photo 2 of 6

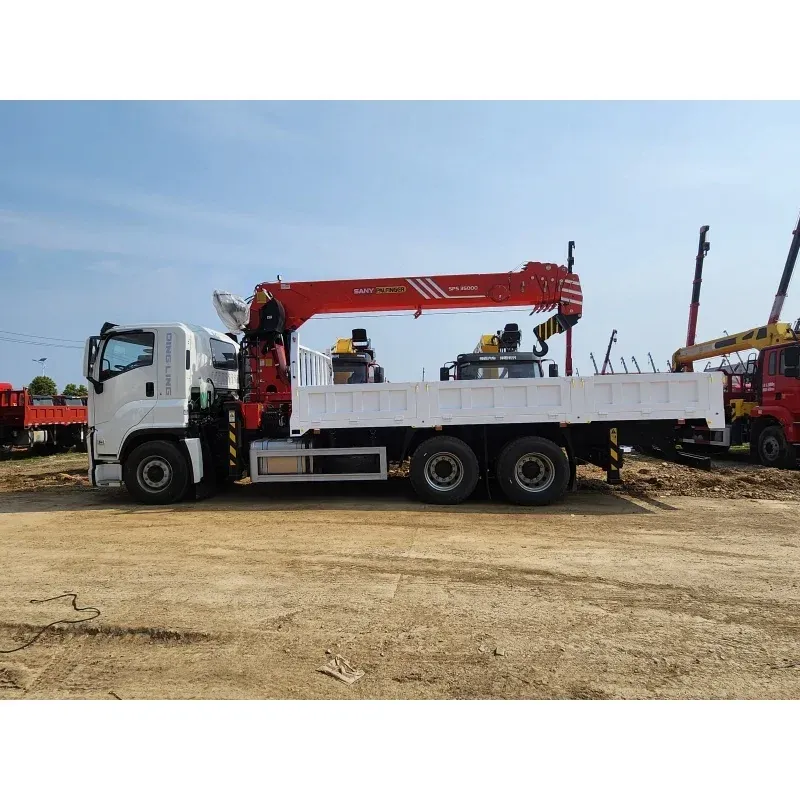

Truck-mounted crane on Isuzu chassis, 12T — photo 3 of 6

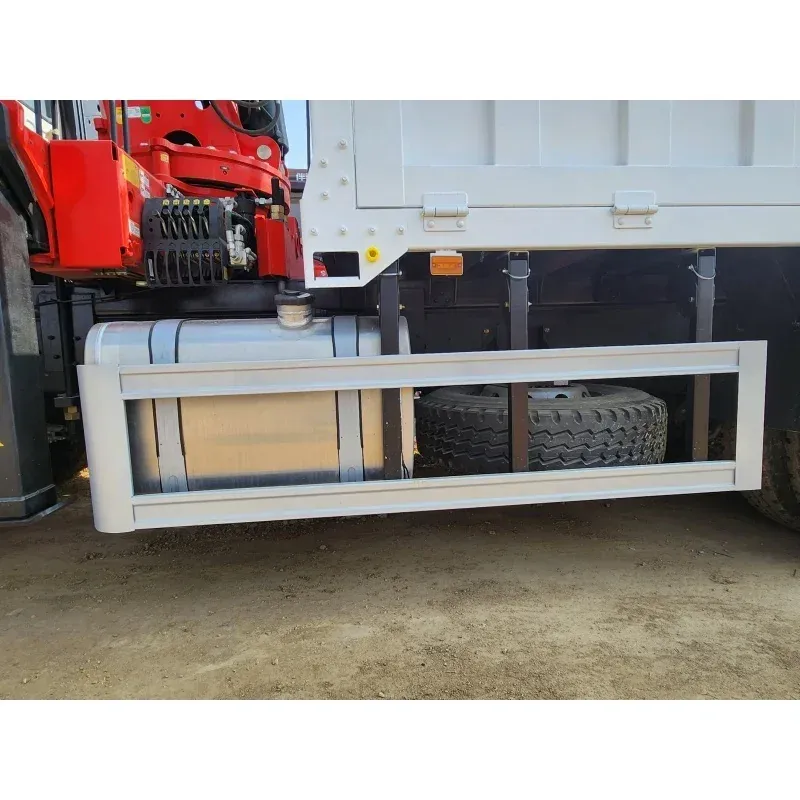

Truck-mounted crane on Isuzu chassis, 12T — photo 4 of 6

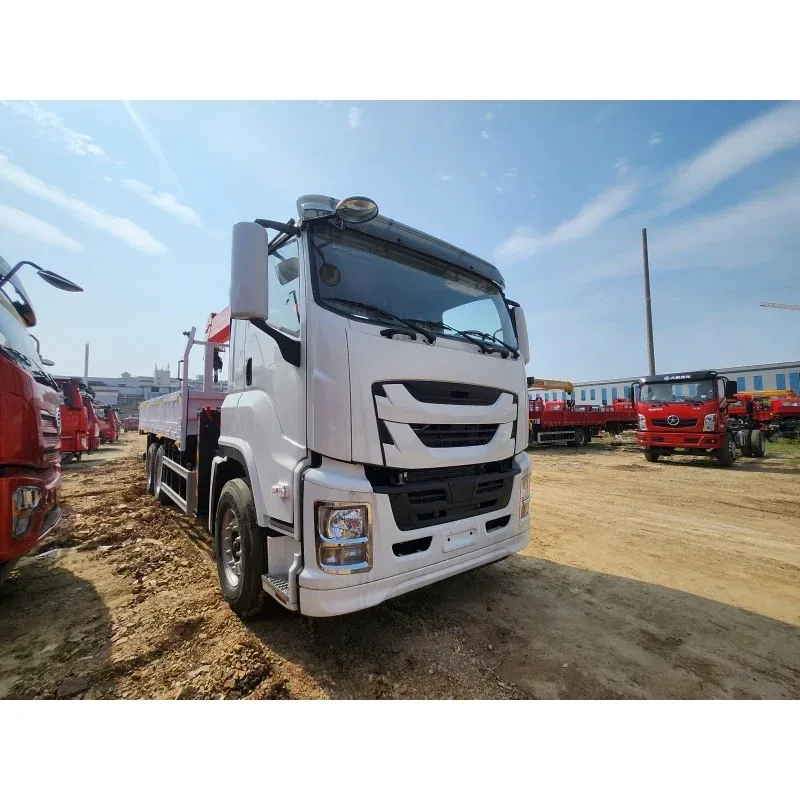

Truck-mounted crane on Isuzu chassis, 12T — photo 5 of 6
Truck-mounted crane on Isuzu chassis, 12T — photo 6 of 6
Telescopic-Boom Truck-Mounted Cranes

Truck-Mounted Crane on Isuzu — 12 t / 300 kN·m, 5-Section Telescopic Boom (Ref. TMC-IS2601)

12 t crane on an Isuzu chassis, up to 18 m lifting height. Full specification, load chart and FOB price on request.

Short answer. This is a 12 t truck-mounted crane on an Isuzu chassis, rated to a maximum lifting height of 18 m. The crane is a hydraulic straight arm with a 5-section telescopic boom, a 300 kN·m rated lifting moment and a 6,800 mm span, carried on a 6x4 truck-mounted crane (mobile crane truck) build with 4 hydraulic outriggers. Left-hand drive is standard on this build and right-hand drive is available on request, with the steering and the emission configuration confirmed before the order is placed. Full specification, load chart and FOB price are on request.
Published by Truck Crane China — we build truck-mounted cranes, grab trucks and wrecker trucks on Chinese chassis for export.

This is a 12 t truck-mounted crane on an Isuzu chassis, rated to 18 m lifting height.
Left-hand drive is standard on this build; right-hand drive is available on request. Tell us the market and we confirm the steering and the emission configuration before the order is placed.

Complete Specifications

Parameter
Value
Capacity
12 Ton Crane
Max. lifting capacity
12 t
Chassis brand
Isuzu
Boom type
Hydraulic Straight Arm
Outrigger
4 Hydraulic Outriggers
Warranty
2 Years
Hydraulic Cylinder Brand
Huade
Hydraulic Pump Brand
Huade
Hydraulic Valve Brand
Huade
Engine brand
Isuzu
Machinery Test Report
Provided
Video outgoing-inspection
Provided
Place of origin
China (Hubei)
Rated lifting moment
300 kN·m
Max. lifting height
18 m
Span
6,800 mm
Crane make
Isuzu
Weight
18,000 kg

Options and Configuration

Parameter
Value
Type
Truck Mounted Crane Mobile Crane Truck
Drive type
6x4 / LHD / RHD
Tire
315 / 80 / R22 / 5
Color
Customer Requirements / White / Yellow / Green / Black / Blue
Unique Selling Point
High load Moment
Application
Truck Crane Mobile Crane Hydraulic Crane


Questions buyers ask about the Isuzu 12 t truck-mounted crane

What is the lifting capability of this 12 t Isuzu crane?
Capacity is 12 t, with a rated lifting moment of 300 kN·m and a maximum lifting height of 18 m. The record lists high load moment as its selling point, and the load chart for the crane we propose comes back with the build.
What boom is fitted to this unit?
A hydraulic straight arm built as a 5-section telescopic boom, so it extends hydraulically instead of folding.
What is the drive configuration, and can it be right-hand drive?
The drive type is 6x4. Left-hand drive is standard and right-hand drive is available on request; steering and the emission configuration are confirmed before the order is placed.
How heavy is the crane unit, and what tyres does the build run?
The crane is listed at 18,000 kg, and the tyres are given as 315 / 80 / R22 / 5.
What engine, hydraulics and warranty come with it?
An Isuzu engine brand with Huade hydraulic cylinders, pump and valve. A machinery test report and video outgoing-inspection are provided, and the build carries a 2-year warranty.
Where is this Isuzu crane build made?
The place of origin is China (Hubei). It stands on 4 hydraulic outriggers, and the crane works over a 6,800 mm span.

Send the destination country, the load you handle and the reach you need. You will get the full build back: chassis, crane, body, the load chart for the crane we propose, and the price.

Questions on this truck

Ask for the specification sheet and the FOB price.

Tell us the model you are looking at and we come back with the full specification, the delivery time after deposit and the FOB price for your port. Where the table above is not complete for this model, ask us for the full specification sheet.
