Truck-Mounted Cranes
Truck-Mounted Crane on SINOTRUK — 8 t, Straight-Boom, Specification on Request (Ref. TMC-HW2608)
8 t crane on a SINOTRUK HOWO chassis, up to 20.5 m lifting height. Full specification, load chart and FOB price on request.

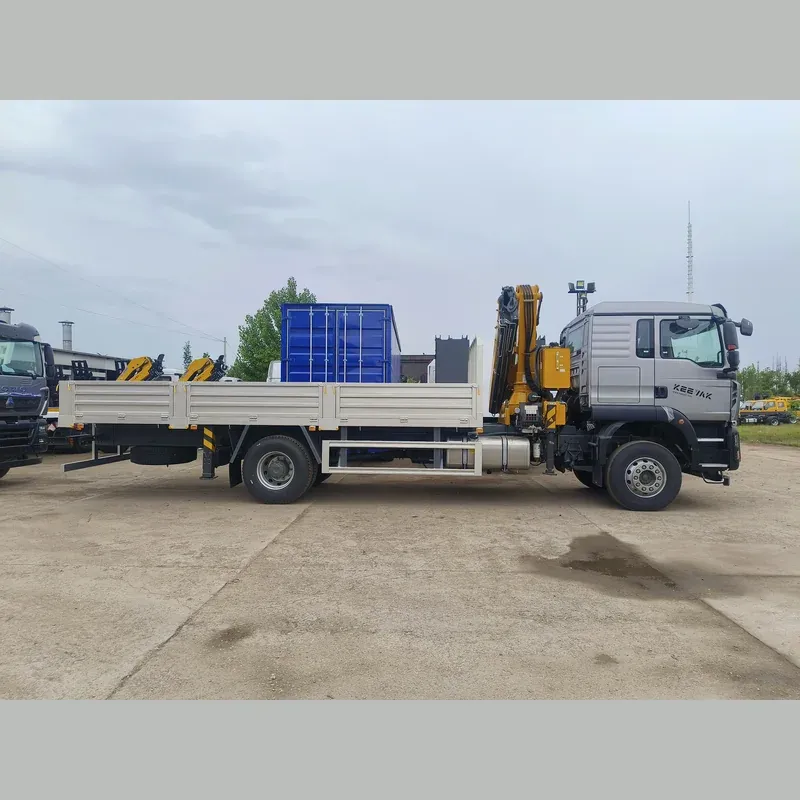

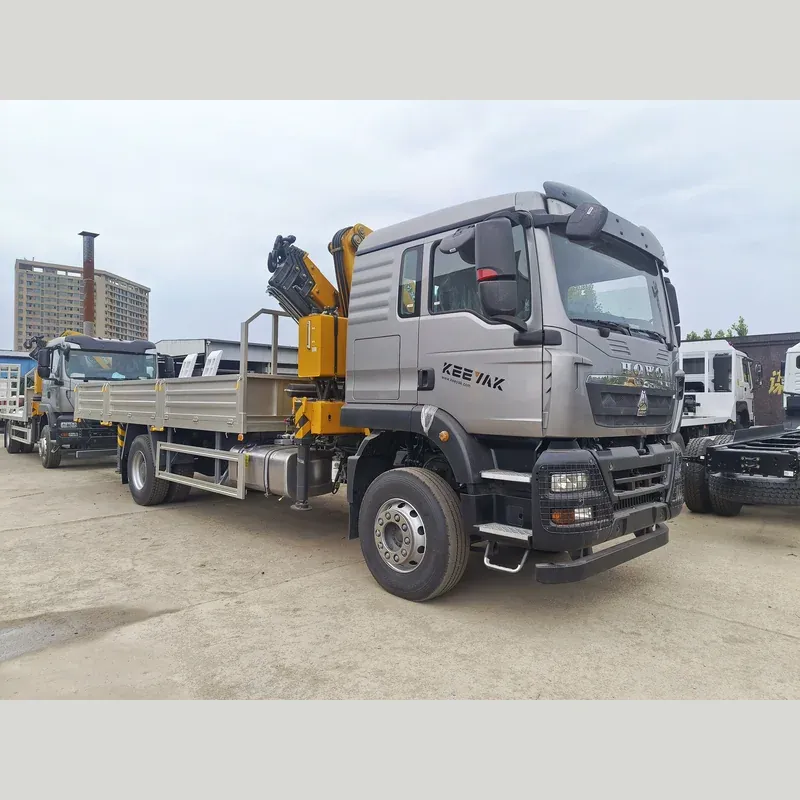

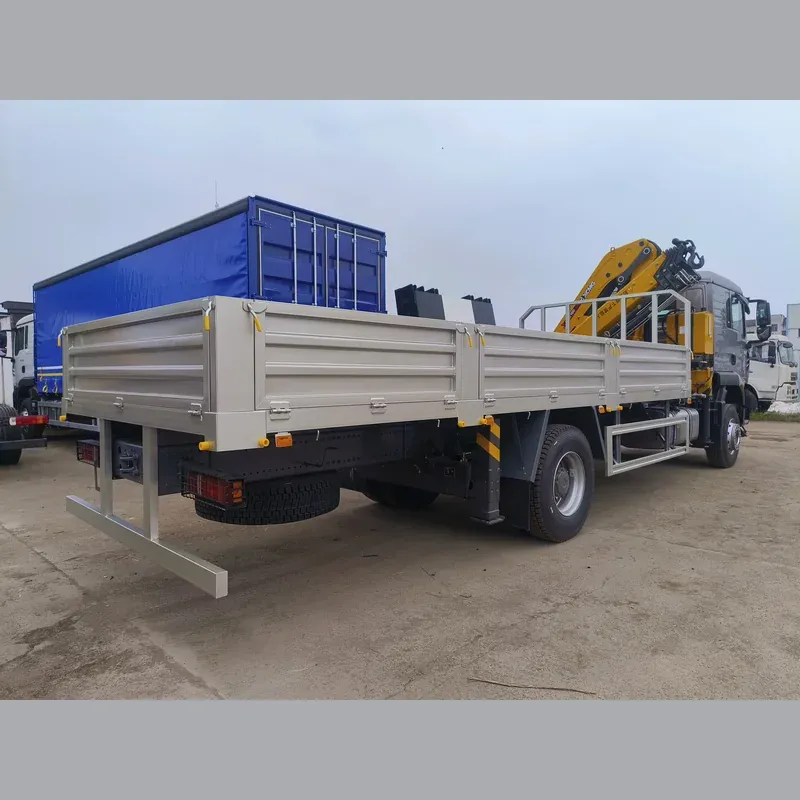

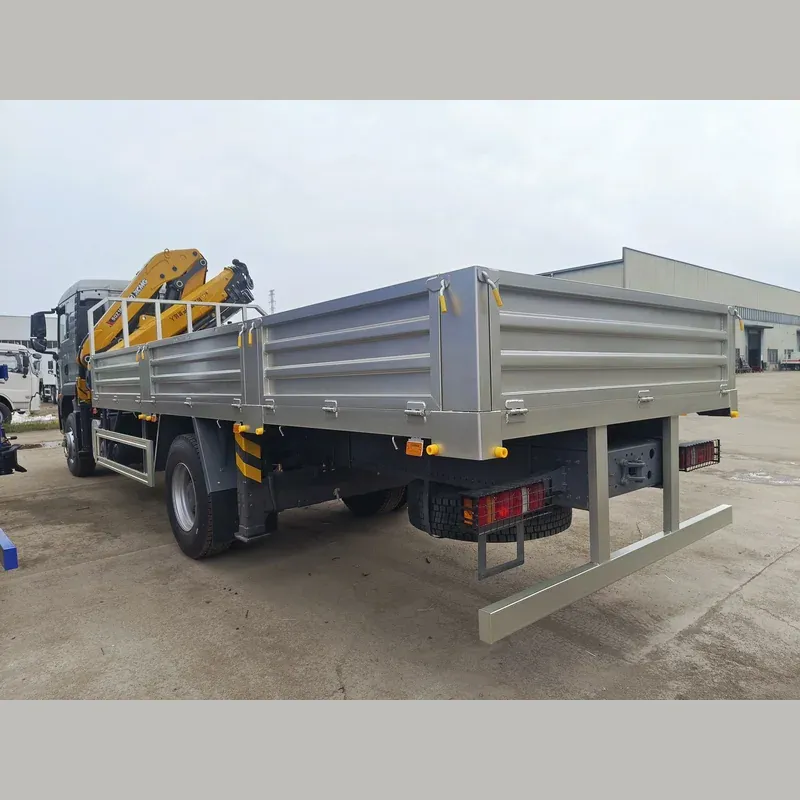

This is an 8 t truck-mounted crane on a SINOTRUK HOWO chassis. Boom sections and working radius are confirmed on the quotation.
Left-hand drive is standard on this build; right-hand drive is available on request. Tell us the market and we confirm the steering and the emission configuration before the order is placed.
Complete Specifications
Parameter | Value |
|---|---|
Max. lifting capacity | 8 t |
Boom type | Hydraulic Straight Arm |
Outrigger | 4 Hydraulic Outriggers |
Tire | 900R20 |
Crane make | CLW |
Warranty | 2 Years |
Hydraulic Cylinder Brand | Huade |
Hydraulic Pump Brand | Huade |
Hydraulic Valve Brand | Huade |
Engine brand | Weichai |
Machinery Test Report | Provided |
Video outgoing-inspection | Provided |
Place of origin | China (Hubei) |
Max. lifting height | 20.5 m |
Span | 7,800 mm |
Brand | SINOTRUK HOWO |
Weight | 6,800 kg |
Rated lifting moment | Specification on request |
Options and Configuration
Parameter | Value |
|---|---|
Type | Truck Mounted Crane Mobile Crane Truck |
Capacity | 1-10 t Crane |
Drive type | 4x2 / 6x2 / 6x4 / 8x4 / 8x6 / 4x4 / 6x6 / LHD / RHD |
Chassis brand | Howo / DongFeng / FAW / Foton / JAc / shacman / ISUZU |
Color | Customer Requirements / White / Yellow / Green / Black / Blue |
Unique Selling Point | High load Moment |
Application | Truck Crane Mobile Crane Hydraulic Crane |
Send the destination country, the load you handle and the reach you need. You will get the full build back: chassis, crane, body, the load chart for the crane we propose, and the price.
