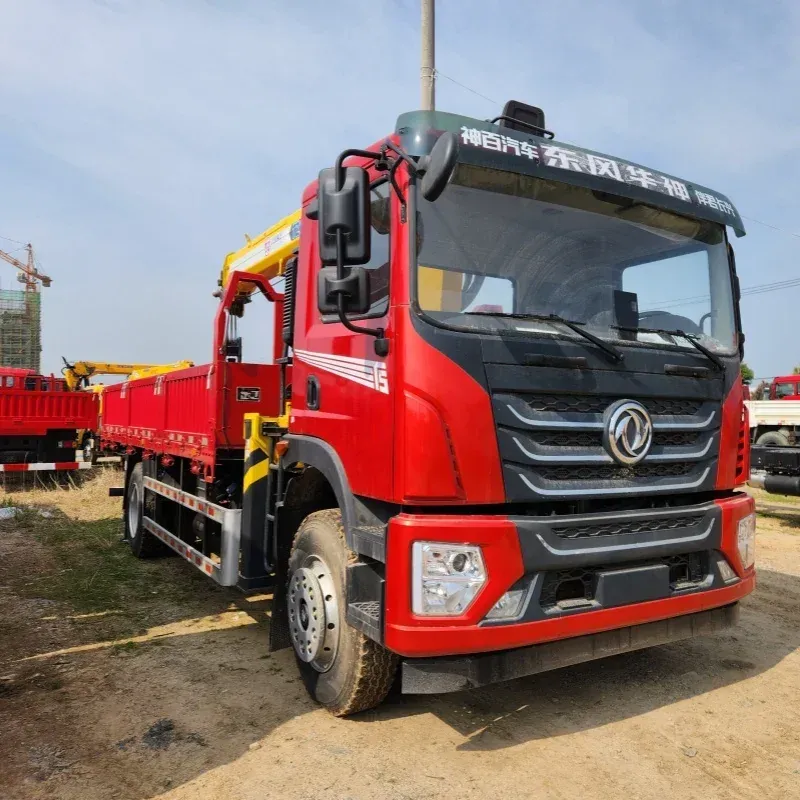

Truck-mounted crane on Dongfeng chassis, 8T — photo 2 of 6

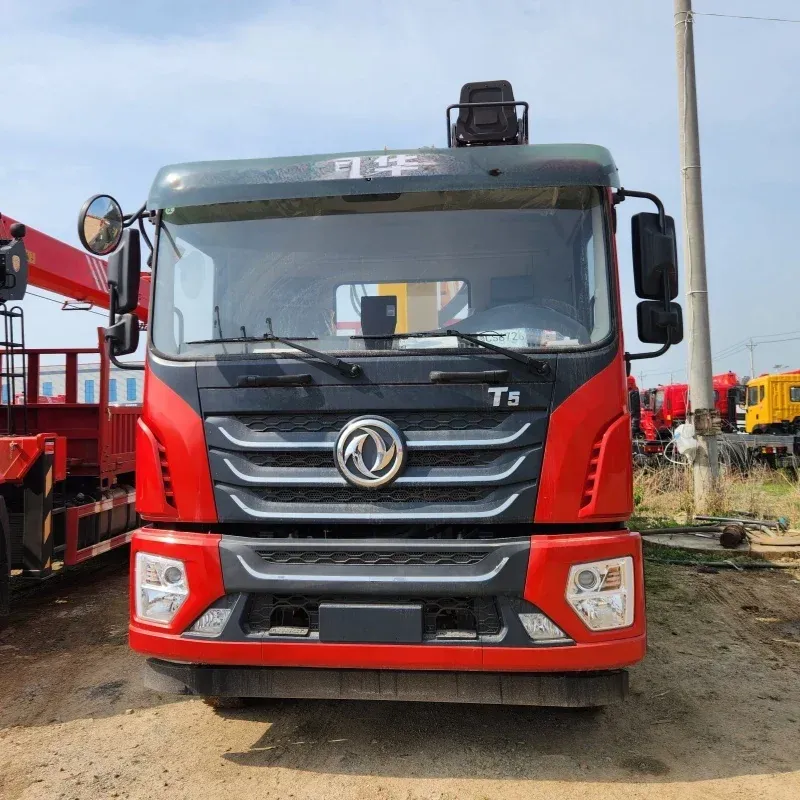

Truck-mounted crane on Dongfeng chassis, 8T — photo 3 of 6

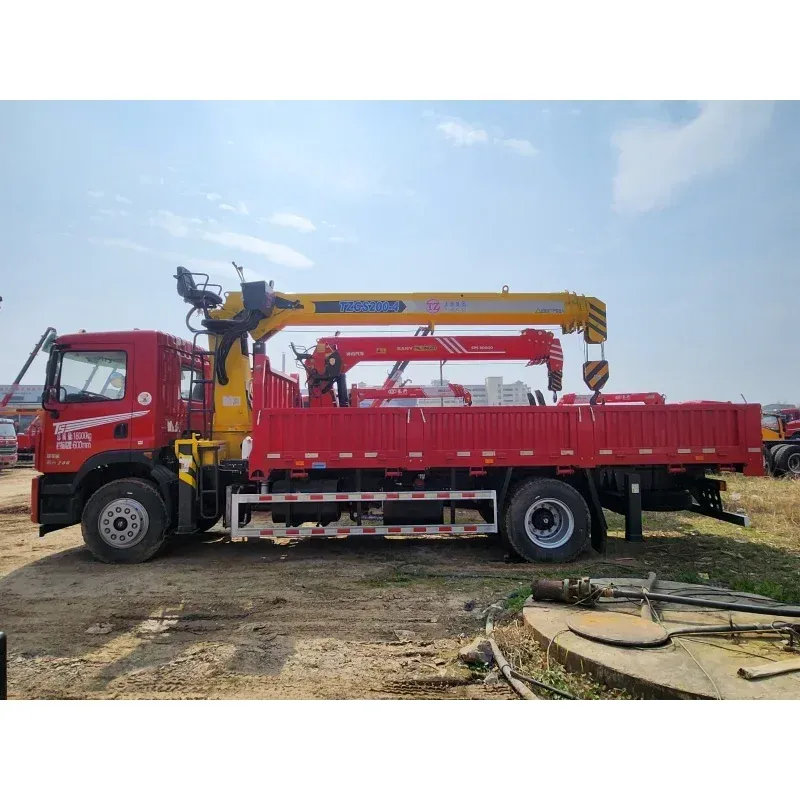

Truck-mounted crane on Dongfeng chassis, 8T — photo 4 of 6

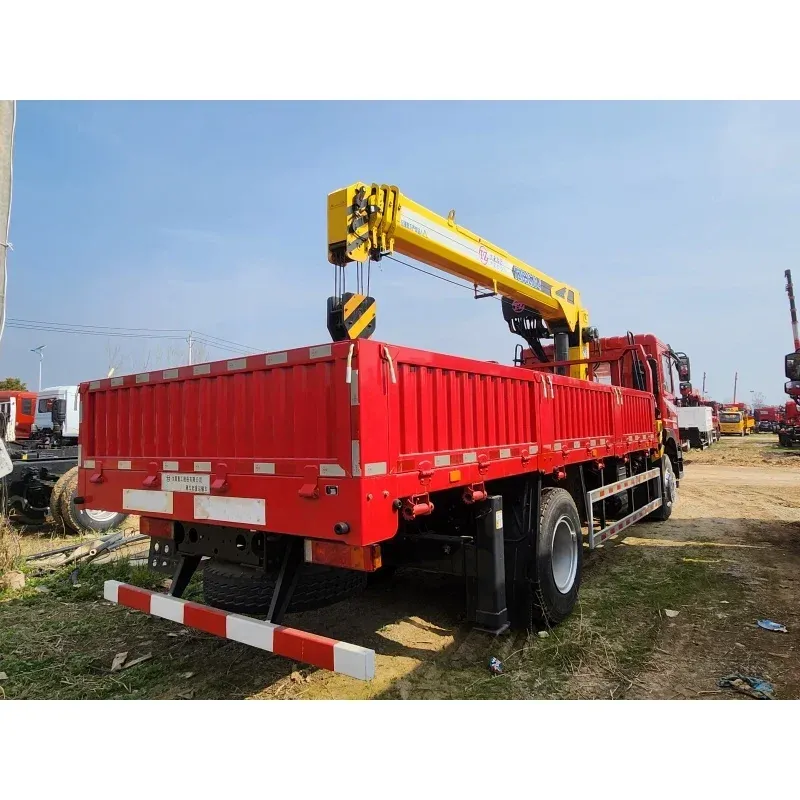

Truck-mounted crane on Dongfeng chassis, 8T — photo 5 of 6

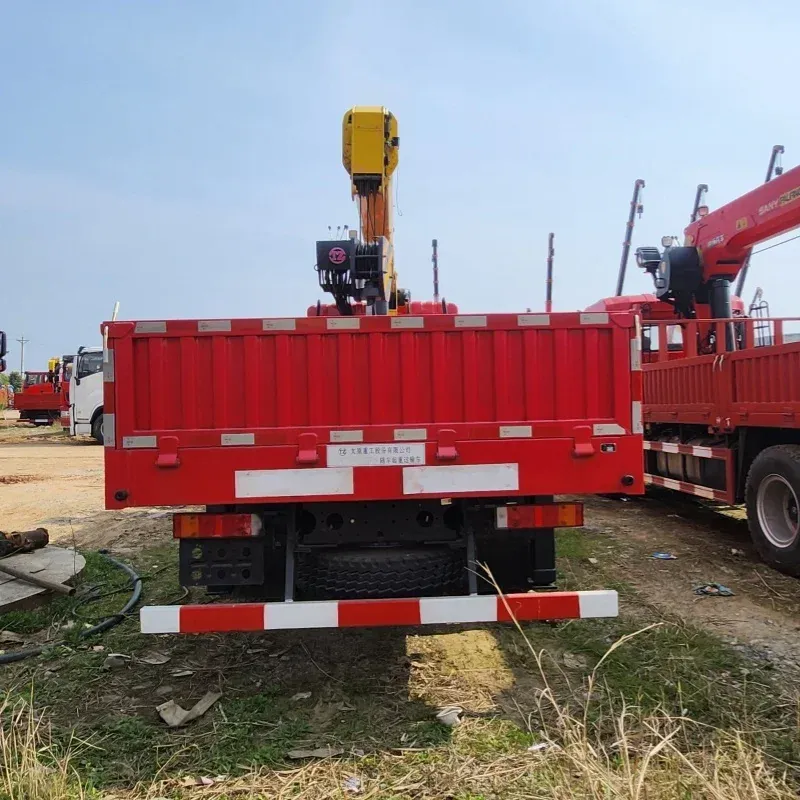

Truck-mounted crane on Dongfeng chassis, 8T — photo 6 of 6
Telescopic-Boom Truck-Mounted Cranes

Truck-Mounted Crane on Dongfeng — 8 t / 200 kN·m, 4-Section Telescopic Boom (Ref. TMC-DF2601)

8 t crane on a Dongfeng chassis, up to 16 m lifting height. Full specification, load chart and FOB price on request.

Short answer. This is an 8 t truck-mounted crane on a Dongfeng 4x2 chassis, with a hydraulic straight-arm, 4-section telescopic boom rated to a 200 kN·m lifting moment and a maximum lifting height of 16 m. The crane is Dongfeng-branded and works through four hydraulic outriggers spanning 5,600 mm, and the crane assembly weighs 9,800 kg. Drive type is 4x2, left-hand drive is standard and right-hand drive is available on request — tell us the market and the steering and emission configuration are confirmed before the order is placed.
Published by Truck Crane China — we build truck-mounted cranes, grab trucks and wrecker trucks on Chinese chassis for export.

This is an 8 t truck-mounted crane on a Dongfeng chassis, rated to 16 m lifting height.
Left-hand drive is standard on this build; right-hand drive is available on request. Tell us the market and we confirm the steering and the emission configuration before the order is placed.

Complete Specifications

Parameter
Value
Capacity
8 t
Max. lifting capacity
8 t
Chassis brand
Dongfeng
Boom type
Hydraulic Straight Arm
Outrigger
4 Hydraulic Outriggers
Crane make
Dongfeng
Warranty
2 Years
Hydraulic Cylinder Brand
Huade
Hydraulic Pump Brand
Huade
Hydraulic Valve Brand
Huade
Engine brand
Yuchai
Machinery Test Report
Provided
Video outgoing-inspection
Provided
Place of origin
China (Hubei)
Rated lifting moment
200 kN·m
Max. lifting height
16 m
Span
5,600 mm
Brand
Dongfeng
Weight
9,800 kg

Options and Configuration

Parameter
Value
Type
Truck Mounted Crane Mobile Crane Truck
Drive type
4x2 / LHD / RHD
Emission standard
Euro2 / 3 / 4 / 5 / 6
Color
Customer Requirements / White / Yellow / Green / Black / Blue
Unique Selling Point
Short turning radius
Application
Truck Crane Mobile Crane Hydraulic Crane


Questions buyers ask about the Dongfeng 4x2 8 t crane truck

What is the crane's capacity and lifting moment?
Maximum lifting capacity is 8 t, with a rated lifting moment of 200 kN·m. The crane itself is a Dongfeng crane.
How high can this crane lift?
Maximum lifting height is 16 m. Loads at that height depend on the crane's own load chart, which we supply with the build.
What boom and outrigger set-up does it use?
The boom is a hydraulic straight arm on a 4-section telescopic design, and the crane stands on four hydraulic outriggers with a 5,600 mm span. Span and boom geometry are what set the working radius for your loads.
What hydraulics and engine are fitted?
The hydraulic cylinders, pump and valve are Huade components, and the chassis runs a Yuchai engine. Place of origin is China (Hubei).
Which drive side can I order, and what comes with the crane?
Drive type is 4x2 with LHD standard and RHD available on request; the destination market decides the steering and emission configuration confirmed before the order is placed. The crane carries a 2-year warranty, and a machinery test report and video outgoing-inspection are provided.

Send the destination country, the load you handle and the reach you need. You will get the full build back: chassis, crane, body, the load chart for the crane we propose, and the price.

Questions on this truck

Ask for the specification sheet and the FOB price.

Tell us the model you are looking at and we come back with the full specification, the delivery time after deposit and the FOB price for your port. Where the table above is not complete for this model, ask us for the full specification sheet.
