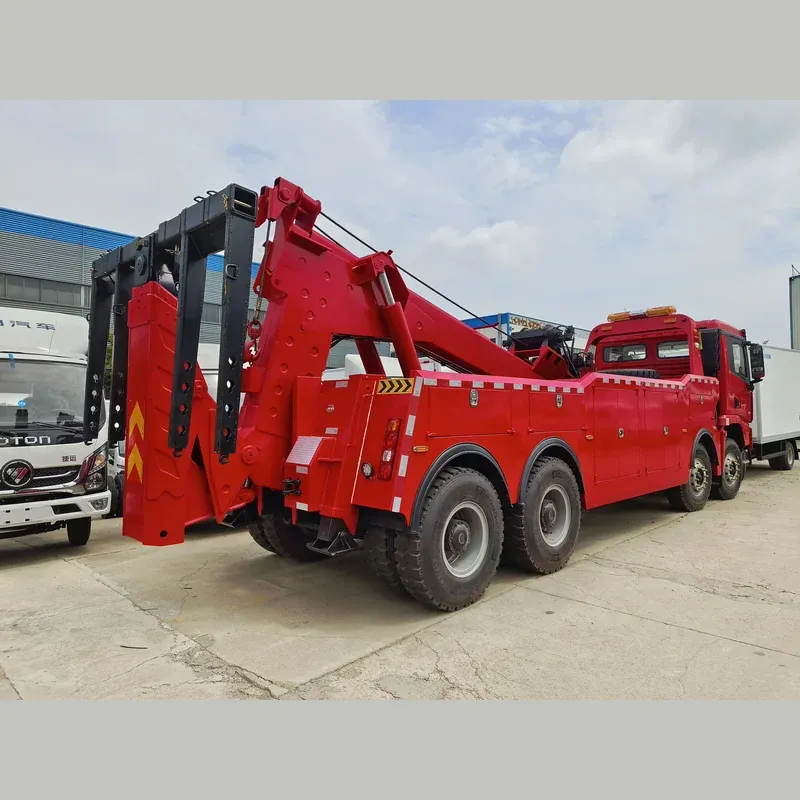

Wrecker tow truck on SHACMAN chassis — photo 3 of 6

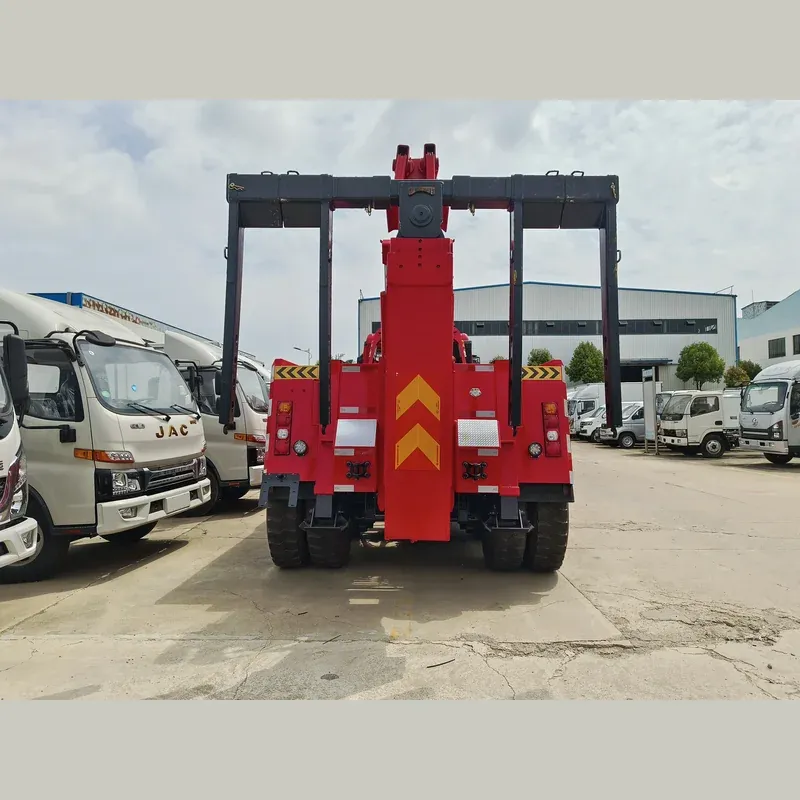

Wrecker tow truck on SHACMAN chassis — photo 4 of 6

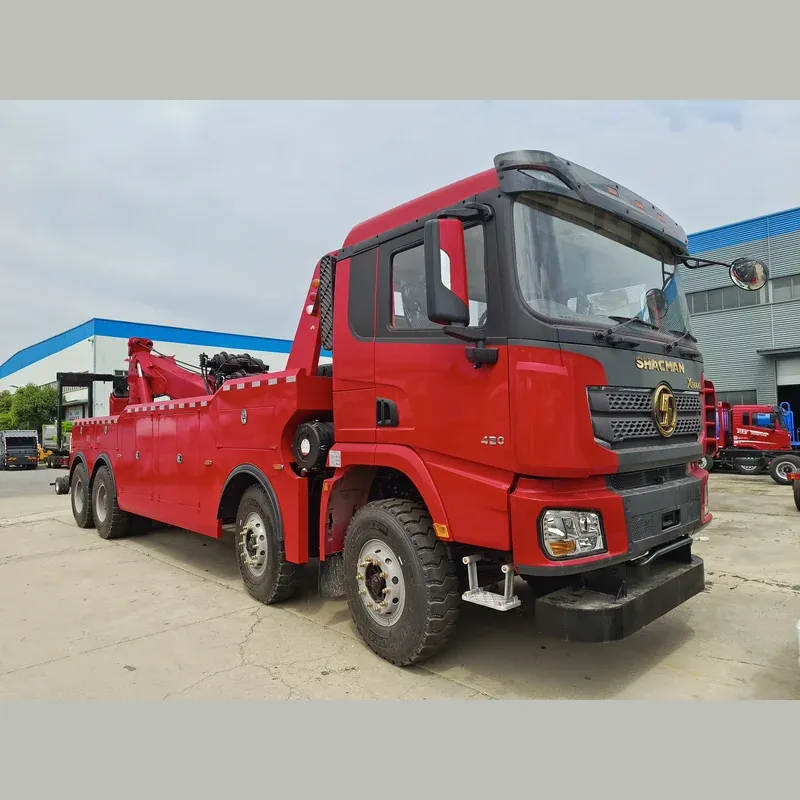

Wrecker tow truck on SHACMAN chassis — photo 5 of 6

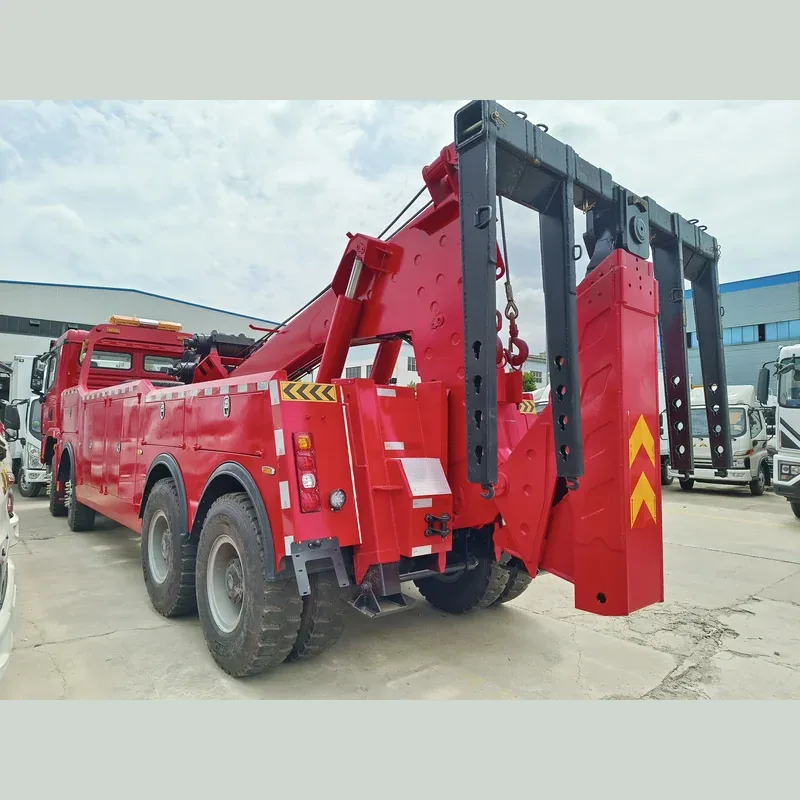

Wrecker tow truck on SHACMAN chassis — photo 6 of 6
Wrecker Trucks with Crane

Wrecker Tow Truck with Crane on SHACMAN — 40-70 t Towing, Built to Order (Ref. WTC-SX2602)

Wrecker with crane on a SHACMAN chassis (40-70 t towing). Crane to order — straight or knuckle boom, any brand. Rescue, transport and lifting in one truck.

Short answer. This is a built-to-order heavy wrecker tow truck with crane on a SHACMAN chassis, rated 40-70 t towing with 40-70 tons loading capacity for recovery, transport and lifting. It runs a SHACMAN 520 HP, 12.0 litre diesel engine with a manual transmission, a 40 000 kg winch pulling capacity and 45 m of steel wire rope, and a maximum lifting height of 7 m. The crane is specified to the job — straight boom or knuckle boom, any brand — and the truck measures 11,950 × 2,490 × 3,350 mm, with the drive type offered across 4x2 / 6x2 / 6x4 / 8x4 / 8x6 / 4x4 / 6x6 in RHD or LHD.
Published by Truck Crane China — we build truck-mounted cranes, grab trucks and wrecker trucks on Chinese chassis for export.

This is a wrecker tow truck on a SHACMAN chassis, built for road recovery.
Built to order, not from stock. A wrecker with crane on a SHACMAN chassis rated for 40-70 t towing, doing three jobs: recovery and rescue at the roadside, transport of the recovered vehicle, and lifting on site. The boom is specified to the job — straight boom or knuckle boom, sized to the loads you lift; brands include WHHC, XCMG, SANY and Zoomlion. Chassis come from SINOTRUK, SHACMAN, Dongfeng, FAW Jiefang, Foton, Isuzu, JMC or JAC. We engineer the subframe and mounting, fabricate the body, and deliver one finished, road-ready truck from our Suizhou works.

Complete Specifications

Parameter
Value
Usage
Rescue, transport and lifting
Maximum lifting height
7m
Winch Pulling Capacity
40 000 Kgs
Chassis brand
SHACMAN
Steel Wire Rope
45m
Engine
SHACMAN 520HP , 12.0 liters.
Fuel type
Diesel
Condition
New
Transmission
Manual
Place of origin
China (Hubei)
Dimensions (L x W x H)
11,950 × 2,490 × 3,350 mm

Options and Configuration

Parameter
Value
Crane
To order — straight or knuckle boom, any brand
Drive type
4x2 / 6x2 / 6x4 / 8x4 / 8x6 / 4x4 / 6x6 / RHD / LHD Drive
Loading capacity
40-70TONS
Emission Standard
Euro 3 / Euro 5


Questions buyers ask about SHACMAN 8x4 40-70 t wrecker with crane

What towing capacity does this heavy SHACMAN wrecker cover?
Towing is rated 40-70 t and loading capacity 40-70 tons, for recovery and transport of large vehicles.
What engine and winch does it run?
A SHACMAN 520 HP, 12.0 litre diesel engine with a manual transmission, driving a 40 000 kg winch pulling capacity with 45 m of steel wire rope.
What lifting height can the crane reach?
Maximum lifting height is 7 m; the crane itself is to order — straight boom or knuckle boom, any brand, sized to the loads you lift.
Which drive configurations are offered?
The drive type is offered as 4x2 / 6x2 / 6x4 / 8x4 / 8x6 / 4x4 / 6x6, in either RHD or LHD drive.
What are the truck's dimensions?
The truck measures 11,950 × 2,490 × 3,350 mm.

Send the destination country, the load you handle and the reach you need. You will get the full build back: chassis, crane, body, the load chart for the crane we propose, and the price.

Questions on this truck

Ask for the specification sheet and the FOB price.

Tell us the model you are looking at and we come back with the full specification, the delivery time after deposit and the FOB price for your port. Where the table above is not complete for this model, ask us for the full specification sheet.
