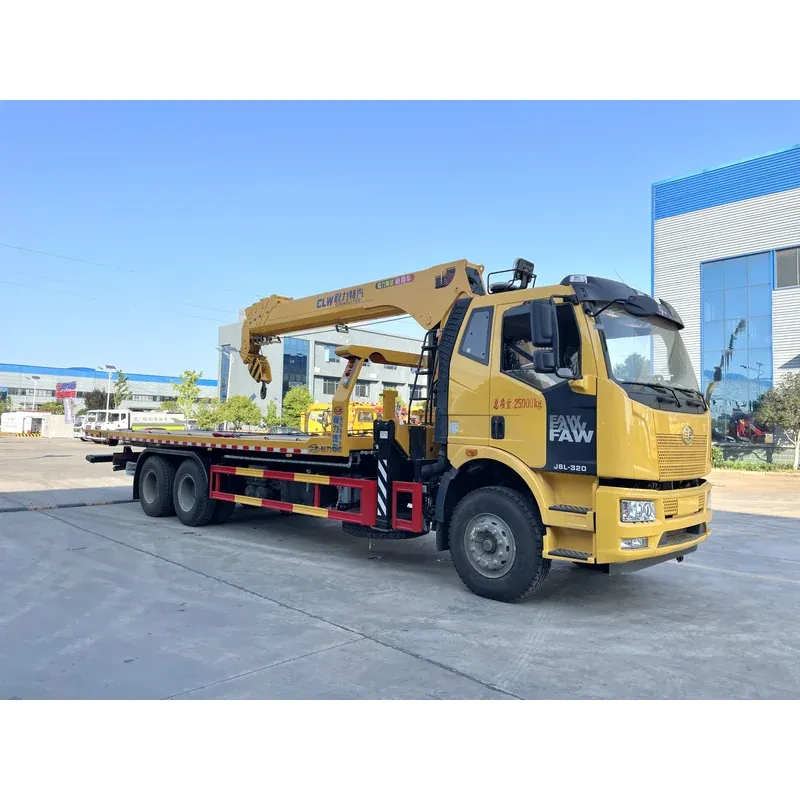

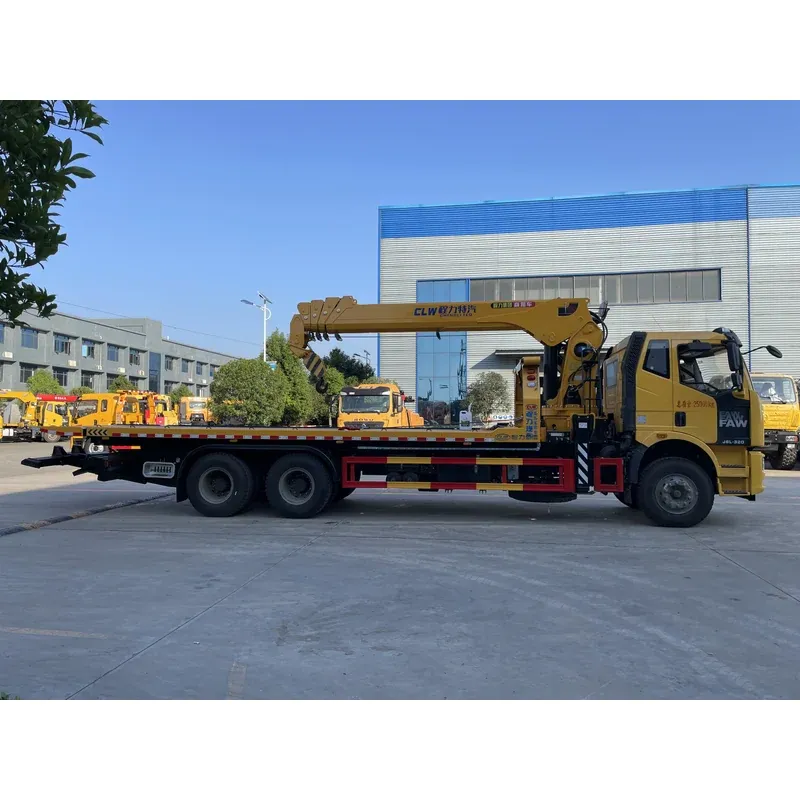

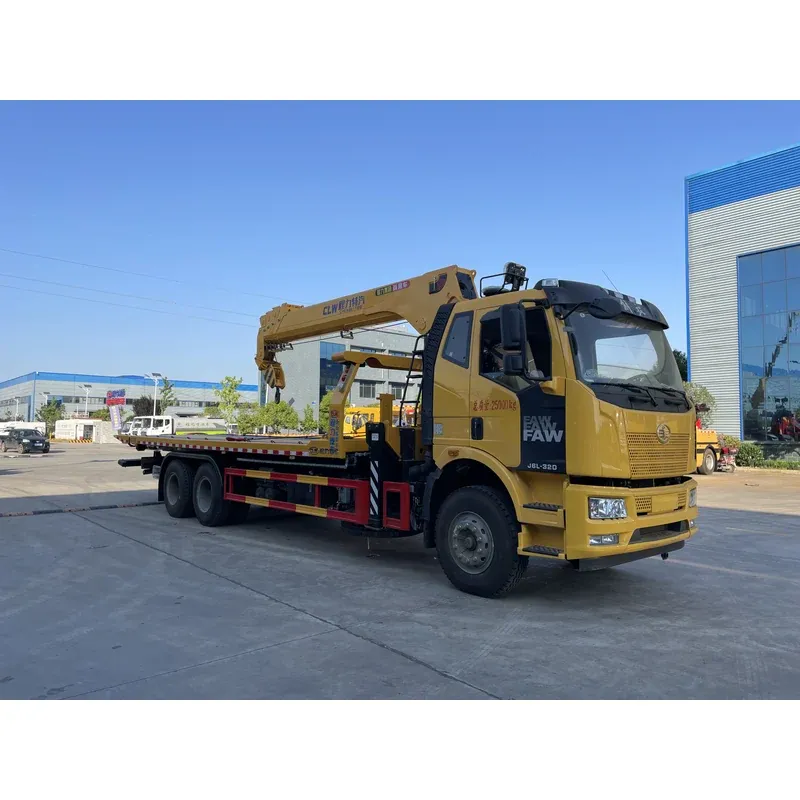

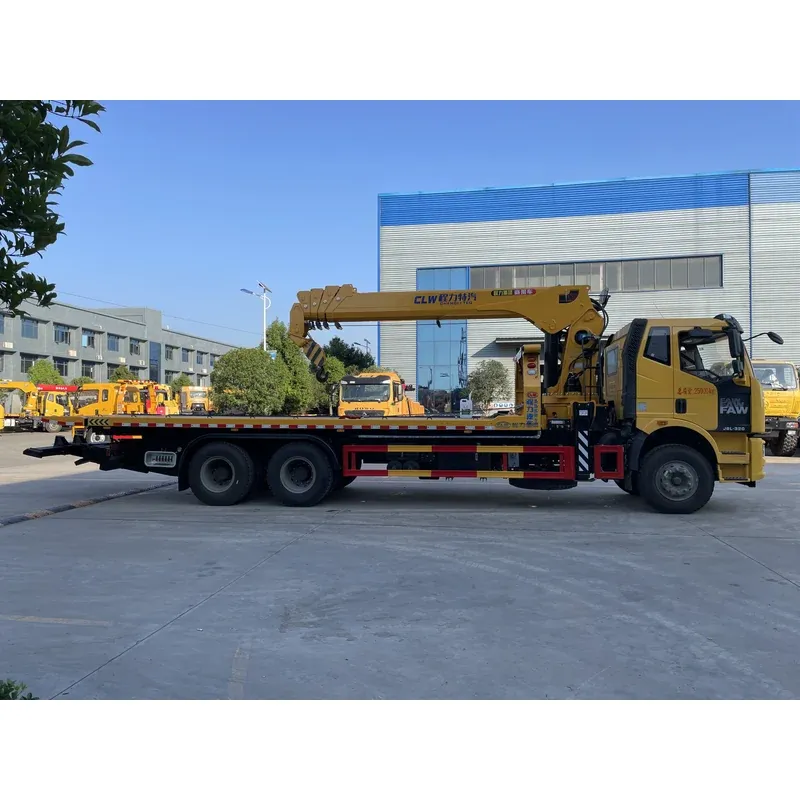

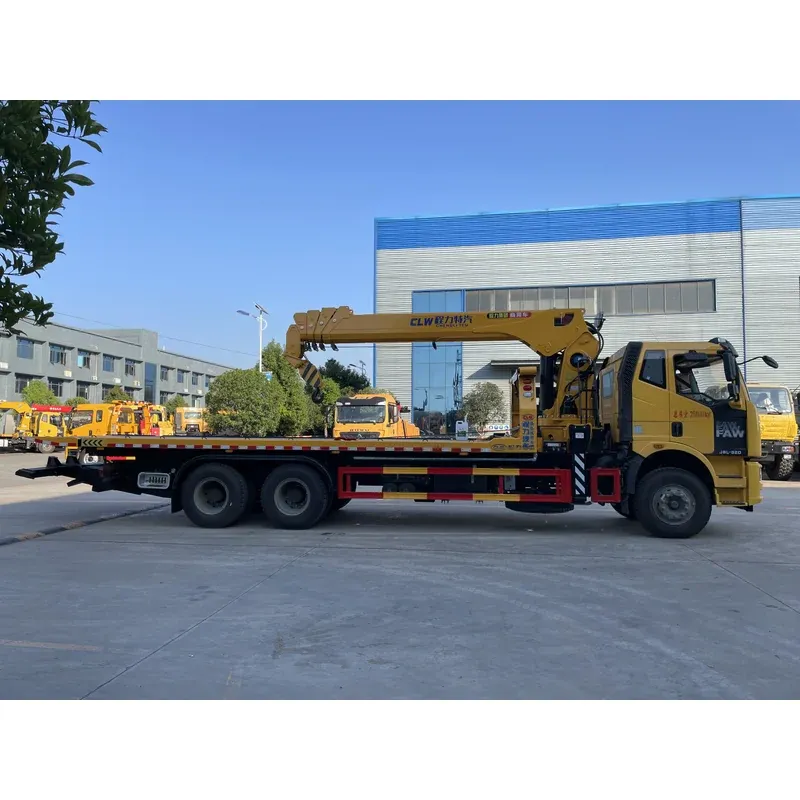

Wrecker Truck with Crane — FAW Chassis, Telescopic Boom (Ref. WTC-FW2602)
Recovery and lifting in one unit. FAW chassis with a telescopic boom crane — for roadside recovery and towing where sending two vehicles is not an option. Left-hand drive standard; right-hand drive available on request.
Short answer. The WTC-FW2602 is a wrecker truck with crane on the FAW J6L 6x4 chassis, combining an 18 t recovery body with a XCMG G-series GSQS300-5 (sqs300M) five-section telescopic-boom crane. The crane lifts a maximum 12,000 kg at a 300 kN·m moment, with a 5.47–18.63 m boom, a maximum lifting height of 20.5 m and 360° continuous slewing. The recovery body carries a standard 18 t three-section underlift and a sunken deck of 9.2 m total length. Left-hand drive is standard; right-hand drive is available on request.
Published by Truck Crane China — we build truck-mounted cranes, grab trucks and wrecker trucks on Chinese chassis for export.
Built to order, not from stock. Cranes come either from our own production or sourced to your specification — available brands include WHHC, XCMG, SANY and Zoomlion. Chassis are sourced from SINOTRUK, SHACMAN, Dongfeng, FAW Jiefang, Foton, Isuzu, JMC or JAC. We engineer the subframe and mounting, fabricate the body, and deliver one finished, road-ready truck from our Suizhou works.
Left-hand drive (LHD) is standard. Right-hand drive (RHD) is available on request and is built to order.
Complete Specifications
Parameter | Value |
|---|---|
Chassis | FAW J6L 6x4 |
Drive | 6x4 |
Steering | Left-hand drive (LHD) standard. Right-hand drive (RHD) available on request. |
Cab | FAW J6 full-floating flat-roof extended (sleeper) cab, four-point coil-spring suspension |
Engine | Dachai 320 hp (350 hp optional) |
Gearbox | Fast 10-speed, manual shift |
Drive axle | 435 pressed-welded axle |
Wheelbase | 5,800 + 1,350 mm |
Tyres | 12R22.5 |
Fuel tank | 400 L, steel |
Instrument cluster | LCD |
Cab equipment | Power windows, manual mirrors with heating, air-suspension driver seat, automatic air conditioning, manual hydraulic cab tilt |
Vehicle terminal | Single-DIN Beidou-compatible onboard system |
Front protection | Front underrun protection fitted |
Recovery body | 18 t recovery body, standard |
Winch | 10 t horizontal winch, optional |
Underlift | 18 t three-section underlift, standard |
Flatbed | Sunken deck, total length 9.2 m; 8 mm chequer plate optional |
Tail board | 1.2 m hydraulic folding tail board, optional |
Tow gear | 1 pair tow sockets, 2 pairs tow forks, 1 set wheel cradle, 6 straps, double chain hooks |
Auxiliary equipment | Auxiliary dolly, 2 auxiliary air lines, hand-wash water tank |
Frame | Chassis frame reinforced for recovery duty |
Hydraulics | Imported hydraulic components; Haizhanli cylinders |
Crane | XCMG G-series GSQS300-5 (sqs300M), five-section telescopic boom |
Boom length | 5.47–18.63 m (five sections) |
Max. lifting capacity | 12,000 kg |
Max. lifting moment | 300 kN·m |
Max. hydraulic outreach | 18.75 m |
Max. lifting height | 20.5 m |
Slewing angle | 360° continuous |
Stabilizer spread | 2,474–7,582 mm |
Installation space | 1,300 mm |
Max. operating pressure | 26 MPa |
Recommended pump capacity | 63 + 40 L/min |
Oil tank capacity | 270 L |
Crane self-weight | 4,528 kg |
Rated lifting load — XCMG GSQS300-5 (kg)
Working radius (m) | 5.47 m boom | 8.76 m boom | 12.05 m boom | 15.34 m boom | 18.63 m boom |
|---|---|---|---|---|---|
2.5 | 12000 | 7000 | 5000 | — | — |
3.0 | 10500 | 7000 | 5000 | — | — |
3.5 | 9100 | 6500 | 5000 | 4000(3.6) | — |
4.0 | 8100 | 6000 | 4700 | 4000 | — |
4.5 | 7300 | 5500 | 4200 | 3700 | 3000(4.4) |
5.0 | 6400(5.1) | 5100 | 3800 | 3500 | 3000 |
5.5 | — | 4700 | 3650 | 3300 | 2800 |
6.0 | — | 4300 | 3500 | 3150 | 2600 |
6.5 | — | 4000 | 3400 | 3000 | 2500 |
7.0 | — | 3800 | 3250 | 2850 | 2400 |
7.5 | — | 3600 | 3100 | 2700 | 2300 |
8.0 | — | 3300 | 2950 | 2550 | 2200 |
8.5 | — | 3000(8.4) | 2800 | 2450 | 2100 |
9.0 | — | — | 2650 | 2350 | 2000 |
9.5 | — | — | 2500 | 2250 | 1900 |
10.0 | — | — | 2350 | 2150 | 1800 |
10.5 | — | — | 2200 | 2050 | 1700 |
11.0 | — | — | 2050 | 1950 | 1600 |
11.5 | — | — | 1900(11.7) | 1850 | 1500 |
12.0 | — | — | — | 1750 | 1400 |
12.5 | — | — | — | 1650 | 1320 |
13.0 | — | — | — | 1550 | 1250 |
13.5 | — | — | — | 1450 | 1180 |
14.0 | — | — | — | 1350 | 1100 |
15.0 | — | — | — | 1100(14.9) | 1000 |
16.0 | — | — | — | — | 900 |
17.0 | — | — | — | — | 800 |
18.0 | — | — | — | — | 700 |
18.5 | — | — | — | — | 650(18.3) |
Chassis and recovery-body figures are confirmed by the manufacturer for this build. Crane figures and the rated lifting load chart are the XCMG G-series data for the GSQS300-5 (sqs300M); a dash means the boom length cannot work at that radius, and a value in brackets gives the working radius where it differs from the row heading. Options and body configuration are confirmed per order.
Questions buyers ask about the FAW wrecker truck with crane (WTC-FW2602)
What chassis and driveline does it use?
FAW J6L 6x4 with a Dachai 320 hp engine (350 hp optional), a Fast 10-speed manual gearbox, a 435 pressed-welded drive axle and a 5,800 + 1,350 mm wheelbase.
What crane is fitted, and what does it lift?
A XCMG G-series GSQS300-5 (sqs300M) with a maximum lifting capacity of 12,000 kg and a maximum lifting moment of 300 kN·m, on a 5.47–18.63 m boom with 360° continuous slewing.
What are the crane's reach figures?
A maximum hydraulic outreach of 18.75 m and a maximum lifting height of 20.5 m.
What recovery equipment is standard?
An 18 t recovery body and an 18 t three-section underlift, with a 10 t horizontal winch optional; the sunken deck has a total length of 9.2 m, with 8 mm chequer plate and a 1.2 m hydraulic folding tail board optional.
What are the outrigger, installation and hydraulic figures?
A stabilizer spread of 2,474–7,582 mm, an installation space of 1,300 mm, a maximum operating pressure of 26 MPa and a recommended pump capacity of 63 + 40 L/min, with a 270 L oil tank and a crane self-weight of 4,528 kg.
What tow gear and tyres come with it?
1 pair of tow sockets, 2 pairs of tow forks, 1 set of wheel cradle, 6 straps and double chain hooks, on 12R22.5 tyres with a 400 L steel fuel tank.
