Off-Road Telehandler (RT Crane) SX1840 — 4 t / 18 m, 4WD Multi-function (Ref. THB-2601)
4 t / 18 m off-road telehandler (RT crane) on a 4WD chassis, with three steering modes and quick-change attachments. Specification and price on request.

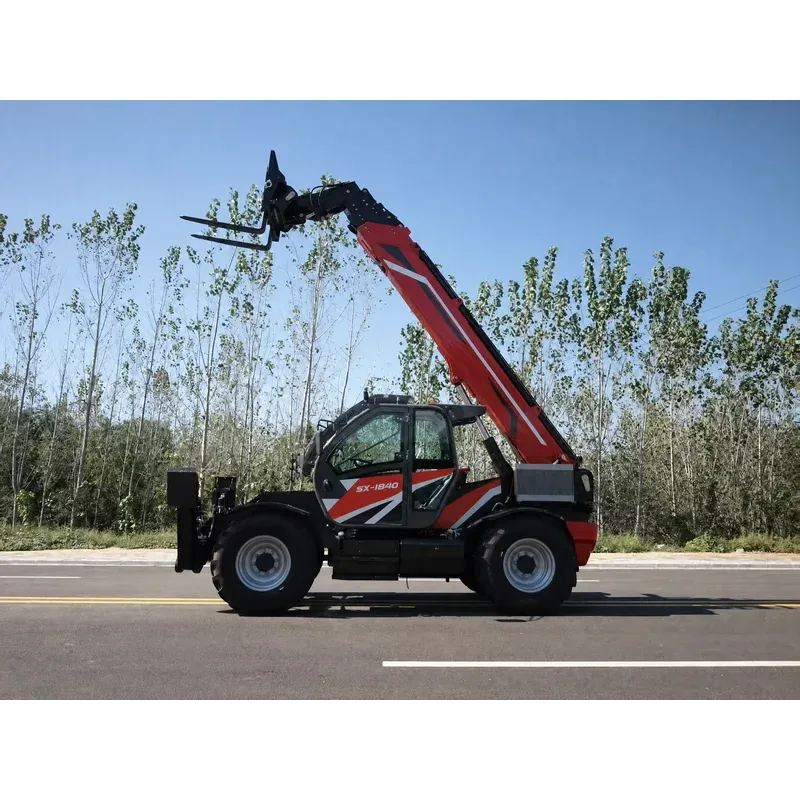

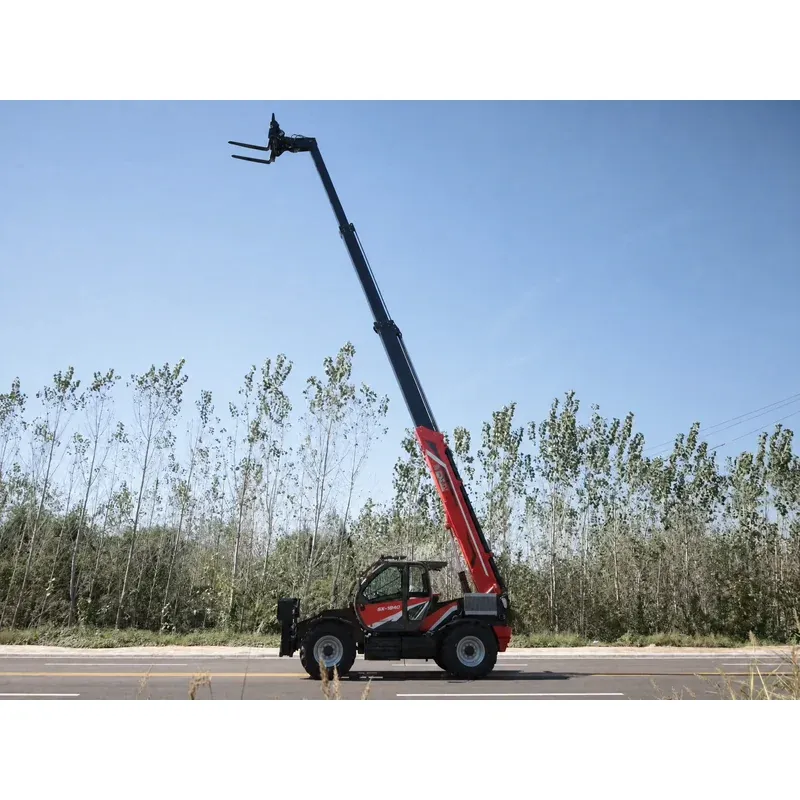

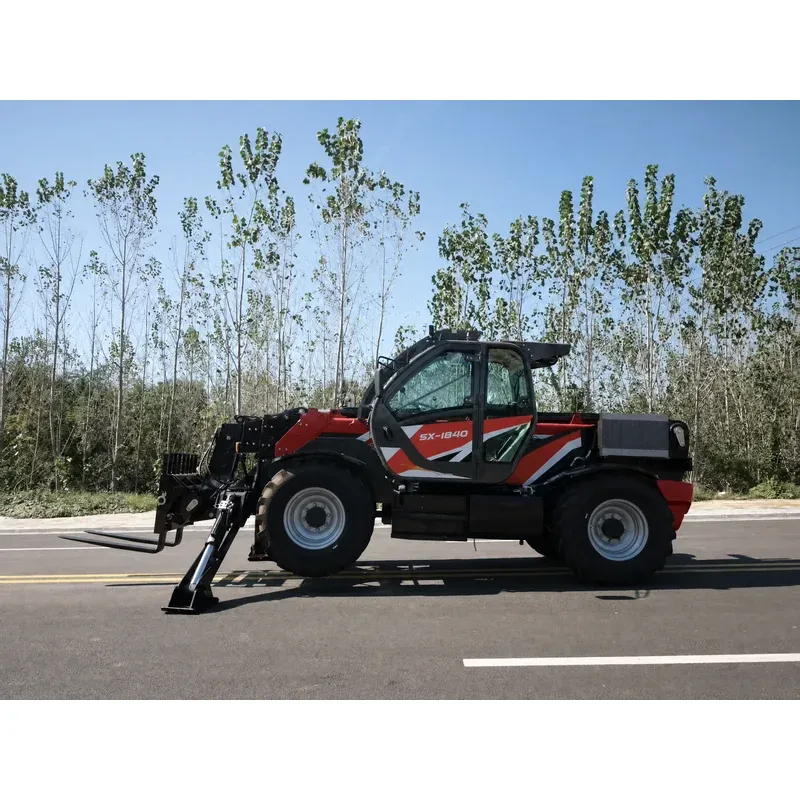

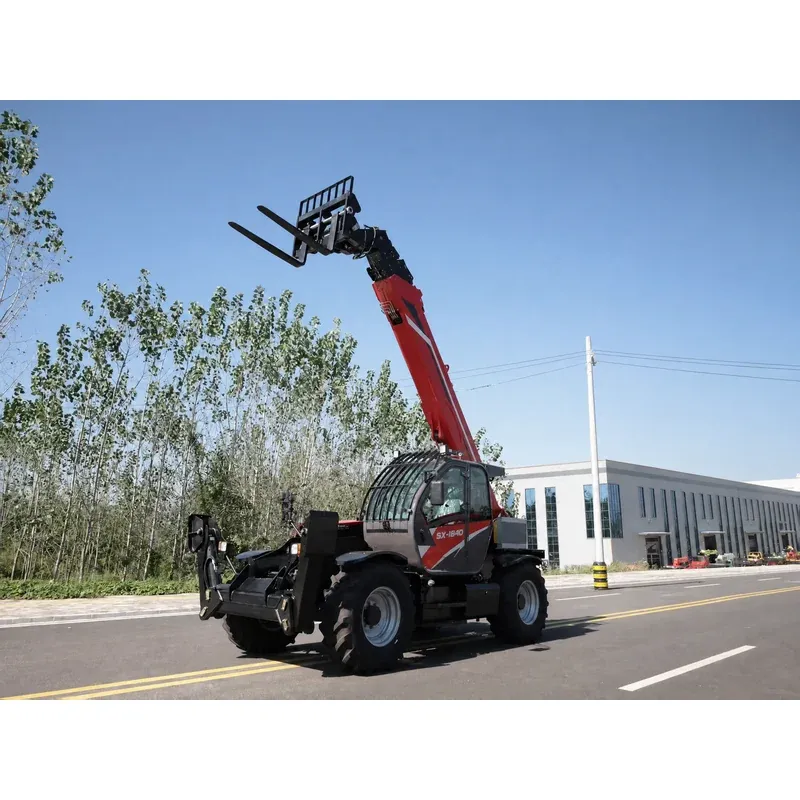

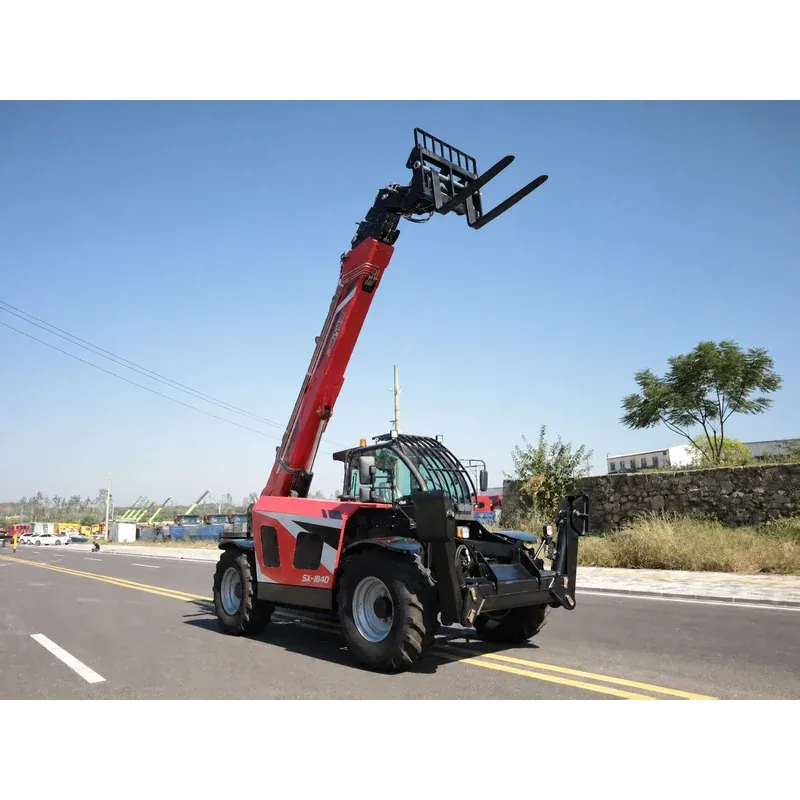

This is a 4 t / 18 m off-road telehandler — a rough-terrain crane on a four-wheel-drive chassis, with a maximum lifting height of 17.6 m, a maximum horizontal reach of 12.5 m and a quick-change attachment coupling. With the boom at maximum height it still lifts 2.5 t. Built to order — the configuration and the attachment set are matched to the job before the order is placed.
The machine runs a Cummins QSF3.8-C140 engine rated at 104 kW (140 hp) to Euro III, with no urea after-treatment system, so no diesel exhaust fluid is needed in service. Tell us the market and the work and we confirm the configuration before the order is placed.
Complete Specifications
Parameter | Value |
|---|---|
Machine | |
Model | SX1840 |
Type | Off-road telehandler (rough-terrain crane) |
Rated load | 4,000 kg |
Max. lifting height | 17,600 mm (nominal 18 m) |
Max. horizontal reach | 12,500 mm |
Capacity at max. lifting height | 2,500 kg |
Capacity at max. horizontal reach | 400 kg |
Engine | |
Make | Cummins |
Model | QSF3.8-C140 |
Displacement | 3.8 L |
Maximum power | 104 kW (140 hp) at 2,200 rpm |
Maximum torque | 530 N·m |
Emission level | Euro III |
After-treatment | No urea after-treatment system |
Dimensions and weights | |
Operating weight | 13,000 kg |
Overall dimensions (L × W × H) | 6,170 × 2,400 × 2,850 mm |
Wheel base | 3,300 mm |
Min. ground clearance | 400 mm |
Front overhang | 1,120 mm |
Rear overhang | 1,210 mm |
Load centre to carriage | 600 mm |
Approach angle | 40° |
Departure angle | 33° |
Travel and steering | |
Drive | 4WD |
Travel speed | 0–32 km/h |
Steering modes | 2WS / 4WS / crab steering |
Outriggers | |
Outriggers | Standard, hydraulic |
Max. outrigger width | 3,670 mm |
Hydraulics | |
Hydraulic working pressure | 28 MPa |
Attachment | |
Standard attachment | 1,200 mm fork |
Attachment coupling | Quick-change |
Tyres | |
Tyres | 440/80-24 off-road vacuum tyre |
Configuration | |
Place of origin | China (Hubei) |
Options and Configuration
Parameter | Value |
|---|---|
Type | Telehandler Rough Terrain Crane Material Handler |
Drive | 4WD |
Steering modes | 2WS / 4WS / Crab steering |
Emission standard | Euro III (no urea after-treatment) |
Standard attachment | 1.2 m standard fork for material handling and stacking |
Option 1 | Engineering bucket for sand and earth moving |
Option 2 | Aerial work platform for exterior construction and equipment maintenance |
Option 3 | Lifting sling for small steel structure hoisting |
Option 4 | Log grapple and hay grab for agriculture and pasture work |
Colour | Customer requirements / Red / Yellow / White / Black |
Application | Construction Warehouse Yard Agriculture Mining Rental |

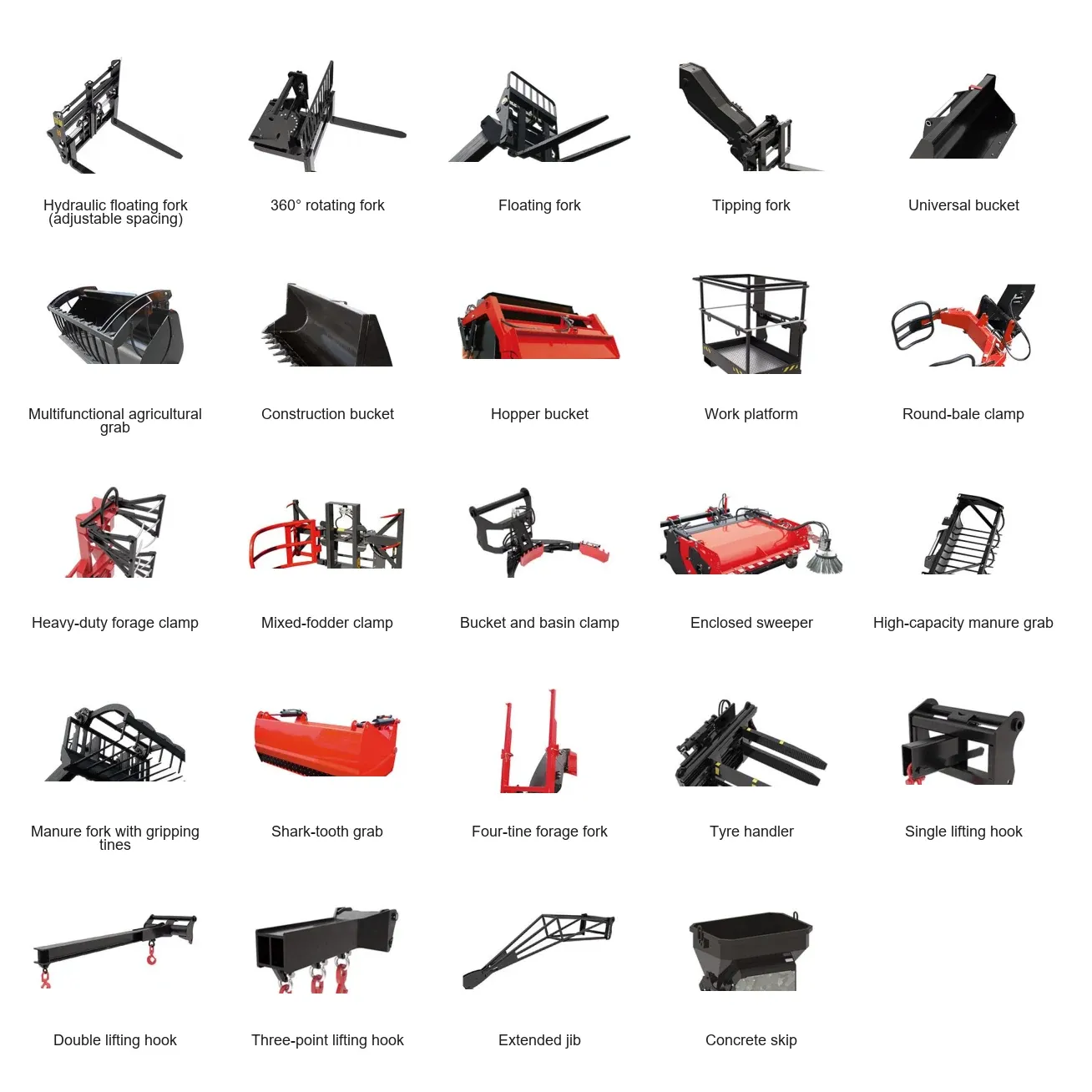

Quick-Change Attachments
Every attachment below fits the same quick-change coupling on the fork carriage, so one machine covers material handling, earthmoving, agriculture, lifting and access work. The 1.2 m fork is standard; the rest are ordered with the machine.
Attachment type | Attachments available |
|---|---|
Forks | Hydraulic floating fork (adjustable spacing), 360° rotating fork, floating fork, tipping fork, manure fork with gripping tines, four-tine forage fork |
Buckets, skips and platforms | Universal bucket, construction bucket, hopper bucket, work platform, concrete skip |
Grabs and clamps | Multifunctional agricultural grab, round-bale clamp, heavy-duty forage clamp, mixed-fodder clamp, bucket and basin clamp, high-capacity manure grab, shark-tooth grab, tyre handler |
Sweepers and lifting gear | Enclosed sweeper, single lifting hook, double lifting hook, three-point lifting hook, extended jib |
Send the destination country, the load you handle and the height and reach you need. You will get the full build back: machine configuration, the attachment list, the load chart and the price.
