Knuckle-Boom Truck-Mounted Cranes
SHACMAN Delong M3000S Tractor Unit with 38 t Knuckle-Boom Crane — 6×4, 460 hp
A 38 t knuckle-boom crane mounted behind the cab of a SHACMAN Delong M3000S 6×4 tractor — lift, haul and unload without a second machine. Left-hand drive standard; right-hand drive available on request.
Short answer. This is a SHACMAN Delong M3000S 6×4 tractor with a 38 t knuckle-boom (articulated) crane mounted behind the cab on a reinforced subframe, so one machine lifts, carries and unloads. Power is a Weichai 12 L engine rated at 460 hp through a FAST (Shanxi) 12-speed gearbox, in a day cab with twin driven axles. It suits yards where the crane and the haul are the same job: steel and pipe stock, precast concrete, timber and heavy plant recovery. Left-hand drive is standard; right-hand drive is available on request.
Published by Truck Crane China — we build truck-mounted cranes, grab trucks and wrecker trucks on Chinese chassis for export.

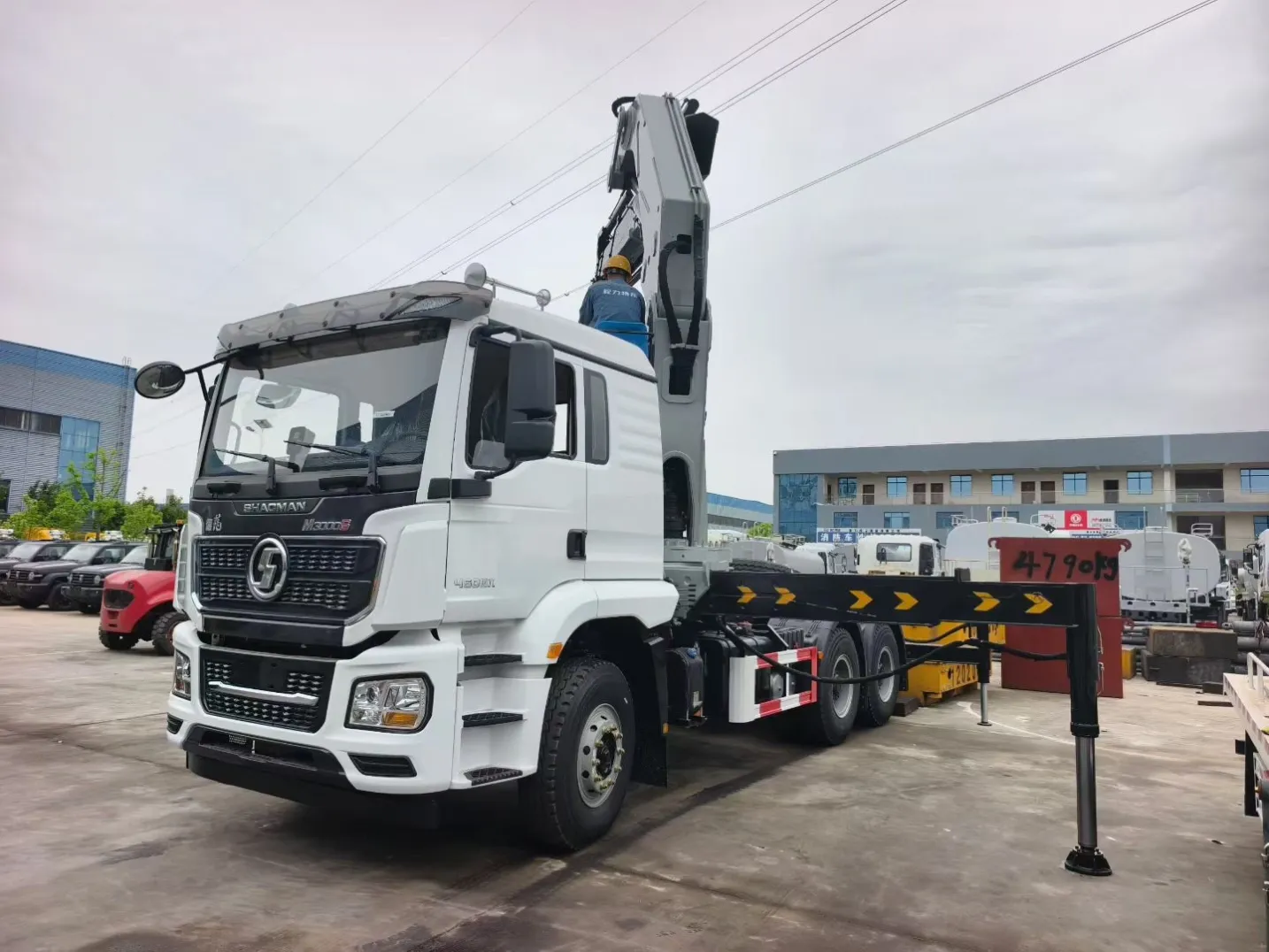

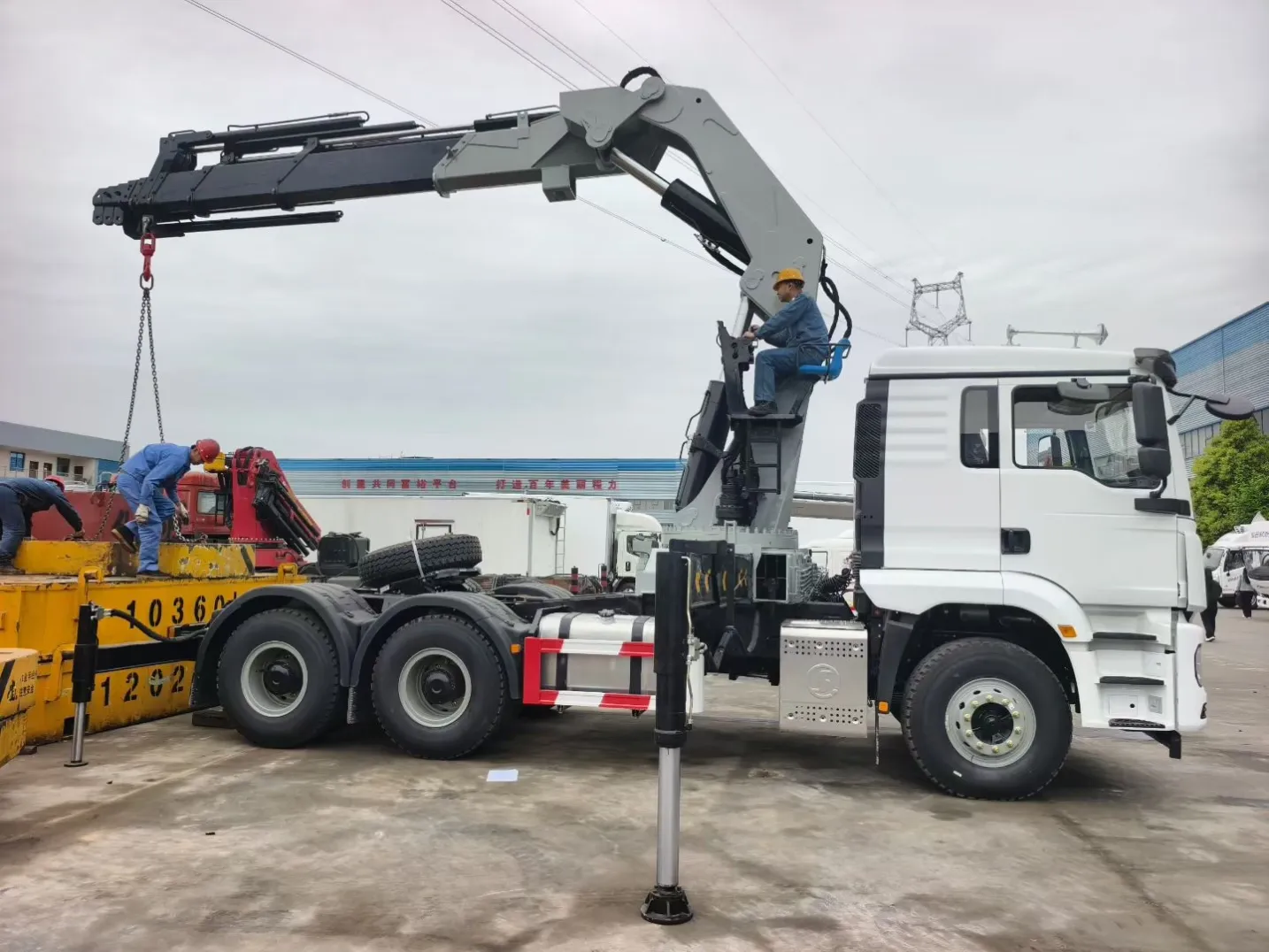

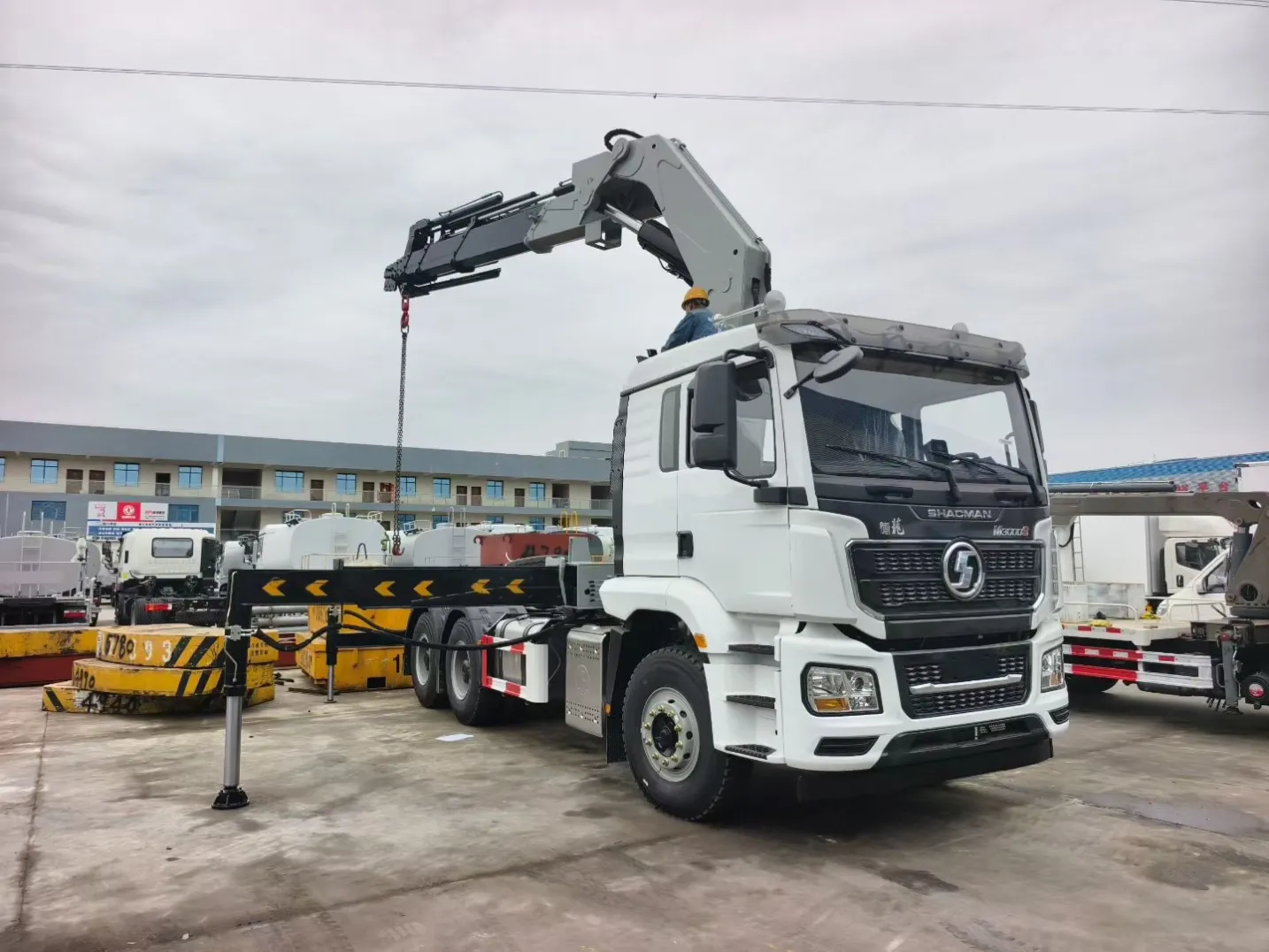

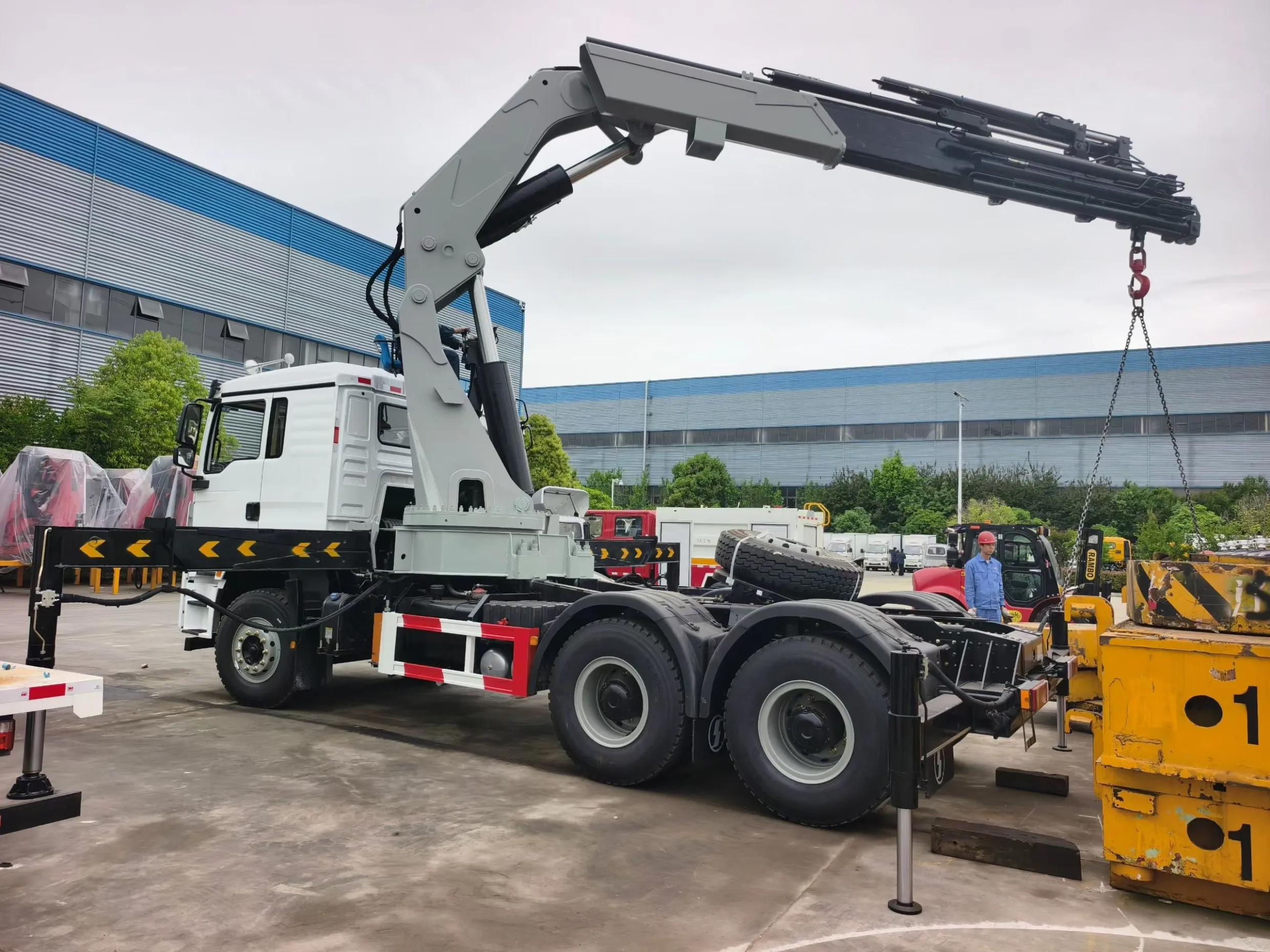

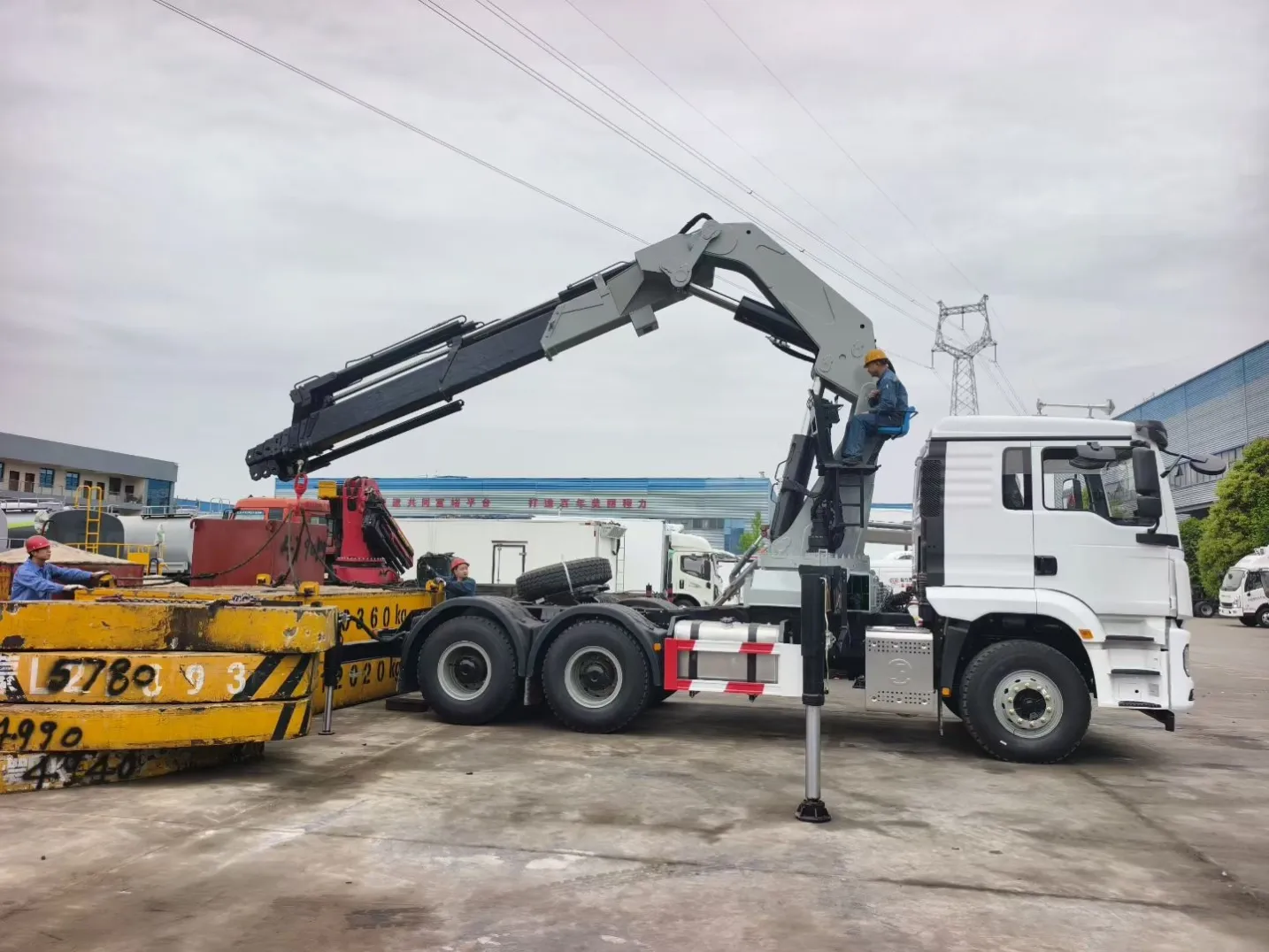

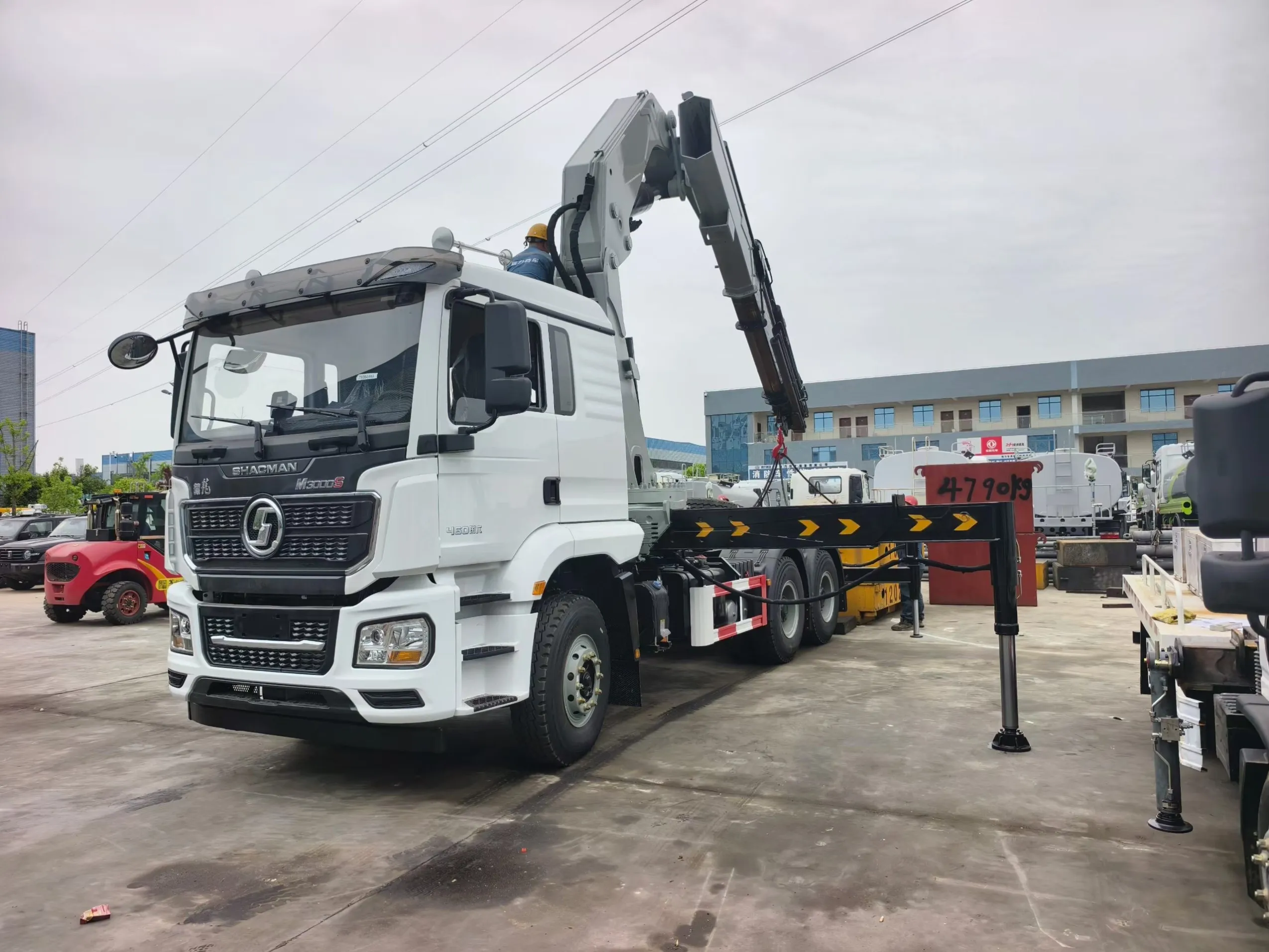

SHACMAN Delong M3000S 6×4 tractor with a 38 t knuckle-boom crane mounted behind the cab on a reinforced subframe. One machine lifts, carries and unloads — for yards where the crane and the haul are the same job: steel and pipe stock, precast concrete, timber, and heavy plant recovery.
Left-hand drive (LHD) is standard. Right-hand drive (RHD) is available on request and is built to order.
Key Specifications
Vehicle | Specification |
Chassis | SHACMAN Delong M3000S |
Drive | 6×4 (twin driven axles) |
Steering | Left-hand drive (LHD) standard. Right-hand drive (RHD) available on request. |
Engine | Weichai, 12 L |
Rated power | 460 hp |
Gearbox | FAST (Shanxi), 12-speed |
Cab | Day cab |
Crane | Specification |
Crane type | Knuckle boom (articulated) |
Max. rated lifting capacity | 38 t |
Mounting position | Behind cab, on tractor chassis |
Outriggers | Hydraulic |
Questions buyers ask about this SHACMAN Delong M3000S crane tractor
What kind of crane is fitted?
A 38 t knuckle-boom (articulated) crane, mounted behind the cab on the tractor chassis.
What does the driveline look like?
A Weichai 12 L engine rated at 460 hp through a FAST (Shanxi) 12-speed gearbox, on a 6×4 twin-driven-axle chassis.
How are the outriggers arranged?
Hydraulic outriggers.
What kind of cab does it have?
A day cab.
What work is it built for?
Lifting, carrying and unloading in one machine — for yards handling steel and pipe stock, precast concrete, timber and heavy plant recovery.
