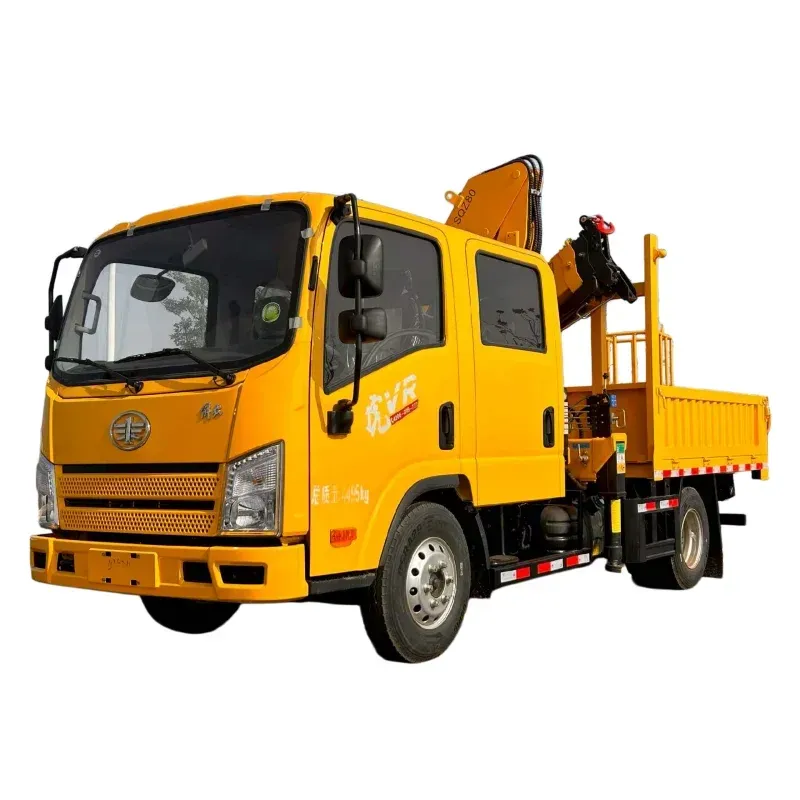

Truck-mounted crane on FAW chassis, 4T — photo 1 of 6

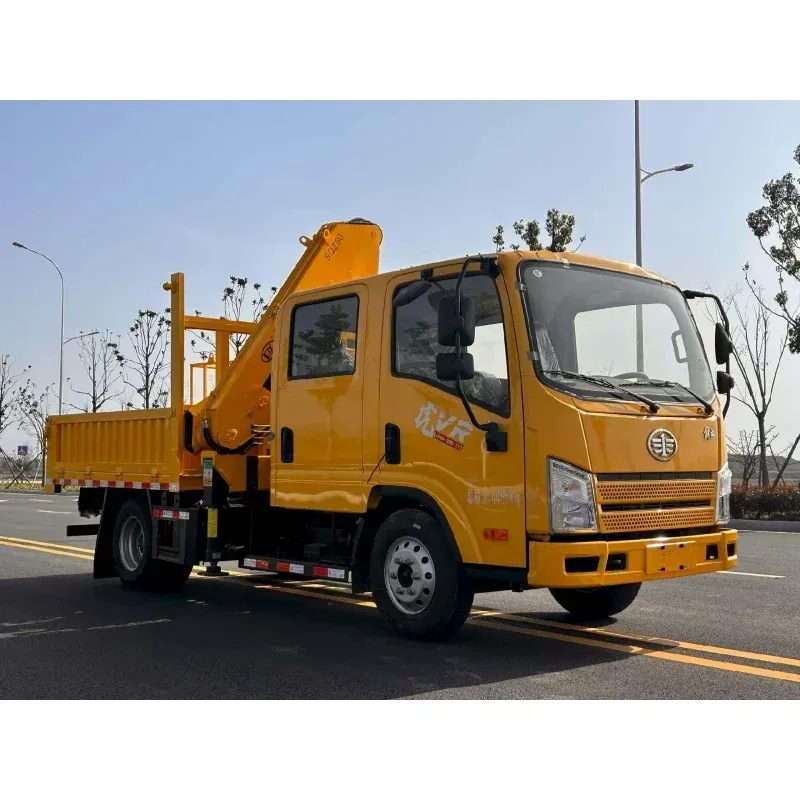

Truck-mounted crane on FAW chassis, 4T — photo 2 of 6

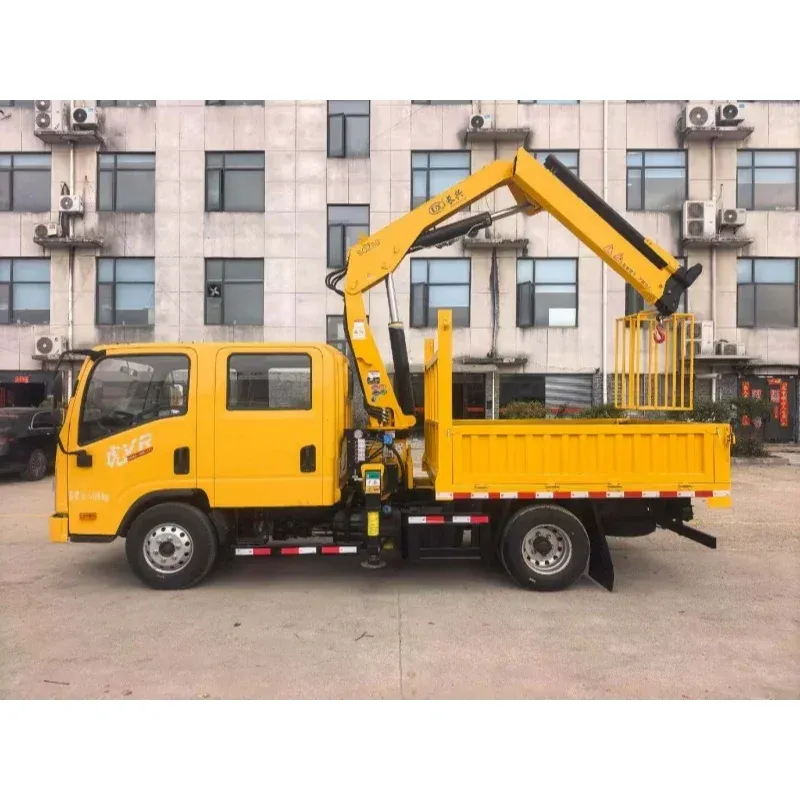

Truck-mounted crane on FAW chassis, 4T — photo 3 of 6

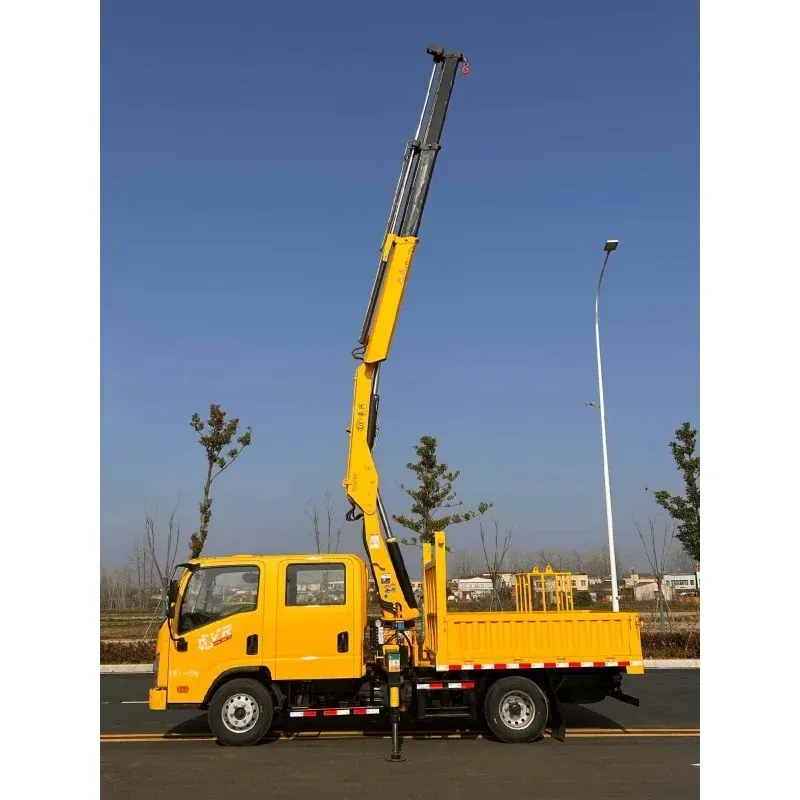

Truck-mounted crane on FAW chassis, 4T — photo 4 of 6

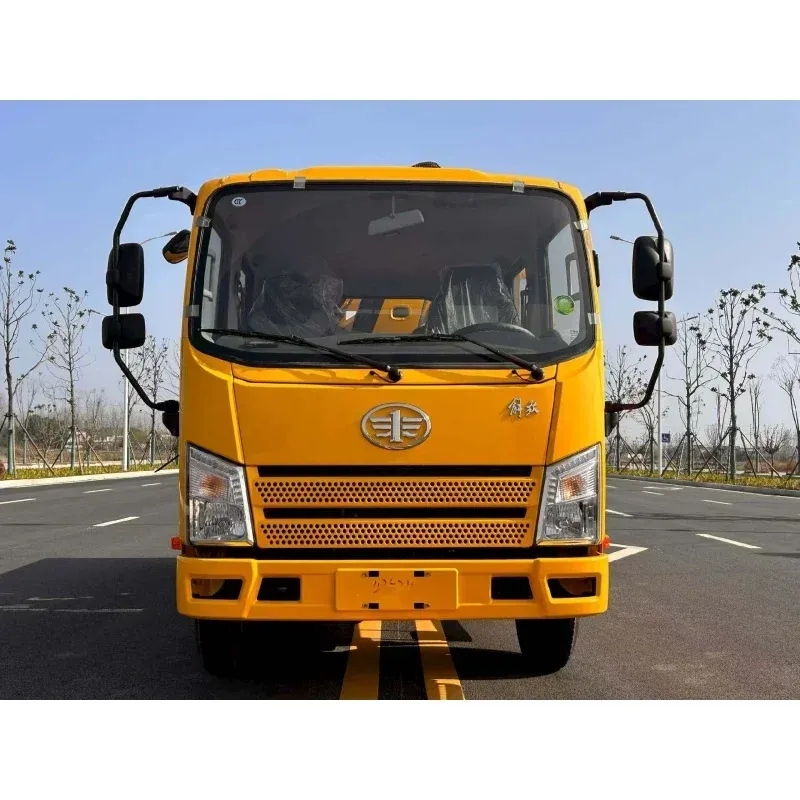

Truck-mounted crane on FAW chassis, 4T — photo 5 of 6

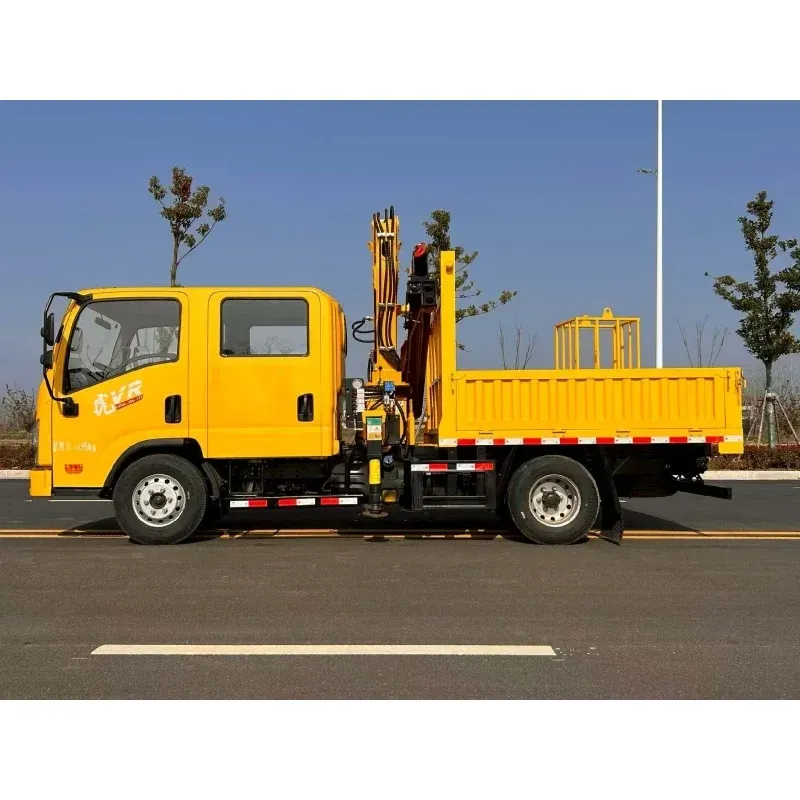

Truck-mounted crane on FAW chassis, 4T — photo 6 of 6
Knuckle-Boom Truck-Mounted Cranes

Truck-Mounted Crane on FAW — 4 t / 84 kN·m (Ref. TMC-FW2601)

4 t crane on a FAW chassis, up to 10 m lifting height. Full specification, load chart and FOB price on request.

Short answer. This is a 4 t truck-mounted crane on a FAW chassis, rated to a maximum lifting height of 10 m. The crane is a hydraulic knuckle boom with an 84 kN·m rated lifting moment and a 5,000 mm span, carried on a 4x2 truck-mounted crane (mobile crane truck) build with 4 hydraulic outriggers. Left-hand drive is standard on this build and right-hand drive is available on request, with the steering and the emission configuration confirmed before the order is placed. Full specification, load chart and FOB price are on request.
Published by Truck Crane China — we build truck-mounted cranes, grab trucks and wrecker trucks on Chinese chassis for export.

This is a 4 t truck-mounted crane on a FAW chassis, rated to 10 m lifting height.
Left-hand drive is standard on this build; right-hand drive is available on request. Tell us the market and we confirm the steering and the emission configuration before the order is placed.

Complete Specifications

Parameter
Value
Capacity
4 t
Max. lifting capacity
4 t
Chassis brand
FAW
Boom type
Hydraulic Knuckle Boom
Outrigger
4 Hydraulic Outriggers
Max. lifting height
10 m
Warranty
2 Years
Hydraulic Cylinder Brand
Huade
Hydraulic Pump Brand
Huade
Hydraulic Valve Brand
Huade
Engine brand
Quancai
Machinery Test Report
Provided
Video outgoing-inspection
Provided
Place of origin
China (Hubei)
Rated lifting moment
84 kN·m
Span
5,000 mm
Brand
FAW
Crane make
FAW
Weight
3,500 kg

Options and Configuration

Parameter
Value
Type
Truck Mounted Crane Mobile Crane Truck
Drive type
4x2 / LHD / RHD
Emission standard
Euro2 / 3 / 4 / 5 / 6
Color
Customer Requirements / White / Yellow / Green / Black / Blue
Unique Selling Point
High operating efficiency
Application
Truck Crane Mobile Crane Hydraulic Crane


Questions buyers ask about the FAW 4 t truck-mounted crane

What can this FAW unit lift, and to what height?
It is a 4 t crane with a rated lifting moment of 84 kN·m and a maximum lifting height of 10 m. The load chart for the crane we propose for your job comes back with the build.
Which boom does this build use?
A hydraulic knuckle boom. It folds into a compact travel envelope and reaches into positions a straight boom cannot, and it works over 4 hydraulic outriggers across a 5,000 mm span.
What is the drive configuration, and can it be right-hand drive?
The drive type is 4x2. Left-hand drive is standard and right-hand drive is available on request; steering and the emission configuration are confirmed before the order is placed.
How heavy is the crane unit on this chassis?
The crane is listed at 3,500 kg.
What hydraulics and engine are fitted?
Huade hydraulic cylinders, pump and valve, with a Quancai engine brand. A machinery test report and video outgoing-inspection are provided.
What work is this build sold for?
The record lists it for truck crane, mobile crane and hydraulic crane work, with high operating efficiency as its stated selling point.

Send the destination country, the load you handle and the reach you need. You will get the full build back: chassis, crane, body, the load chart for the crane we propose, and the price.

Questions on this truck

Ask for the specification sheet and the FOB price.

Tell us the model you are looking at and we come back with the full specification, the delivery time after deposit and the FOB price for your port. Where the table above is not complete for this model, ask us for the full specification sheet.

WhatsApp — fastest reply

+86 158 0912 4321

Send a message any time. Anything received outside working hours (GMT+8) is answered the next working morning.

Email — specifications and documents

[email protected]

For drawings, quotations, shipping documents and technical questions.
