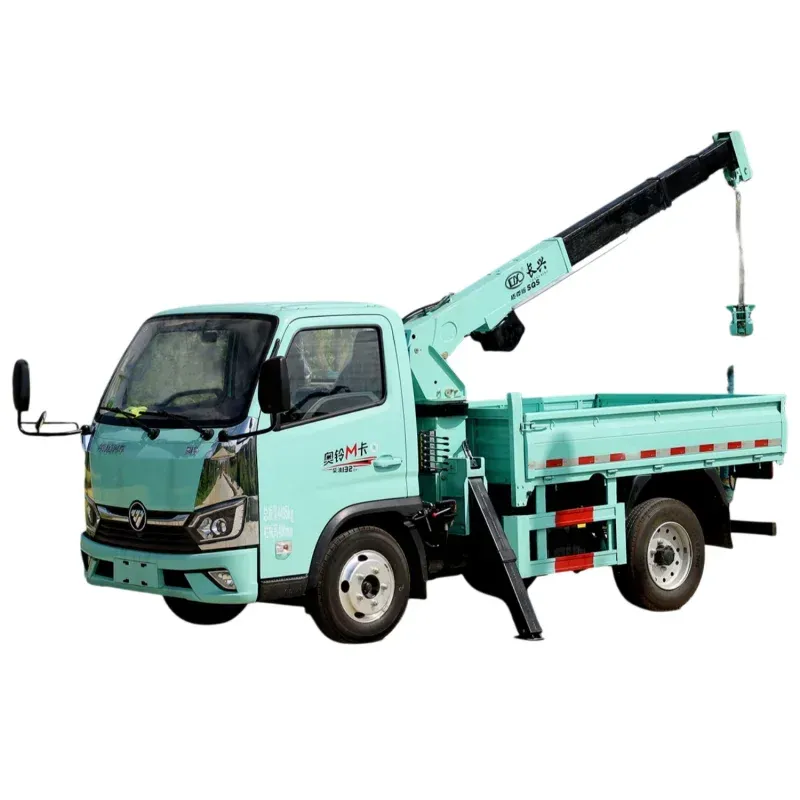

Truck-mounted crane on foton chassis, 1.2T — photo 1 of 6

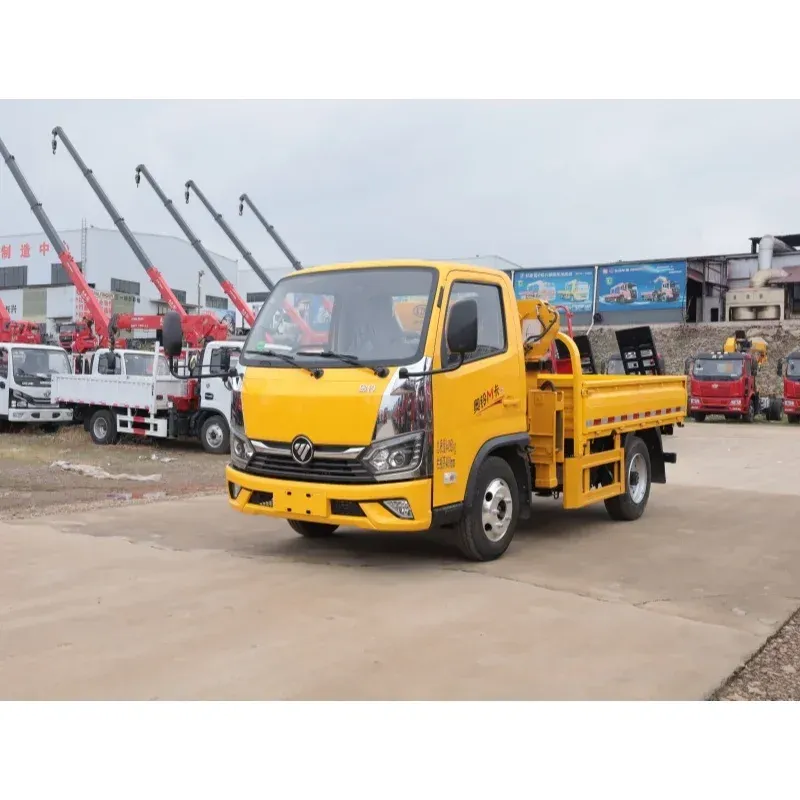

Truck-mounted crane on foton chassis, 1.2T — photo 2 of 6

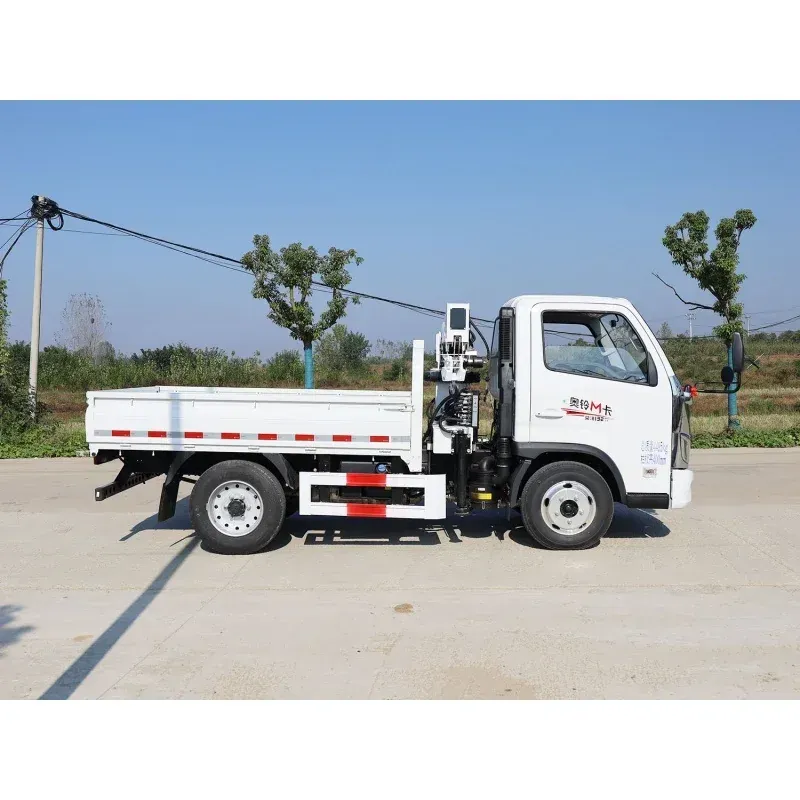

Truck-mounted crane on foton chassis, 1.2T — photo 3 of 6

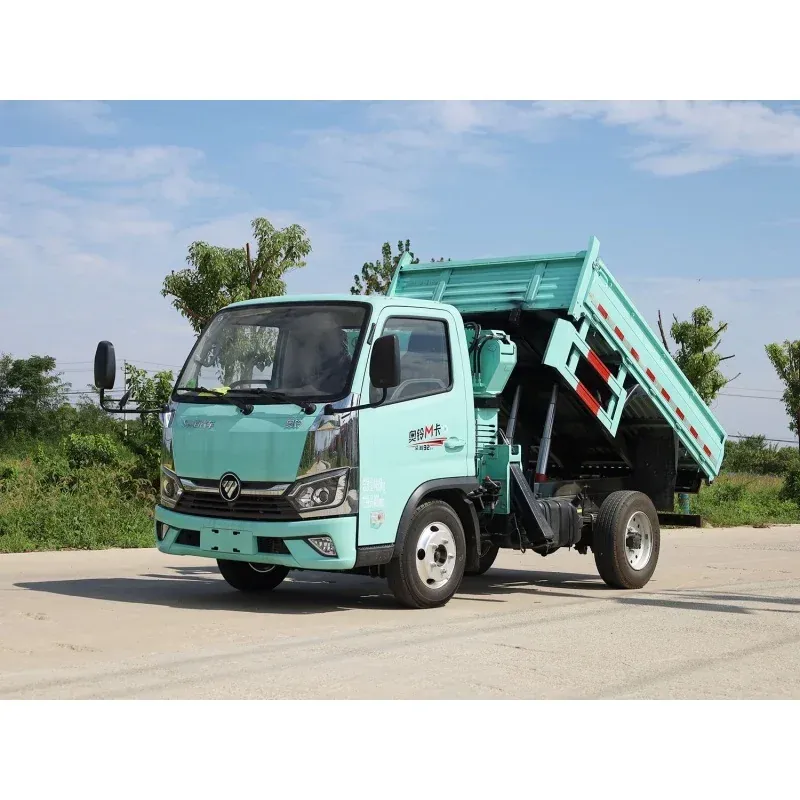

Truck-mounted crane on foton chassis, 1.2T — photo 4 of 6

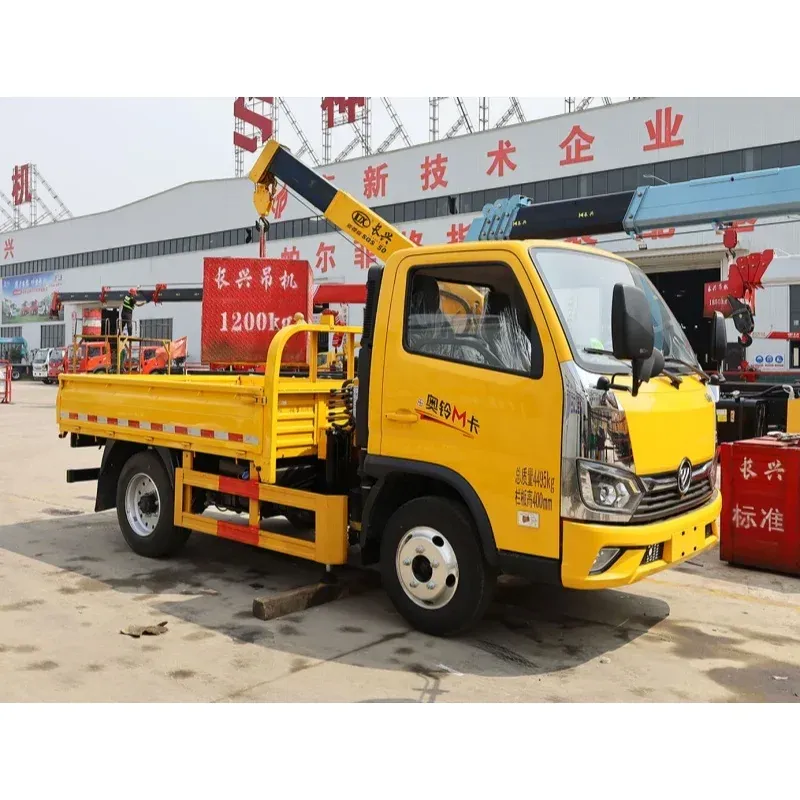

Truck-mounted crane on foton chassis, 1.2T — photo 5 of 6

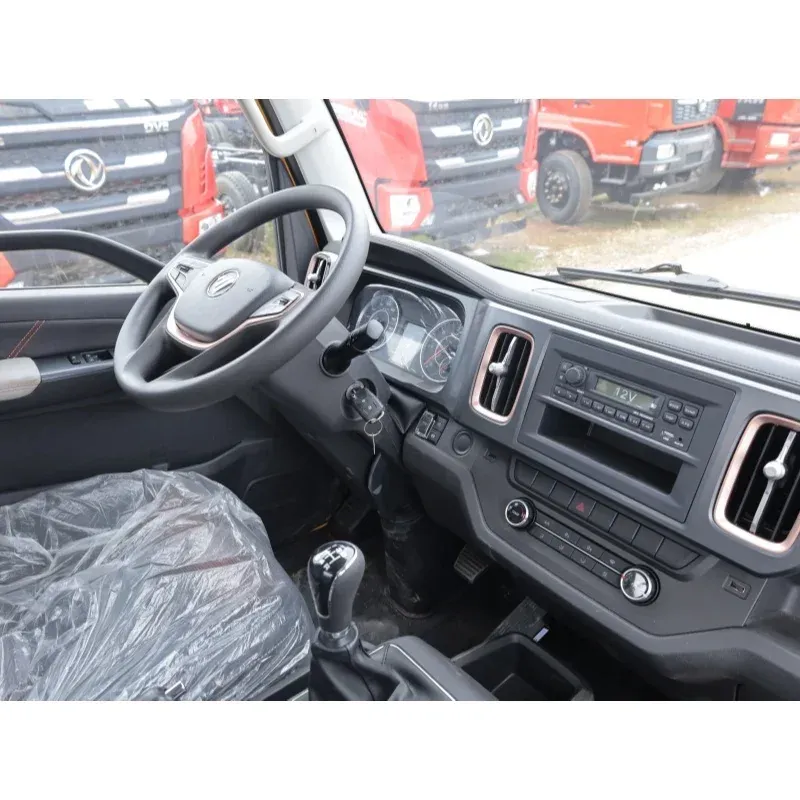

Truck-mounted crane on foton chassis, 1.2T — photo 6 of 6
Knuckle-Boom Truck-Mounted Cranes

Truck-Mounted Crane on Foton — 1.2 t / 32 kN·m (Ref. TMC-FT2601)

1.2 t crane on a Foton chassis, up to 6 m lifting height. Full specification, load chart and FOB price on request.

Short answer. This is a 1.2 t truck-mounted crane on a Foton chassis, rated to a maximum lifting height of 6 m. The crane is a hydraulic knuckle boom with a 32 kN·m rated lifting moment and a 3,200 mm span, carried on a 4x2 truck-mounted crane (mobile crane truck) build with 4 hydraulic outriggers. Left-hand drive is standard on this build and right-hand drive is available on request, with the steering and the emission configuration confirmed before the order is placed. Full specification, load chart and FOB price are on request.
Published by Truck Crane China — we build truck-mounted cranes, grab trucks and wrecker trucks on Chinese chassis for export.

This is a 1.2 t truck-mounted crane on a Foton chassis, rated to 6 m lifting height.
Left-hand drive is standard on this build; right-hand drive is available on request. Tell us the market and we confirm the steering and the emission configuration before the order is placed.

Complete Specifications

Parameter
Value
Capacity
1.2 t
Max. lifting capacity
1.2 t
Chassis brand
Foton
Boom type
Hydraulic Knuckle Boom
Outrigger
4 Hydraulic Outriggers
Max. lifting height
6 m
Crane make
Other
Warranty
2 Years
Hydraulic Cylinder Brand
Huade
Hydraulic Pump Brand
Huade
Hydraulic Valve Brand
Huade
Engine brand
Quancai
Machinery Test Report
Provided
Video outgoing-inspection
Provided
Place of origin
China (Hubei)
Rated lifting moment
32 kN·m
Span
3,200 mm
Weight
2,600 kg

Options and Configuration

Parameter
Value
Type
Truck Mounted Crane Mobile Crane Truck
Drive type
4x2 / LHD / RHD
Emission standard
Euro2 / 3 / 4 / 5 / 6
Color
Customer Requirements / White / Yellow / Green / Black / Blue
Unique Selling Point
Short turning radius
Application
Truck Crane Mobile Crane Hydraulic Crane


Questions buyers ask about the Foton 1.2 t truck-mounted crane

How much can this 1.2 t Foton crane lift, and how high?
Capacity is 1.2 t, with a rated lifting moment of 32 kN·m and a maximum lifting height of 6 m. It works over a 3,200 mm span, and the load chart for the crane we propose comes back with the build.
How heavy is the crane unit on this chassis?
The crane is listed at 2,600 kg, which is what lets it sit on a light 4x2 Foton chassis without eating into the payload.
Why choose a knuckle boom on a crane this size?
A hydraulic knuckle boom folds away for travel and reaches into positions a straight boom cannot. It is stabilised by 4 hydraulic outriggers.
Where does this unit work best?
The record lists a short turning radius as its selling point, and the 4x2 drive type keeps the truck manoeuvrable on confined sites.
What is the drive configuration, and can it be right-hand drive?
The drive type is 4x2. Left-hand drive is standard and right-hand drive is available on request; steering and the emission configuration are confirmed before the order is placed.
What hydraulics and engine does it use?
Huade hydraulic cylinders, pump and valve, with a Quancai engine brand. A machinery test report and video outgoing-inspection are provided, and the build carries a 2-year warranty.

Send the destination country, the load you handle and the reach you need. You will get the full build back: chassis, crane, body, the load chart for the crane we propose, and the price.

Questions on this truck

Ask for the specification sheet and the FOB price.

Tell us the model you are looking at and we come back with the full specification, the delivery time after deposit and the FOB price for your port. Where the table above is not complete for this model, ask us for the full specification sheet.

WhatsApp — fastest reply

+86 158 0912 4321

Send a message any time. Anything received outside working hours (GMT+8) is answered the next working morning.

Email — specifications and documents

[email protected]

For drawings, quotations, shipping documents and technical questions.
