Short answer. This is a 4 t truck-mounted crane on a Foton chassis, rated to a maximum lifting height of 9 m. The crane is a hydraulic straight arm with a 3-section telescopic boom, an 84 kN·m rated lifting moment and a 5,000 mm span, carried on a 4x2 truck-mounted crane (mobile crane truck) build with 4 hydraulic outriggers. Left-hand drive is standard on this build and right-hand drive is available on request, with the steering and the emission configuration confirmed before the order is placed. Full specification, load chart and FOB price are on request.
Published by Truck Crane China — we build truck-mounted cranes, grab trucks and wrecker trucks on Chinese chassis for export.

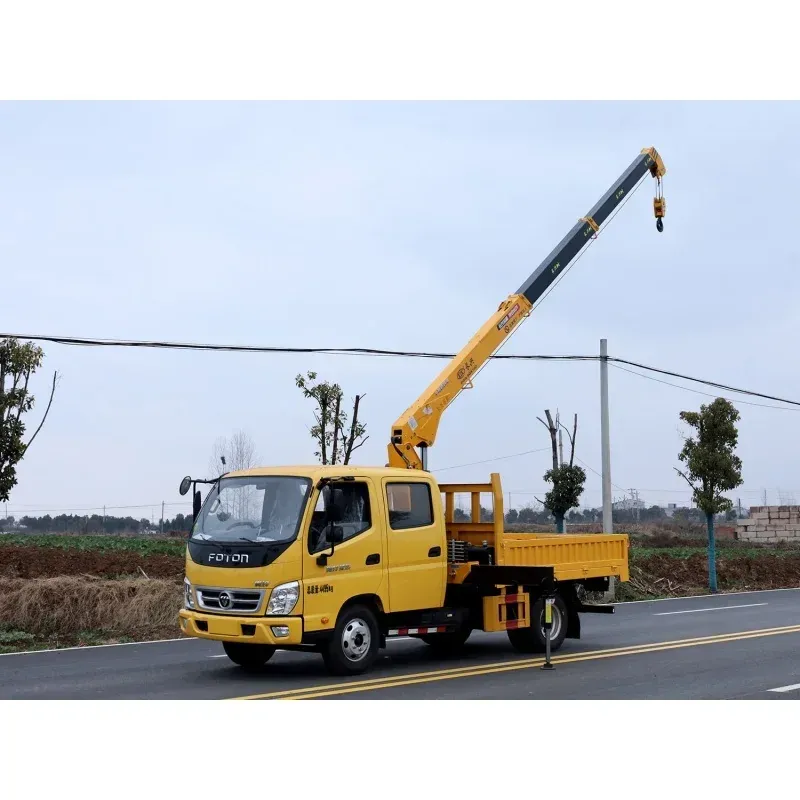

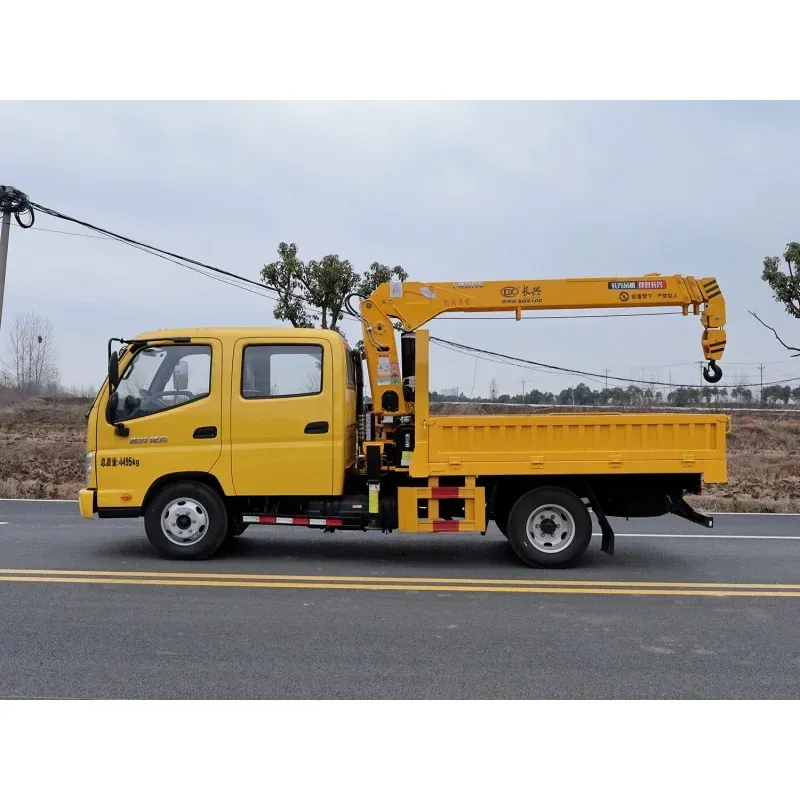

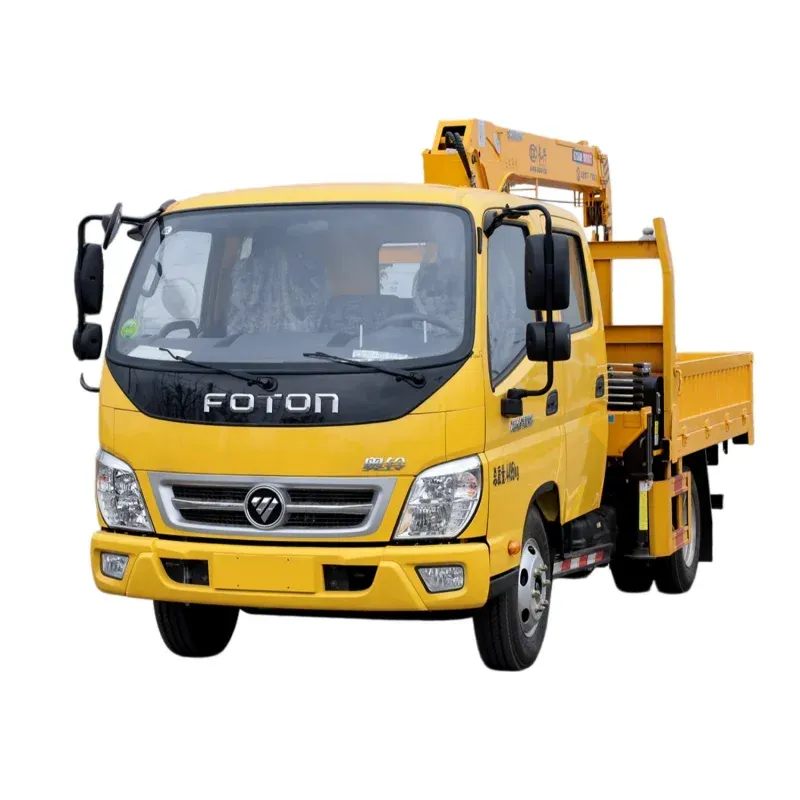

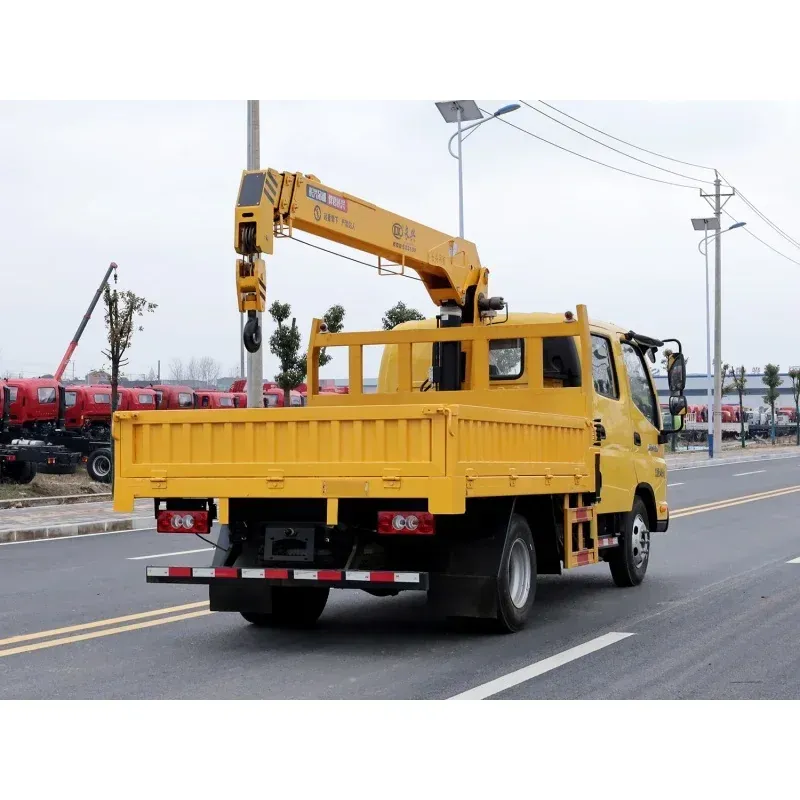

This is a 4 t truck-mounted crane on a Foton chassis, rated to 9m lifting height.
Left-hand drive is standard on this build; right-hand drive is available on request. Tell us the market and we confirm the steering and the emission configuration before the order is placed.
Complete Specifications
| |
|---|
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
Video outgoing-inspection | |
| |
| |
| |
| |
| |
| |
| |
Options and Configuration
| |
|---|
| Truck Mounted Crane Mobile Crane Truck |
| |
| |
| Customer Requirements / White / Yellow / Green / Black / Blue |
| High operating efficiency |
| Truck Crane Mobile Crane Hydraulic Crane |
Questions buyers ask about the Foton 4 t truck-mounted crane
What does this 4 t Foton crane lift, and how high does it reach?

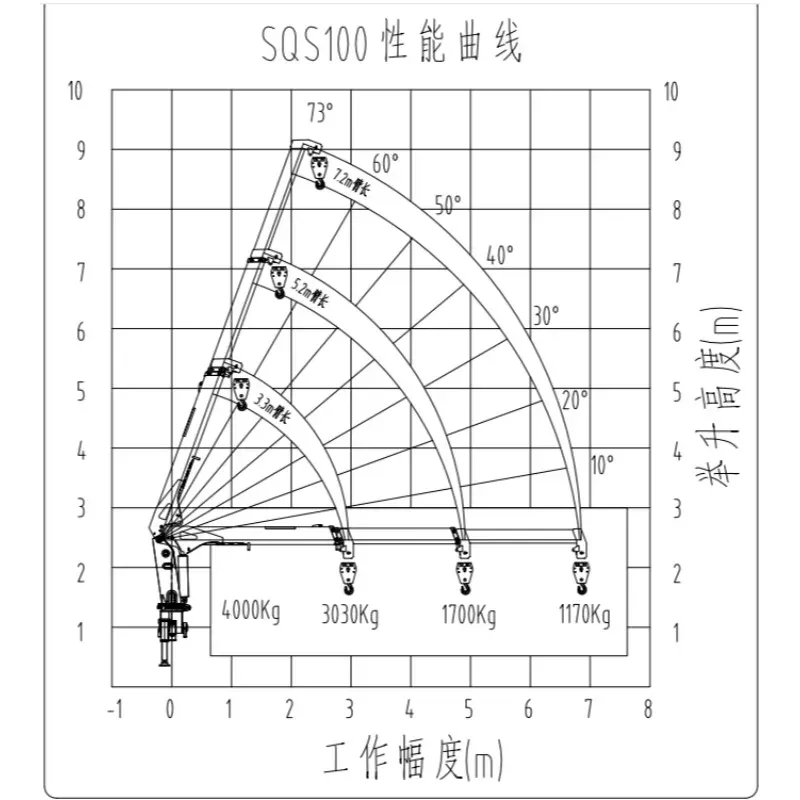

Capacity is 4 t, with a rated lifting moment of 84 kN·m and a maximum lifting height of 9 m. The load chart for the crane we propose for your job comes back with the build.
What does the 3-section telescopic boom mean in practice?
The crane is a hydraulic straight arm built as a 3-section telescopic boom, so it extends hydraulically rather than folding. That gives a long, predictable straight-line reach for lifts where the hook has to travel out and lower.
How is the crane stabilised while it works?
It stands on 4 hydraulic outriggers, giving a 5,000 mm span.
What is the drive configuration, and can it be right-hand drive?
The drive type is 4x2. Left-hand drive is standard and right-hand drive is available on request; steering and the emission configuration are confirmed before the order is placed.
How heavy is the crane unit on this chassis?
The crane is listed at 3,800 kg.
What engine, hydraulics and warranty come with it?
A Yunnei engine brand with Huade hydraulic cylinders, pump and valve. A machinery test report and video outgoing-inspection are provided, and the build carries a 2-year warranty.
Send the destination country, the load you handle and the reach you need. You will get the full build back: chassis, crane, body, the load chart for the crane we propose, and the price.
