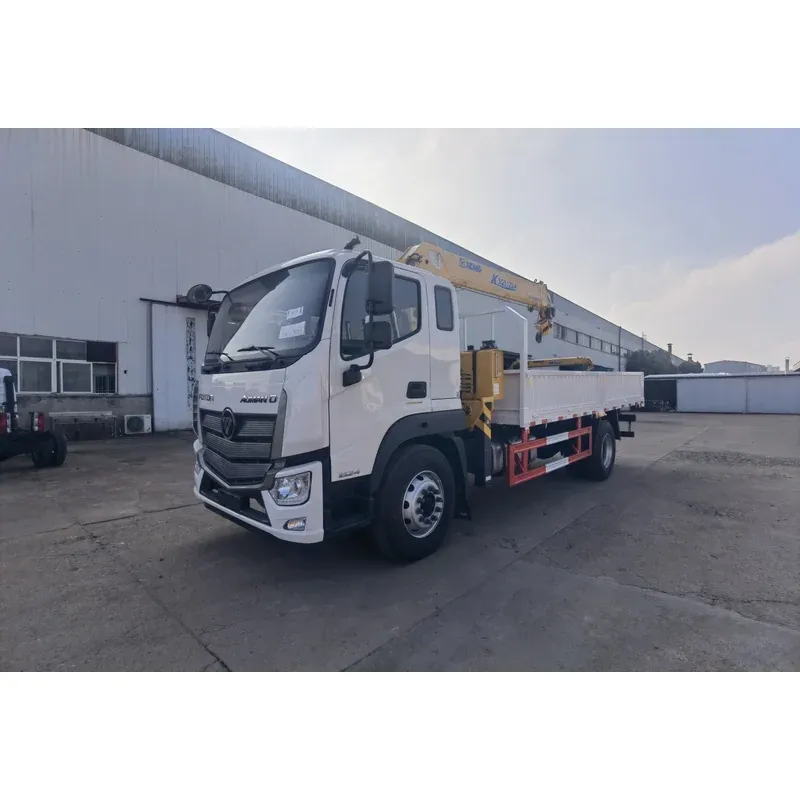

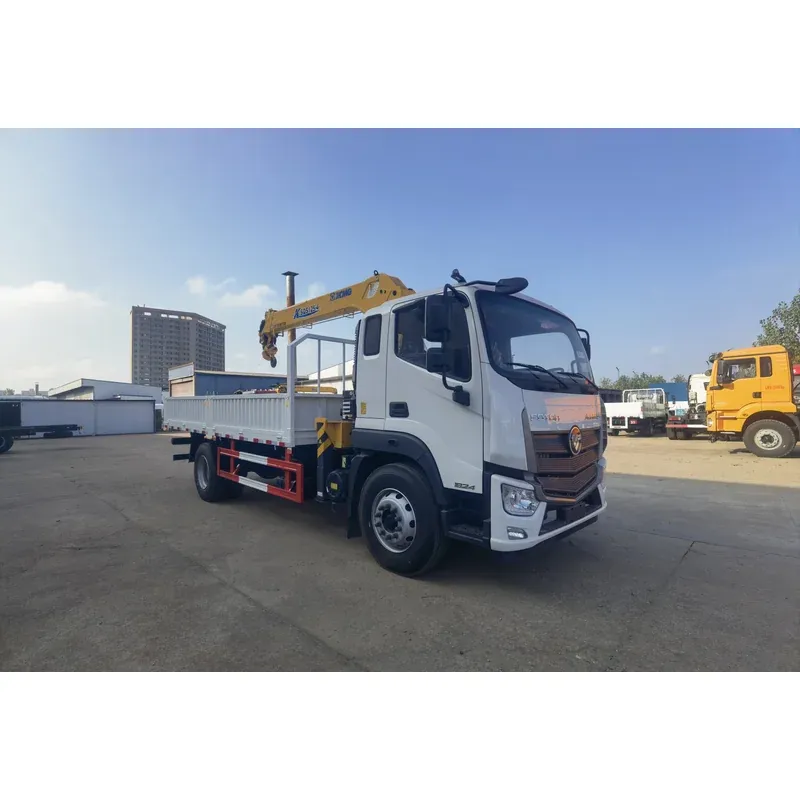

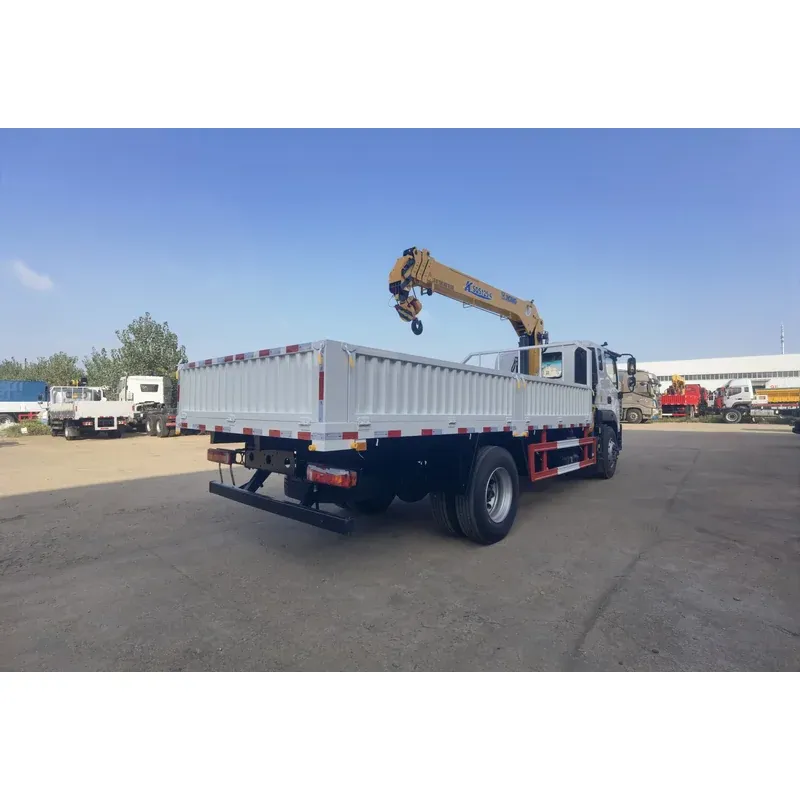

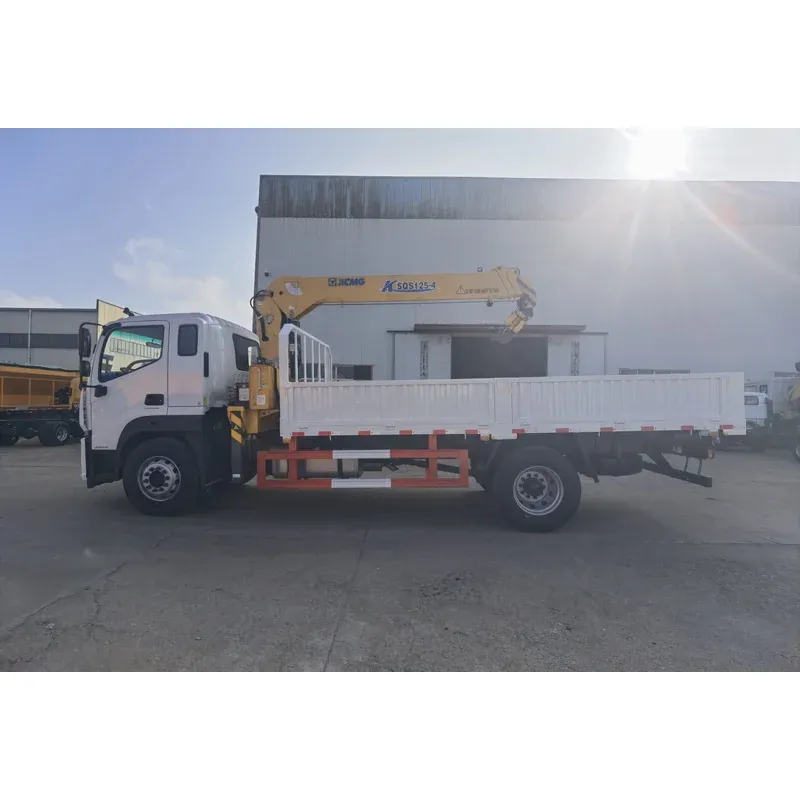

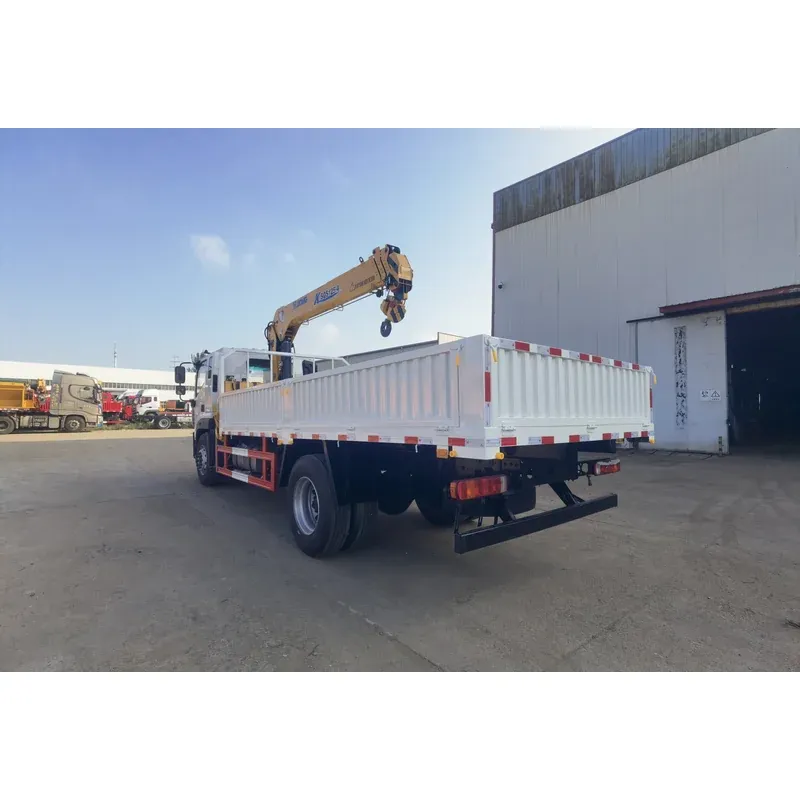

Truck-Mounted Crane on Foton — 5 t / 125 kN·m, 4-Section Telescopic Boom (Ref. TMC-FT2501)
5 t crane on a Foton chassis. 4 boom sections, up to 12.0 m working radius.
Complete Specifications
Parameter | Value |
|---|---|
Lifting Performance | |
Max. rated lifting capacity | 5000 kg |
Max. lifting moment | 125.0 kN·m |
Boom sections | 4 |
Boom length | 4.34 – 12 m |
Max. working radius | 12 m |
Max. lifting height (basic boom) | 4.3 m |
Max. lifting height (boom fully extended) | 14 m |
Max. lifting height | 14.2 m |
Outrigger span | 2.28 – 5.1 m |
Outrigger type | H-type |
Slewing range | 360° (any position) |
Slewing speed | ＜2.5 r/min |
Boom raising time | ＜20 s |
Boom extending time | ＜25 s |
Extension speed | 0.2 * |
Luffing range | 1–71 * |
Boom raising angular speed | 5.8 * |
Hook lifting speed | 12.5 m/min |
Hydraulic System | |
System pressure | 20 MPa |
System flow | 60 L/min |
Oil tank capacity | ≮100 L |
Structure | |
Wire rope diameter | 10 mm |
Wire rope length | 80 m |
Crane weight | ＜2300 kg |
Boom section form | Hexagonal |
Mounting space | 900 mm |
Operating Environment & Configuration | |
Recommended truck | Trucks of 5 t load capacity and above |
Safety device | Anti-two-block alarm |
Working temperature | -15 ℃ ～ 40 ℃ |
Lifting Capacity Chart (Load Chart)
Working radius (m) | 2.5 | 3.5 | 6.0 | 7.0 | 9.0 | 10.0 | 11.0 | 12.0 |
|---|---|---|---|---|---|---|---|---|
Lifting capacity (kg) | 5000 | 3000 | 1800 | 1200 | 850 | 750 | 650 | 500 |
