Telescopic-Boom Truck-Mounted Cranes
Truck-Mounted Crane on Sinotruk Howman 4500 mm Chassis — Weichai 220 hp, 5–8 t Crane (ZZ5148)
Sinotruk Howman 4500 mm wheelbase crane-truck chassis (ZZ5148 / ZZ5168). Weichai 220 hp, Fast 8-speed, 153 rear axle, 250 mm three-layer frame, 9.00R20 tyres, 14,060 / 16,000 kg GVW. Crane 5–8 t, body 5.0–5.4 m. LHD standard; RHD on request.
Short answer. This is a 4x2 crane-truck chassis on a Sinotruk Howman 4,500 mm wheelbase, with a 2.1 m wide single-row wide-body cab, a Weichai 220 hp engine and a Fast 8-speed gearbox. Gross vehicle weight is 14,060 kg on the ZZ5148JSQG17FB0 homologation model and 16,000 kg on the ZZ5168JSQG17FB0, with the drop-side cargo body running 5,000 – 5,400 mm. The chassis takes a 5 t, 6.3 t, 7 t or 8 t crane, selected to your requirement and confirmed on the quotation, mounted on a 250 mm frame locally reinforced in three layers with a 153 rear axle. Left-hand drive is standard and right-hand drive is available on request, built to order.
Published by Truck Crane China — we build truck-mounted cranes, grab trucks and wrecker trucks on Chinese chassis for export.
This is a 4,500 mm wheelbase two-axle crane-truck chassis. The base vehicle is a Sinotruk Howman on a 2.1 m wide single-row wide-body cab, with a Weichai 220 hp engine, a Fast 8-speed gearbox and a 153 rear axle. The frame is 250 mm deep and locally reinforced in three layers, which is what the crane and the cargo body mount on. Gross vehicle weight is 14,060 kg on the ZZ5148JSQG17FB0 homologation model and 16,000 kg on the ZZ5168JSQG17FB0, and the cargo body runs 5.0 to 5.4 m.
Left-hand drive (LHD) is standard. Right-hand drive (RHD) is available on request and is built to order.
Complete Specifications
Parameter | Value |
|---|---|
Chassis | |
Brand | Sinotruk Howman |
Homologation model | ZZ5148JSQG17FB0 / ZZ5168JSQG17FB0 |
Drive type | 4x2 |
Wheelbase | 4,500 mm |
Cab | 2.1 m wide single-row wide-body cab |
Gross vehicle weight | 14,060 / 16,000 kg |
Payload (rated) | 4,365 – 6,805 kg, depending on the homologation model and crane option |
Curb weight | 7,800 – 10,000 kg, depending on the homologation model and crane option |
Engine | |
Make | Weichai |
Maximum power | 220 hp |
Transmission | |
Gearbox | Fast, 8-speed |
Axles | |
Rear axle | 153 |
Frame | |
Frame | 250 mm, locally reinforced in three layers |
Tyres and brakes | |
Tyres | 9.00R20, steel-belted |
ABS | Yes |
Parking brake | Spring parking brake, air released |
Cab equipment | |
Air conditioning | Factory electric-control air conditioning |
Windows and locks | Power windows, central locking, remote key |
Interior | Full interior trim, leather seats |
Paint | Metallic |
Steering | Power steering |
Fuel tank | Aluminium |
Body and crane | |
Cargo body length | 5,000 – 5,400 mm |

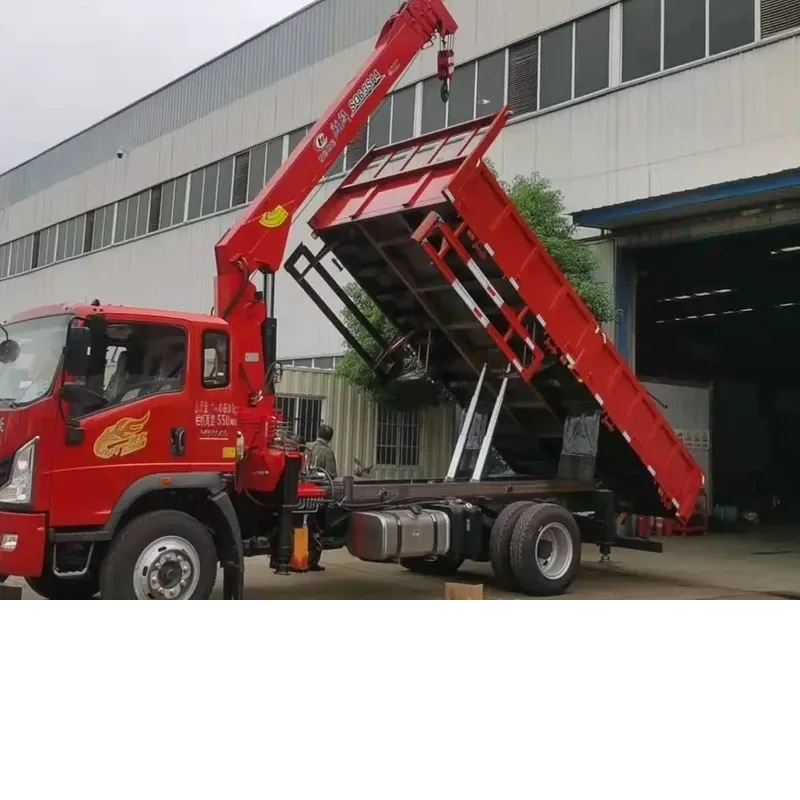

Cargo body | Drop-side body. The photographs show the body in the tipping position; the final body configuration is confirmed on the quotation. |
Crane | 5 t / 6.3 t / 7 t / 8 t, selected to your requirement and confirmed on the quotation. |
Steering position | Left-hand drive (LHD) standard. Right-hand drive (RHD) available on request. |
Emission standard | Confirmed on the quotation. |
Why this configuration
The cab is 2.1 m wide and single-row, with a full interior trim, leather seats, power windows, central locking and a remote key, so it drives more like a car than a working truck.
Weichai supplies the 220 hp engine and Fast the 8-speed gearbox: a large-displacement engine and a high-torque transmission, which is what a crane truck needs when it has to move a loaded body and then work the crane on the same trip.
An aluminium fuel tank and the 250 mm three-layer frame carry the crane and the body, and the factory electric-control air conditioning is specified for hot markets.
Crane, Body and Steering

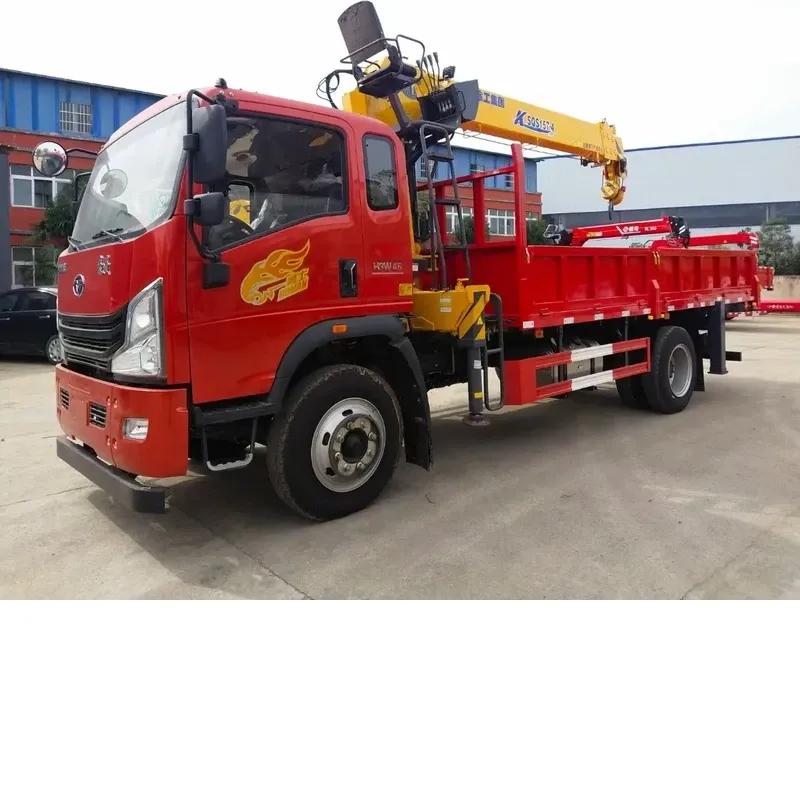

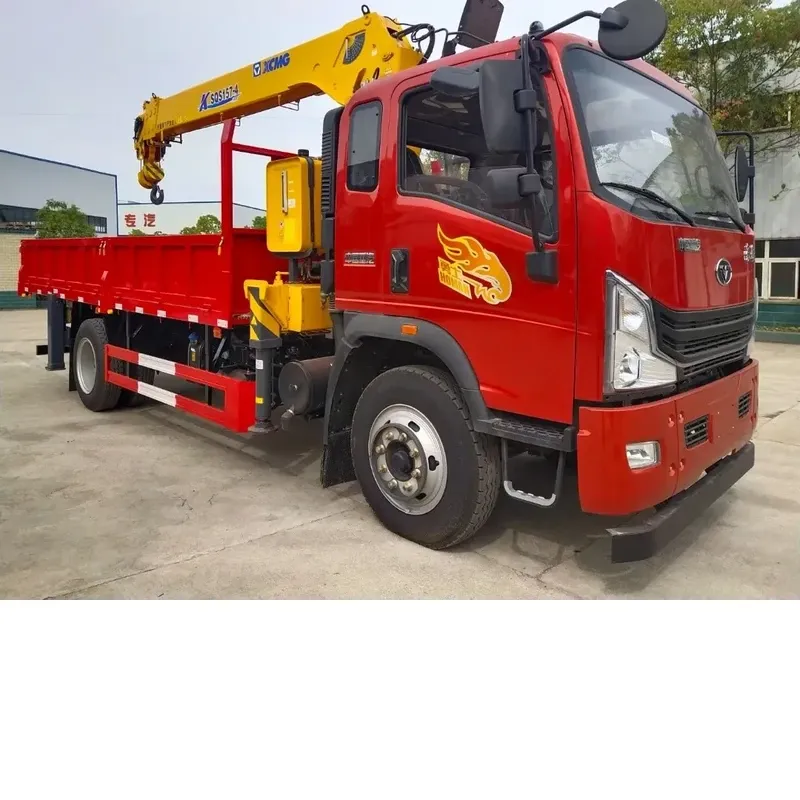

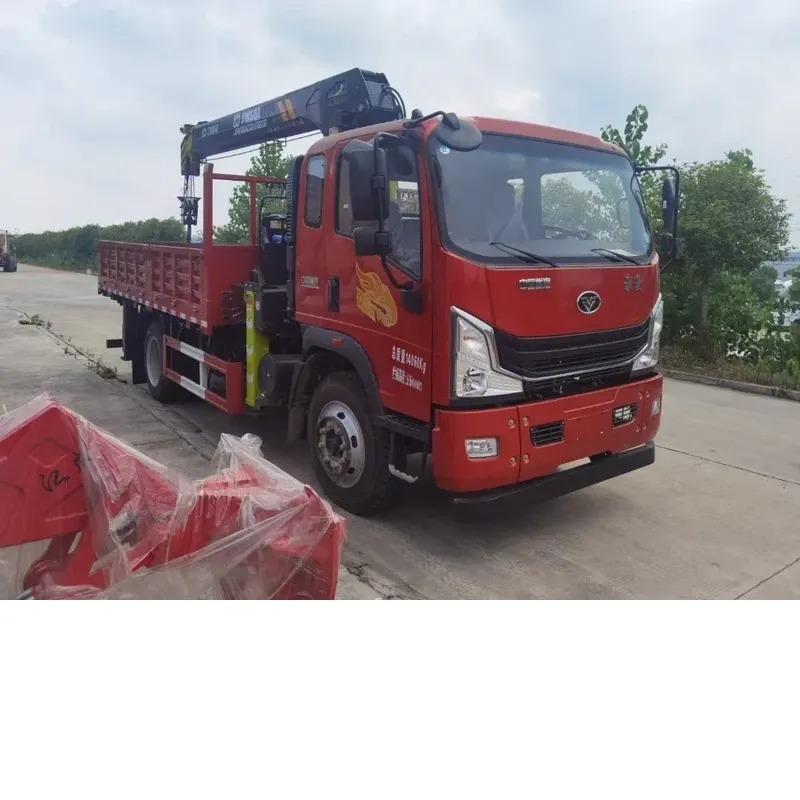

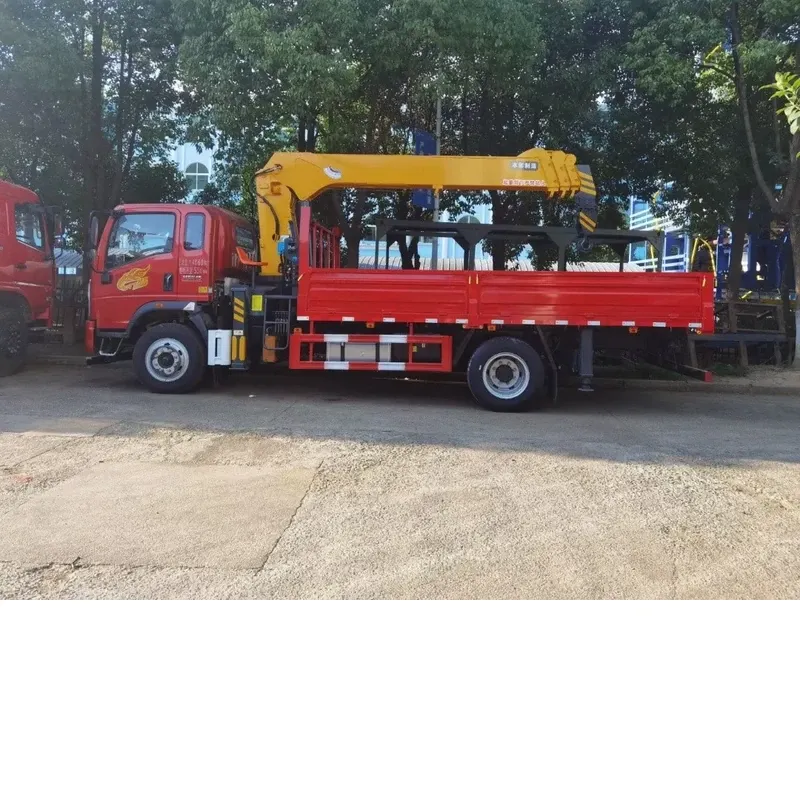

The crane is not fixed on this page because it is not fixed on the truck. This chassis is offered with 5 t, 6.3 t, 7 t and 8 t cranes; the make, the boom sections, the maximum reach and the crane's own load chart are confirmed on the quotation rather than assumed here. Tell us the loads you handle and the reach you need, and the crane is matched to the job and to this chassis's axle and gross-weight limits. The cranes in the photographs are examples of what has been fitted to this chassis.
Send us the job — the loads, the reach you need and where the truck has to work — and we will come back with the complete build: chassis, crane, body, the load chart for the crane we propose, and the price.
Questions buyers ask about the Howman 4500 ZZ5148
Which cranes can be fitted to this chassis?
It is offered with 5 t, 6.3 t, 7 t and 8 t cranes, selected to your requirement and confirmed on the quotation. The make, the boom sections, the maximum reach and the crane's own load chart are confirmed on the quotation rather than assumed here, and the cranes in the photographs are examples of what has been fitted to this chassis.
What gross vehicle weight and payload does it offer?
Gross vehicle weight is 14,060 kg on the ZZ5148JSQG17FB0 homologation model and 16,000 kg on the ZZ5168JSQG17FB0. Rated payload is 4,365 – 6,805 kg and curb weight 7,800 – 10,000 kg, depending on the homologation model and the crane option.
What cargo body comes with it?

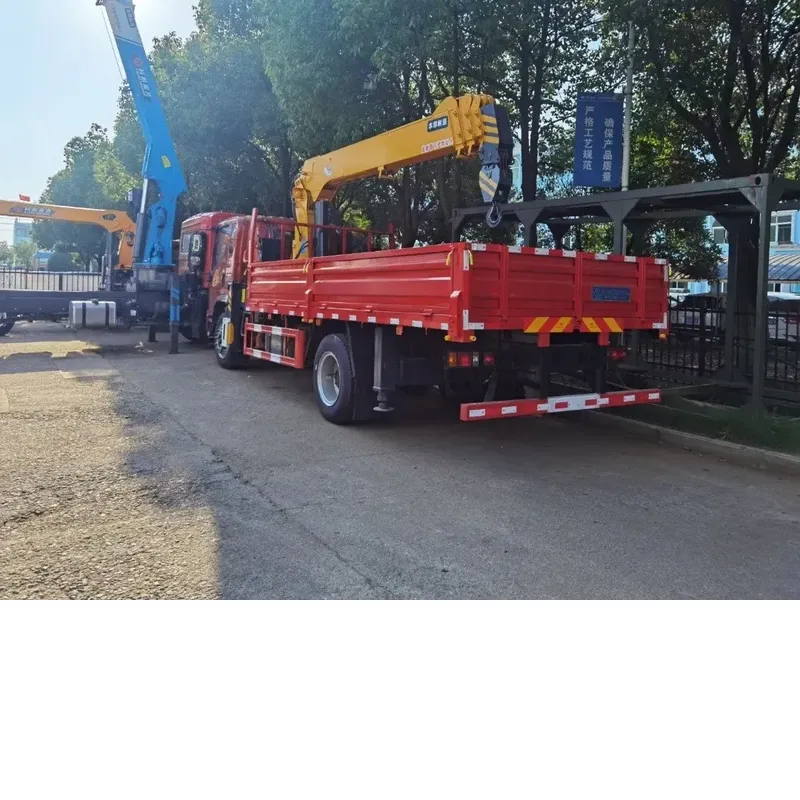

A drop-side body running 5,000 – 5,400 mm. The photographs show the body in the tipping position, and the final body configuration is confirmed on the quotation.
What driveline and chassis hardware does it use?
A Weichai 220 hp engine and a Fast 8-speed gearbox driving a 153 rear axle, on a 250 mm frame locally reinforced in three layers. An aluminium fuel tank and 9.00R20 steel-belted tyres are fitted.
What equipment does the cab include?
A 2.1 m wide single-row wide-body cab with full interior trim, leather seats, power windows, central locking, remote key, power steering and factory electric-control air conditioning, finished in metallic paint. ABS and a spring parking brake, air released, are fitted.
Is it left-hand or right-hand drive?
Left-hand drive is standard, and right-hand drive is available on request and is built to order.
