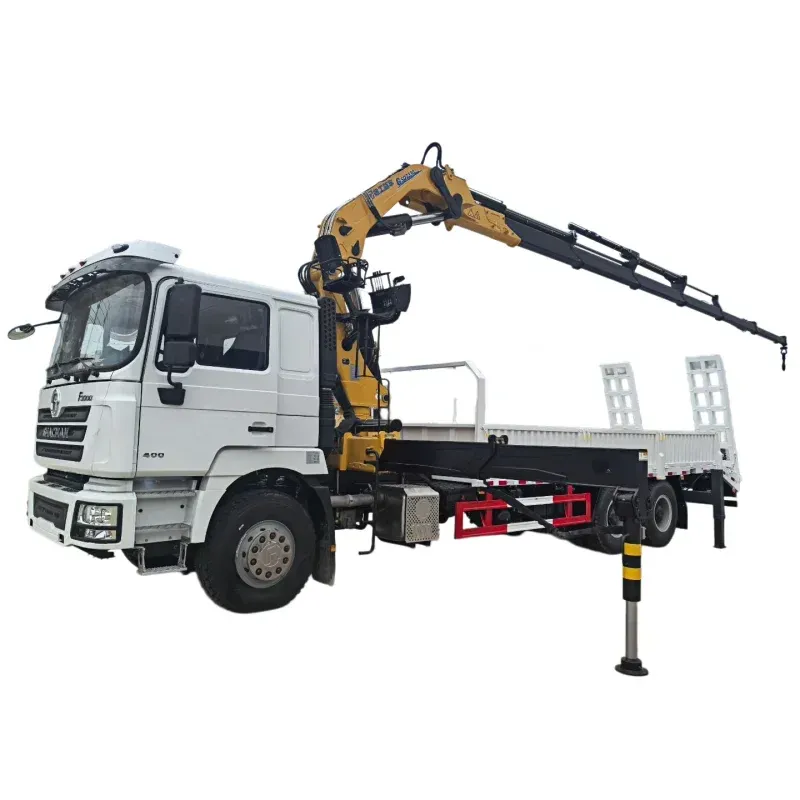

Truck-mounted crane on SHACMAN chassis, 16T — photo 1 of 6

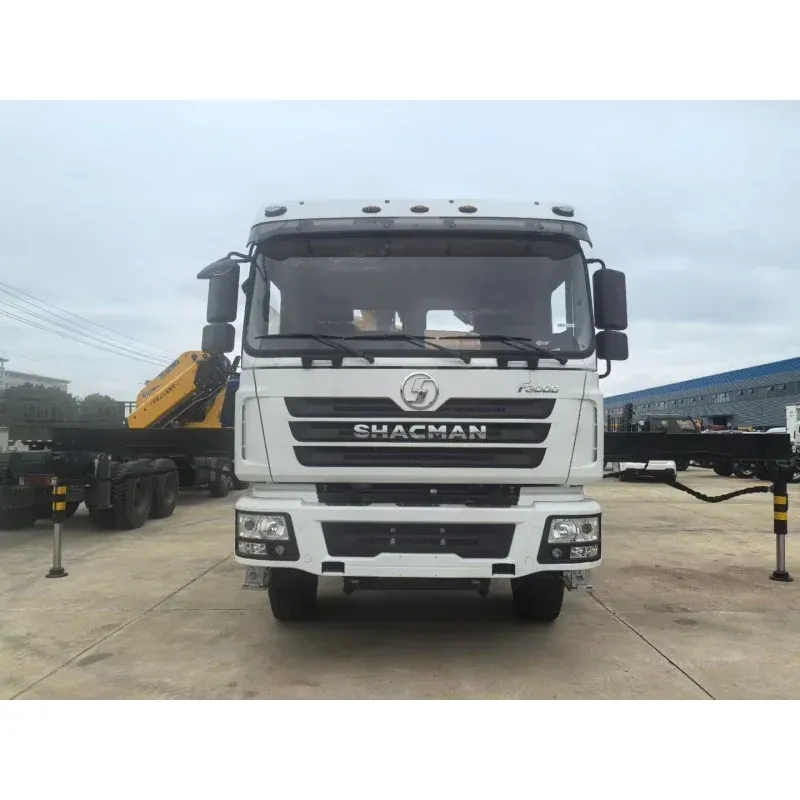

Truck-mounted crane on SHACMAN chassis, 16T — photo 2 of 6

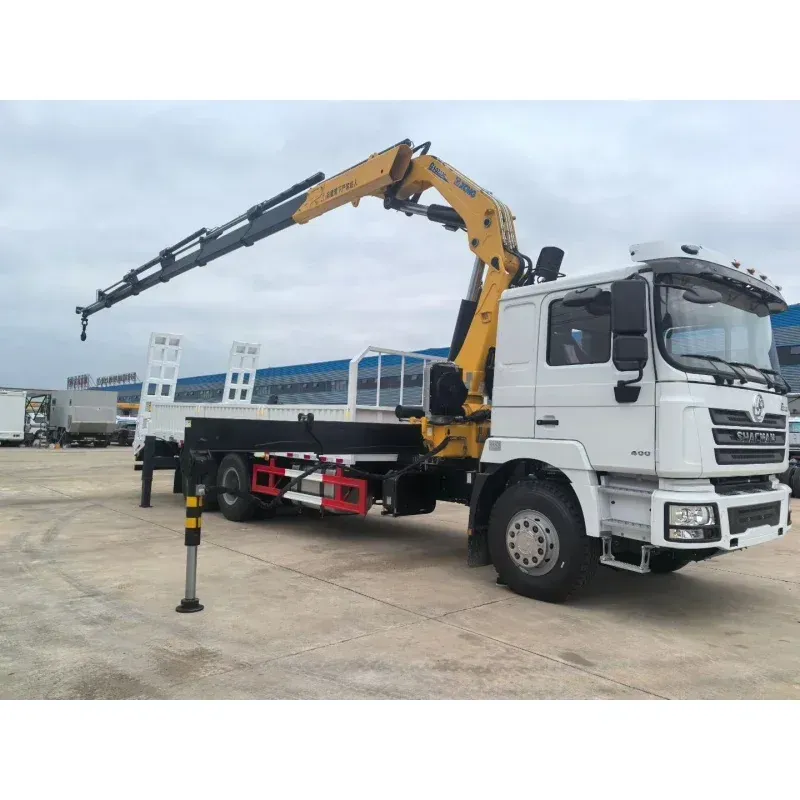

Truck-mounted crane on SHACMAN chassis, 16T — photo 3 of 6

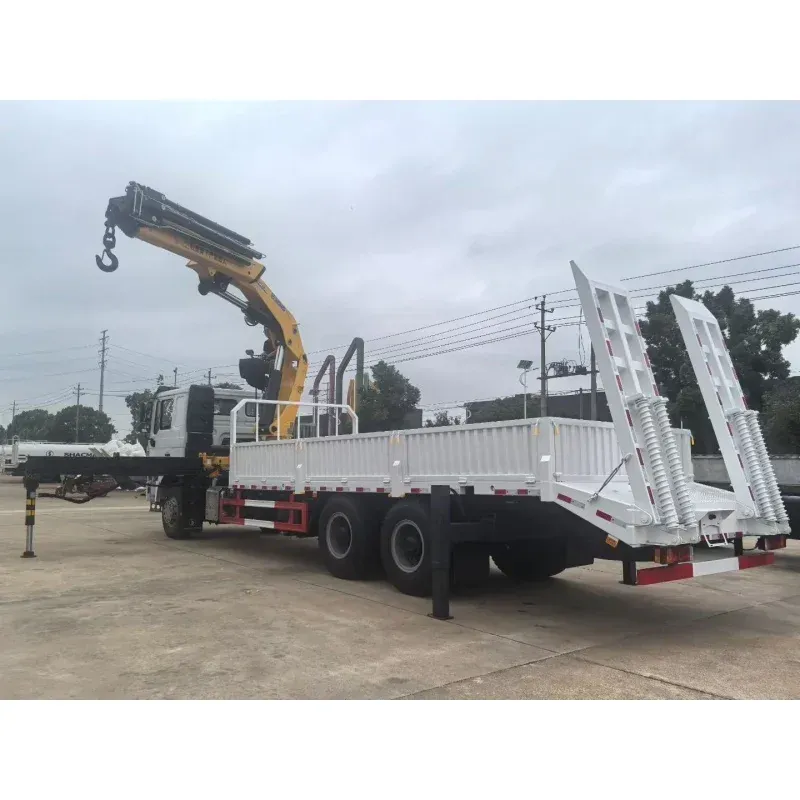

Truck-mounted crane on SHACMAN chassis, 16T — photo 4 of 6

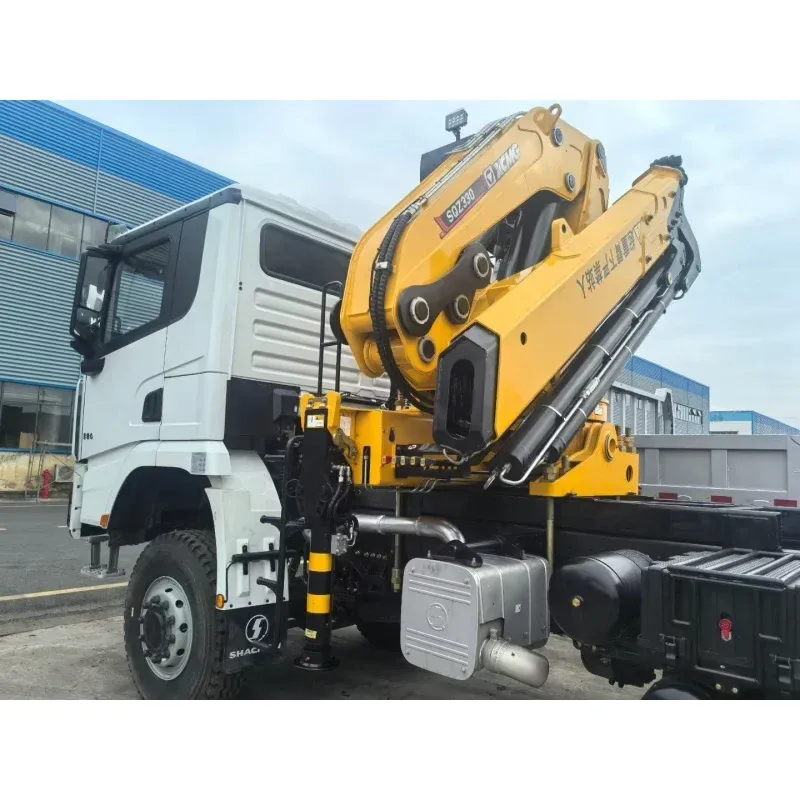

Truck-mounted crane on SHACMAN chassis, 16T — photo 5 of 6

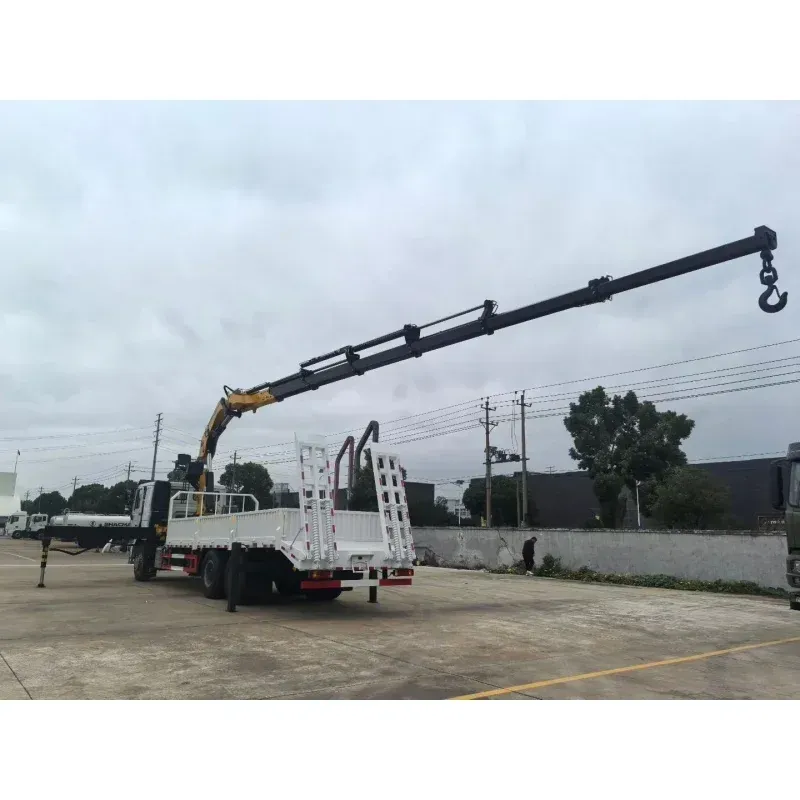

Truck-mounted crane on SHACMAN chassis, 16T — photo 6 of 6
Knuckle-Boom Truck-Mounted Cranes

Truck-Mounted Crane on SHACMAN — 16 t / 330 kN·m (Ref. TMC-SX2601)

16 t crane on a SHACMAN chassis, up to 18.4 m lifting height. Full specification, load chart and FOB price on request.

Short answer. This is a 16 t truck-mounted crane on a SHACMAN 6x4 chassis, fitted with a hydraulic knuckle boom and rated at a 330 kN·m lifting moment. It lifts to a maximum height of 18.4 m on 4 hydraulic outriggers with a 7,500 mm span, and the machine weighs 17,500 kg. Power is a Weichai engine with Huade hydraulic cylinder, pump and valve, covered by a 2-year warranty, and the unit is built in China (Hubei). Left-hand drive is standard and right-hand drive is available on request; tell us the market and we confirm the steering and the emission configuration before the order is placed.
Published by Truck Crane China — we build truck-mounted cranes, grab trucks and wrecker trucks on Chinese chassis for export.

This is a 16 t truck-mounted crane on a SHACMAN chassis, rated to 18.4 m lifting height.
Left-hand drive is standard on this build; right-hand drive is available on request. Tell us the market and we confirm the steering and the emission configuration before the order is placed.

Complete Specifications

Parameter
Value
Capacity
16 t
Max. lifting capacity
16 t
Chassis brand
SHACMAN
Boom type
Hydraulic Knuckle Boom
Outrigger
4 Hydraulic Outriggers
Crane make
Other
Warranty
2 Years
Hydraulic Cylinder Brand
Huade
Hydraulic Pump Brand
Huade
Hydraulic Valve Brand
Huade
Engine brand
Weichai
Machinery Test Report
Provided
Video outgoing-inspection
Provided
Rated lifting moment
330 kN·m
Place of origin
China (Hubei)
Brand
SHACMAN
Max. lifting height
18.4 m
Weight
17,500 kg
Span
7,500 mm

Options and Configuration

Parameter
Value
Type
Truck Mounted Crane Mobile Crane Truck
Drive type
6x4 / LHD / RHD
Emission standard
Euro2 / 3 / 4 / 5 / 6
Color
Customer Requirements / White / Yellow / Green / Black / Blue
Unique Selling Point
High operating efficiency
Application
Truck Crane Mobile Crane Hydraulic Crane


Questions buyers ask about the SHACMAN 6x4 16 t knuckle-boom crane

What is the lifting capacity and rated lifting moment of this crane?
The crane is rated at 16 t capacity with a 330 kN·m lifting moment, and the record lists it as a hydraulic knuckle boom.
How high can it lift and how wide is the outrigger spread?
Maximum lifting height is 18.4 m, set up on 4 hydraulic outriggers with a 7,500 mm span.
What does the whole unit weigh and what runs it?
The unit weighs 17,500 kg, powered by a Weichai engine with Huade hydraulic cylinder, pump and valve, and it carries a 2-year warranty.
Which chassis and drive configuration does this build use?
It is built on a SHACMAN chassis with a 6x4 drive type, and the record lists LHD and RHD as the steering options.
What type of boom is fitted?
It is a hydraulic knuckle boom rather than a straight arm; the crane make is recorded as "Other", so the exact crane brand is settled with the build.

Send the destination country, the load you handle and the reach you need. You will get the full build back: chassis, crane, body, the load chart for the crane we propose, and the price.

Questions on this truck

Ask for the specification sheet and the FOB price.

Tell us the model you are looking at and we come back with the full specification, the delivery time after deposit and the FOB price for your port. Where the table above is not complete for this model, ask us for the full specification sheet.
