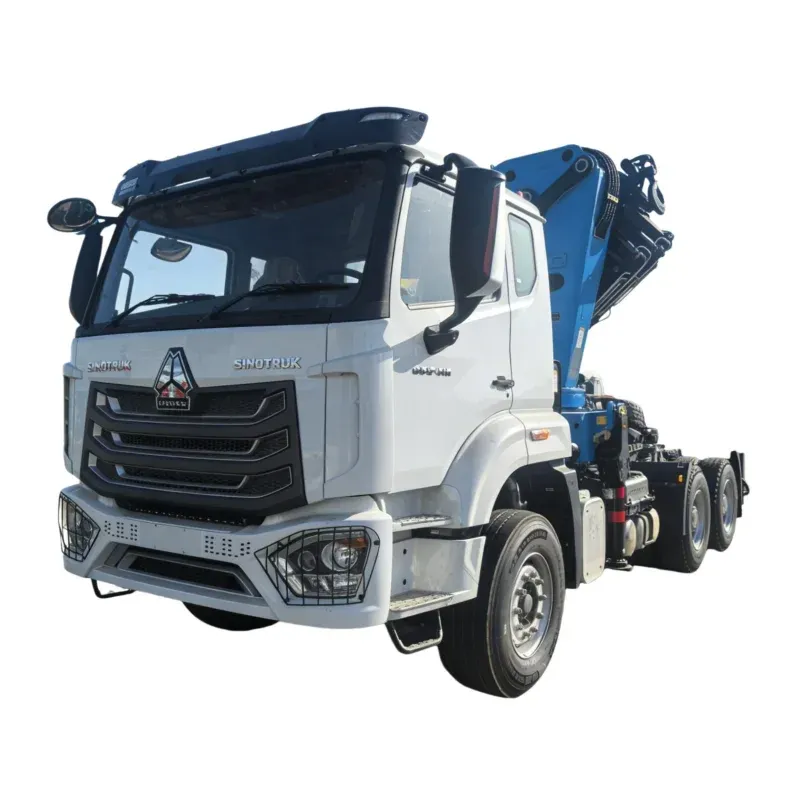

Truck-mounted crane on SINOTRUK HOWO chassis, 28T — photo 1 of 6

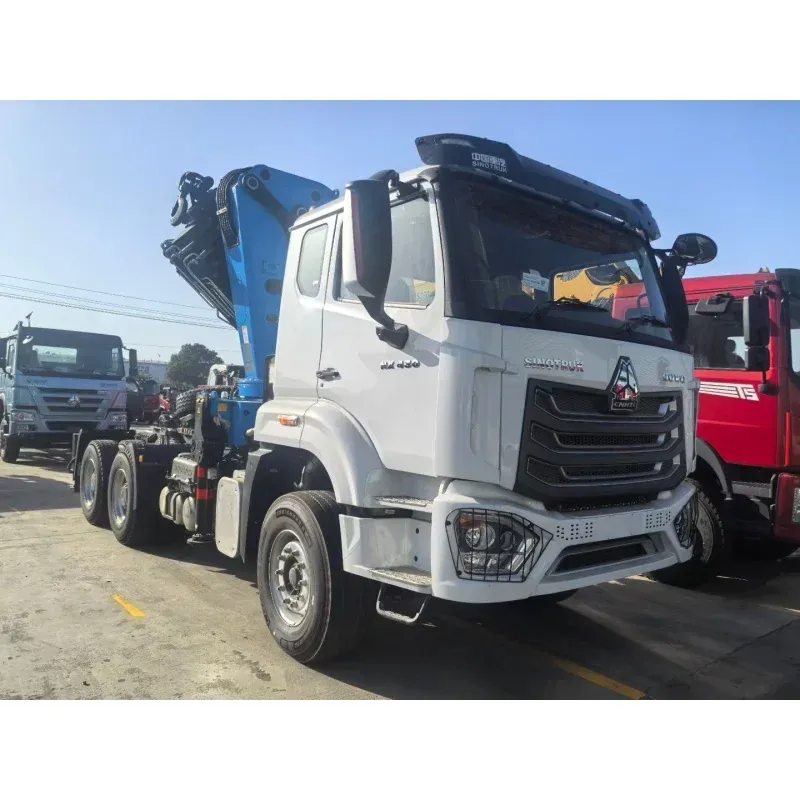

Truck-mounted crane on SINOTRUK HOWO chassis, 28T — photo 2 of 6

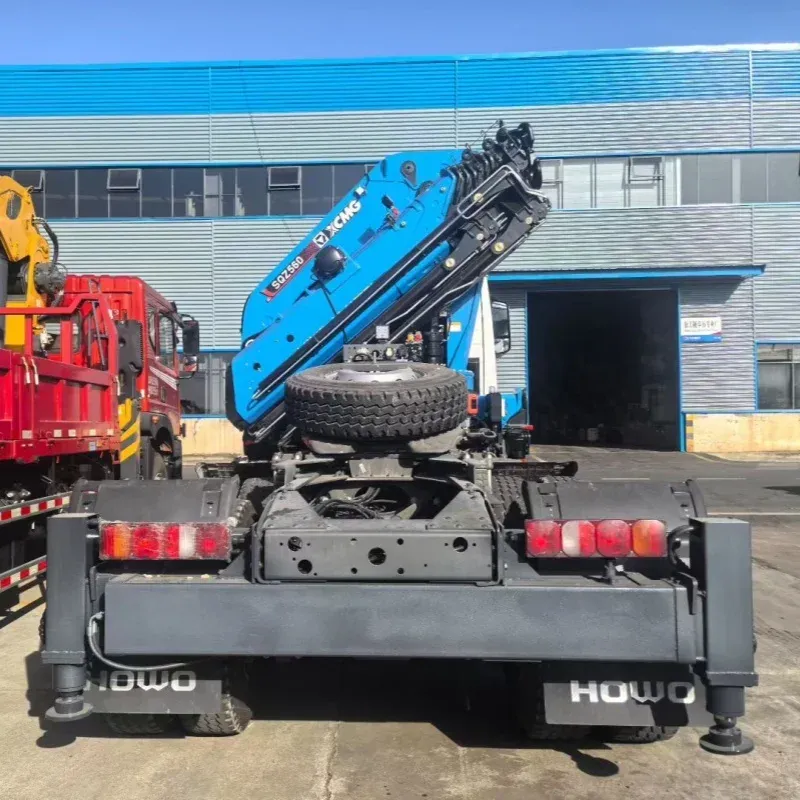

Truck-mounted crane on SINOTRUK HOWO chassis, 28T — photo 3 of 6

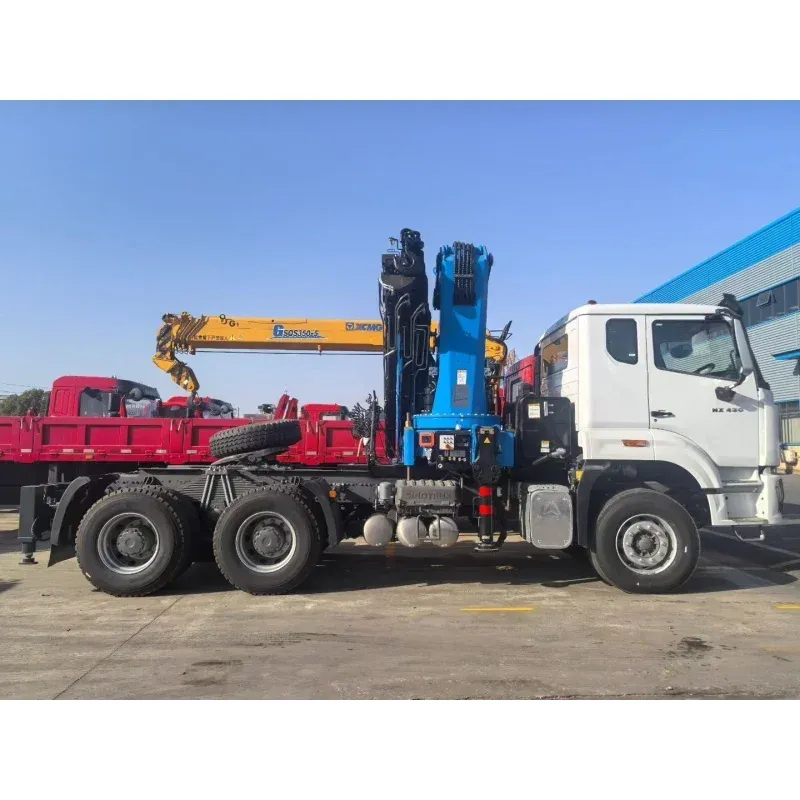

Truck-mounted crane on SINOTRUK HOWO chassis, 28T — photo 4 of 6

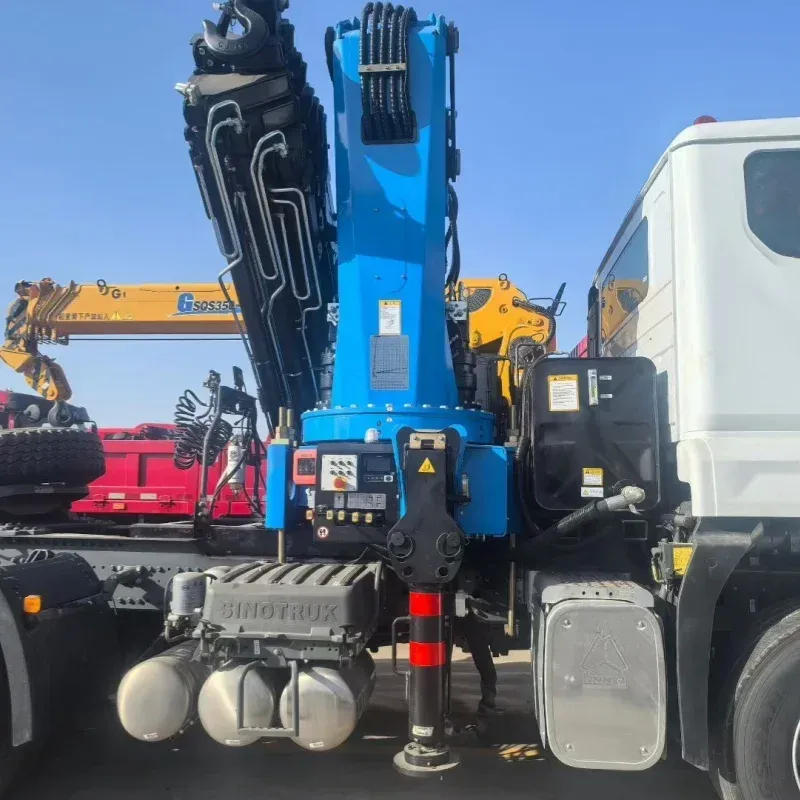

Truck-mounted crane on SINOTRUK HOWO chassis, 28T — photo 5 of 6

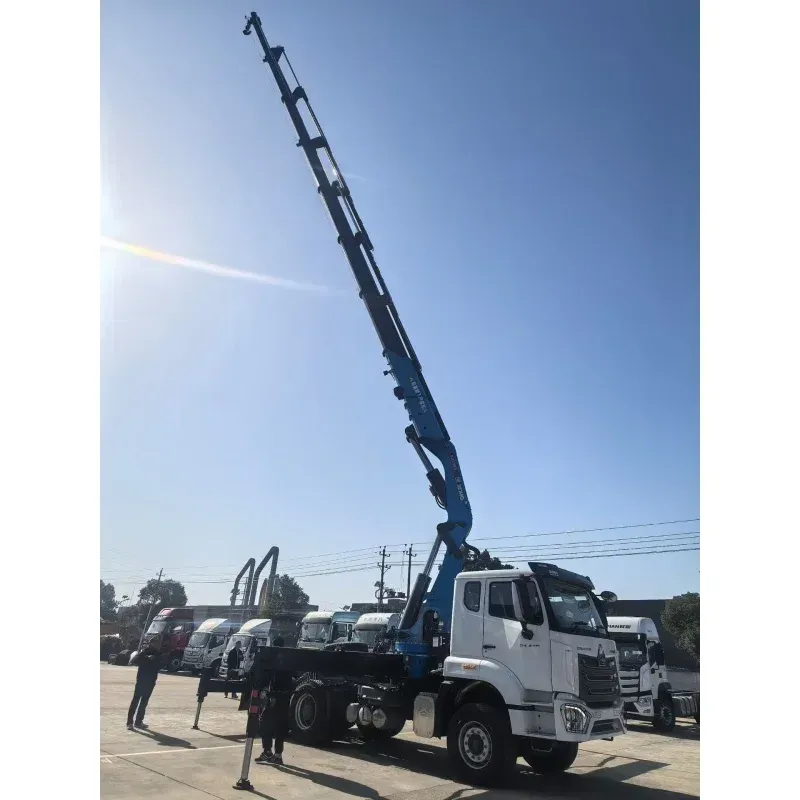

Truck-mounted crane on SINOTRUK HOWO chassis, 28T — photo 6 of 6
Knuckle-Boom Truck-Mounted Cranes

Truck-Mounted Crane on SINOTRUK HOWO — 28 t / 490 kN·m (Ref. TMC-HW2603)

28 t crane on a SINOTRUK HOWO chassis, up to 20.6 m lifting height. Full specification, load chart and FOB price on request.

Short answer. This is a 28 t truck-mounted crane on a SINOTRUK HOWO 6x4 chassis, fitted with a hydraulic knuckle boom rated at a 490 kN·m lifting moment. It lifts to a maximum height of 20.6 m on 4 hydraulic outriggers with a 7,500 mm span, and the unit weighs 8,500 kg. Power is a Weichai engine with Huade hydraulic cylinder, pump and valve, covered by a 2-year warranty, and the unit originates in China (Hubei). Left-hand drive is standard, right-hand drive is available on request, and the steering and the emission configuration are confirmed before the order is placed.
Published by Truck Crane China — we build truck-mounted cranes, grab trucks and wrecker trucks on Chinese chassis for export.

This is a 28 t truck-mounted crane on a SINOTRUK HOWO chassis, rated to 20.6 m lifting height.
Left-hand drive is standard on this build; right-hand drive is available on request. Tell us the market and we confirm the steering and the emission configuration before the order is placed.

Complete Specifications

Parameter
Value
Capacity
28 t
Max. lifting capacity
28 t
Chassis brand
SINOTRUK HOWO
Boom type
Hydraulic Knuckle Boom
Outrigger
4 Hydraulic Outriggers
Crane make
Other
Warranty
2 Years
Hydraulic Cylinder Brand
Huade
Hydraulic Pump Brand
Huade
Hydraulic Valve Brand
Huade
Engine brand
Weichai
Machinery Test Report
Provided
Video outgoing-inspection
Provided
Place of origin
China (Hubei)
Rated lifting moment
490 kN·m
Max. lifting height
20.6 m
Span
7,500 mm
Brand
SINOTRUK HOWO
Weight
8,500 kg

Options and Configuration

Parameter
Value
Type
Truck Mounted Crane Mobile Crane Truck
Drive type
6x4 / LHD / RHD
Emission standard
Euro2 / 3 / 4 / 5 / 6
Color
Customer Requirements / White / Yellow / Green / Black / Blue
Unique Selling Point
High operating efficiency
Application
Truck Crane Mobile Crane Hydraulic Crane


Questions buyers ask about the SINOTRUK HOWO 28 t knuckle-boom crane

What is the lifting capacity and rated lifting moment of this crane?
It is a 28 t crane with a 490 kN·m rated lifting moment, listed as a hydraulic knuckle boom.
How high does the 28 t crane lift and how wide is the span?
Maximum lifting height is 20.6 m on 4 hydraulic outriggers at a 7,500 mm span.
What boom type is fitted and what is the crane make?
The boom is a hydraulic knuckle boom; the crane make is recorded as "Other", so the exact crane brand is settled with the build.
Which chassis and drive configuration does this build use?
It is built on a SINOTRUK HOWO chassis with a 6x4 drive type, and LHD / RHD steering.
What engine, hydraulics and warranty does the unit carry?
A Weichai engine with Huade hydraulic cylinder, pump and valve, covered by a 2-year warranty, with a machinery test report and video outgoing-inspection provided.
What is the finished weight of this crane unit?
The listing gives 8,500 kg for the unit.

Send the destination country, the load you handle and the reach you need. You will get the full build back: chassis, crane, body, the load chart for the crane we propose, and the price.

Questions on this truck

Ask for the specification sheet and the FOB price.

Tell us the model you are looking at and we come back with the full specification, the delivery time after deposit and the FOB price for your port. Where the table above is not complete for this model, ask us for the full specification sheet.
