Truck-Mounted Crane on SINOTRUK HOWO 8x4 — XCMG 28 t Knuckle Boom, 18 m (Ref. TMC-HW2609)

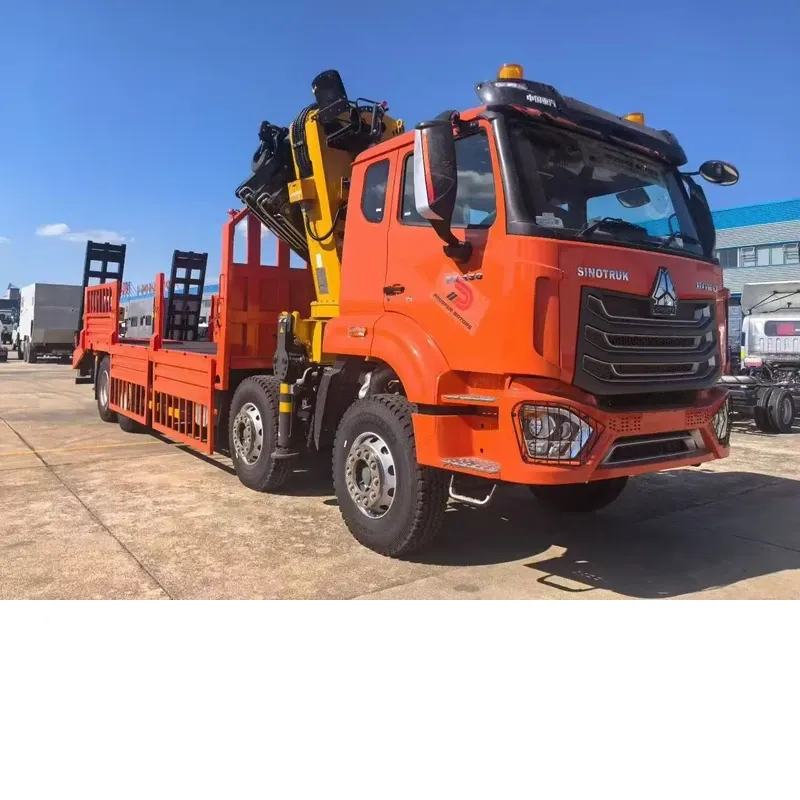

28 t XCMG knuckle-boom crane on a SINOTRUK HOWO 8x4 chassis — WD615 371 hp, 7 sections, 16.3 m boom, 18 m lifting height. Specification and price on request.

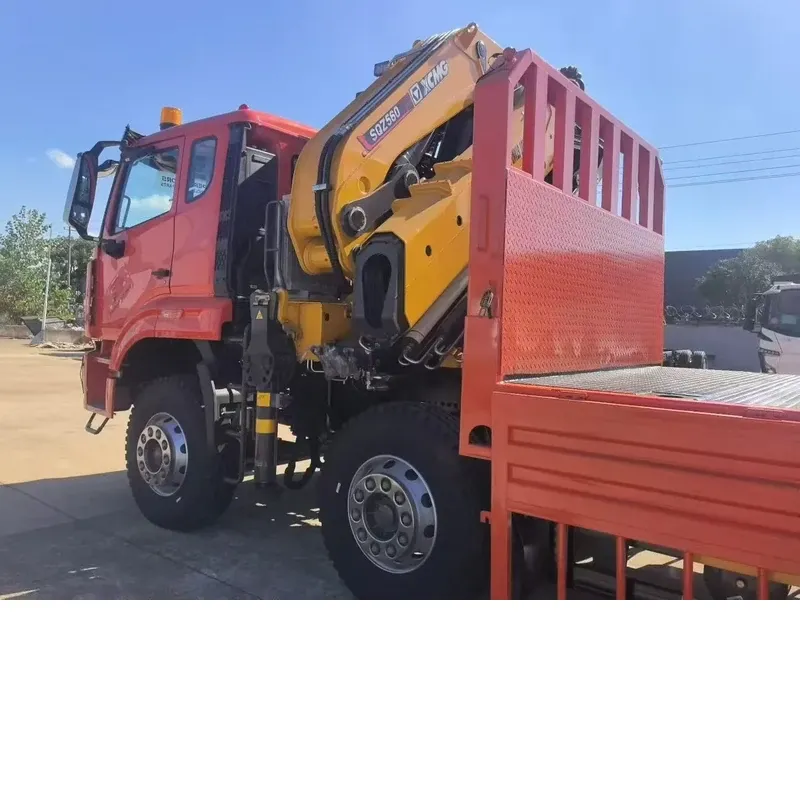

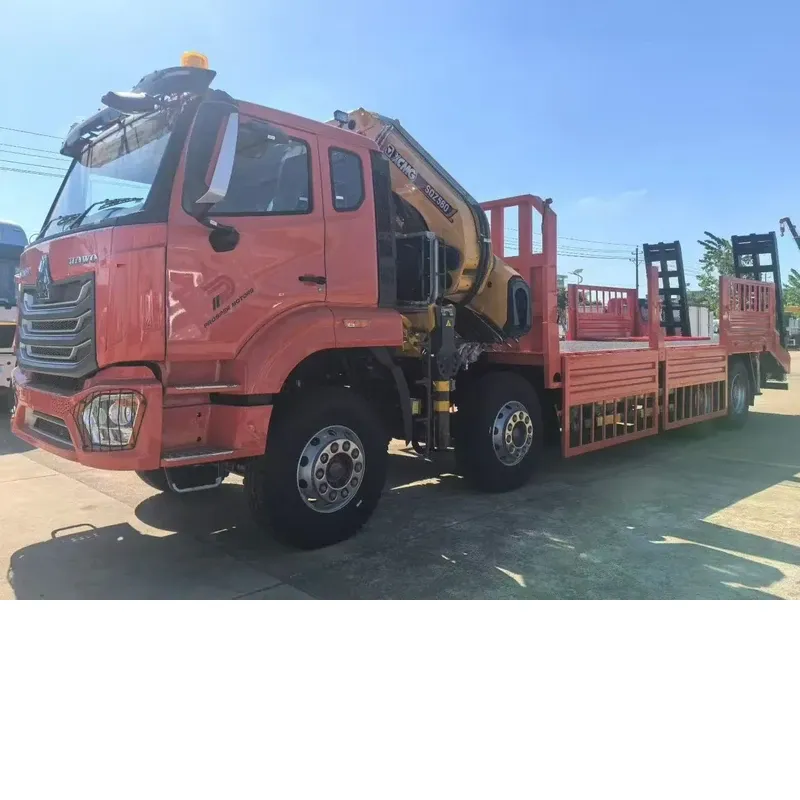

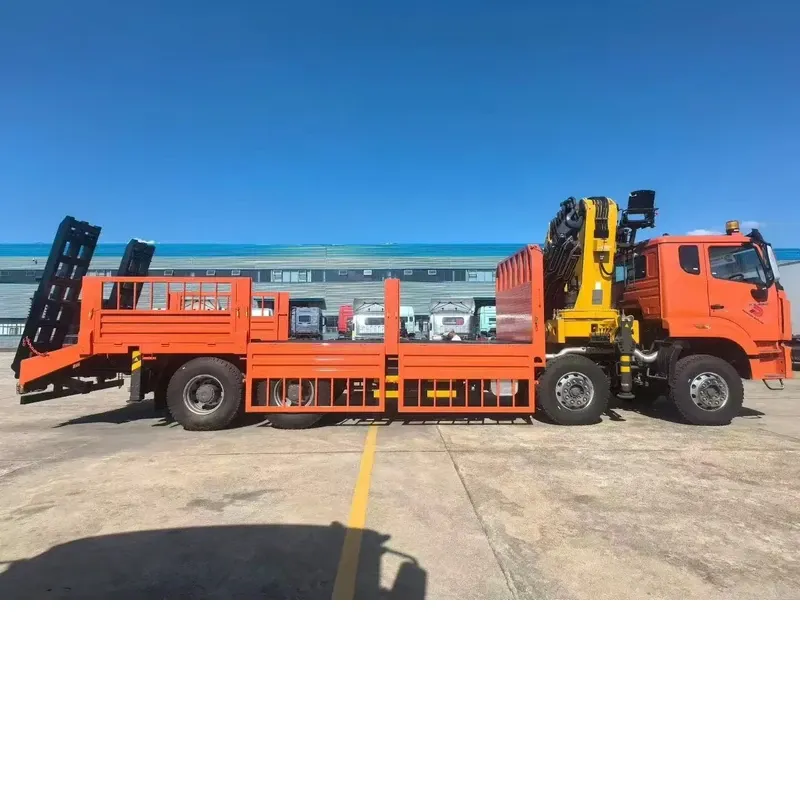

This is a 28 t XCMG knuckle-boom crane on a SINOTRUK HOWO 8x4 chassis. The crane is an XCMG GSQZ560.6 — a seven-section knuckle boom with a 16.3 m boom length and an 18 m lifting height, top-seat operation, twin slewing reducers, an oil cooler and XCMG hydraulic double-chamber rear outriggers, with an XCMG remote control available. The chassis is the four-axle HOWO on the H77L cab: WD615.47 371 hp, HW19710 ten-speed gearbox with a factory HW70 flange-type power take-off, VGD95 front axle and MCX16ZG rear axles on 12.00R20 tyres. The body is a flat-bed carrier with fold-down side gates and a pair of loading ramps stowed at the rear, so the truck carries construction machinery and lifts it on the same trip. Built to order — the chassis, crane, body and sub-frame are matched to the job before the order is placed.
Left-hand drive is standard on this build; right-hand drive is available on request. Tell us the market and we confirm the steering and the emission configuration before the order is placed.
Complete Specifications
Parameter | Value |
|---|---|
Chassis | |
Chassis brand | SINOTRUK HOWO |
Cab | HOWO H77L |
Drive type | 8x4 (four axles: two steering front, two driving rear) |
Wheelbase | 1,800 + 4,600 + 1,350 mm |
Steering | Left-hand drive (LHD) standard; right-hand drive (RHD) available on request |
Emission standard | Euro 2 |
Place of origin | China (Hubei) |
Engine and driveline | |
Engine | SINOTRUK WD615.47, 371 hp, Euro 2 |
Transmission | SINOTRUK HW19710, 10 forward speeds |
Power take-off | HW70 flange-type PTO, factory fitted |
Axles, tyres and brakes | |
Front axle | VGD95, 9.5 t class, drum brakes |
Rear axle | MCX16ZG, 16 t class, drum brakes |
Rear axle ratio | 4.803 |
Tyres | 12.00R20, mixed pattern, 18PR |
Service brake | Air-operated drum brakes |
ABS | Not fitted |
Stabiliser bars | Front and rear, standard |
Cab and equipment | |
Steering gear | Domestic make |
Bumper | High-position |
Fuel tank | 400 L, aluminium |
Seats | Air-suspension driver's seat; lightweight passenger seat |
Audio | MP3 player with a USB input |
Electrical system | NANO wiring system |
Reversing alarm | Fitted |
Crane | |
Crane make | XCMG |
Crane model | GSQZ560.6 |
Max. rated lifting capacity | 28 t |
Boom type | Knuckle boom (folding) |
Boom sections | 7 (six-section telescopic boom) |
Boom length | 16.3 m |
Max. lifting height | 18 m |
Operation | Top seat |
Slewing | Twin slewing reducers, standard |
Oil cooler | Standard |
Outriggers | XCMG hydraulic double-chamber rear outriggers |
Remote control | XCMG remote control, customised |
Body | |
Body type | Flat-bed carrier body with fold-down side gates |

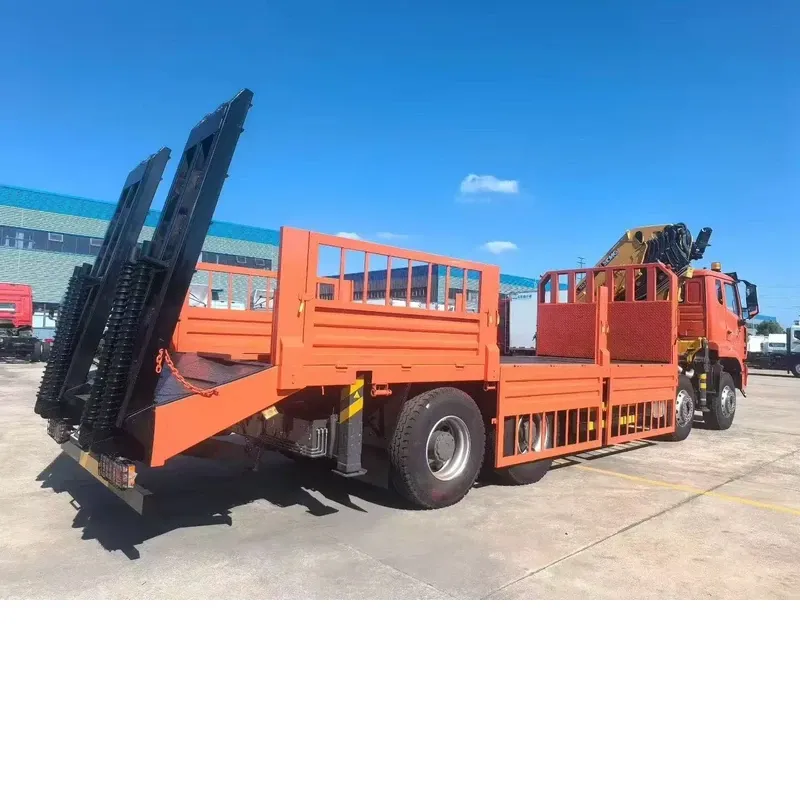

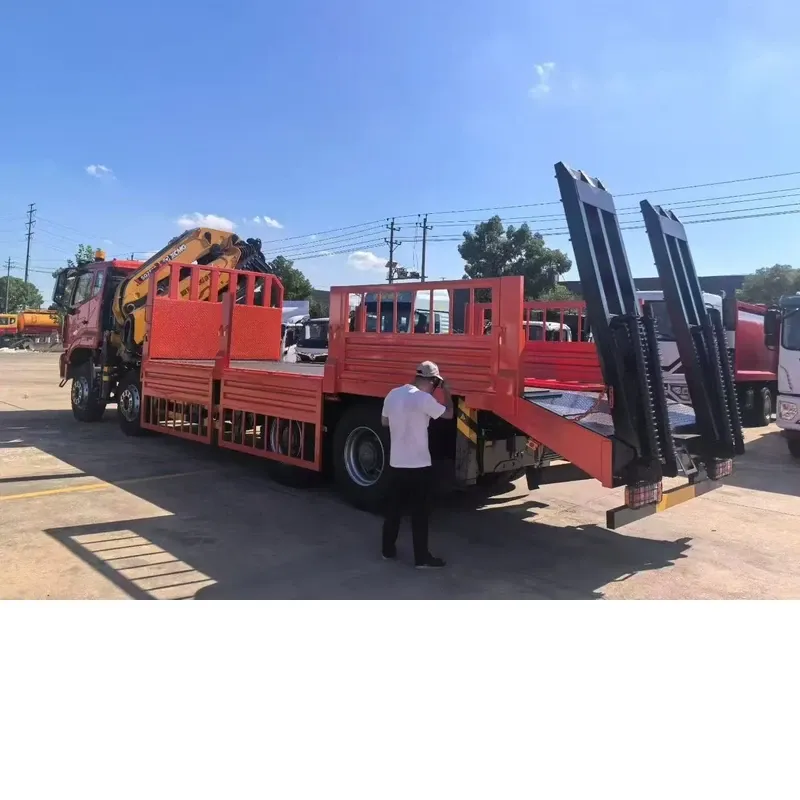

Loading ramps | Pair of folding loading ramps, stowed at the rear |
Body configuration | Built to the job; the final body is confirmed on the quotation |
General | |
Warranty | 2 Years |
Machinery Test Report | Provided |
Video outgoing-inspection | Provided |
Options and Configuration
Parameter | Value |
|---|---|
Type | Truck Mounted Crane Mobile Crane Truck |
Drive type | 8x4 / LHD / RHD |
Chassis brand | HOWO (SINOTRUK) standard; other chassis on request |
Crane capacity | 3 t to 28 t |
Crane make | XCMG / SANY / Zoomlion / WHHC |
Boom | Knuckle boom / straight telescopic boom |
Emission standard | Euro 2 on this build; tell us the standard your market requires |
Body | Flat-bed carrier body with folding loading ramps / drop-side body |
Colour | Customer requirements / White / Yellow / Green / Black / Blue |
Unique Selling Point | 28 t XCMG knuckle boom, 16.3 m boom, 18 m lifting height |
Application | Truck Crane Mobile Crane Hydraulic Crane |
Send the destination country, the load you handle and the reach you need. You will get the full build back: chassis, crane, body, the load chart for the crane we propose, and the price.
