Truck-Mounted Crane on SHACMAN Delong F3000 — 10 t / 250 kN·m, 4-Section Boom (Ref. TMC-SX2604)
10 t crane on a SHACMAN Delong F3000 6x4 chassis, a four-section telescopic boom to 15.5 m. Built right-hand drive. Full specification and price on request.

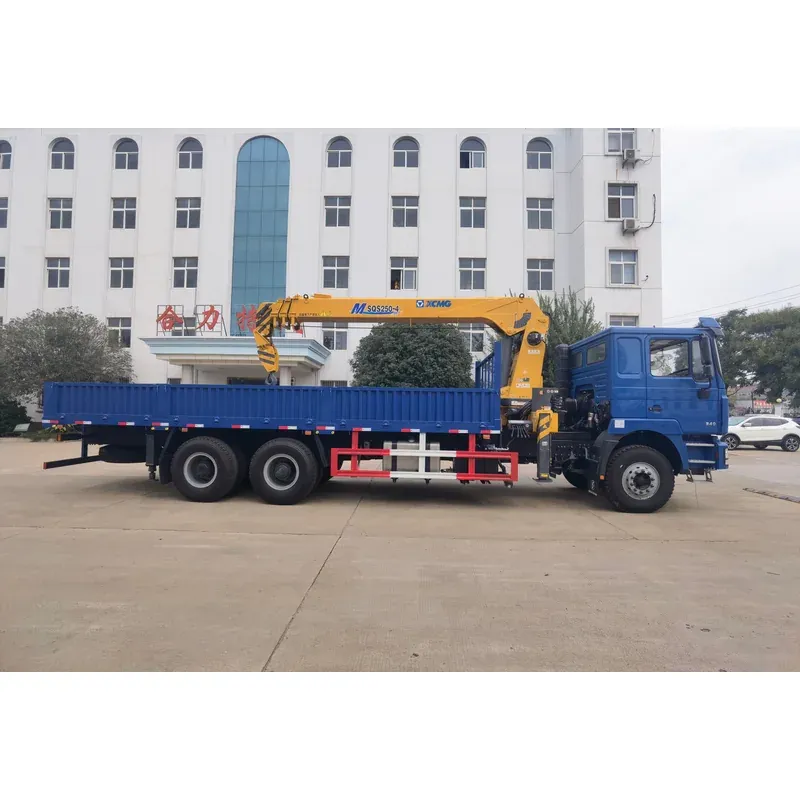

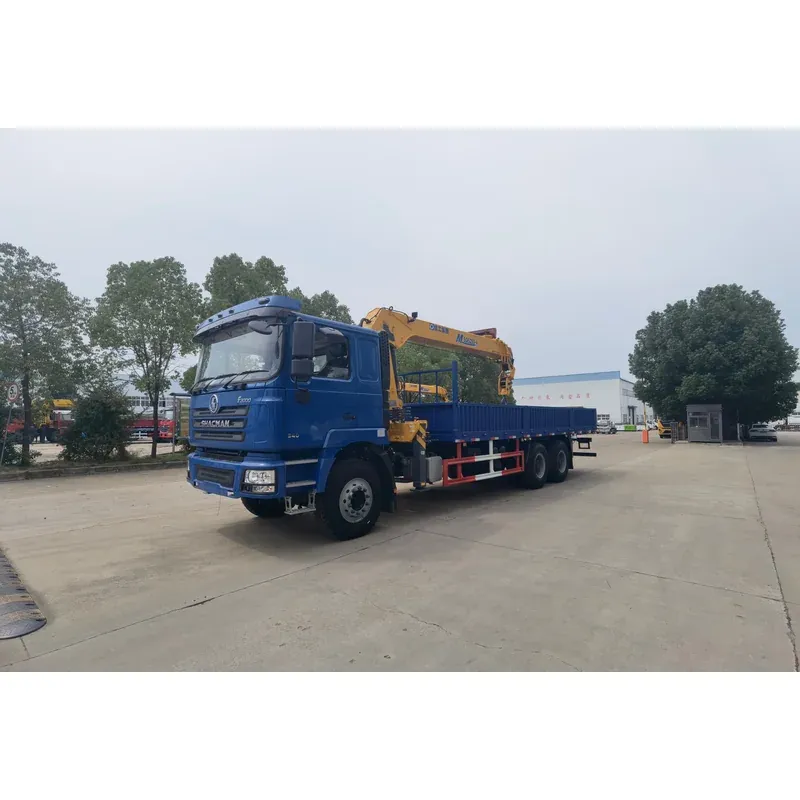

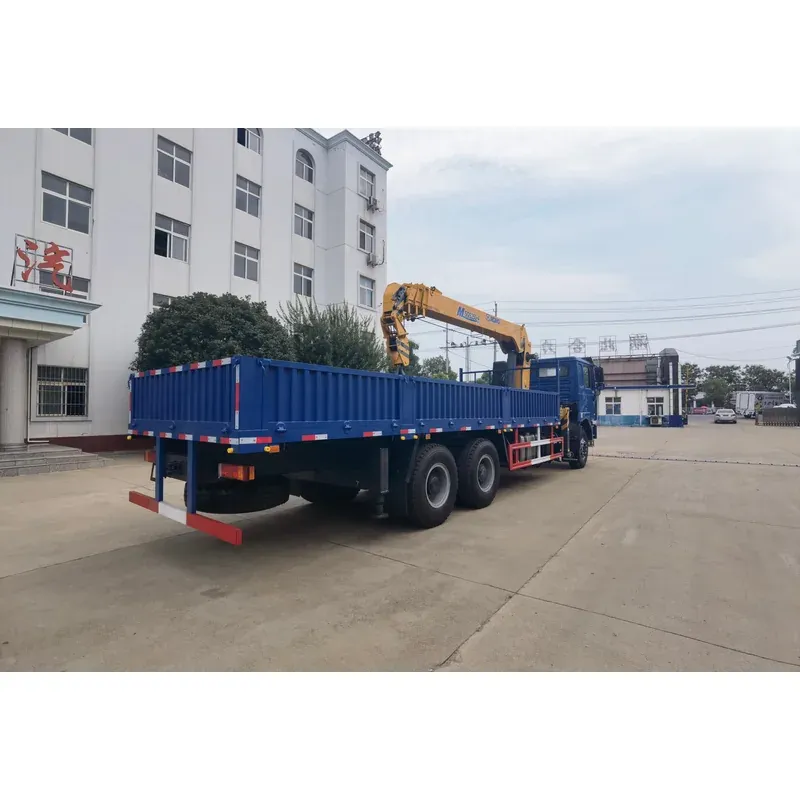

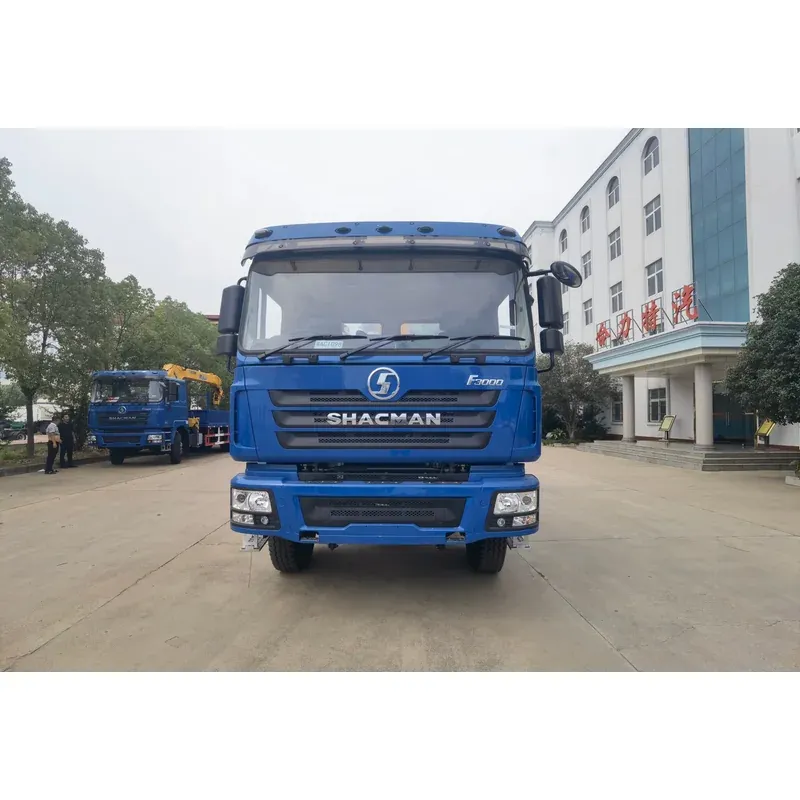

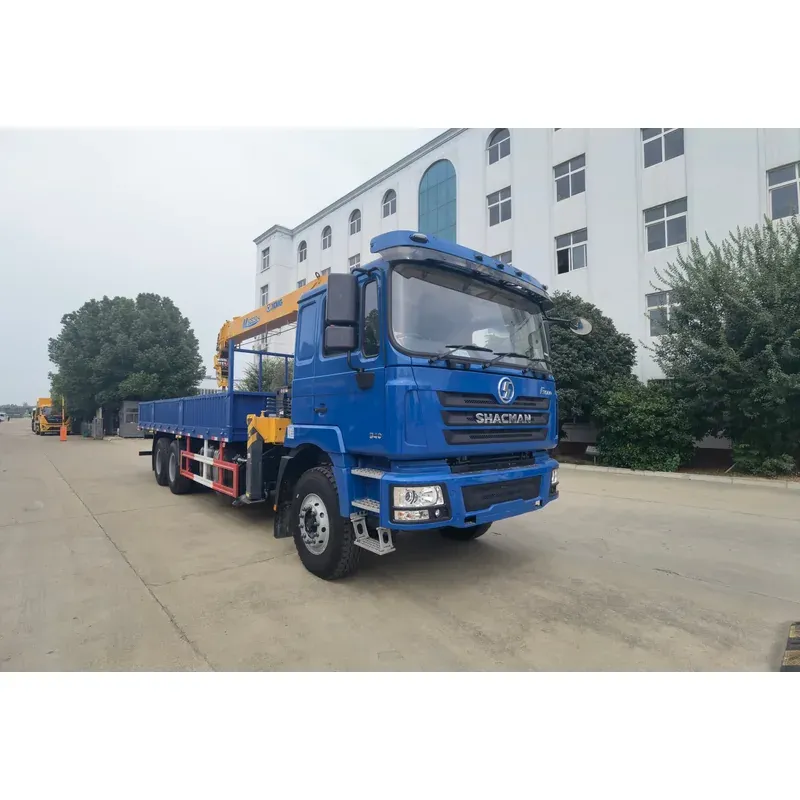

This is a 10 t truck-mounted crane on a SHACMAN Delong F3000 6x4 chassis, with a four-section telescopic boom reaching 15.5 m. The crane is an XCMG SQS250-4 (M series) with a twin-pump hydraulic system, rated at 250 kN·m. Built to order — the chassis, crane, body and sub-frame are matched to the job before the order is placed.
This unit is built right-hand drive. Left-hand drive is available on request. Tell us the market and we confirm the steering and the emission configuration before the order is placed.
Complete Specifications
Parameter | Value |
|---|---|
Chassis | |
Chassis model | SX5255JSQDR584 |
Chassis brand | SHACMAN Delong F3000 |
Drive type | 6x4 |
Gross vehicle weight | 25,000 kg |
Kerb weight | 16,000 kg |
Cab | F3000 oilfield-specification, medium-long, low roof |
Engine | Weichai WP10 series, 340 hp |
Emission standard | Euro III |
Transmission | RTD-11509C + QH50 |
Front axle | HD, 7.5 t |
Rear axle | 16 t HD, two-speed, ratio 4.769 |
Frame | 850 × 300 mm (8+5+8) |
Wheelbase | 5,775 + 1,400 mm |
Rear overhang | 2,900 mm |
Suspension | Multi-leaf springs, four main leaves with four U-bolts |
Fuel tank | 300 L, aluminium |
Tyres | 12.00R20 |
Crane | |
Crane make | XCMG |
Crane model | SQS250-4 (M series) |
Max. rated lifting capacity | 10,000 kg |
Max. lifting moment | 250 kN·m |
Boom type | Telescopic straight boom |
Boom sections | 4 |
Boom length | 5.62 – 15.5 m |
Max. working radius | 15 m |
Max. lifting height (basic boom) | 7.6 m |
Max. lifting height (boom fully extended) | 17.5 m |
Max. lifting height | 17.5 m |
Slewing | 360° full slewing |
Outrigger span | 2,480 – 6,070 mm |
System pressure | 26 MPa |
System flow | 50 + 50 L/min, twin pump |
Oil tank capacity | 200 L |
Crane weight | 3,959 kg |
Mounting space | 1,200 mm |
Body | |
Body type | Drop-side cargo body |
Body dimensions | 8,000 × 2,450 × 600 mm |
General | |
Steering | Right-hand drive |
Place of origin | China (Hubei) |
Options and Configuration
Parameter | Value |
|---|---|
Type | Truck Mounted Crane Mobile Crane Truck |
Drive type | 6x4 / LHD / RHD |
Emission standard | Euro2 / 3 / 4 / 5 / 6 |
Colour | Customer requirements / White / Yellow / Green / Black / Blue |
Application | Truck Crane Mobile Crane Hydraulic Crane |
Send the destination country, the load you handle and the reach you need. You will get the full build back: chassis, crane, body, the load chart for the crane we propose, and the price.
