Truck-Mounted Crane on Foton 4x2 — 8 t, 5-Section Telescopic Boom (Ref. TMC-FT2603)
8 t on a five-section telescopic boom reaching 18.5 m, on a Foton 4x2 China VI chassis with an 8JS85TE gearbox and PTO. Specification on request.

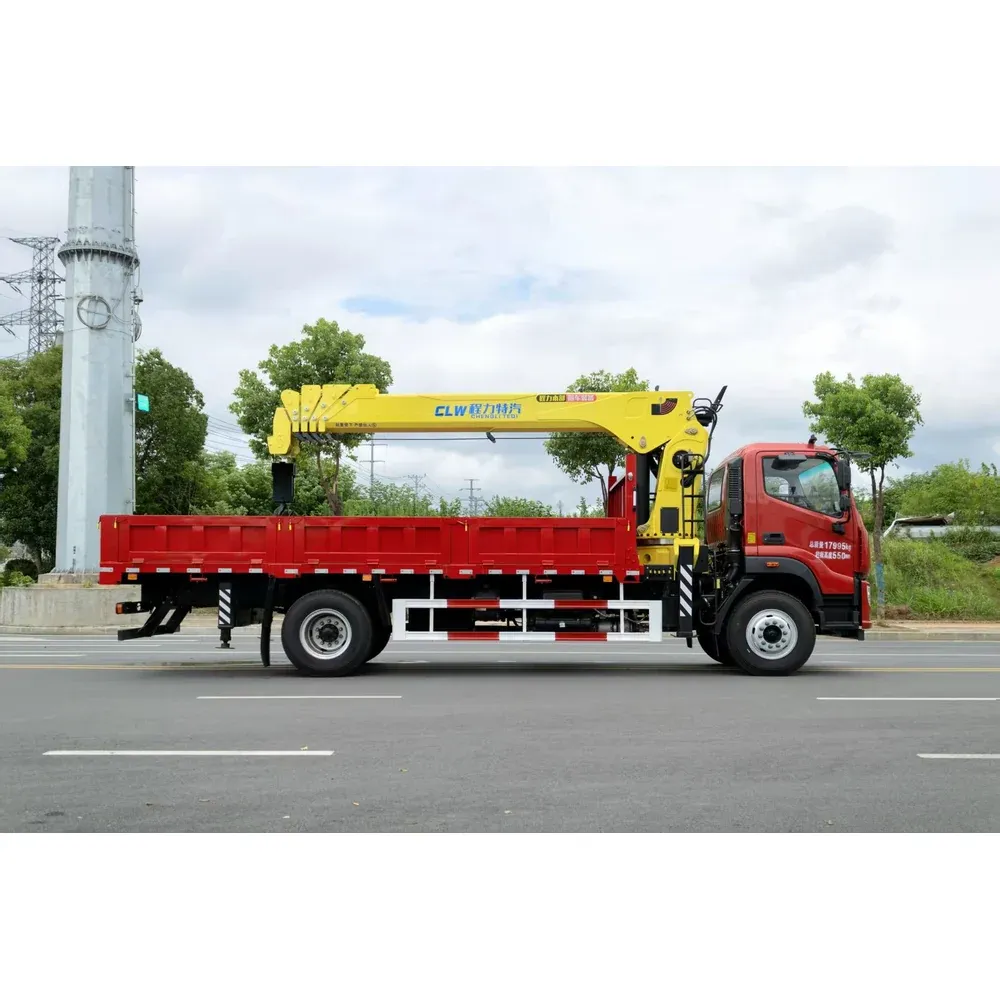

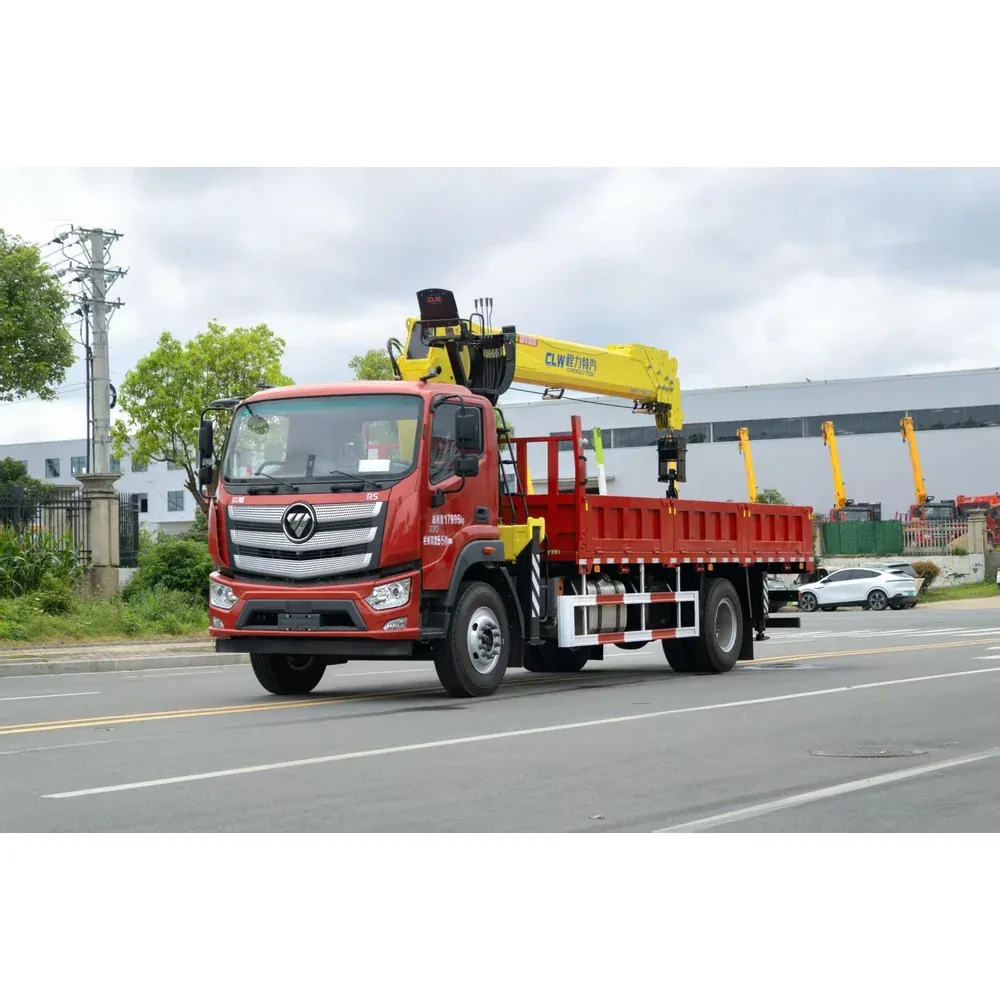

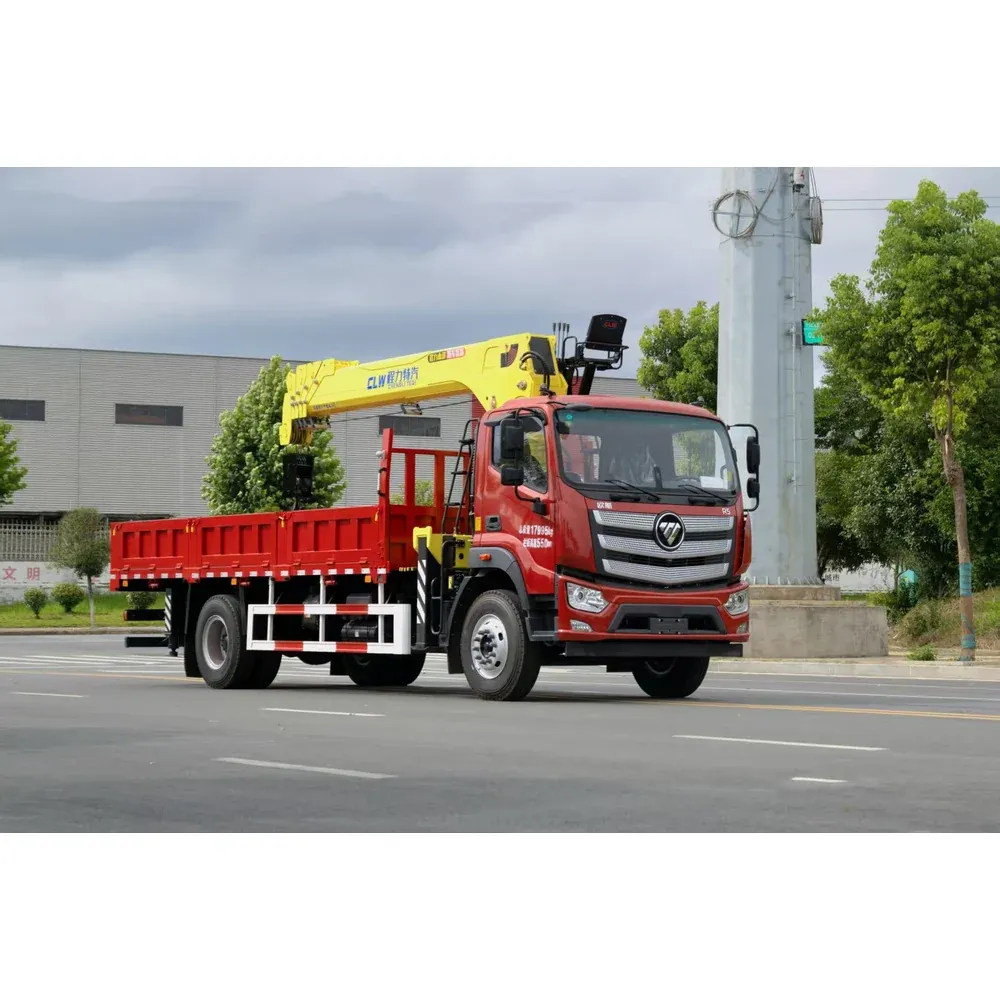

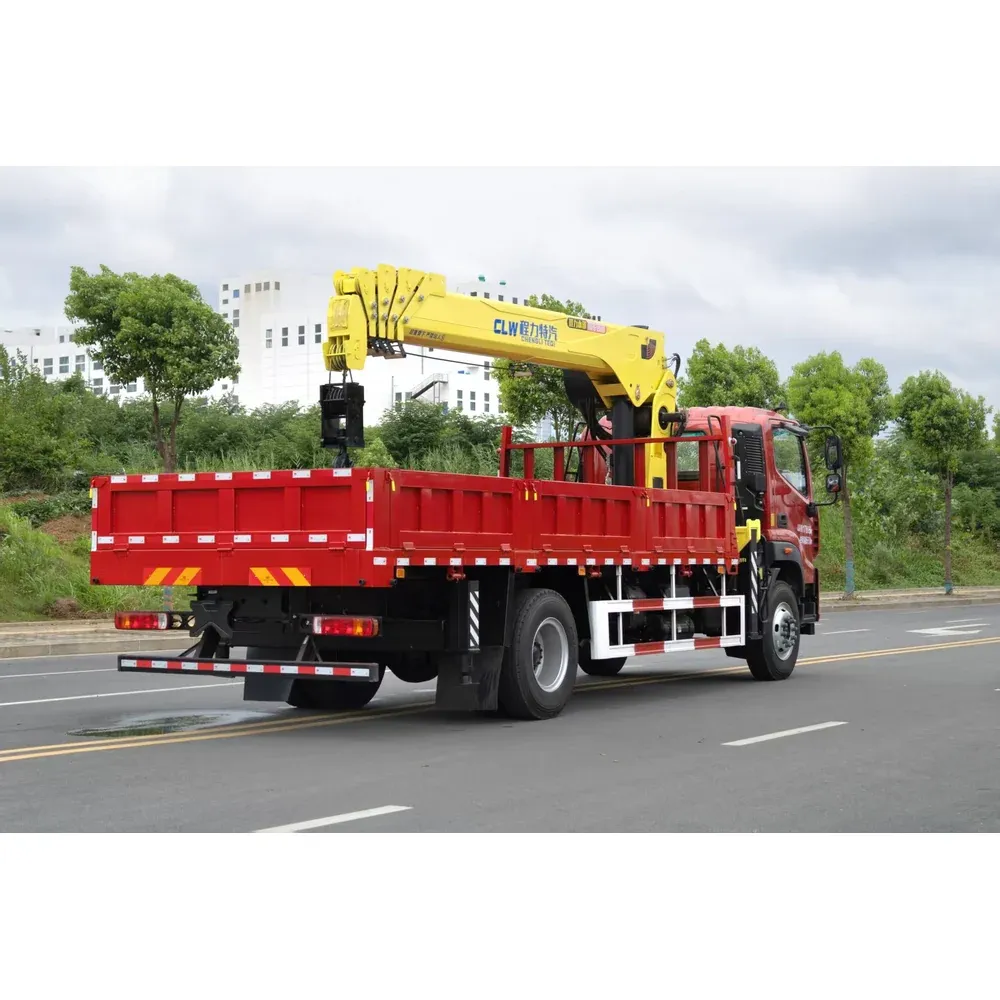

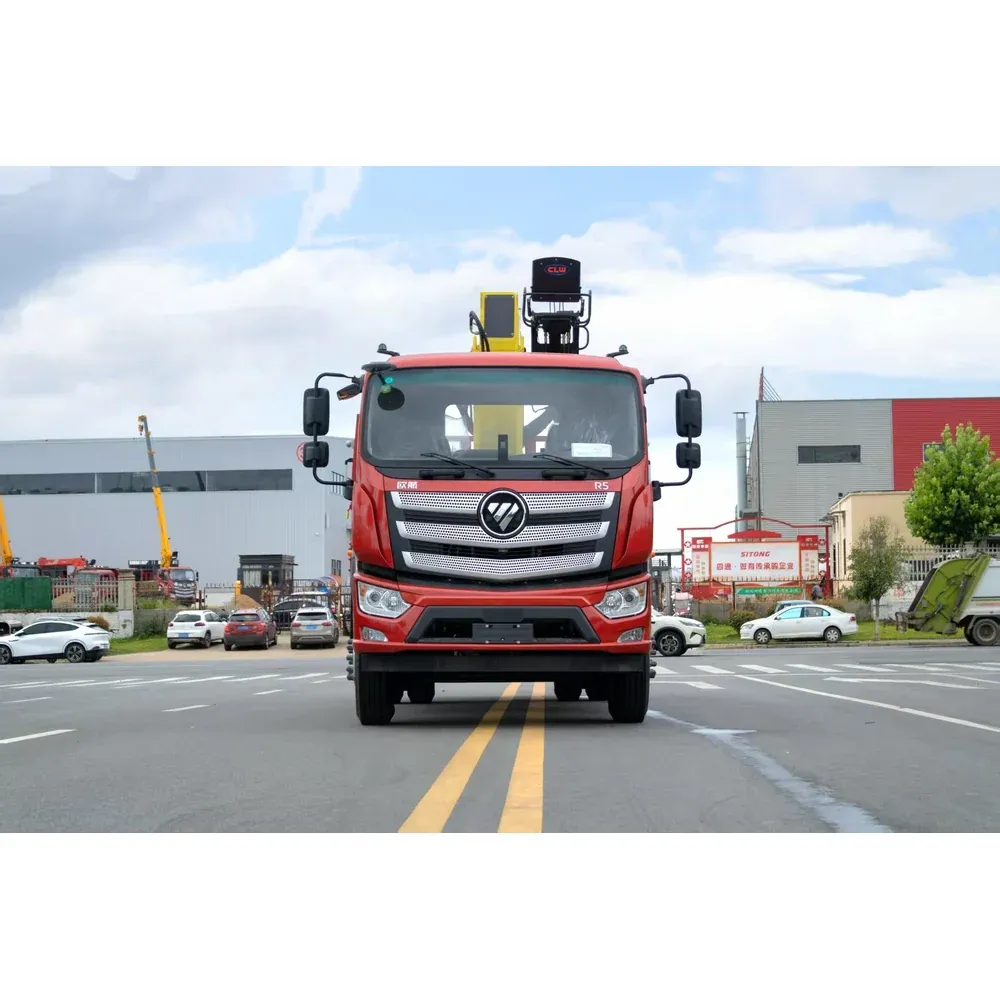

This is an 8 t truck-mounted crane on a Foton 4x2 chassis, with a five-section telescopic boom reaching 18.5 m. The body is 6,050 mm of folded-steel drop-side, and the truck runs at an 18,000 kg gross vehicle weight with an 11,500 kg curb weight. Built to order — chassis, crane, body and sub-frame are matched before the order is placed.
The chassis is a China VI build with a Fast 8JS85TE gearbox and PTO, left-hand drive as standard; right-hand drive is available on request. Tell us the market and we confirm the steering and the emission configuration before the order is placed.
Complete Specifications
Parameter | Value |
|---|---|
Chassis | |
Chassis brand | Foton |
Drive type | 4x2 |
Wheelbase | 5,150 mm |
Frame | 300 mm, three-layer, with guard plate |
Gross vehicle weight | 18,000 kg |
Curb weight | 11,500 kg |
Springs | 10/10+8 |
Engine | |
Make | Yuchai |
Model | YCS04220-61A |
Maximum power | 220 hp |
Emission level | China VI |
Transmission | |
Gearbox model | Fast 8JS85TE, with PTO |
Axles | |
Rear axle | 10 t |
Final drive ratio | 5.143 |
Tyres | |
Tyres | 10.00R20 18PR |
Dimensions | |
Overall dimensions | 9,000 × 2,550 × 3,850 mm |
Cargo body dimensions | 6,050 × 2,450 × 550 mm |
Crane | |
Crane make | Chengli (CLW) |
Max. rated lifting capacity | 8,000 kg |
Boom type | Telescopic straight boom |
Boom sections | 5 |
Boom length | 18.5 m |
Max. lifting height | 20.5 m |
Control valve | Shanghai Qiangtian |
Hydraulic pump | Wanyu |
Oil cooler | Constant-temperature cooler |
Hose fittings | ED fittings, crimped hoses, reduced seal-ring count |
Seals | Hallite (UK) |
Cargo body | |
Body type | Drop-side engineering body, folded steel |
Side / floor thickness | 3 mm sides, 5 mm floor |
Body construction | Vertical through gantry reinforcement, folded cross members, rear wrap-around |
Configuration | |
Steering | Left-hand drive (LHD) standard. Right-hand drive (RHD) available on request. |
Place of origin | China (Hubei) |
Options and Configuration
Parameter | Value |
|---|---|
Type | Truck Mounted Crane Mobile Crane Truck |
Drive type | 4x2 |
Emission standard | China VI |
Colour | Customer requirements / White / Yellow / Green / Black / Blue |
Application | Truck Crane Mobile Crane Hydraulic Crane |
Send the destination country, the load you handle and the reach you need. You will get the full build back: chassis, crane, body, the load chart for the crane we propose, and the price.
