Telescopic-Boom Truck-Mounted Cranes
Truck-Mounted Crane on Dongfeng 4x2 Chassis — DFL5140XXYB1, 190 PS, 5.6 m Wheelbase (KD6E-976)
Dongfeng DFL5140XXYB1 4x2 crane-truck chassis (Ref. KD6E-976). Euro 2 mechanically controlled diesel, 190 PS, 5.9 L, 8-speed synchronized gearbox, 5,600 mm wheelbase, 14,495 kg GVW, 6 t front and 10 t rear axle. Crane selected to your requirement. LHD standard; RHD on request.
Short answer. This is a Dongfeng DFL5140XXYB1 4x2 crane-truck chassis — reference KD6E-976-012J — on the D530 cab, with a 5,600 mm wheelbase, 9,790 mm overall chassis length and 14,495 kg gross vehicle weight. It runs a mechanically controlled Euro 2 diesel of 190 PS, 670 N·m and 5.9 L in six cylinders, through an 8JS85TE-C OD gearbox with 8 forward and 2 reverse gears, on a 6 t front axle and a 10 t single-reduction rear axle at 5.29 ratio. The crane and the cargo body are not fixed on this page: both are built to your requirement and confirmed on the quotation. Left-hand drive is standard and right-hand drive is available on request, built to order.
Published by Truck Crane China — we build truck-mounted cranes, grab trucks and wrecker trucks on Chinese chassis for export.

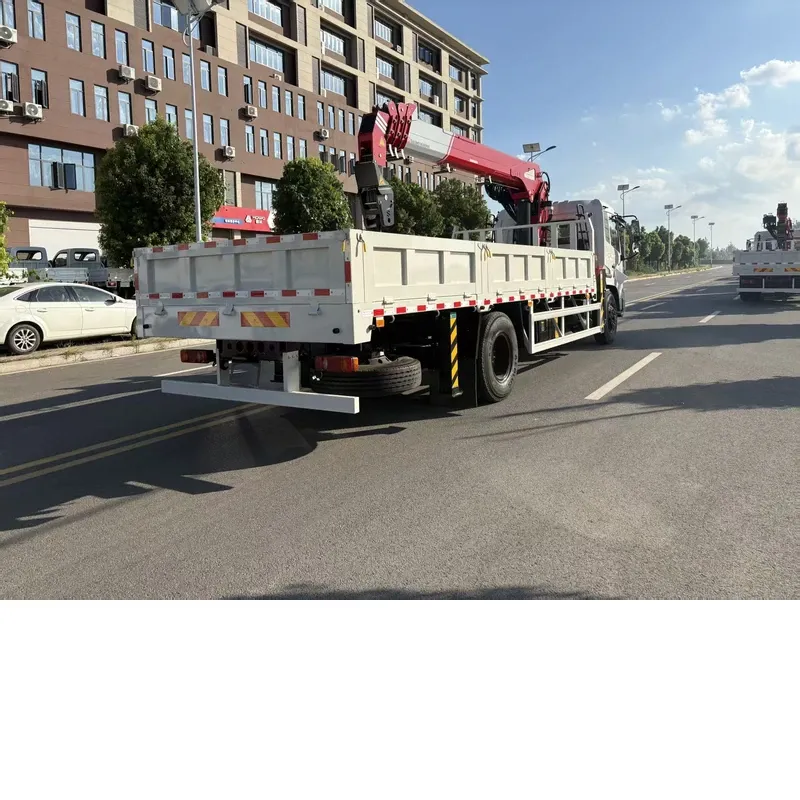

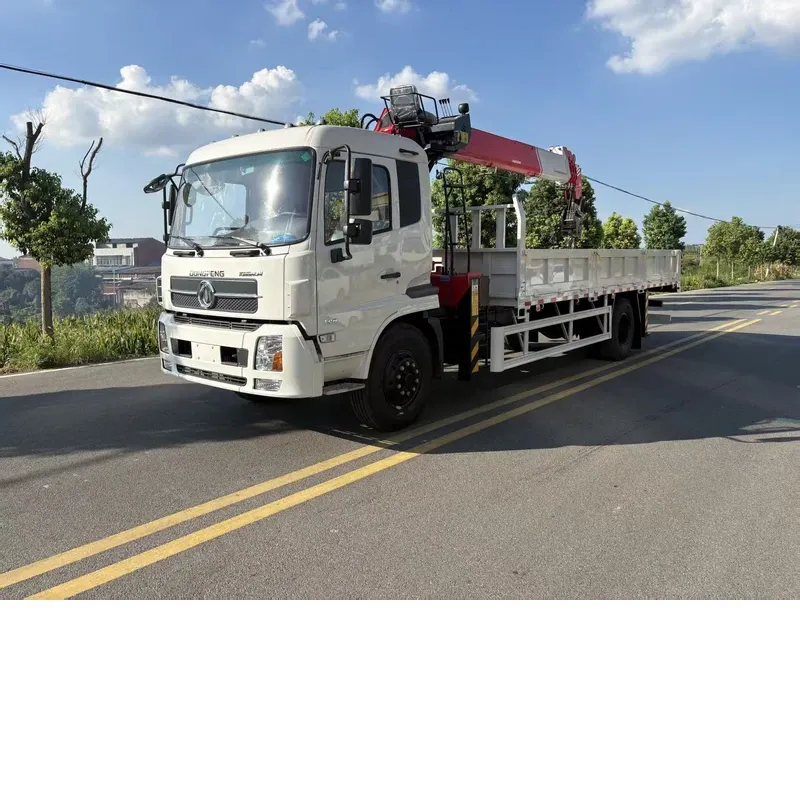

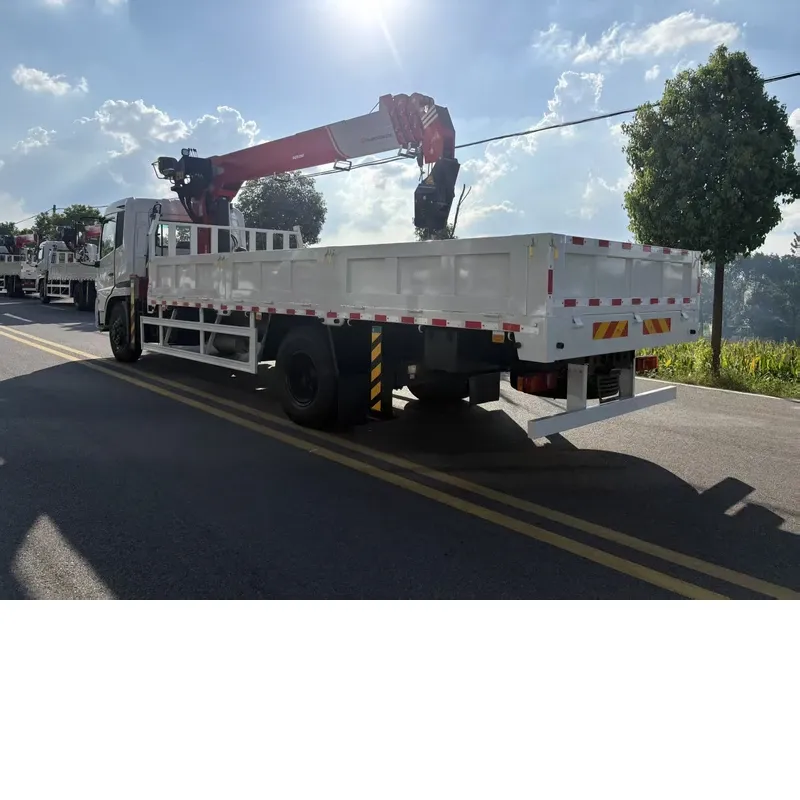

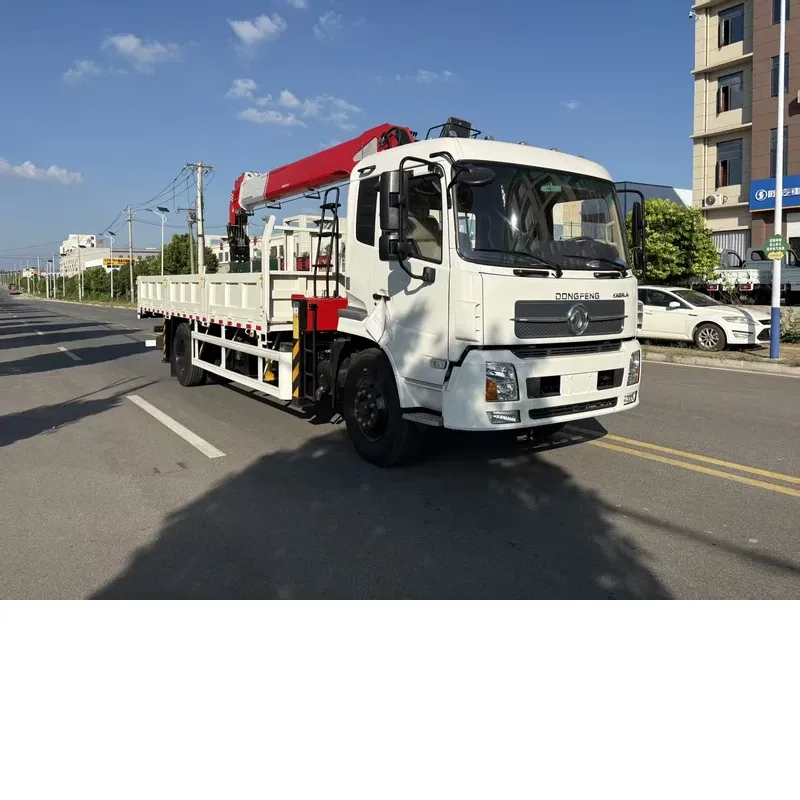

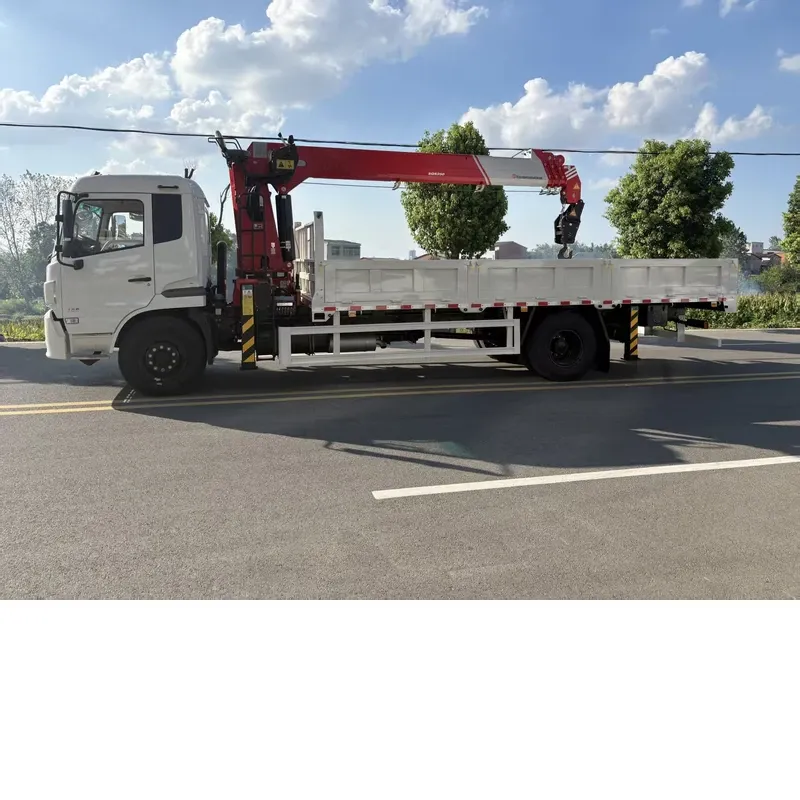

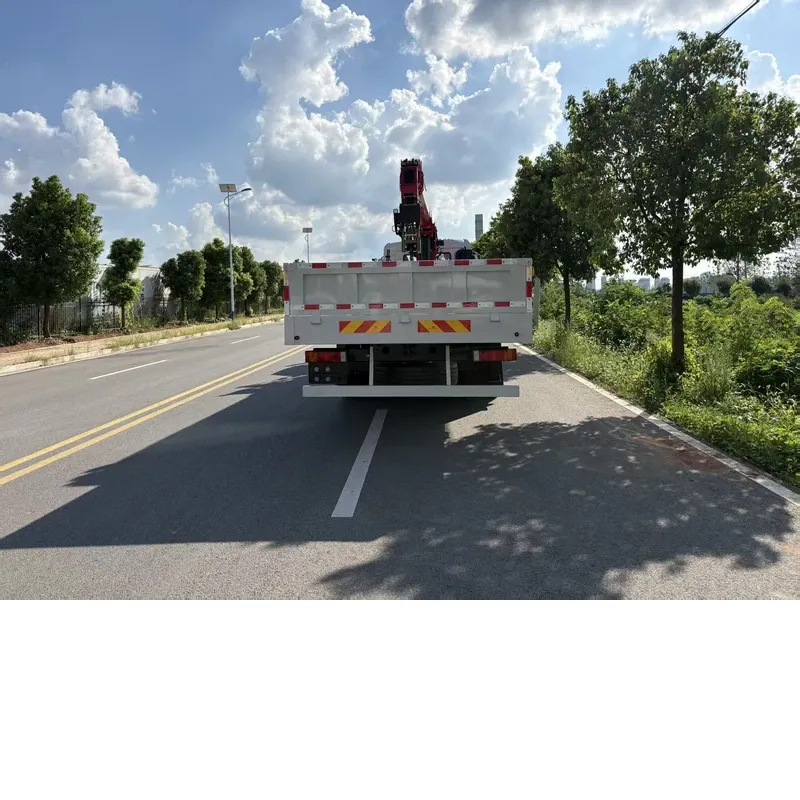

This is a 4x2 crane-truck chassis rather than a finished catalogue crane. The base vehicle is a Dongfeng DFL5140XXYB1 (reference KD6E-976-012J) on the D530 cab: one driven axle, a 5,600 mm wheelbase and a 2,830 mm cab height, which keeps the truck under ten metres overall and makes it the option for tight yards, city work and routes a three-axle vehicle cannot take. Gross vehicle weight is 14,495 kg with a 5,750 kg chassis, leaving the balance for the crane, the body and the load.
Left-hand drive (LHD) is standard. Right-hand drive (RHD) is available on request and is built to order.
Complete Specifications
Parameter | Value |
|---|---|
Chassis | |
Chassis model | DFL5140XXYB1-KD6E-976-012J |
Drive type | 4x2 |
Overall chassis length | 9,790 mm |
Cab width | 2,500 mm |
Cab height (unladen) | 2,830 mm |
Wheelbase | 5,600 mm |
Gross vehicle weight | 14,495 kg |
Curb weight (chassis) | 5,750 kg |
Engine | |
Model | B190 33 |
Emission level | Euro 2 |
Maximum power | 190 PS |
Maximum torque | 670 N·m |
Number of cylinders | 6 |
Displacement | 5.9 L |
Transmission | |
Gearbox model | 8JS85TE-C OD |
Number of gears | 8 forward + 2 reverse |
Synchronizers | Yes |
Gear ratios | 9.65 – 0.74 |
Brakes | |
Exhaust brake | Yes |
Engine brake | No |
ABS | No |
Cab | |
Cab platform | D530 |
Bunks | One |
Roof | Standard roof |
Cab tilting | Electric |
Windows | Electric |
Central lock | Yes |
Driver's seat | Standard |
Air conditioning | Yes |
Axles | |
Front axle capacity | 6 t |
Rear axle type | Single reduction |
Rear axle ratio | 5.29 |
Rear axle capacity | 10 t |
Tyres and suspension | |
Tyres | 10.00R20 |
Front suspension | Leaf spring, 8 leaves |
Rear suspension | Leaf spring, 10 + 8 leaves |
Fuel | |
Fuel tank | Steel |
Fuel tank capacity | 160 L |
Configuration | |
Steering | Left-hand drive (LHD) standard. Right-hand drive (RHD) available on request. |
Crane | Selected to your requirement — confirmed on the quotation. |
Cargo body | Built to your requirement — confirmed on the quotation. |
Crane, Body and Steering
The crane is not fixed on this page because it is not fixed on the truck. We fit cranes from our own production or sourced to your specification — brands including WHHC, XCMG, SANY and Zoomlion — and the rated capacity, boom sections, maximum reach and the crane's own load chart are confirmed on the quotation rather than assumed here. Tell us the loads you handle and the reach you need, and the crane is matched to the job and to this chassis's front-axle and gross-weight limits.
Send us the job — the loads, the reach you need and where the truck has to work — and we will come back with the complete build: chassis, crane, body, the load chart for the crane we propose, and the price.
Questions buyers ask about the Dongfeng 4x2 DFL5140XXYB1
What crane can be fitted to this chassis?
The crane is not fixed on this page because it is not fixed on the truck. We fit cranes from our own production or sourced to your specification — brands including WHHC, XCMG, SANY and Zoomlion — and the rated capacity, boom sections, maximum reach and the crane's own load chart are confirmed on the quotation rather than assumed here.
Why choose this 4x2 chassis instead of a three-axle truck?
It has one driven axle, a 5,600 mm wheelbase and a 2,830 mm cab height, which keeps the truck under ten metres overall. That makes it the option for tight yards, city work and routes a three-axle vehicle cannot take.
What does the chassis weight leave for the crane and the body?
Gross vehicle weight is 14,495 kg with a 5,750 kg chassis, leaving the balance for the crane, the body and the load. The axles are rated 6 t front and 10 t rear, the rear being a single reduction unit at 5.29 ratio.
What engine, gearbox and brakes does it use?
A B190 33 mechanically controlled diesel: Euro 2, 190 PS, 670 N·m, 5.9 L and six cylinders, driving an 8JS85TE-C OD gearbox with 8 forward plus 2 reverse gears, synchronizers and ratios of 9.65 – 0.74. An exhaust brake is fitted; there is no engine brake and no ABS.
What does the D530 cab include?
A 2,500 mm wide cab, 2,830 mm unladen height, one bunk and a standard roof, with electric cab tilting, electric windows, central lock and air conditioning. The chassis rides on 10.00R20 tyres with 8-leaf front and 10 + 8-leaf rear leaf springs and a 160 L steel fuel tank.

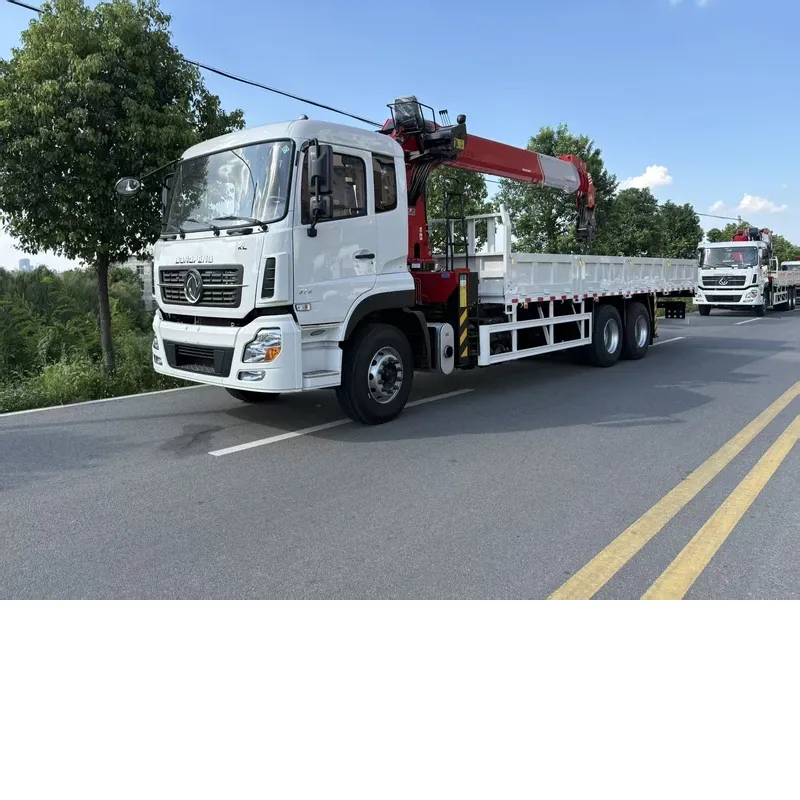

Other builds in this range: Crane on Dongfeng 6x4 Chassis, DFL1250AW2, 275 kW and Crane on Dongfeng, 5 t / 125 kN·m.
