ISUZU ELF 4×2 Truck-Mounted Crane — XCMG SQS125-4, 5 t, 4-Section Telescopic Boom
The XCMG SQS125-4 — a 5 t, four-section telescopic crane on an ISUZU 700P 4×2 chassis with a drop-side cargo body. Left-hand drive standard; right-hand drive available on request.
Short answer. This is a 5 t XCMG SQS125-4 four-section telescopic crane on an ISUZU 700P (ELF) 4×2 chassis with a drop-side cargo body. The crane has a 125 kN·m (12.5 t·m) lifting moment, a 3.53–12 m boom and a 12 m maximum working radius at a 14.2 m maximum lifting height. Power is a 190 hp ISUZU 4HK1-TCG61 China VI engine through a 6-speed gearbox, on a 4175 mm wheelbase. Left-hand drive is standard; right-hand drive is available on request.
Published by Truck Crane China — we build truck-mounted cranes, grab trucks and wrecker trucks on Chinese chassis for export.

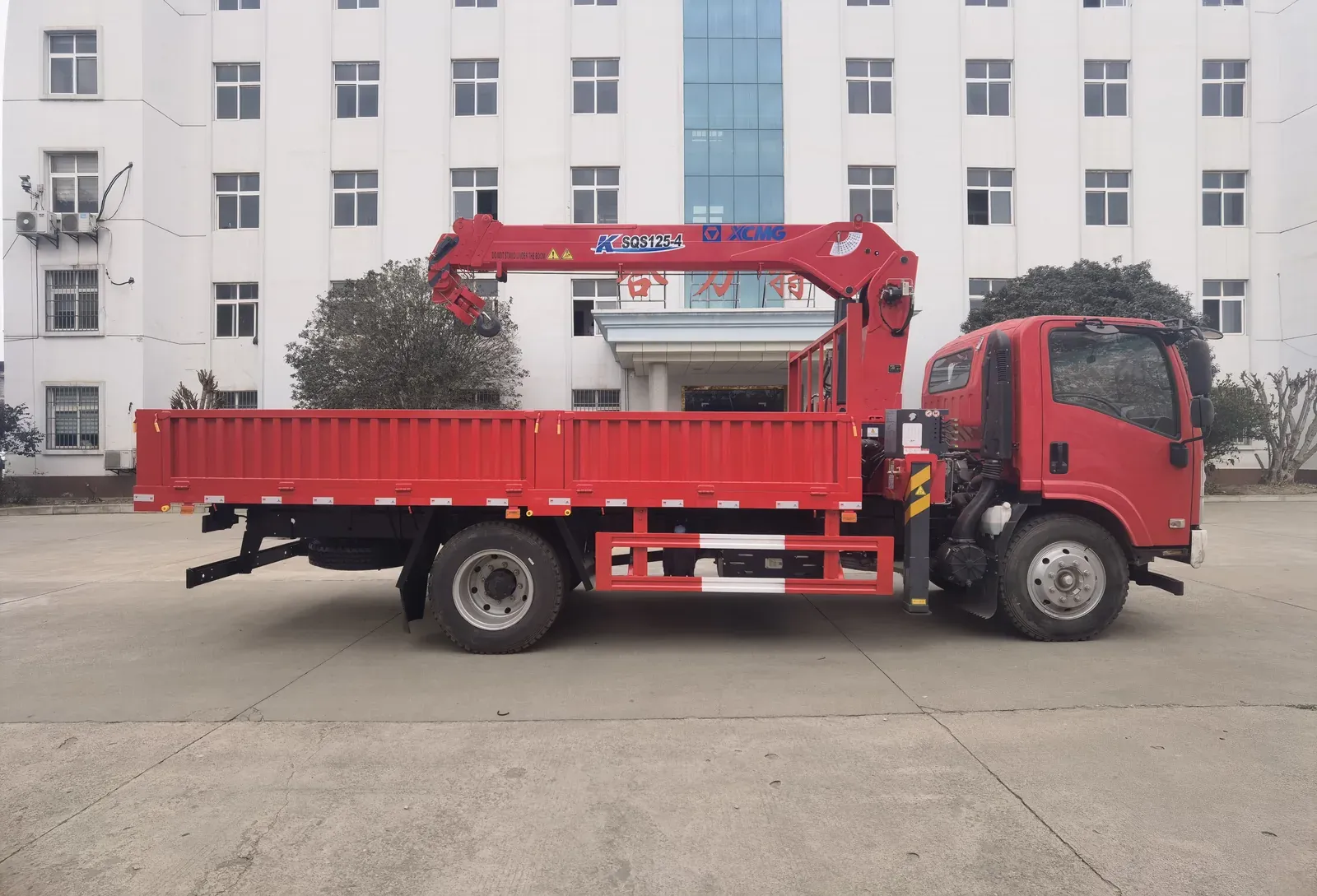

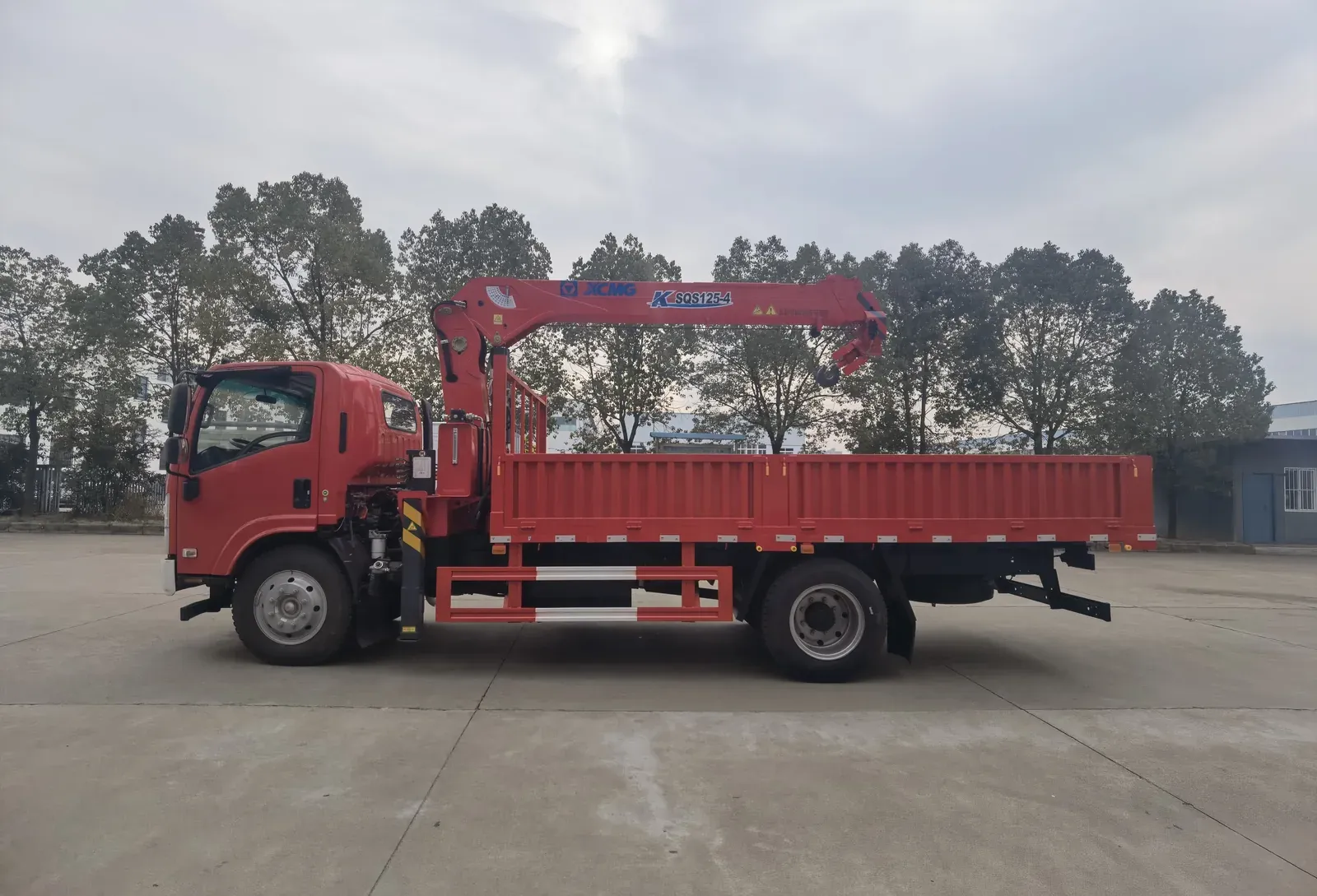

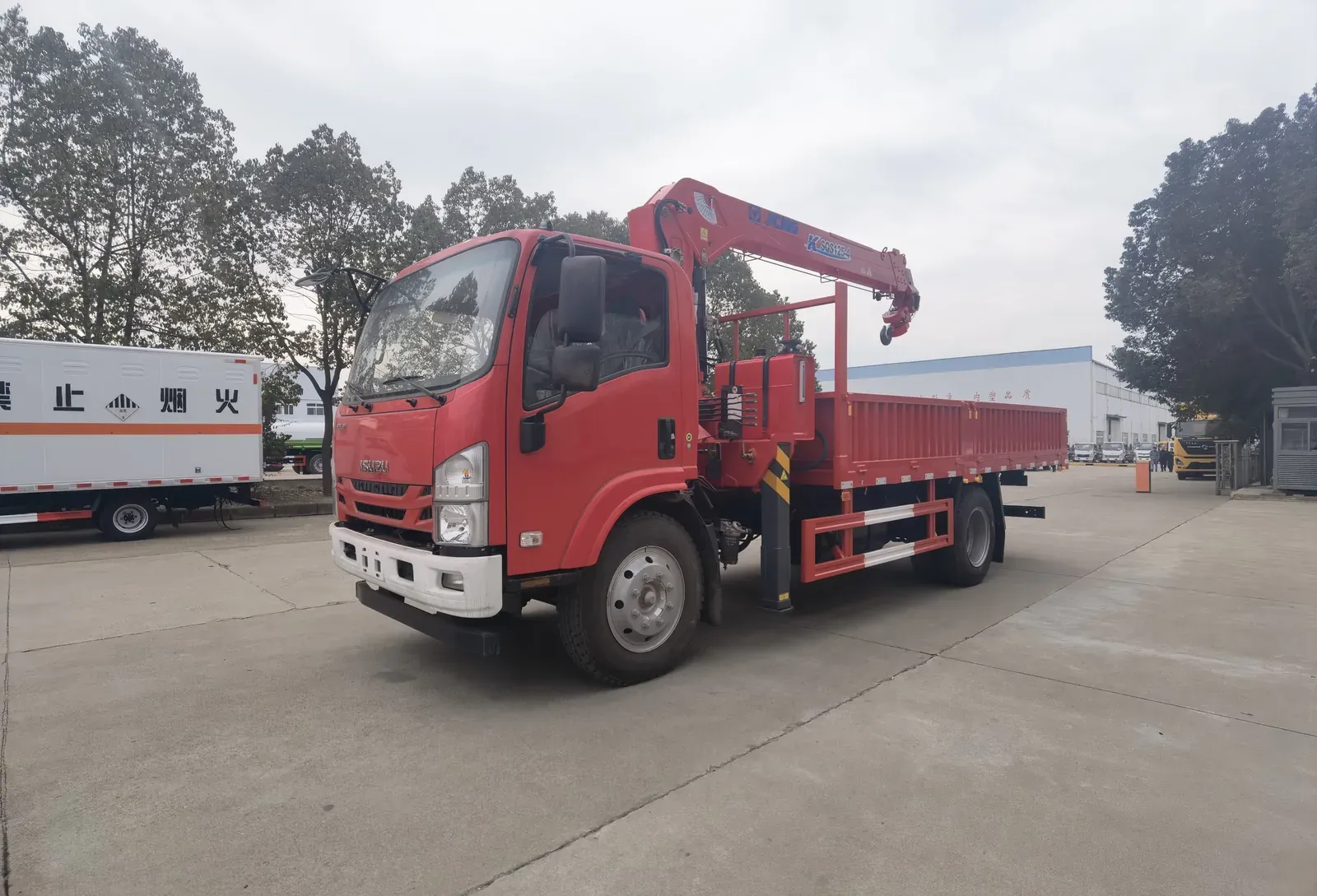

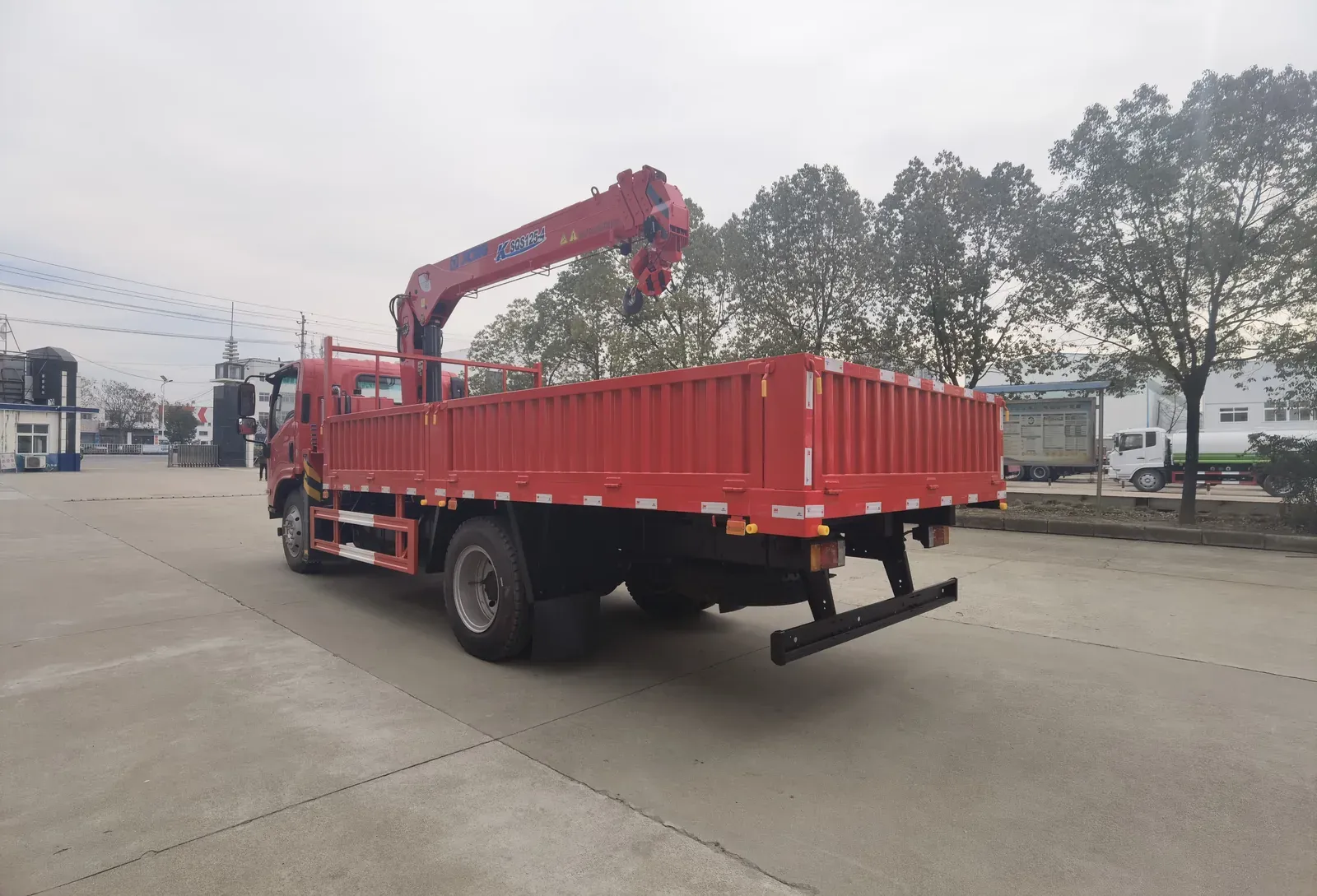

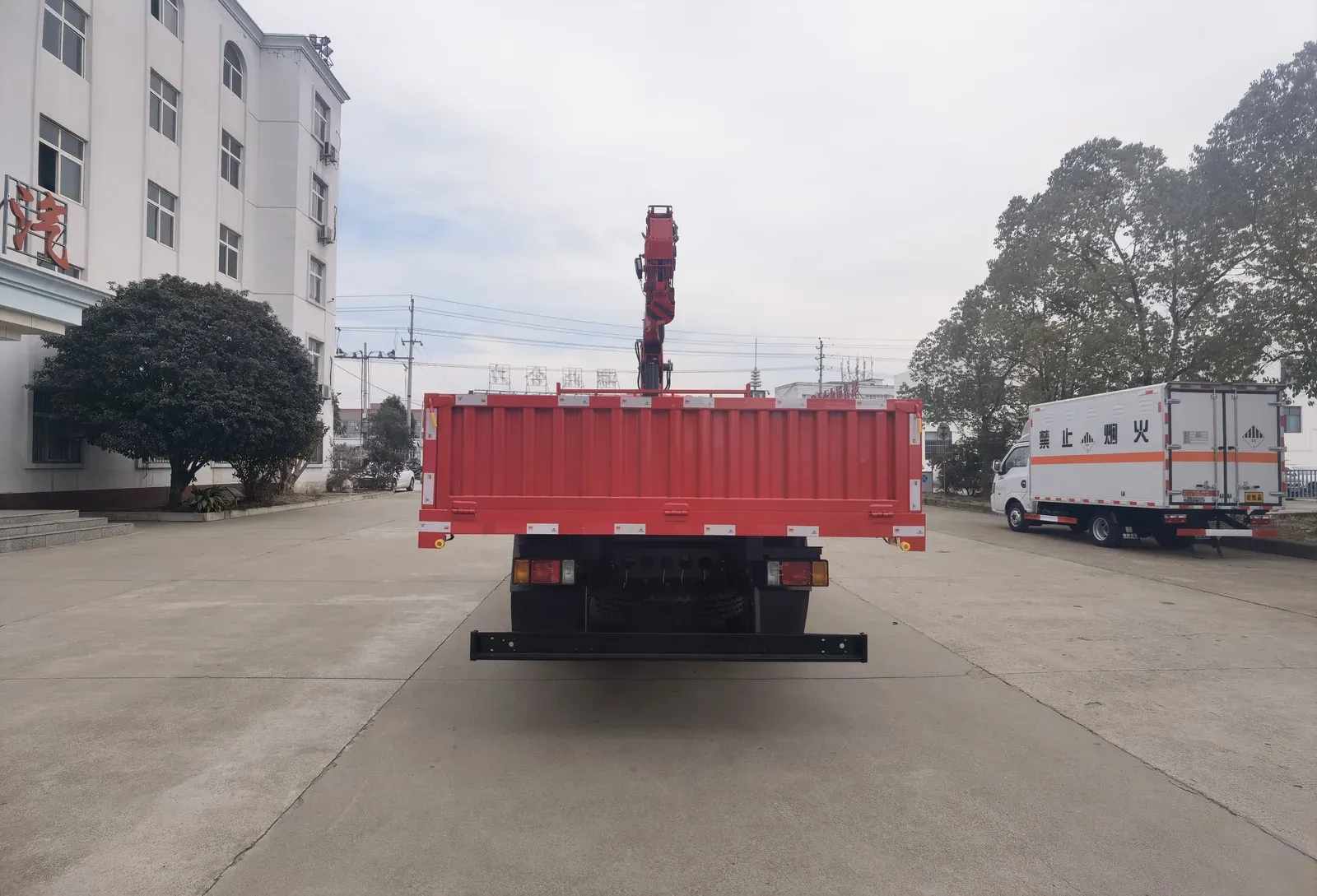

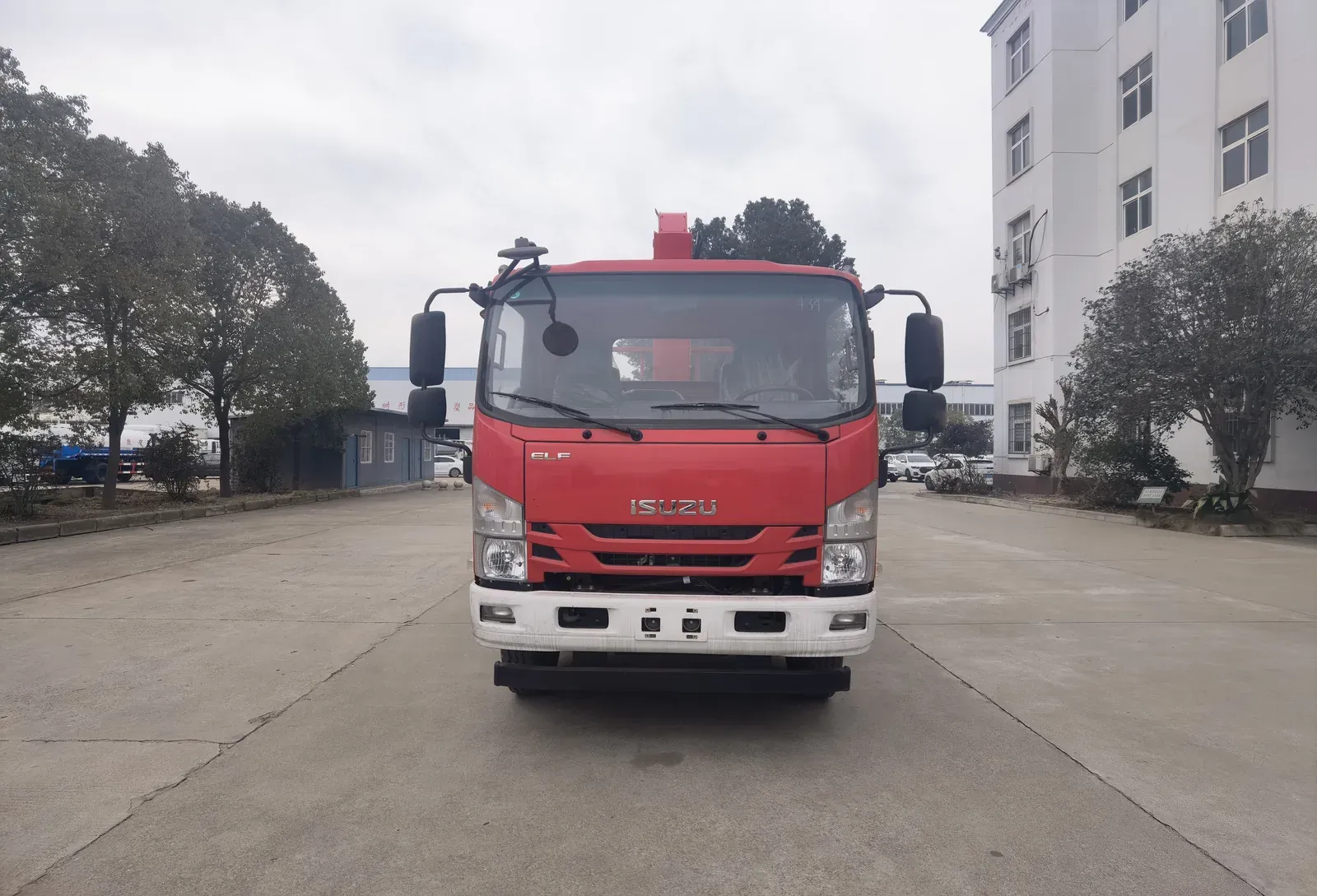

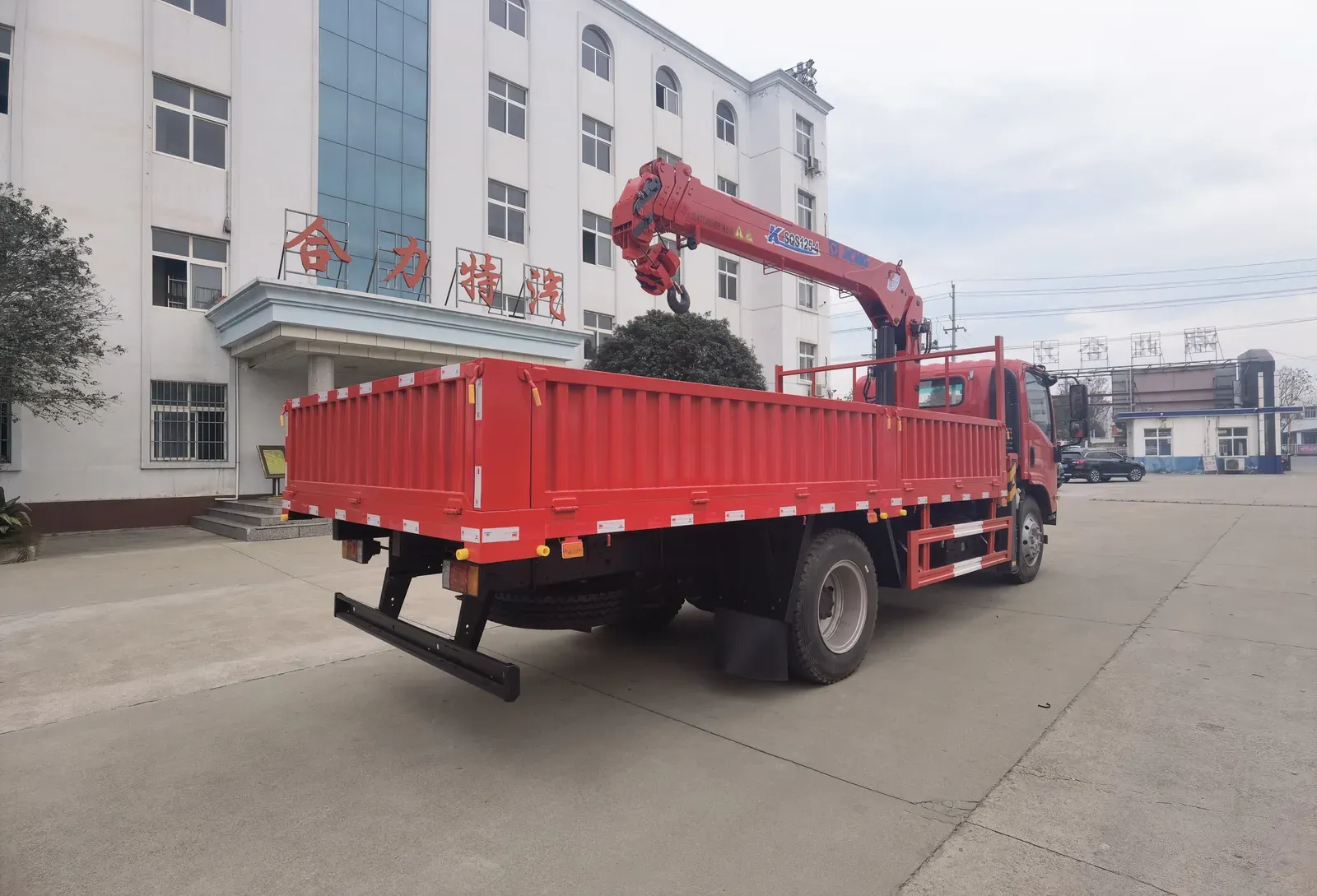

ISUZU 700P (ELF) 4×2 chassis with a 5 t XCMG SQS125-4 four-section telescopic boom crane mounted behind the cab, and a red drop-side cargo body. A compact lift-and-carry unit for building materials, steel and pipe stock, and roadside handling where a larger truck will not fit.
Left-hand drive (LHD) is standard. Right-hand drive (RHD) is available on request and is built to order.
Complete Specifications
Parameter | Value |
|---|---|
Chassis & Cab | |
Chassis | ISUZU 700P (ELF), 4×2 |
Engine | ISUZU 4HK1-TCG61, 190 hp, China VI |
Optional engine | ISUZU 4HK1-TCG60, 205 hp |
Gearbox | ISUZU MLD, 6-speed manual |
Front axle | 4 t |
Rear axle | 7 t |
Brakes | ABS with air-cut parking brake |
Tyres | 235/75R17.5 |
Wheelbase | 4175 mm (4475 / 5200 mm optional) |
Cab | Tilt cab, air conditioning, power steering |
Steering | Left-hand drive (LHD) standard. Right-hand drive (RHD) available on request. |
Body | Drop-side cargo body |
Lifting Performance | |
Crane model | XCMG SQS125-4 |
Max. rated lifting capacity | 5000 kg (at 2.5 m) |
Max. lifting moment | 125 kN·m (12.5 t·m) |
Boom sections | 4 (three extending) |
Boom length | 3.53 – 12 m |
Max. working radius | 12 m |
Max. lifting height | 14.2 m |
Luffing range | 1 – 71° |
Boom raising angular speed | 5.8 °/s |
Boom extending speed | 0.2 m/s |
Hook lifting speed | 7 m/min |
Slewing range | 360° (any position) |
Slewing speed | 2 r/min |
Outriggers | |
Outrigger type | H-type |
Outrigger span | 2.28 – 5.1 m |
Hydraulic System | |
System pressure | 20 MPa |
Rated flow | 50 L/min |
Rated power | 19 kW |
Oil tank capacity | 60 L |
Structure | |
Crane weight | 1980 kg |
Boom section form | Hexagonal |
Wire rope diameter | 8 mm |
Wire rope length | 65 m |
Mounting space | 750 mm |
Safety device | Anti-two-block alarm |
Operating Environment & Config | |
Recommended truck | Trucks of 5 t load capacity and above |
Working temperature | -15 ℃ ～ 40 ℃ |
Lifting Capacity Chart (Load Chart)
Working radius (m) | 2.5 | 3.0 | 3.5 | 5.0 | 5.5 | 6.5 | 10 | 12 |
|---|---|---|---|---|---|---|---|---|
Lifting capacity (kg) | 5000 | 3850 | 3250 | 1860 | 1780 | 1500 | 550 | 400 |
Chassis figures are the ISUZU 700P configuration for this build; crane figures are the SQS125-4 data supplied for this crane. The lifting capacity chart gives the rated load at each working radius. Attachment, body and option choices are confirmed per order.
