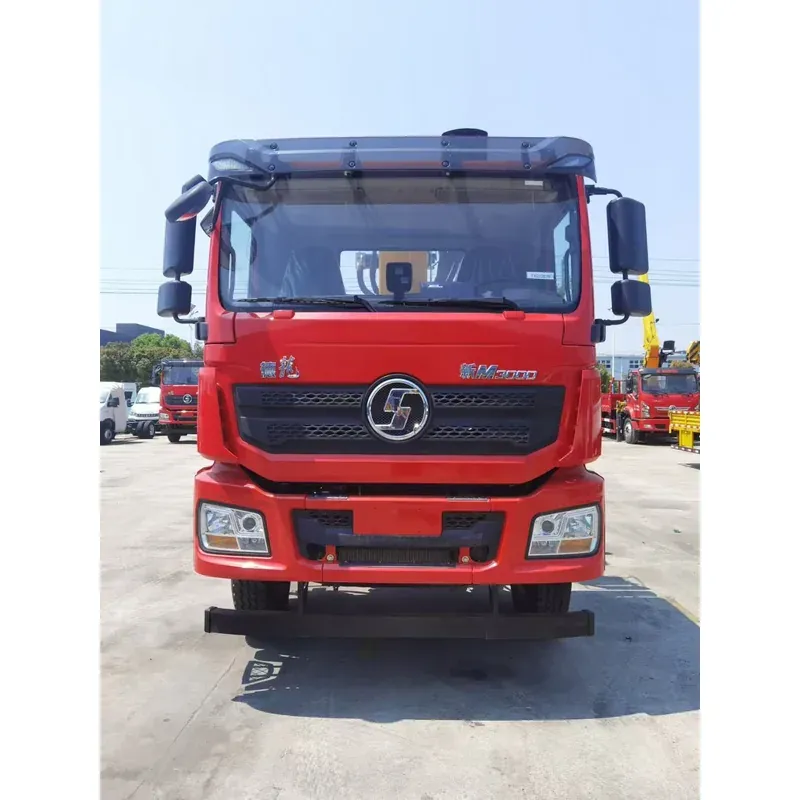

Truck-mounted crane on SHACMAN Delong M3000, 12T — photo 2

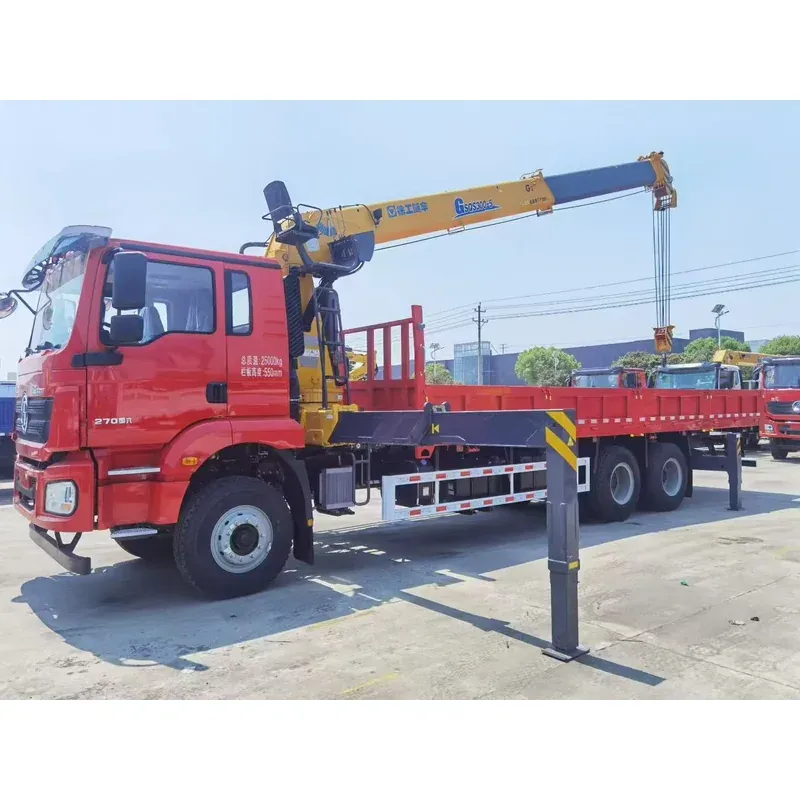

Truck-mounted crane on SHACMAN Delong M3000, 12T — photo 3

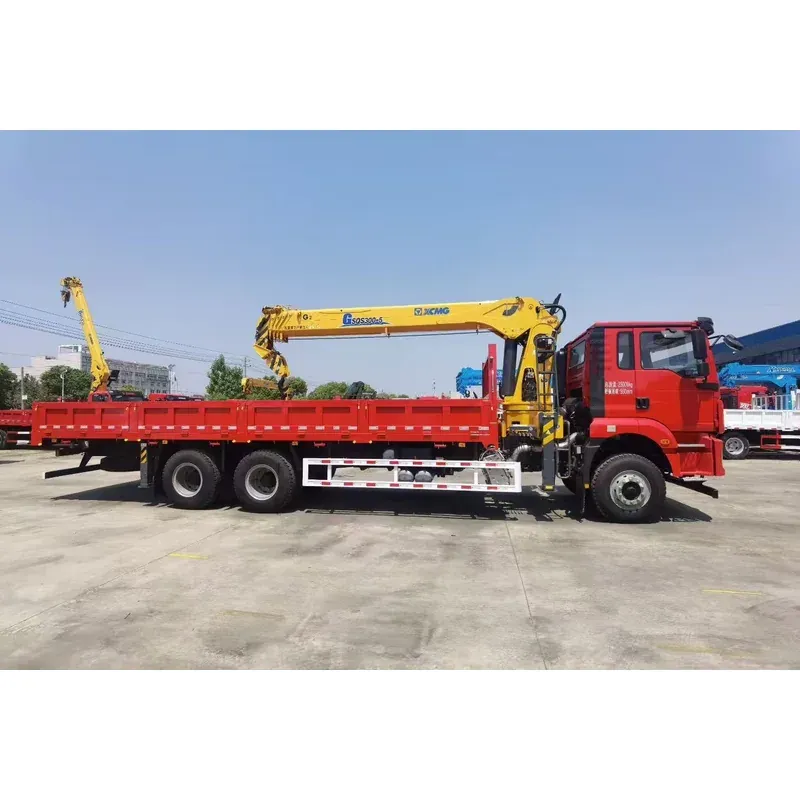

Truck-mounted crane on SHACMAN Delong M3000, 12T — photo 4

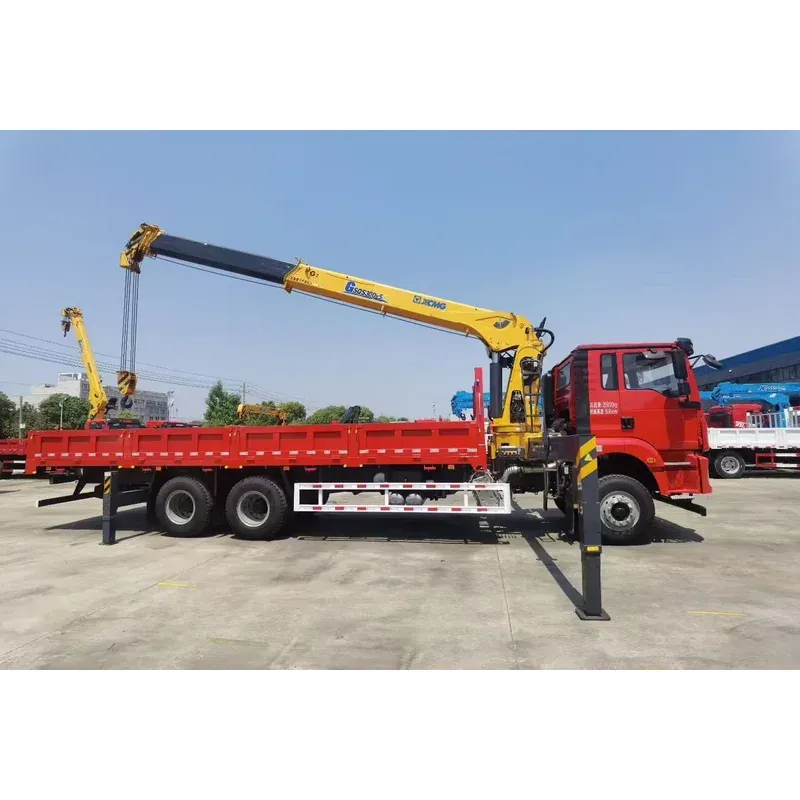

Truck-mounted crane on SHACMAN Delong M3000, 12T — photo 5

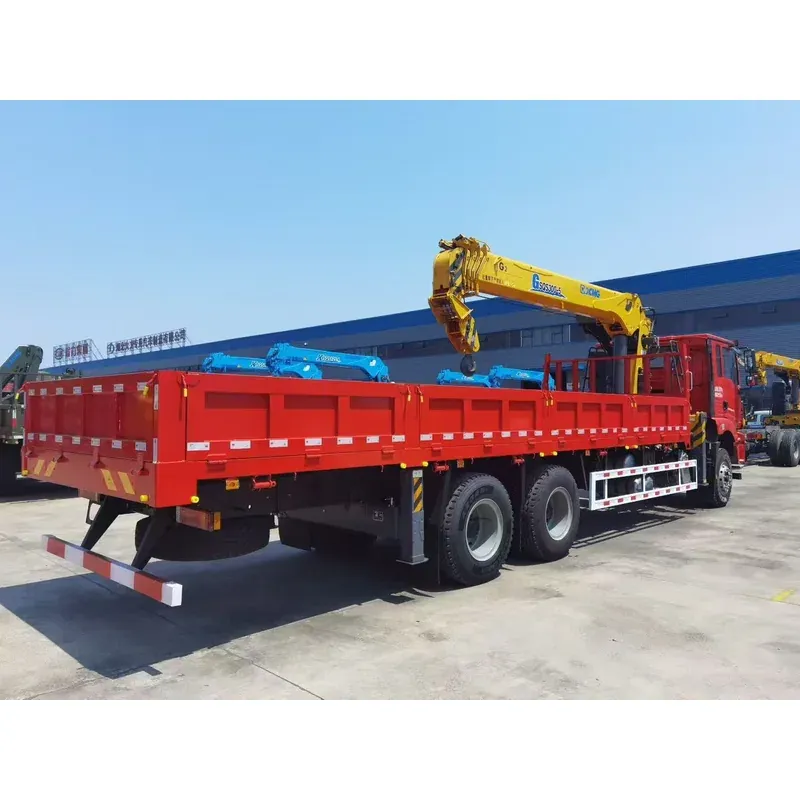

Truck-mounted crane on SHACMAN Delong M3000, 12T — photo 6

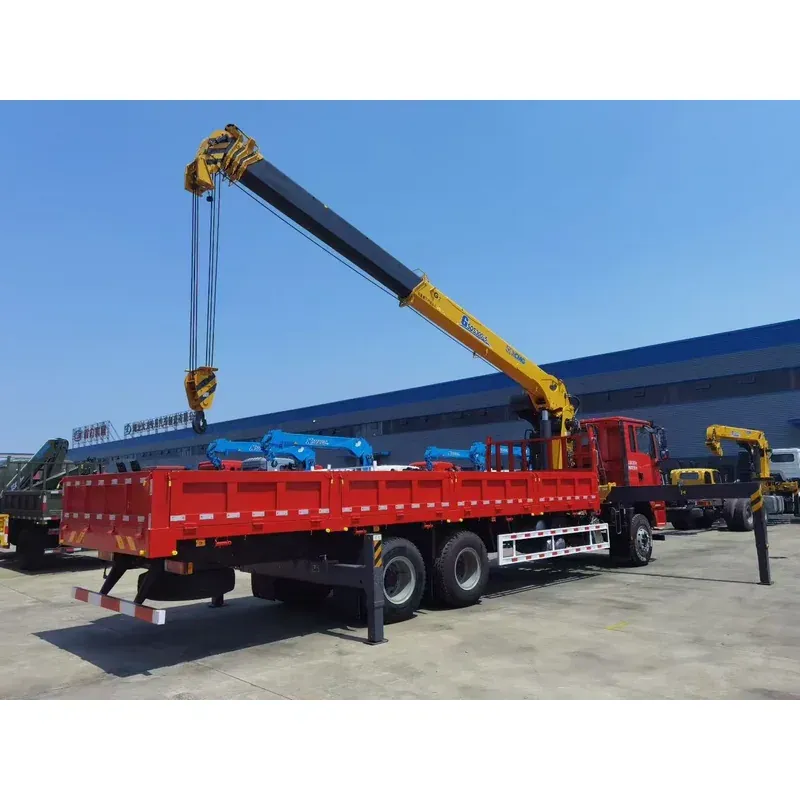

Truck-mounted crane on SHACMAN Delong M3000, 12T — photo 7
Telescopic-Boom Truck-Mounted Cranes

Truck-Mounted Crane on SHACMAN Delong M3000 — 12 t / 300 kN·m, 5-Section Boom (Ref. TMC-SX2602)

12 t crane on a SHACMAN Delong M3000 6x4 chassis, a 5-section boom reaching 18.75 m with a 21 m lifting height. Full specification and price on request.

Short answer. This is a 12 t truck-mounted crane on a SHACMAN Delong M3000 6x4 chassis, fitted with an XCMG GSQS300-5 (G series) 5-section telescopic straight boom. The boom reaches 18.75 m with a 21 m maximum lifting height and a 300 kN·m lifting moment, mounted on a through sub-frame with top-seat operation and 360° full slewing. It runs a Weichai 270 hp engine through a Fast 9-speed transmission, and the drop-side cargo body measures 8,400 × 2,450 × 550 mm. Left-hand drive is standard, right-hand drive is available on request, and the steering and the emission configuration are confirmed before the order is placed.
Published by Truck Crane China — we build truck-mounted cranes, grab trucks and wrecker trucks on Chinese chassis for export.

This is a 12 t truck-mounted crane on a SHACMAN Delong M3000 6x4 chassis, with a five-section telescopic boom reaching 18.75 m and a 21 m lifting height. The crane is an XCMG GSQS300-5 (G series) with a tandem pump, top-seat operation and a through sub-frame, rated at 300 kN·m. Built to order — the chassis, crane, body and sub-frame are matched to the job before the order is placed.
Left-hand drive is standard on this build; right-hand drive is available on request. Tell us the market and we confirm the steering and the emission configuration before the order is placed.

Complete Specifications

Parameter
Value
Chassis

Chassis brand
SHACMAN
Chassis model
Delong M3000 (New M3000)
Drive type
6x4
Wheelbase
5,775 + 1,400 mm
Engine
Weichai, 270 hp
Transmission
Fast 9-speed, with synchroniser, high/low range
Front axle
5,500 kg
Rear axle
11,500 kg
Tyres
11.00R20 steel-belted
Frame
308 mm, three-layer through-beam
Differential lock
Inter-wheel and inter-axle, standard
Gross vehicle weight
25,000 kg
Crane

Crane make
XCMG
Crane model
GSQS300-5 (G series)
Max. rated lifting capacity
12,000 kg
Max. lifting moment
300 kN·m
Boom type
Telescopic straight boom
Boom sections
5
Boom length
18.75 m
Max. lifting height
21 m
Boom extension
2nd section single extension
Hydraulic pump
Tandem pump
Operation
Top seat
Front outrigger
Double-section composite outriggers
Rear outrigger
XCMG hydraulic single-chamber outriggers
Slewing
360° full slewing
Hook
Automatic hook stowing
Oil cooler
Fitted
Start / stop
One-button start/stop
Sub-frame
Through sub-frame
Body

Body type
Drop-side cargo body
Body dimensions
8,400 × 2,450 × 550 mm
Body material
Folded steel, side 3 mm / floor 5 mm
General

Steering
Left-hand drive standard; right-hand drive available on request
Place of origin
China (Hubei)

Options and Configuration

Parameter
Value
Type
Truck Mounted Crane Mobile Crane Truck
Drive type
6x4 / LHD / RHD
Emission standard
Euro2 / 3 / 4 / 5 / 6
Colour
Customer requirements / White / Yellow / Green / Black / Blue
Application
Truck Crane Mobile Crane Hydraulic Crane
Send the destination country, the load you handle and the reach you need. You will get the full build back: chassis, crane, body, the load chart for the crane we propose, and the price.


Questions buyers ask about the SHACMAN Delong M3000 12 t 5-section crane

What crane and boom does this 12 t unit use?
It carries an XCMG GSQS300-5 (G series) telescopic straight boom with 5 sections, rated at a 300 kN·m lifting moment and a 12,000 kg maximum rated lifting capacity.
How far does the boom reach?
Boom length is 18.75 m for a 21 m maximum lifting height, with 2nd section single extension, and the crane offers 360° full slewing with automatic hook stowing.
What body is fitted to the M3000 chassis?
A drop-side cargo body of 8,400 × 2,450 × 550 mm in folded steel, side 3 mm / floor 5 mm.
What drivetrain does the M3000 build use?
A Weichai 270 hp engine with a Fast 9-speed transmission with synchroniser and high/low range, on a 6x4 chassis with a 5,775 + 1,400 mm wheelbase, 5,500 kg front axle and 11,500 kg rear axle, and a 25,000 kg gross vehicle weight; inter-wheel and inter-axle differential lock is standard.
How is the crane operated and mounted?
It uses top-seat operation with a tandem pump, a through sub-frame, double-section composite front outriggers and XCMG hydraulic single-chamber rear outriggers, plus a fitted oil cooler and one-button start/stop.
Can this build be supplied as right-hand drive?
Left-hand drive is standard and right-hand drive is available on request, and the steering and the emission configuration are confirmed before the order is placed.
