Truck-Mounted Crane on SHACMAN — 12 t / 300 kN·m, 5-Section Telescopic Boom (TMC-SX2501)

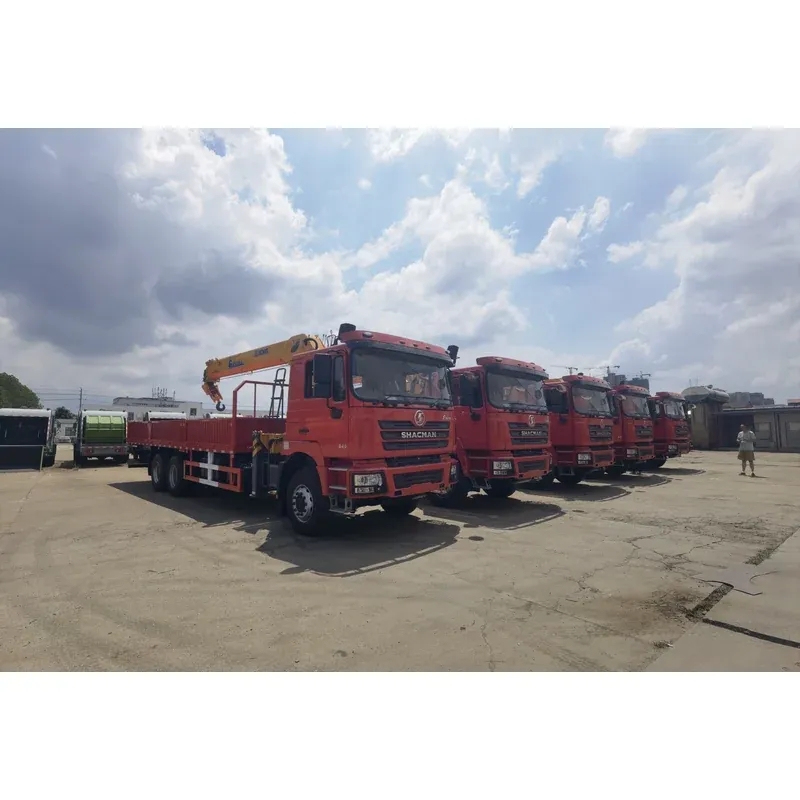

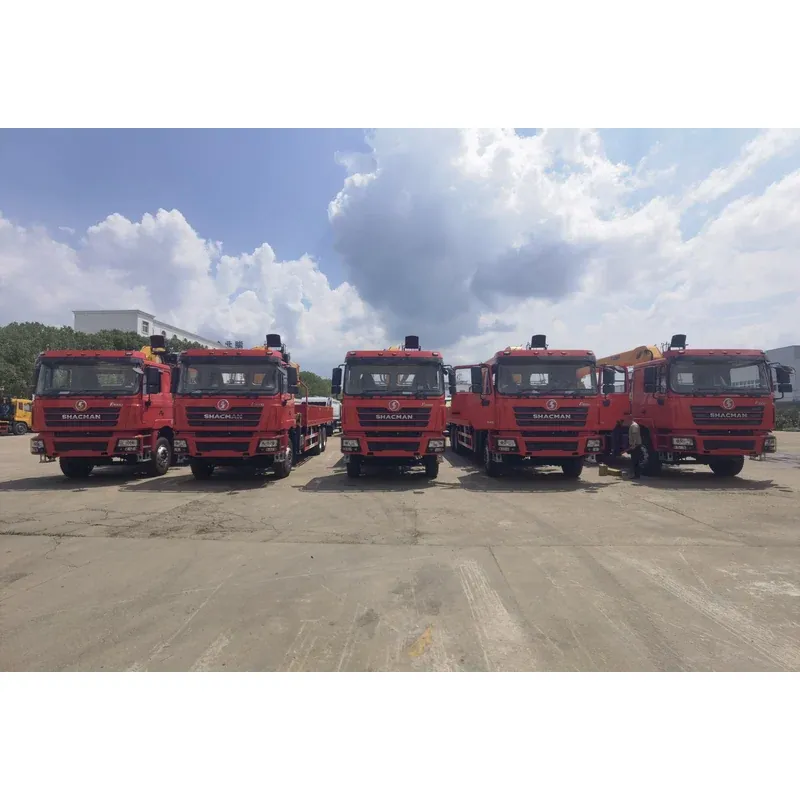

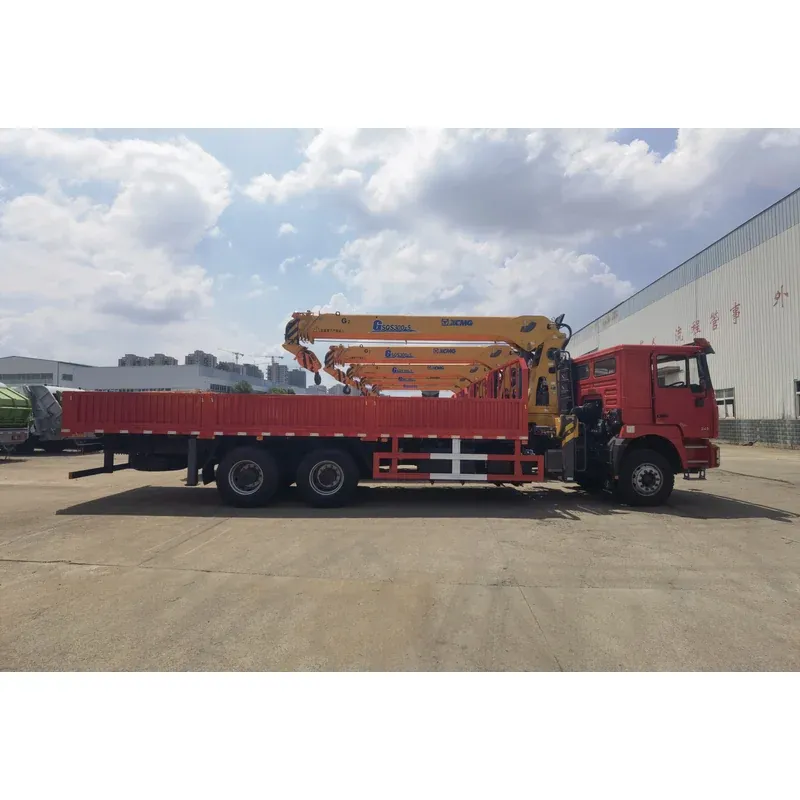

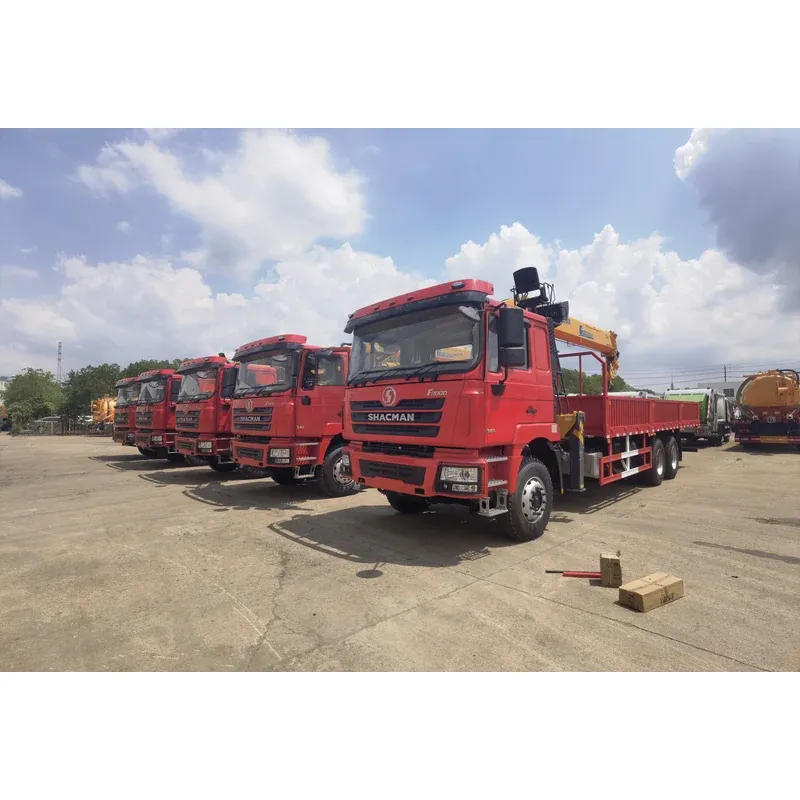

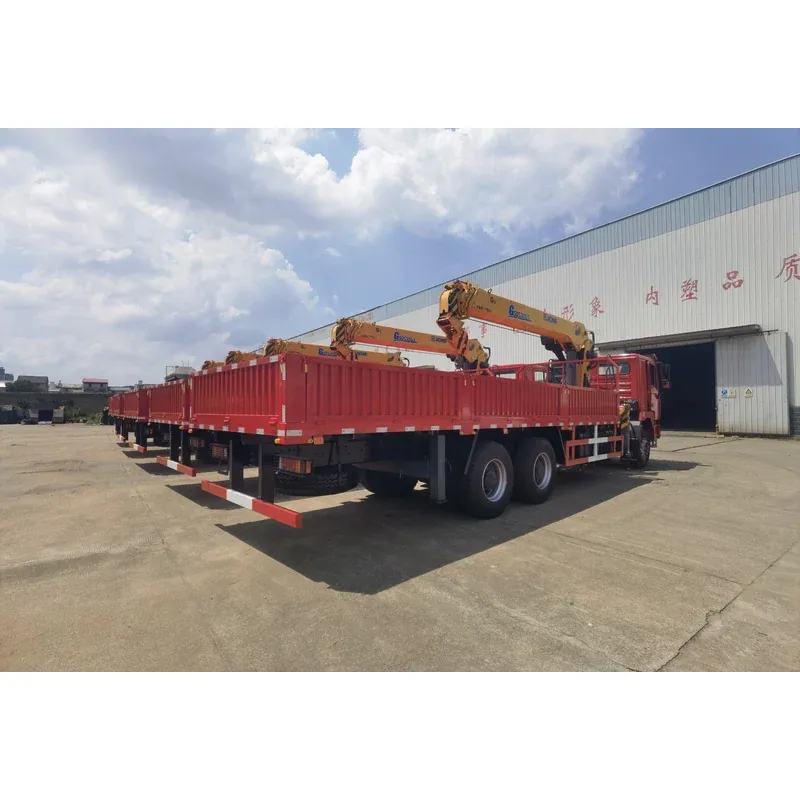

12 t crane on a SHACMAN chassis. 5 boom sections, up to 19.5 m working radius. Left-hand drive standard; right-hand drive available on request.
Short answer. This is a 12 t truck-mounted crane on a SHACMAN chassis, with a 300.0 kN·m lifting moment and a five-section telescopic boom. The octagonal boom runs 5.9–19.5 m for a 19.5 m maximum working radius, reaching 6 m on the basic boom and 19.5 m fully extended (21 m maximum), with H-type outriggers spanning 2.5–7.6 m. It needs 1250 mm of mounting space and suits trucks of 10 t load capacity and above. Left-hand drive is standard; right-hand drive is available on request.
Published by Truck Crane China — we build truck-mounted cranes, grab trucks and wrecker trucks on Chinese chassis for export.
Built to order, not from stock. Cranes come either from our own production or sourced to your specification — available brands include WHHC, XCMG, SANY and Zoomlion. Chassis are sourced from SINOTRUK, SHACMAN, Dongfeng, FAW Jiefang, Foton, Isuzu, JMC or JAC. We engineer the subframe and mounting, fabricate the body, and deliver one finished, road-ready truck from our Suizhou works.
Left-hand drive (LHD) is standard. Right-hand drive (RHD) is available on request and is built to order.
Complete Specifications
Parameter | Value |
|---|---|
Lifting Performance | |
Max. rated lifting capacity | 12000 kg |
Max. lifting moment | 300.0 kN·m |
Boom sections | 5 |
Boom length | 5.9 – 19.5 m |
Max. working radius | 19.5 m |
Max. lifting height (basic boom) | 6 m |
Max. lifting height (boom fully extended) | 19.5 m |
Max. lifting height | 21 m |
Outrigger span | 2.5 – 7.6 m |
Outrigger type | H-type |
Slewing range | 360° (any position) |
Slewing speed | ＜2.5 r/min |
Boom raising time | ＜20 s |
Boom extending time | ＜25 s |
Extension speed | 0.19 * |
Luffing range | 1–72 * |
Boom raising angular speed | 3.2 * |
Hook lifting speed | 8 m/min |
Hydraulic System | |
System pressure | 24 MPa |
System flow | 60 L/min |
Oil tank capacity | ≮150 L |
Structure | |
Wire rope diameter | 12 mm |
Wire rope length | 115 m |
Crane weight | ＜5500 kg |
Boom section form | Octagonal |
Mounting space | 1250 mm |
Operating Environment & Configuration | |
Recommended truck | Trucks of 10 t load capacity and above |
Steering | Left-hand drive (LHD) standard. Right-hand drive (RHD) available on request. |
Safety device | Anti-two-block alarm |
Working temperature | -15 ℃ ～ 40 ℃ |
Lifting Capacity Chart (Load Chart)
Working radius (m) | 2.5 | 5.5 | 8.5 | 11.5 | 19.5 |
|---|---|---|---|---|---|
Lifting capacity (kg) | 12000 | 5130 | 2660 | 1420 | 500 |
Questions buyers ask about this 12 t SHACMAN truck crane
What is the rated capacity and lifting moment?
12000 kg at a 300.0 kN·m lifting moment.
How far does the five-section boom reach?
5.9–19.5 m, giving a 19.5 m maximum working radius and a 6 m basic-boom height rising to 19.5 m fully extended and 21 m maximum.
What outriggers does it use?
H-type outriggers spanning 2.5–7.6 m, with 360° slewing at any position at under 2.5 r/min.
What hydraulic system and rope does it use?
A 24 MPa system flowing 60 L/min into a tank of at least 150 L, with 12 mm rope 115 m long.
What truck does it suit?
A truck of 10 t load capacity and above, with 1250 mm of mounting space.
