Truck-Mounted Scrap Grab on Dongfeng DV3 — 8 t, 9.7 m Boom, 6-Petal Grab (Ref. TMG-DF2502)

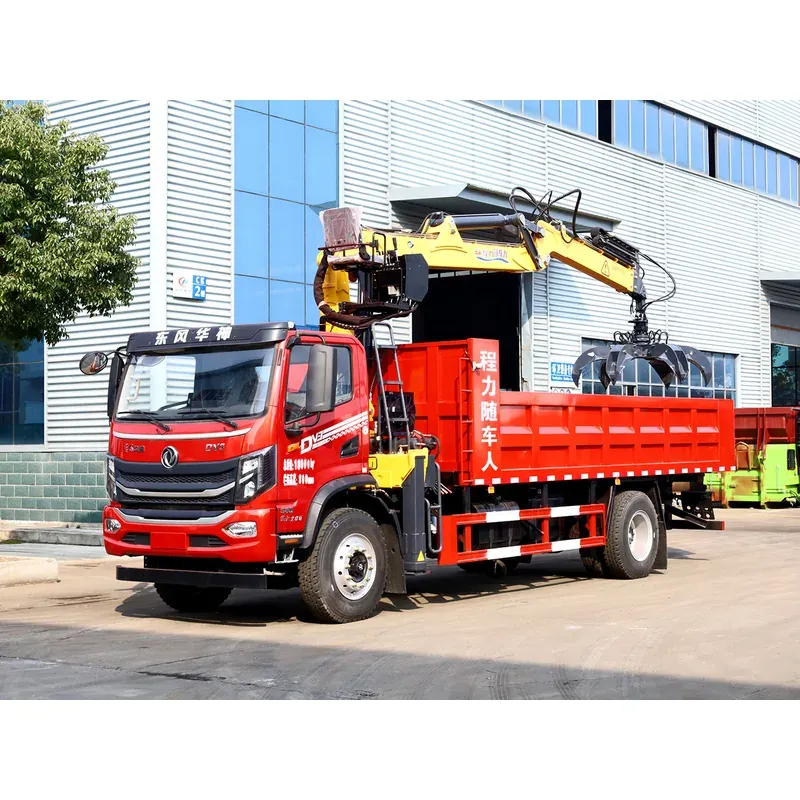

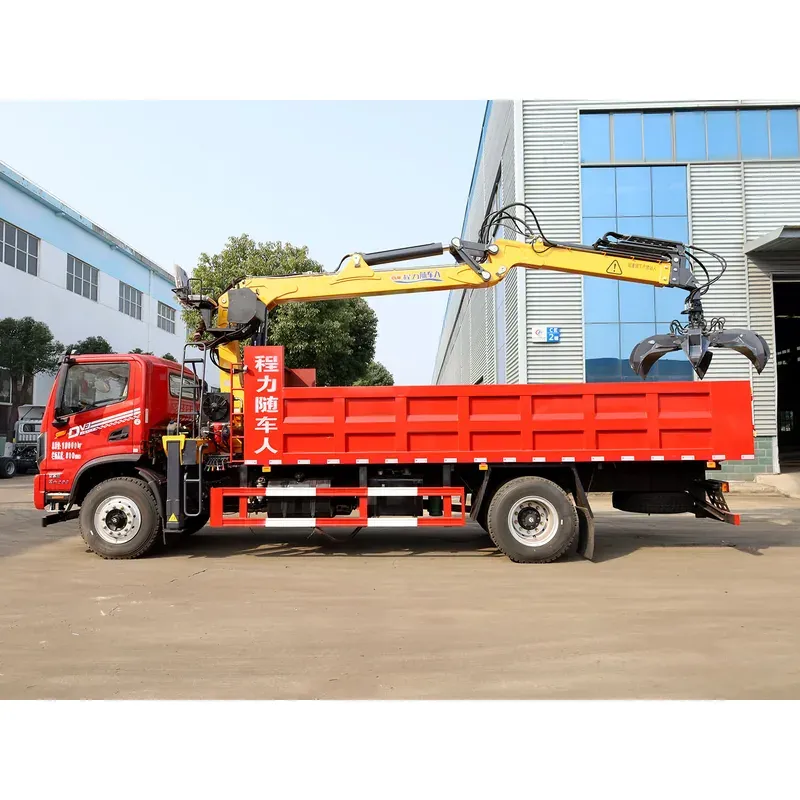

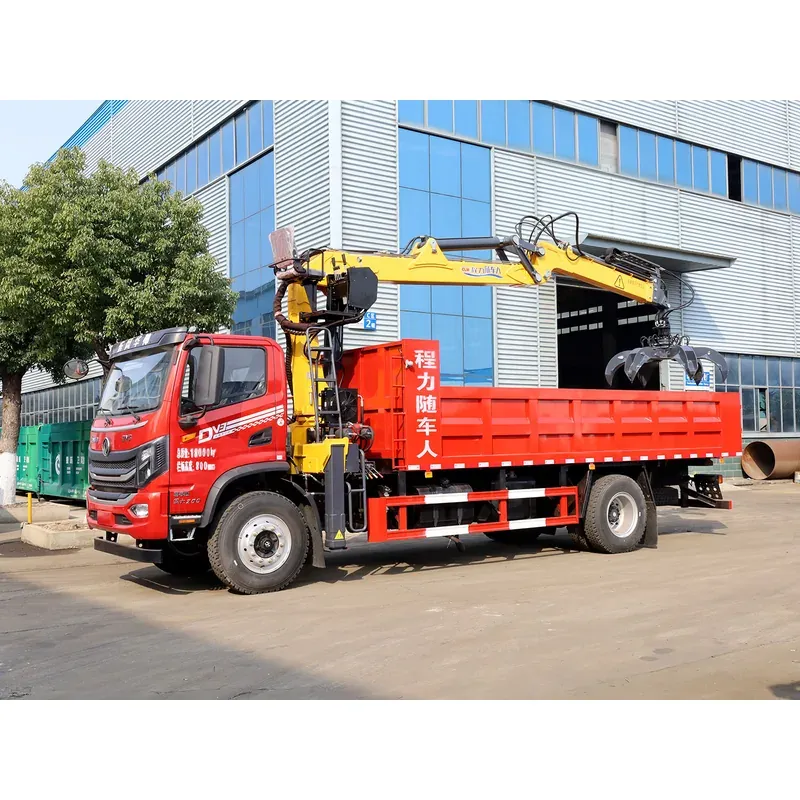

Dongfeng Huashen DV3 grab truck with an 8 t three-section crane and a 6-petal grab. 9.7 m boom, 1,250 kg on the fully extended boom and 900 kg in the grab; the 6-petal grab opens up to 1.7 m for loose and mixed material.

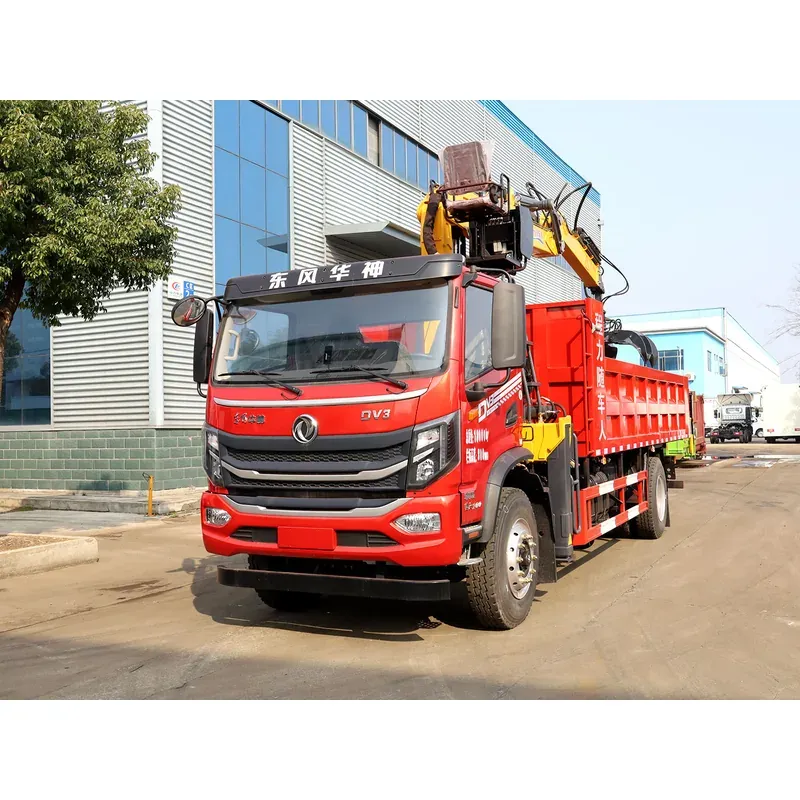

An 8 t grab truck on the Dongfeng Huashen DV3 single-row cab with the 200 hp Yuchai engine, Fast 8-speed gearbox, 10 t rear axle and a 280 mm straight-through three-layer frame.
Complete Specifications
Parameter | Value |
|---|---|
Chassis | |
Model | Dongfeng Huashen DV3 |
Cab | Single-row |
Engine | Yuchai 200 hp |
Gearbox | Fast 8-speed |
Rear axle | 10 t |
Frame | 280 mm straight-through, three-layer |
Wheelbase | 5,100 mm |
Tyres | 10.00R20 steel-belted |
Kerb weight | 12,100 kg |
Payload | 5,705 kg |
Cab equipment | Multi-lock set, power windows, remote central locking, air-suspension seat, driving recorder, sun visor, daytime running lights, air conditioning, multi-function steering wheel |
Crane and grab unit | |
Crane capacity | 8 t, three-section boom |
Boom length | 9.7 m |
Lifting capacity, fully extended | 1,250 kg |
Grab load | 900 kg |
Grab type | 6-petal grab |
Grab opening | Up to 1.7 m |
Body | |
Cargo box | 5,700 × 2,400 × 800 mm |
Dimensions | |
Overall (L × W × H) | 9,000 × 2,520 × 3,950 mm |
Why this build
The three-section boom reaches 9.7 m. Lifting capacity on the fully extended boom is 1,250 kg, and the grab handles up to 900 kg per cycle.
The 6-petal grab is the right attachment for reinforcement bar ends, machining swarf, waste timber and waste board — loose, mixed material rather than uniform logs. Six petals give more contact points than a four-petal design, so fine and scattered material is held more securely and is less likely to drop during the swing. The opening is generous — up to 1.7 m — so each cycle picks up a useful volume.
Typical duty is waste processing and recycling yards where the material mix changes through the day.
Options: Grab type can be changed for the duty (petal count or flat-jaw), subject to confirmation at order.
