Truck-Mounted Scrap Grab with Magnet on SINOTRUK Wangpai — 6.3 t, 8.2 m Boom (TMG-WP2505)
6x2 grab truck with a self-powered high-frequency electromagnetic chuck. 220 hp Weichai engine, 24,495 kg GVW, 6.3 t knuckle-boom grab reaching 8.2 m and a 6,300 × 2,400 × 1,000 mm twin-ram tipping body. Left-hand drive standard; right-hand drive available on request.
Short answer. The TMG-WP2505 is a 6x2 scrap grab truck on the SINOTRUK Wangpai platform with a self-powered high-frequency electromagnetic chuck on board, so it can magnetise ferrous offcuts and small scrap as well as grab them. A 6.3 t three-section knuckle boom reaches 8.2 m with an 11.2 m working height and 360° continuous rotation, and the twin-ram tipping body is 6,300 × 2,400 × 1,000 mm in 3 mm side / 5 mm floor steel. The GVW is 24,495 kg. Left-hand drive is standard; right-hand drive is available on request.
Published by Truck Crane China — we build truck-mounted cranes, grab trucks and wrecker trucks on Chinese chassis for export.

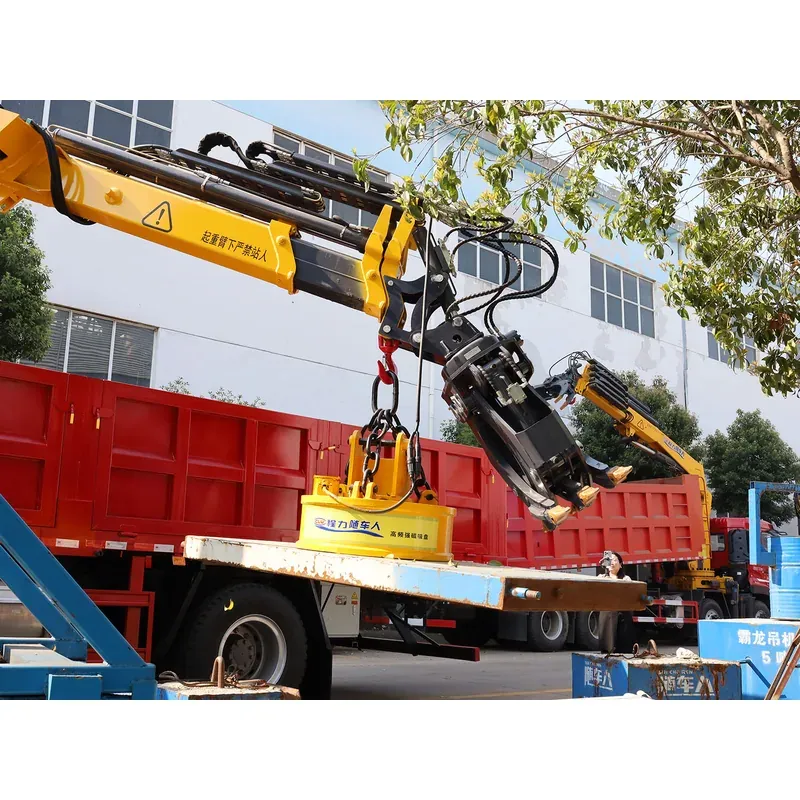

The same 6x2 SINOTRUK Wangpai platform as the standard scrap grab build, but with a self-powered high-frequency electromagnetic chuck on board. That means the truck can magnetise ferrous offcuts and small scrap in addition to grabbing them — no separate magnet truck is needed on site.
Left-hand drive (LHD) is standard. Right-hand drive (RHD) is available on request and is built to order.
Complete Specifications
Parameter | Value |
|---|---|
Chassis | |
Steering | Left-hand drive (LHD) standard. Right-hand drive (RHD) available on request. |
Model | SINOTRUK Wangpai 6x2 |
Cab | New V36 wide-body extended 2080 cab |
Engine | Weichai 220 hp (WP4.6NQ220E61A) |
Gearbox | Fast 8-speed (8JS85E) with high/low range |
Wheelbase | 1,800 + 3,600 mm |
Frame | 10/250 straight-through patented |
Suspension | Leaf springs 149 L / 149 L / 153 L (11/11/11+9) |
Front axle | 4.5 t, model 145 |
Rear axle | 10 t, model 153, ratio 5.571 |
Tyres | 8 × 10.00R20 steel-belted |
Equipment | 220 L aluminium fuel tank, steel air reservoir, maintenance-free battery, ABS (4S/4M), factory air conditioning, power windows, air-suspension seat, multi-function steering wheel, satellite positioning terminal, front camera driving recorder |
Crane and grab unit | |
Crane capacity | 6.3 t, three-section knuckle boom |
Maximum boom length | 8.2 m |
Maximum working height | 11.2 m |
Control | Electro-hydraulic 1-into-3 valve block, excavator-style joysticks |
Rotation | 360° continuous — crane and grab head |
Grab type | 3+2 grab or 4-petal grab |
Electromagnetic chuck | Self-powered, high-frequency |
Hydraulic cooler | Standard |
Body | |
Cargo box | 6,300 × 2,400 × 1,000 mm |
Tipping | Twin-ram tipping |
Steel thickness | Side 3 / floor 5 |
Body build | Densified cross members, side-door posts 160 channel back-to-back with 140 mm, front and rear balance beams, four tipping seats |
Weights | |
GVW | 24,495 kg |
Why this build
The crane is a 6.3 t three-section knuckle boom reaching 8.2 m with an 11.2 m working height and 360° continuous rotation on both the crane and the grab head. Grab head can be specified as 3+2 or 4-petal.
Self-powered means the chuck runs from the truck's own generating set, so the machine works anywhere on site without a mains supply.
The tipping body is 6,300 × 2,400 × 1,000 mm in 3 mm side / 5 mm floor steel with twin-ram tipping, so a full cycle is grab, discharge into the body, then tip out.
Options: Grab head type; chuck specification to be confirmed at order.
Questions buyers ask about the SINOTRUK Wangpai 6x2 scrap grab with magnet (TMG-WP2505)
How does it differ from the standard scrap grab build?
It is the same 6x2 SINOTRUK Wangpai platform but with a self-powered high-frequency electromagnetic chuck on board, so no separate magnet truck is needed on site.
What chassis and driveline does it use?
A New V36 wide-body extended 2080 cab, a 220 hp Weichai engine (WP4.6NQ220E61A) and a Fast 8-speed gearbox (8JS85E) with high/low range.
What wheelbase and frame does it run?
A 1,800 + 3,600 mm wheelbase on a 10/250 straight-through patented frame.
What crane and reach does it have?
A 6.3 t three-section knuckle boom with a maximum boom length of 8.2 m, a maximum working height of 11.2 m and 360° continuous rotation.
What grab options are available?
A 3+2 grab or a 4-petal grab.
What are the body and weight figures?
A 6,300 × 2,400 × 1,000 mm twin-ram tipping body in 3 mm side / 5 mm floor steel, with a GVW of 24,495 kg.
Other builds in this range: Scrap Grab with Winch on Dongfeng Huashen DV3, 8 t and Scrap Grab with Winch on SINOTRUK Wangpai 6x2, 6.3 m.
