Truck-Mounted Log Grab 4x4 on SINOTRUK Wangpai — 7.8 m Boom, 2+2 Timber Grab (TMG-WP2504)
Factory 4x4 log grab truck on the SINOTRUK Wangpai chassis, 3,950 mm wheelbase. 200 hp Yuchai engine, 10-speed Fast gearbox, 6.5 t front / 16 t rear axle, ZQC800 transfer case. 7.8 m boom with a 2+2 timber grab opening 1.2 m. Left-hand drive standard; right-hand drive available on request.
Short answer. This factory four-wheel-drive log grab runs on the SINOTRUK Wangpai single-row cab with a 3,950 mm wheelbase, powered by the 200 hp Yuchai YCS04200-68 through a 10-speed Fast gearbox, on 6.5 t front and 16 t rear axles and a ZQC800 transfer case. The 7.8 m / 6.8 m log grab handles 600 kg with the boom fully extended and takes a 1.2 m timber grab opening; soft linkage is standard and rigid linkage is optional. Left-hand drive is standard, with right-hand drive available on request.
Published by Truck Crane China — we build truck-mounted cranes, grab trucks and wrecker trucks on Chinese chassis for export.

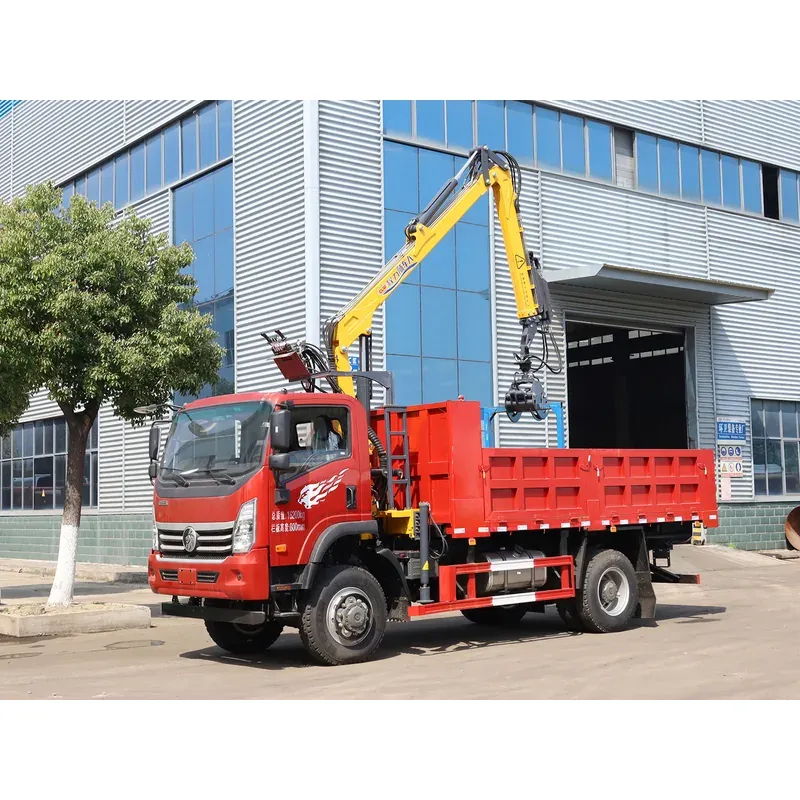

A factory four-wheel-drive log grab truck on the SINOTRUK Wangpai chassis, 3,950 mm wheelbase, with the 200 hp Yuchai YCS04200-68 engine, 10-speed Fast gearbox, 6.5 t front and 16 t rear axles and the ZQC800 transfer case.
Left-hand drive (LHD) is standard. Right-hand drive (RHD) is available on request and is built to order.
Complete Specifications
Parameter | Value |
|---|---|
Chassis | |
Steering | Left-hand drive (LHD) standard. Right-hand drive (RHD) available on request. |
Model | SINOTRUK Wangpai factory 4x4 log grab |
Cab | Single-row, 3,950 mm wheelbase |
Engine | Yuchai 200 hp (YCS04200-68) |
Gearbox | Fast 10-speed (10JS90) |
Front axle | 6.5 t |
Rear axle | 16 t |
Transfer case | ZQC800 |
Frame | 250 mm reinforced |
Tyres | 9.00R20 steel-belted |
Equipment | 220 L aluminium fuel tank, remote throttle, power windows and central locking, multi-function steering wheel, air-suspension seat, factory electric air conditioning, remote key |
Crane and grab unit | |
Grab unit | Log grab, 7.8 m / 6.8 m boom |
Grab load, fully extended | 600 kg |
Timber grab opening | 1.2 m, soft (flexible) linkage standard, rigid linkage optional |
Body | |
Cargo box | 4,500 × 2,350 × 800 mm |
Tipping | Twin-ram tipping |
Steel thickness | Side 3 / floor 5 |
Body build | Densified cross members, side-door posts 160 channel back-to-back with 140 mm, front and rear balance beams, tipping seats |
Weights and dimensions | |
GVW | 16,200 kg |
Kerb weight | 9,900 kg |
Payload | 6,105 kg |
Overall (L × W × H) | 7,350 × 2,470 × 3,750 mm |
Why this build
The crane is a log grab with a 7.8 m / 6.8 m boom. With the boom fully extended it handles 600 kg, and the 1.2 m timber grab opening takes cut logs straight off the stack. Soft linkage is standard on this unit; rigid linkage is available.
Four-wheel drive is factory-fitted, not converted, so the drive line and axles are matched to the duty. The machine is intended for timber yards and forest landings where the ground is soft or uneven.
The tipping body is 4,500 × 2,350 × 800 mm in 3 mm side / 5 mm floor steel with densified cross members.
Options: Rigid linkage instead of soft; other grab types on request.
Questions buyers ask about this SINOTRUK Wangpai 7.8 m log grab
What is the grab capacity at full extension?
600 kg, with the boom fully extended.
How wide is the timber grab opening on this model?
1.2 m.
Is the linkage soft or rigid on this unit?
Soft (flexible) linkage is standard; rigid linkage is optional.
What engine, gearbox and axles does it use?
A 200 hp Yuchai YCS04200-68, a 10-speed Fast gearbox, 6.5 t front and 16 t rear axles, and a ZQC800 transfer case.
Is the four-wheel drive factory-fitted?
Yes. It is factory-fitted, not converted, so the driveline and axles are matched to the duty.
What body does it carry?
A 4,500 × 2,350 × 800 mm tipping body in 3 mm side / 5 mm floor steel with densified cross members and twin-ram tipping.
