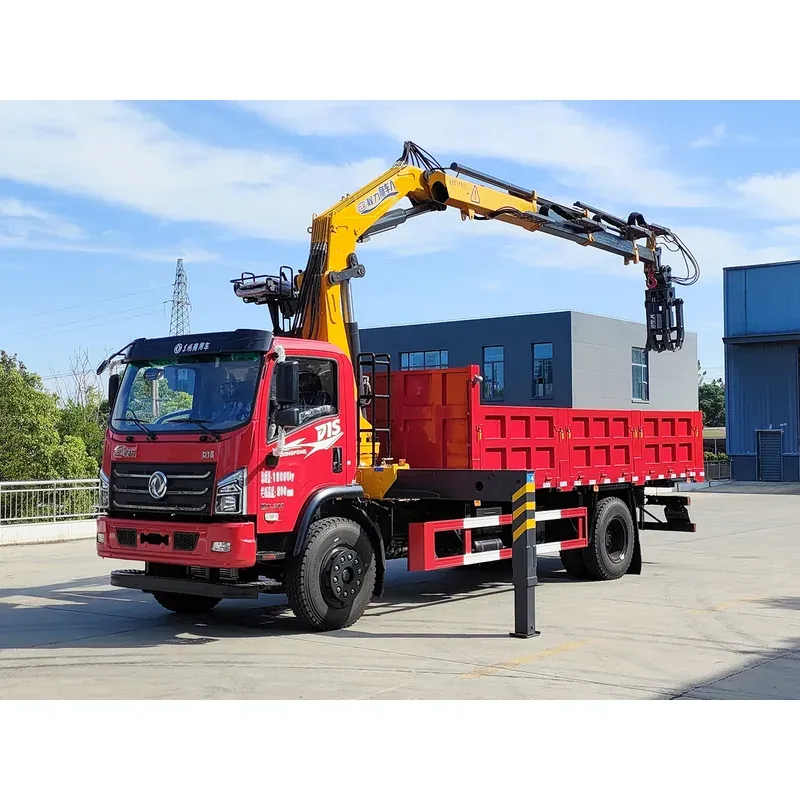

Truck-Mounted Grab on Dongfeng D1S — 8 t, 9.7 m Boom, 6 m Tipping Body (TMG-DF2504)
Dongfeng Chuangxing D1S grab truck, 18,000 kg GVW. 200 hp Yuchai Euro VI engine, Fast 8-speed gearbox, 5 t front / 10 t rear axle. 8 t four-section knuckle-boom grab with a 9.7 m boom and 12.7 m working height. Left-hand drive standard; right-hand drive available on request.
Short answer. This is an 8 t grab truck on the Dongfeng Chuangxing D1S single-row cab, with a four-section knuckle boom reaching 9.7 m and a 12.7 m working height. Power is a 200 hp Yuchai YCS04200-68 Euro VI four-cylinder engine through a Fast 8-speed gearbox, on 5 t front / 10 t rear axles and a 280 mm straight-through three-layer frame at a 5,100 mm wheelbase. The twin-ram tipping body is approx. 6 m class with 3 mm side / 5 mm floor steel, and the unit runs at 18,000 kg gross vehicle weight. Left-hand drive is standard; right-hand drive is available on request.
Published by Truck Crane China — we build truck-mounted cranes, grab trucks and wrecker trucks on Chinese chassis for export.
An 8 t grab truck on the Dongfeng Chuangxing D1S single-row cab, with the 200 hp Yuchai YCS04200-68 Euro VI four-cylinder engine, Fast 8-speed gearbox, 5 t front and 10 t rear axles on a 280 mm straight-through three-layer frame, 5,100 mm wheelbase.
Left-hand drive (LHD) is standard. Right-hand drive (RHD) is available on request and is built to order.
Complete Specifications
Parameter | Value |
|---|---|
Chassis | |
Steering | Left-hand drive (LHD) standard. Right-hand drive (RHD) available on request. |
Cab | Dongfeng Chuangxing D1S single-row |
Engine | Yuchai YCS04200-68, Euro VI, four-cylinder |
Gearbox | Fast 8-speed (8JS85E) |
Front axle | 5 t |
Rear axle | 10 t |
Frame | 280 mm straight-through, three-layer |
Wheelbase | 5,100 mm |
Tyres | 10.00R20 |
Equipment | Factory ABS, power windows, front under-run protection, air-suspension seat, central locking, LED daytime running lights, factory air conditioning, driving recorder, multi-function steering wheel, 10-inch multimedia display, crane-dedicated PTO and remote throttle |
Crane and grab unit | |
Crane capacity | 8 t, four-section knuckle boom |
Maximum boom length | 9.7 m |
Maximum working height | 12.7 m |
Control | Electro-hydraulic 1-into-3 valve block, excavator-style joysticks |
Rotation | 360° continuous — crane and grab head |
Grab type | 3+2 grab or 4-petal grab |
Hydraulic cooler | Standard |
Body | |
Tipping body | Approx. 6 m class, twin-ram tipping (6,000 mm cab-to-tail per source listing) |
Steel thickness | Side 3 / floor 5 |
Body build | Densified cross members, side-door posts 160 channel back-to-back with 140 mm, front and rear balance beams, four tipping seats |
Stated condition | No payload quoted in source |
Weights | |
GVW | 18,000 kg |
Why this build
The crane is an 8 t four-section knuckle boom — one section more than the 6.3 t builds — reaching 9.7 m with a 12.7 m working height. The extra section is what buys the reach, which matters when the load is stacked at the back of a yard. The grab head can be a 3+2 grab or a 4-petal grab.
The tipping body is 3 mm side / 5 mm floor steel with densified cross members and 160/140 channel side-door posts, twin-ram tipping and four tipping seats. No payload figure is stated in the source listing.
A crane-dedicated power take-off and remote throttle are factory-fitted, and the cab carries a 10-inch multimedia display, LED daytime running lights and air conditioning.
Options: Grab head type (3+2 or 4-petal).
Questions buyers ask about this 8 t Dongfeng D1S grab truck
What crane is fitted?
An 8 t four-section knuckle boom — one section more than the 6.3 t builds — reaching 9.7 m with a 12.7 m working height.
What grab head options are there?
A 3+2 grab or a 4-petal grab, with 360° continuous rotation on both crane and grab head.
What engine and gearbox does it use?
A 200 hp Yuchai YCS04200-68 Euro VI four-cylinder engine with a Fast 8-speed gearbox on 5 t front / 10 t rear axles.
What body does it carry?
An approx. 6 m class twin-ram tipping body in 3 mm side / 5 mm floor steel, with densified cross members and 160/140 channel side-door posts.
What is the gross vehicle weight?
18,000 kg.
What cab equipment is fitted?
Factory ABS, a 10-inch multimedia display, LED daytime running lights, air conditioning and a crane-dedicated PTO with remote throttle.
