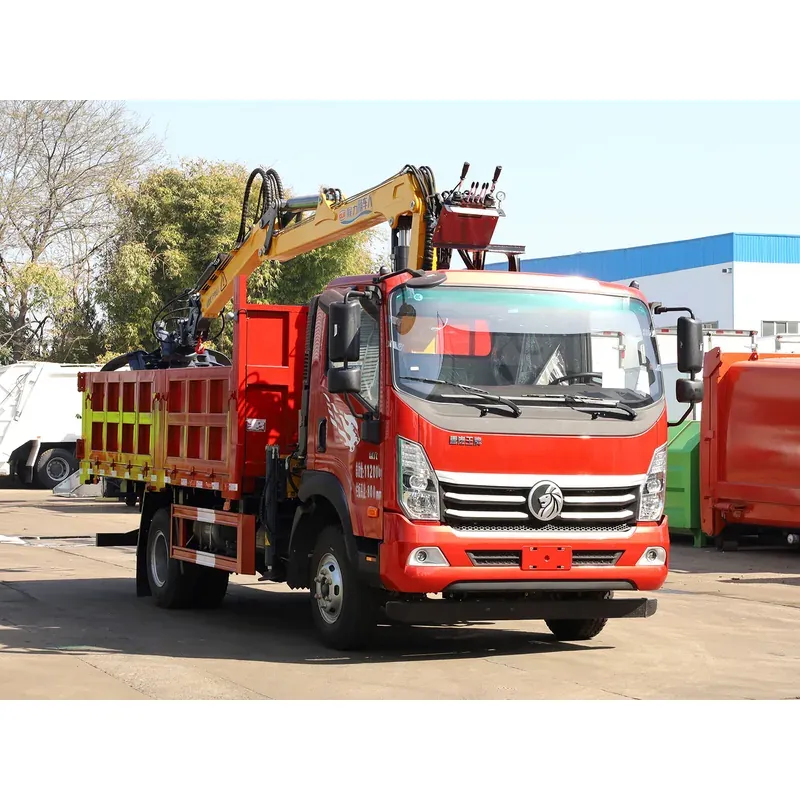

Truck-Mounted Log Grab on SINOTRUK Wangpai — 6.5 m Boom, 3+2 Grab (TMG-WP2501)
SINOTRUK Wangpai log grab truck, 3,600 mm wheelbase, 160 hp Weichai engine, Fast 8-speed gearbox, 8 t rear axle. The 6.5 m crane carries a 3+2 grab. Cargo box 4,200 × 2,300 × 800 mm. Left-hand drive standard; right-hand drive available on request.
Short answer. This short-wheelbase log grab truck is built on the SINOTRUK Wangpai 5110 chassis with a 3,600 mm wheelbase, a 160 hp Weichai engine, a Fast 8-speed gearbox and an 8 t rear axle (model 1081) on a 230 mm two-layer frame. A 6.5 m crane carries a 3+2 grab over a 4,200 × 2,300 × 800 mm cargo box. Left-hand drive is standard, with right-hand drive available on request.
Published by Truck Crane China — we build truck-mounted cranes, grab trucks and wrecker trucks on Chinese chassis for export.
A short-wheelbase log grab truck on the SINOTRUK Wangpai 5110 chassis — 3,600 mm wheelbase, 160 hp Weichai engine, Fast 8-speed gearbox and an 8 t rear axle on a 230 mm two-layer frame.
Left-hand drive (LHD) is standard. Right-hand drive (RHD) is available on request and is built to order.
Complete Specifications
Parameter | Value |
|---|---|
Chassis | |
Steering | Left-hand drive (LHD) standard. Right-hand drive (RHD) available on request. |
Cab | 2080 single-row, 3,600 mm wheelbase |
Engine | Weichai 160 hp |
Gearbox | Fast 8-speed |
Rear axle | 8 t, model 1081 |
Frame | 230 mm, two-layer |
Tyres | 8.25R16 steel-belted |
Equipment | Factory electronically controlled air conditioning, multi-function steering wheel (MP3 + Bluetooth), metallic paint, fully trimmed interior, central locking, power windows, remote key, remote throttle, factory PTO |
Crane and grab unit | |
Grab unit | 6,500 log grab |
Boom length | 6.5 m |
Grab type | 3+2 grab |
Body | |
Cargo box | 4,200 × 2,300 × 800 mm |
Dimensions | |
Overall (L × W × H) | 6,790 × 2,420 × 3,550 mm |
Why this build
The 6.5 m crane carries a 3+2 grab for handling cut timber onto the 4,200 × 2,300 × 800 mm body. The short wheelbase keeps the turning circle small for yard and roadside work.
The chassis is supplied with factory air conditioning, remote throttle and a factory power take-off, so the crane drive is a factory installation rather than an aftermarket add-on.
Questions buyers ask about this SINOTRUK Wangpai 6.5 m log grab
What is the crane and grab?
A 6.5 m crane carrying a 3+2 grab.
Why the short wheelbase?
The short wheelbase keeps the turning circle small for yard and roadside work.
How is the crane driven?
The chassis is supplied with a factory power take-off and remote throttle, so the crane drive is a factory installation rather than an aftermarket add-on.
What body does it carry?
A 4,200 × 2,300 × 800 mm cargo box.
What cab equipment is fitted?
Factory air conditioning, a multi-function steering wheel, metallic paint, a fully trimmed interior, central locking, power windows, remote key, remote throttle and a factory PTO.
Other builds in this range: Log Grab on SINOTRUK Wangpai, 6.8 m Boom, 2+2 Grab (TMG-B36) and Log Grab on SINOTRUK Wangpai, 6.8 m Boom.
