Truck-Mounted Grabs

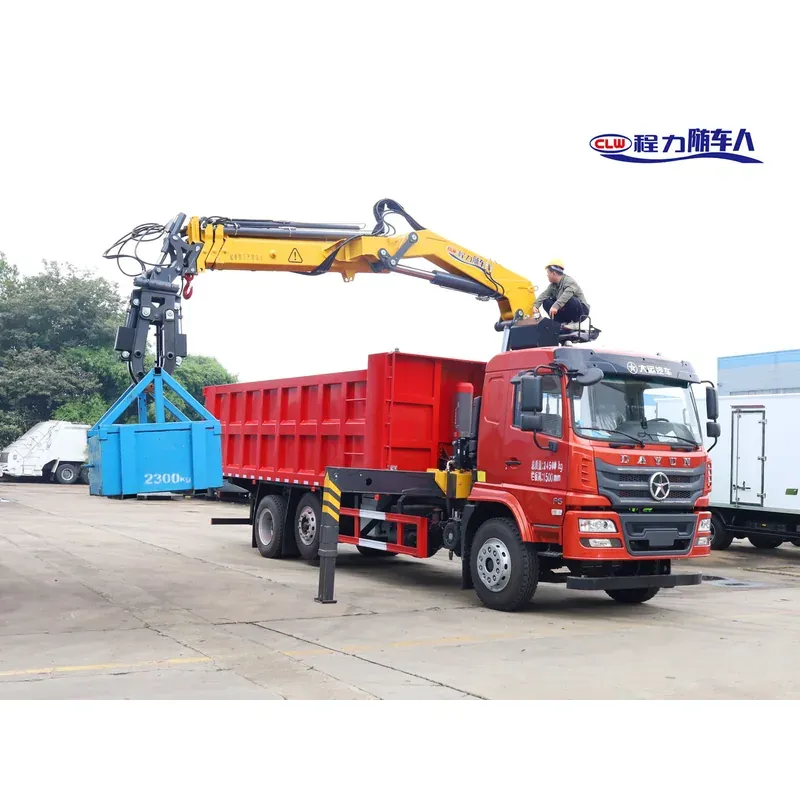

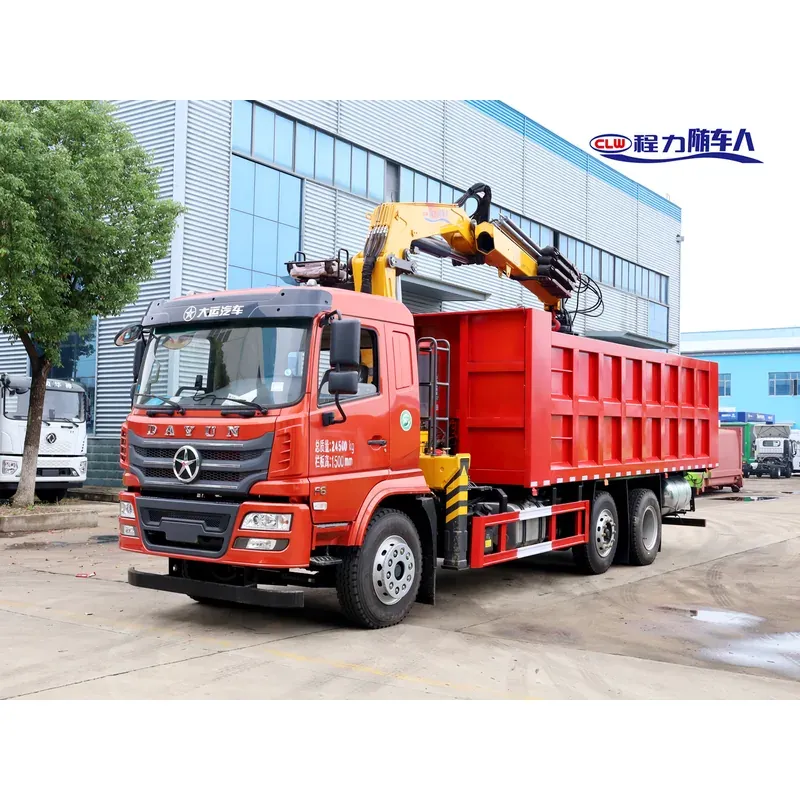

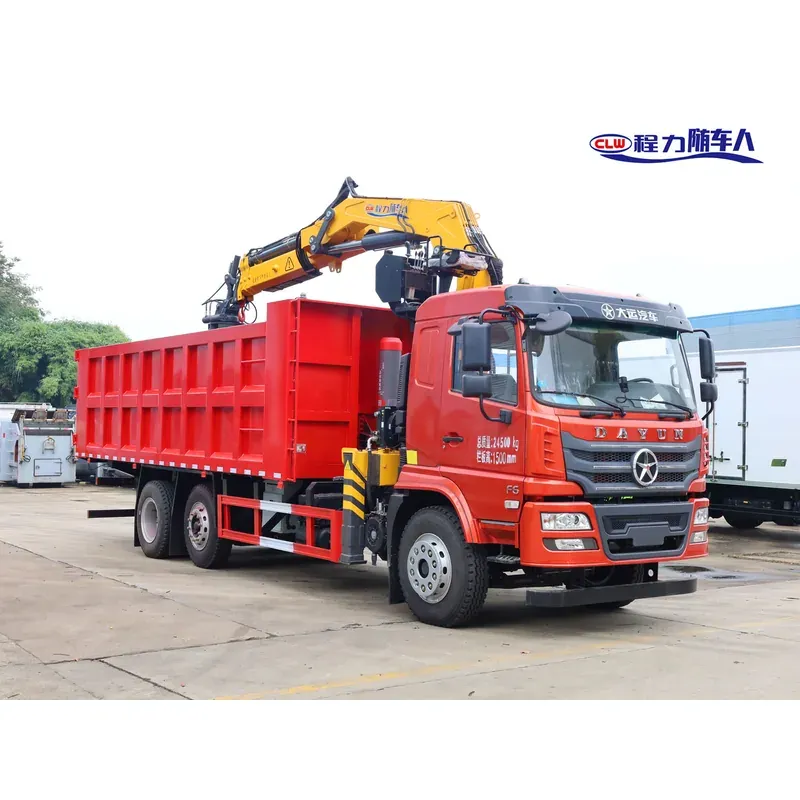

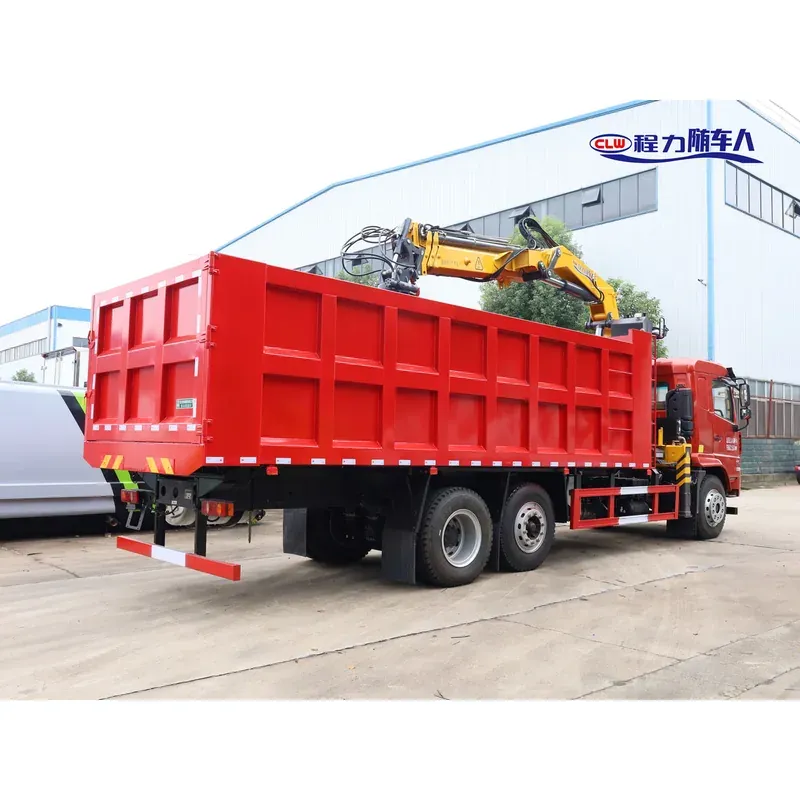

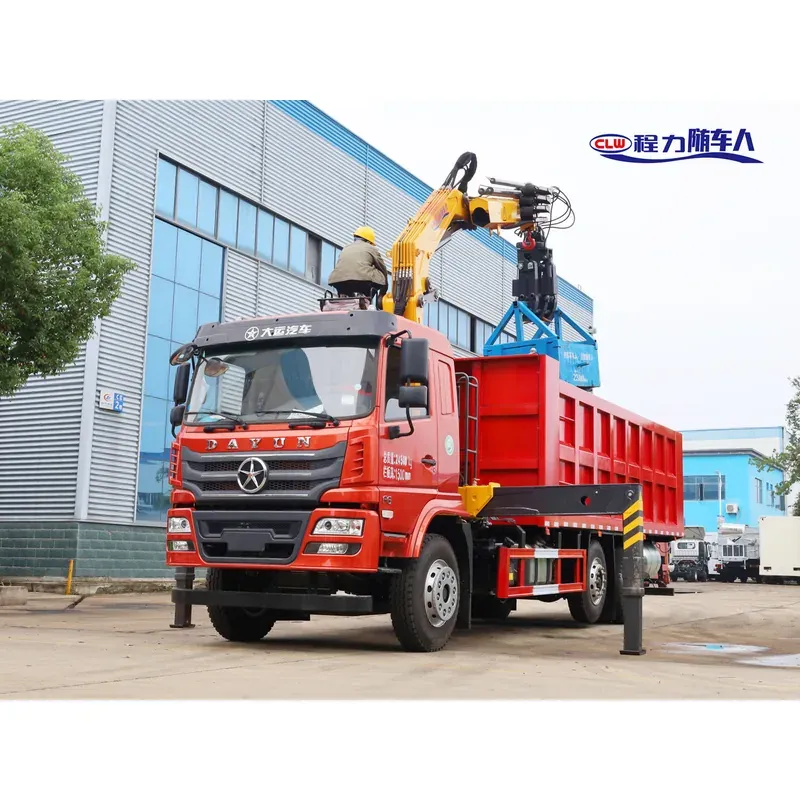

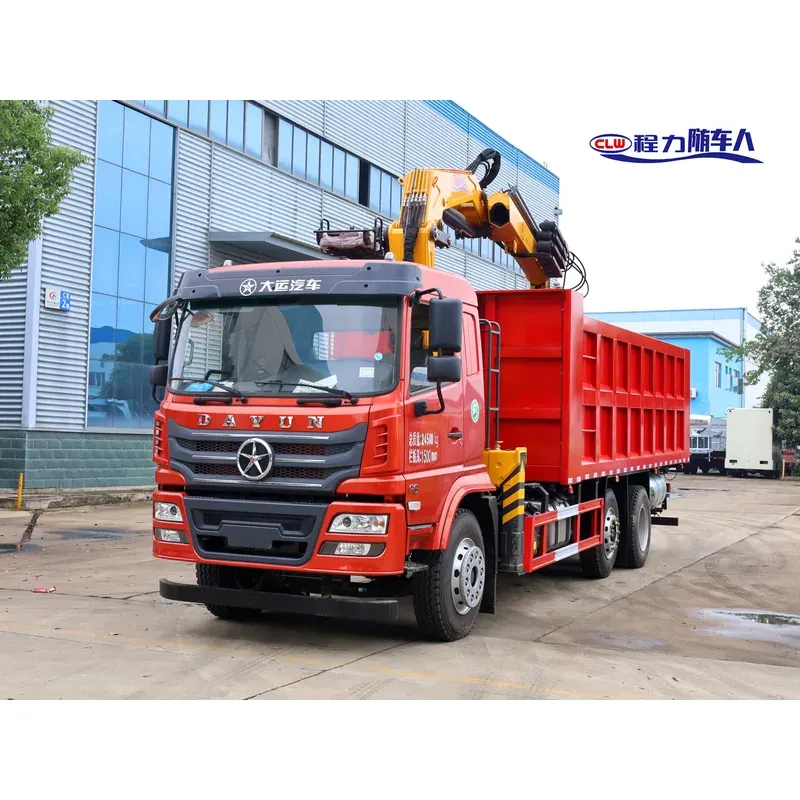

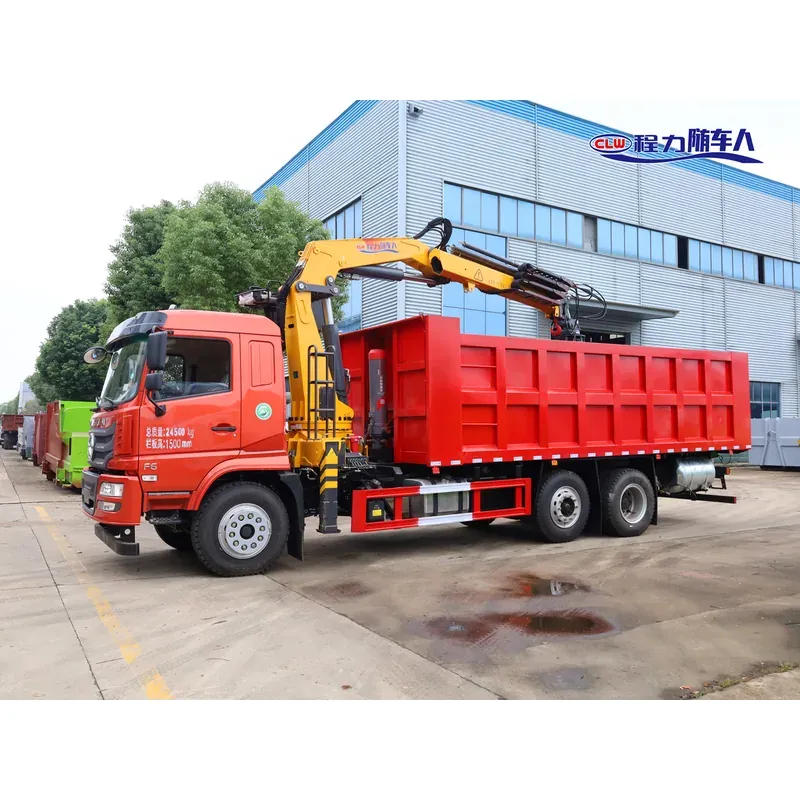

Truck-Mounted Scrap Grab with Lifting Axle on Dayun — 8 t, 3+2 Grab (TMG-Y104)
Dayun lifting-axle grab truck, 24,500 kg GVW. 8 t four-section knuckle-boom grab with a 3+2 twin-ram grab with bucket teeth, front-mounted single-ram tipping on a 7,000 × 2,400 × 1,500 mm body. Quick-coupler and through sub-frame fitted. Left-hand drive standard; right-hand drive available on request.
Short answer. Mounted on a Dayun chassis with a lifting axle, this scrap grab truck carries an 8 t four-section knuckle-boom crane and a 3+2 twin-ram grab with bucket teeth. The high body measures 7,000 × 2,400 × 1,500 mm and tips through a front-mounted single ram, and a quick-coupler with extended piping and a through sub-frame are fitted. The wheelbase is 4,700 + 1,300 mm, GVW is 24,500 kg and the overall size is 10,750 × 2,550 × 3,960 mm. Left-hand drive is standard, with right-hand drive available on request.
Published by Truck Crane China — we build truck-mounted cranes, grab trucks and wrecker trucks on Chinese chassis for export.
Mounted on a Dayun chassis with a lifting axle, this scrap grab truck carries an 8 t crane and a 3+2 twin-ram grab. The high body gives additional volume for scrap and similar material. Detailed crane and body specifications are confirmed against the working site.
Left-hand drive (LHD) is standard. Right-hand drive (RHD) is available on request and is built to order.
Key Specifications
Parameter | Value |
|---|---|
Chassis | Dayun |
Wheelbase | 4,700 + 1,300 mm |
Drive | Lifting axle |
Steering | Left-hand drive (LHD) standard. Right-hand drive (RHD) available on request. |
Grab | Scrap grab |
Attachment | 3+2 twin-ram grab |
Grab type | 3+2, twin-ram, with bucket teeth |
Crane capacity | 8 t, four-section knuckle boom |
Body | High body |
Cargo box | 7,000 × 2,400 × 1,500 mm |
Tipping | Front-mounted single ram |
Extras | Chengli 8 t crane |
Fitted | Quick-coupler (extended piping), through sub-frame |
GVW | 24,500 kg |
Overall (L × W × H) | 10,750 × 2,550 × 3,960 mm |
The specification table lists the details confirmed by the source listing. Additional specifications, attachment options and body configurations are confirmed on enquiry.
Questions buyers ask about this Dayun lifting-axle 8 t scrap grab
What chassis and axle setup does it use？
A Dayun chassis with a lifting axle, on a 4,700 + 1,300 mm wheelbase and 24,500 kg GVW.
What crane and grab are fitted？
An 8 t four-section knuckle-boom crane with a 3+2 twin-ram grab with bucket teeth.
What is the body and how does it tip？
A high body of 7,000 × 2,400 × 1,500 mm, tipping through a front-mounted single ram.
What is fitted for attachment changes？
A quick-coupler with extended piping and a through sub-frame.
What is the overall size？
10,750 × 2,550 × 3,960 mm.
What crane brand is fitted？
A Chengli 8 t crane.
Other builds in this range: Scrap Grab with Lifting Axle on SINOTRUK Wangpai and Scrap Grab with Magnet and Cutter on Dayun, 8 t (TMG-DY2502).
