Truck-Mounted Scrap Grab with Magnet and Cutter on Dayun — 8 t (TMG-DY2502)
Dayun lifting-axle grab truck with a self-powered high-frequency electromagnetic chuck and an on-board cutter. 8 t four-section knuckle-boom grab, 3+2 twin-ram grab with bucket teeth, 24,500 kg GVW, 7,000 × 2,400 × 1,500 mm front-tipping body. Left-hand drive standard; right-hand drive available on request.
Short answer. This is the heaviest-equipped build in the scrap group: an 8 t four-section knuckle-boom grab on the Dayun lifting-axle chassis, with a self-powered high-frequency electromagnetic chuck and an on-board cutter. The cutter is rated to cut steel plate up to 40 mm, with a quality cut through 25 mm, and both the grab and the crane rotate through 360° continuously. The body measures 7,000 × 2,400 × 1,500 mm, GVW is 24,500 kg, and a quick-coupler with extended piping is fitted. Left-hand drive is standard, with right-hand drive available on request.
Published by Truck Crane China — we build truck-mounted cranes, grab trucks and wrecker trucks on Chinese chassis for export.

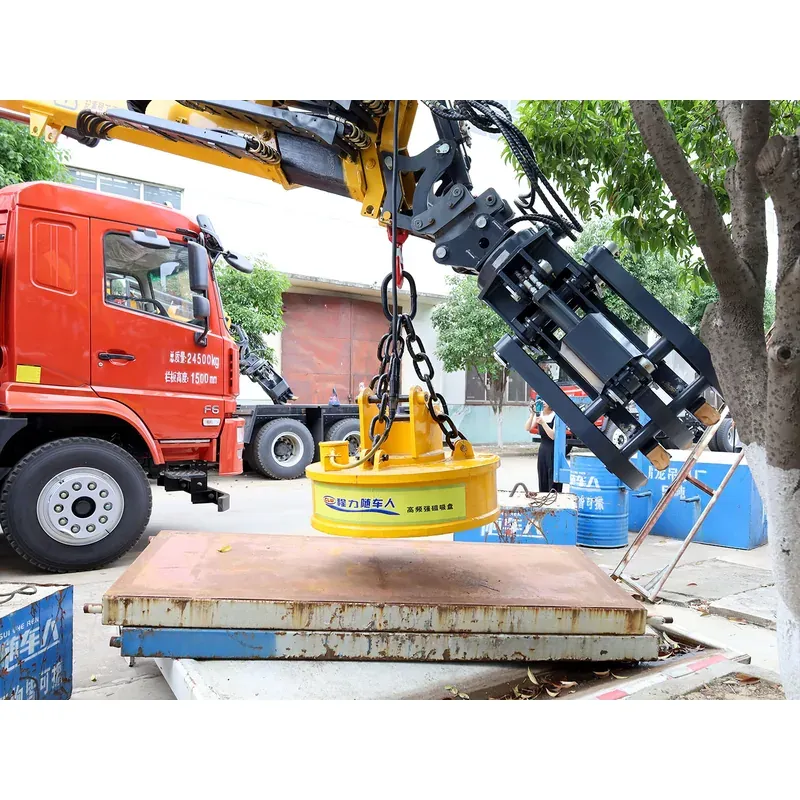

The heaviest-equipped build in the scrap group: an 8 t four-section knuckle-boom grab on the Dayun lifting-axle chassis, with a self-powered high-frequency electromagnetic chuck and an on-board cutter.
Left-hand drive (LHD) is standard. Right-hand drive (RHD) is available on request and is built to order.
Complete Specifications
Parameter | Value |
|---|---|
Chassis | |
Steering | Left-hand drive (LHD) standard. Right-hand drive (RHD) available on request. |
Model | Dayun, with lifting axle |
Wheelbase | 4,700 + 1,300 mm |
Crane and grab unit | |
Crane capacity | 8 t, four-section knuckle boom |
Grab type | 3+2, twin-ram, with bucket teeth |
Fitted equipment | |
Electromagnetic chuck | Self-powered, high-frequency |
Cutter | On-board; rated to cut plate up to 40 mm, quality cut to 25 mm |
Connection | Quick-coupler (extended piping), through sub-frame |
Body | |
Cargo box | 7,000 × 2,400 × 1,500 mm |
Tipping | Front-mounted single ram |
Weights and dimensions | |
GVW | 24,500 kg |
Overall (L × W × H) | 10,750 × 2,550 × 3,960 mm |
Why this build
The cutter is rated to cut steel plate up to 40 mm, with a quality cut through 25 mm. That changes what the truck can do on site — long sections and plate that will not fit the body or the grab can be cut to size by the same operator, instead of being set aside for a separate machine.
The grab is a 3+2 twin-ram unit with bucket teeth, and both the grab and the crane rotate through 360° continuously. The 3+2 pattern suits short, mixed ferrous scrap.
The 7,000 × 2,400 × 1,500 mm body tips through a front-mounted single ram. GVW is 24,500 kg and a quick-coupler with extended piping is fitted so the attachment can be changed without re-plumbing.
Options: Cutter and magnet fitted on this unit; attachments to order.
Questions buyers ask about this Dayun scrap grab with magnet and cutter
What chassis and axle setup does it use？
The Dayun lifting-axle chassis, on a 4,700 + 1,300 mm wheelbase and 24,500 kg GVW.
What crane and grab are fitted？
An 8 t four-section knuckle-boom grab with a 3+2 twin-ram grab with bucket teeth.
What can the on-board cutter do？
It is rated to cut steel plate up to 40 mm, with a quality cut through 25 mm.
Do the grab and crane rotate？
Yes — both the grab and the crane rotate through 360° continuously.
What is the electromagnetic chuck？
A self-powered, high-frequency electromagnetic chuck fitted on this unit.
What is the body and how does it tip？
A 7,000 × 2,400 × 1,500 mm body that tips through a front-mounted single ram.
