Truck-Mounted Grabs

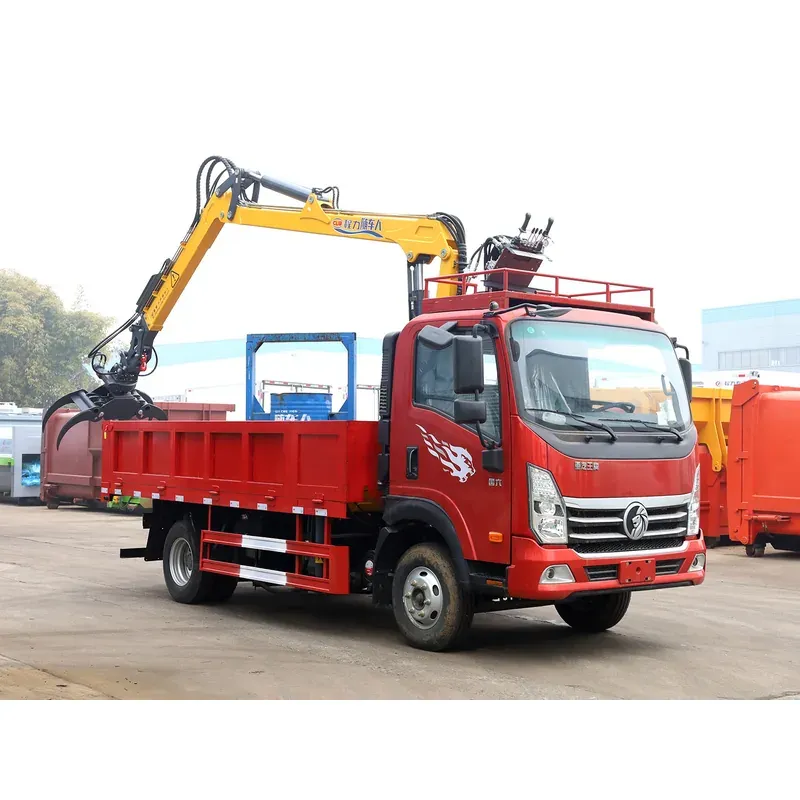

Truck-Mounted Scrap Grab on SINOTRUK Wangpai — 6.3 t Crane, 3+2 Twin-Ram Grab (TMG-WP2510)
SINOTRUK Wangpai grab truck with a 180 hp Weichai engine and a 6.3 t three-section knuckle-boom crane supplied with a lifting hook. The 3+2 twin-ram grab handles steel offcuts; the tipping body is 3,100 × 2,200 × 600 mm in 3 mm side / 5 mm floor steel. Left-hand drive standard; right-hand drive available on request.
Short answer. The TMG-WP2510 is a 6.3 t three-section knuckle-boom grab on the SINOTRUK Wangpai chassis with a 180 hp Weichai engine. The crane is supplied with a lifting hook as well as a 3+2 twin-ram grab, so the same unit both lifts on the hook and grabs on the attachment. The compact body measures 3,100 × 2,200 × 600 mm in 3 mm side / 5 mm floor steel. Left-hand drive is standard; right-hand drive is available on request.
Published by Truck Crane China — we build truck-mounted cranes, grab trucks and wrecker trucks on Chinese chassis for export.
A 6.3 t three-section knuckle-boom grab on the SINOTRUK Wangpai chassis with the 180 hp Weichai engine. The crane is supplied with a lifting hook as well as the grab, so the same unit both lifts on the hook and grabs on the attachment.
Left-hand drive (LHD) is standard. Right-hand drive (RHD) is available on request and is built to order.
Complete Specifications
Parameter | Value |
|---|---|
Chassis and driveline | |
Steering | Left-hand drive (LHD) standard. Right-hand drive (RHD) available on request. |
Chassis | SINOTRUK Wangpai |
Engine | Weichai 180 hp |
Crane and grab unit | |
Crane capacity | 6.3 t, three-section knuckle boom |
Hook | Lifting hook supplied with the crane |
Grab type | 3+2 twin-ram grab |
Body | |
Cargo box | 3,100 × 2,200 × 600 mm |
Steel thickness | Side 3 / floor 5 |
Body build | Floor cross members in square tube at 200 mm centres |
Why this build
The grab is a 3+2 twin-ram unit — the pattern used for scrapped steel and short offcuts, where material is denser and heavier than timber and the grab has to be driven into a pile rather than laid on top of it.
The body is compact at 3,100 × 2,200 × 600 mm in 3 mm side / 5 mm floor steel, with floor cross members in square tube at 200 mm centres.
The combination suits small recycling yards and metal-working workshops where the truck has to work in a tight yard and then travel on public roads.
Questions buyers ask about the SINOTRUK Wangpai 6.3 t scrap grab (TMG-WP2510)
What engine and crane does it use?
A 6.3 t three-section knuckle boom on the SINOTRUK Wangpai chassis with a 180 hp Weichai engine.
Does it have a lifting hook?
Yes — a lifting hook is supplied with the crane as well as the grab, so the unit both lifts on the hook and grabs on the attachment.
What grab type is fitted?
A 3+2 twin-ram grab, the pattern used for scrapped steel and short offcuts.
How is the body built?
A compact 3,100 × 2,200 × 600 mm body in 3 mm side / 5 mm floor steel, with floor cross members in square tube at 200 mm centres.
Where is it suited to work?
Small recycling yards and metal-working workshops where the truck works in a tight yard and then travels on public roads.
Other builds in this range: Scrap Grab on SINOTRUK Wangpai, 6.3 t, 3+2 Grab and Scrap Grab with Lifting Axle on Dayun, 8 t.
