Grab Garbage Truck on SINOTRUK Wangpai with Lifting Axle — 24.5 t GVW (Ref. TMG-WP2506)
SINOTRUK Wangpai V3 grab refuse truck with a lifting axle, 24,495 kg GVW, 220 hp Yuchai Euro VI engine and 10-speed Fast gearbox. 5–6.3 t knuckle-boom crane reaching 8.2 m with a 3+2 grab, on a 4,300 × 2,430 × 1,500 mm twin-ram tipping body.

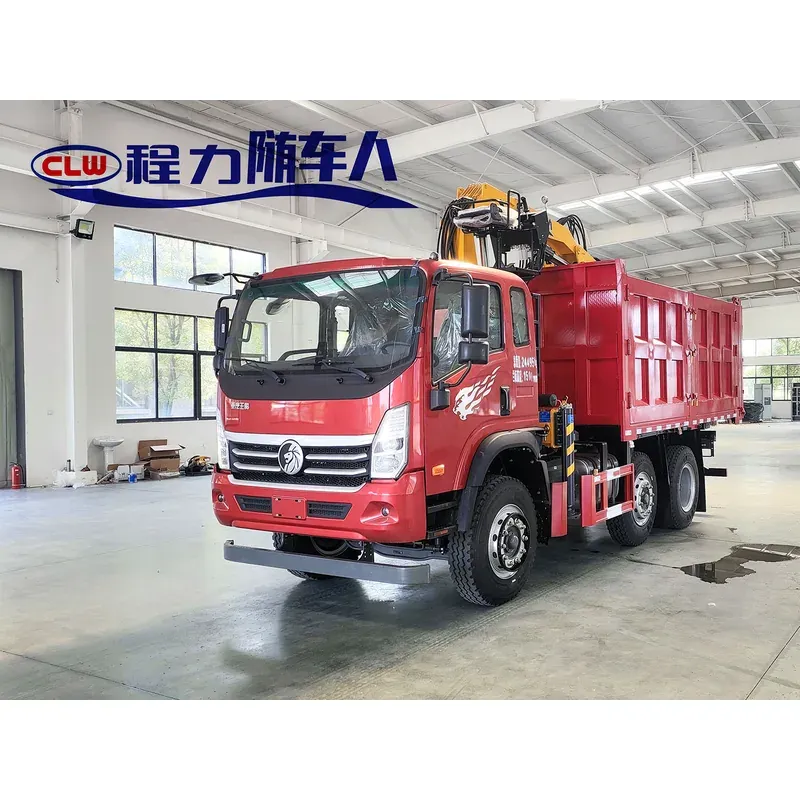

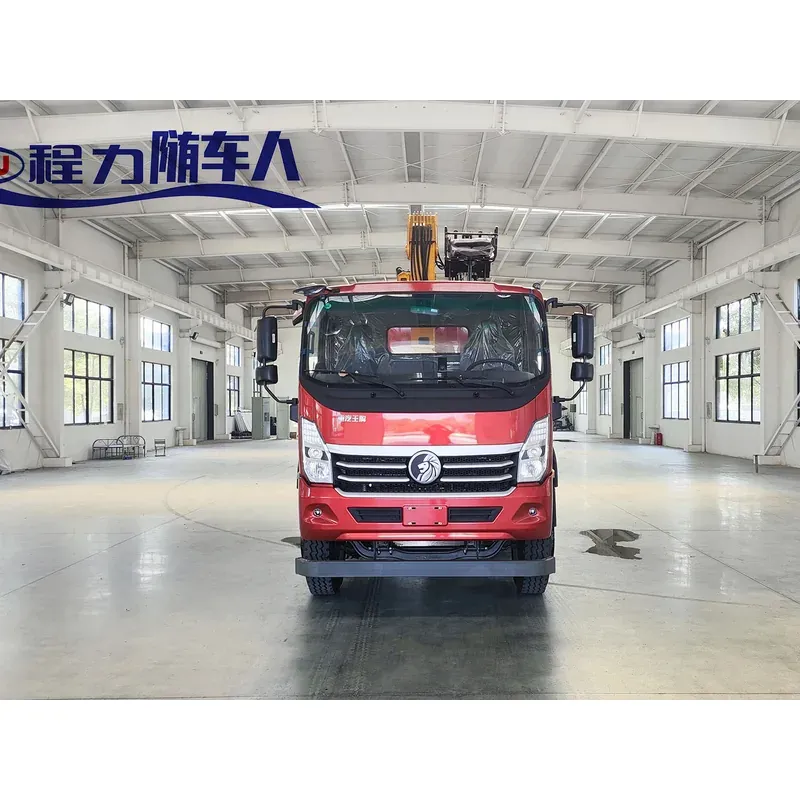

A grab refuse truck on the SINOTRUK Wangpai V3 chassis with a lifting axle, 24,495 kg GVW and an 11,200 kg kerb weight. Power is the 220 hp Yuchai YCS04220-61A Euro VI engine through a Fast 10-speed gearbox with a factory splined PTO.
Complete Specifications
Parameter | Value |
|---|---|
Chassis | |
Model | SINOTRUK Wangpai V3, with lifting axle (CL5242ZZD6ABL) |
Engine | Yuchai YCS04220-61A, Euro VI |
Gearbox | Fast 10JS90-B with factory splined PTO |
Front axle | G050D self-adjusting brake, drum |
Rear axle | D130C self-adjusting brake, drum, with differential lock, ratio 5.83 |
Frame | Single-layer 10/280 locally reinforced |
Fuel tank | 220 L aluminium |
Tyres | 10.00R20 18PR |
Equipment | Factory air conditioning, hydraulic power steering, remote throttle, power windows and central locking, steel air reservoir, maintenance-free battery, multi-function steering wheel (MP3 + Bluetooth) |
Crane and grab unit | |
Crane capacity | 5 – 6.3 t, three-section knuckle boom |
Maximum boom length | 8.2 m |
Maximum working height | 11.2 m |
Control | Electro-hydraulic 1-into-3 valve block, excavator-style joysticks |
Rotation | 360° continuous — crane and grab head |
Grab type | 3+2 grab or 4-petal grab |
Hydraulic cooler | Standard |
Body | |
Cargo box | 4,300 × 2,430 × 1,500 mm |
Tipping | Twin-ram tipping |
Steel thickness | Side 3 / floor 5 |
Body build | Densified cross members, side-door posts 160 channel back-to-back with 140 mm, front and rear balance beams, four tipping seats |
Weights and dimensions | |
GVW | 24,495 kg |
Kerb weight | 11,200 kg |
Overall (L × W × H) | 7,600 × 2,550 × 3,800 mm |
Why this build

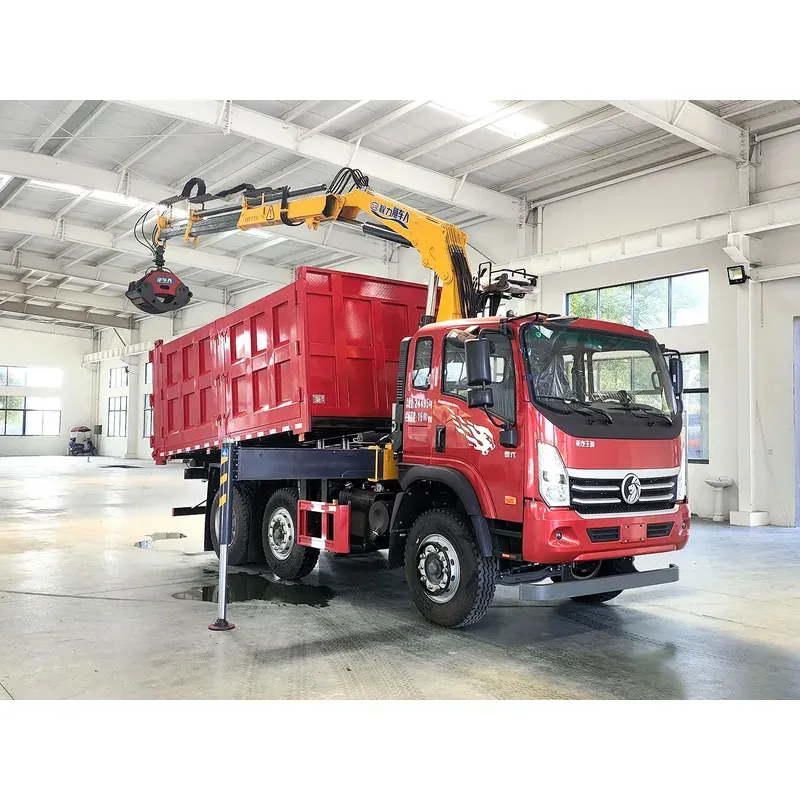

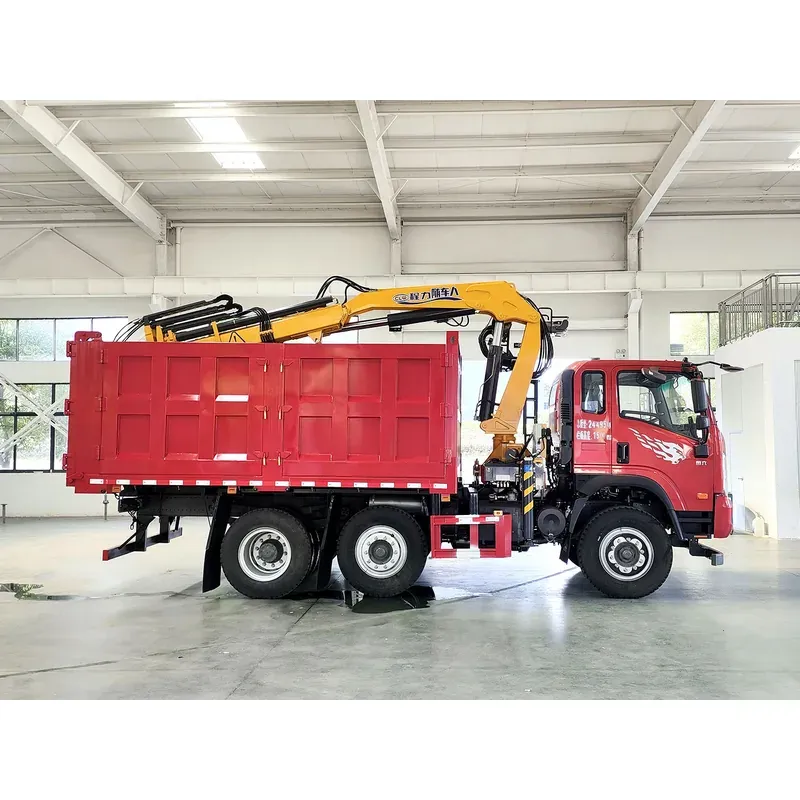

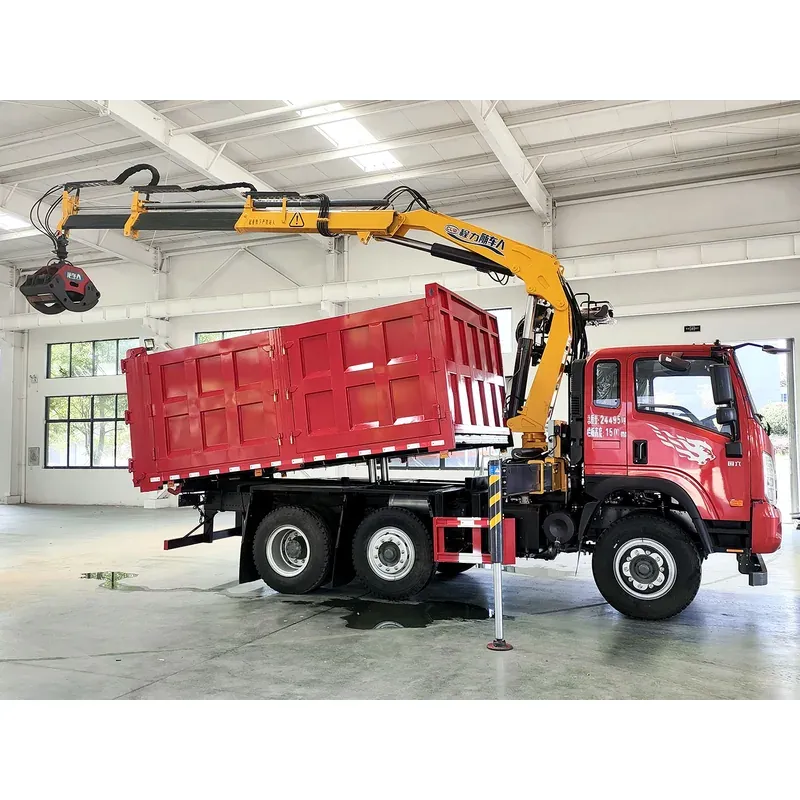

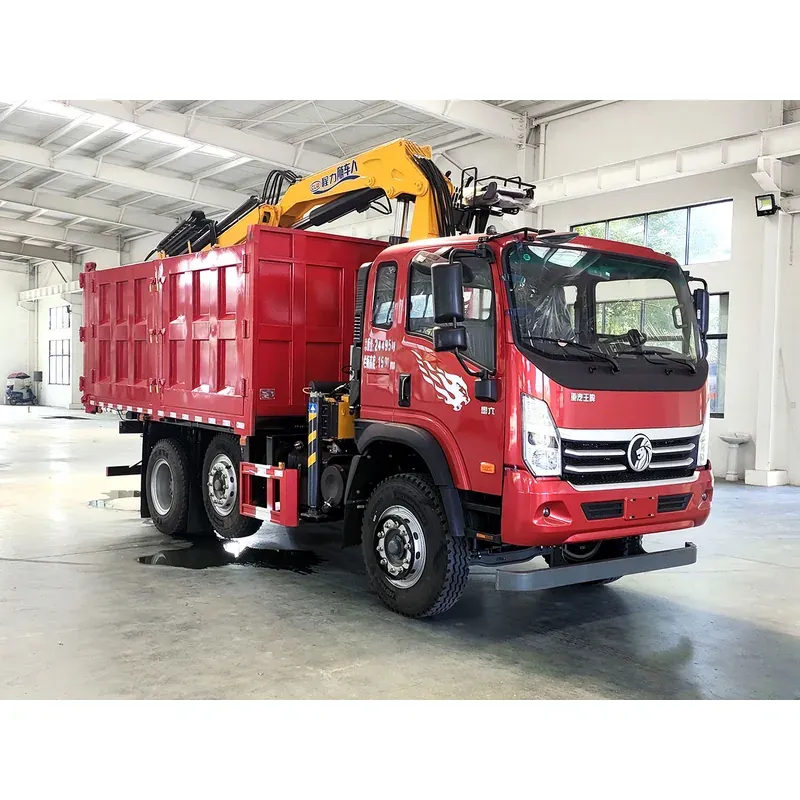

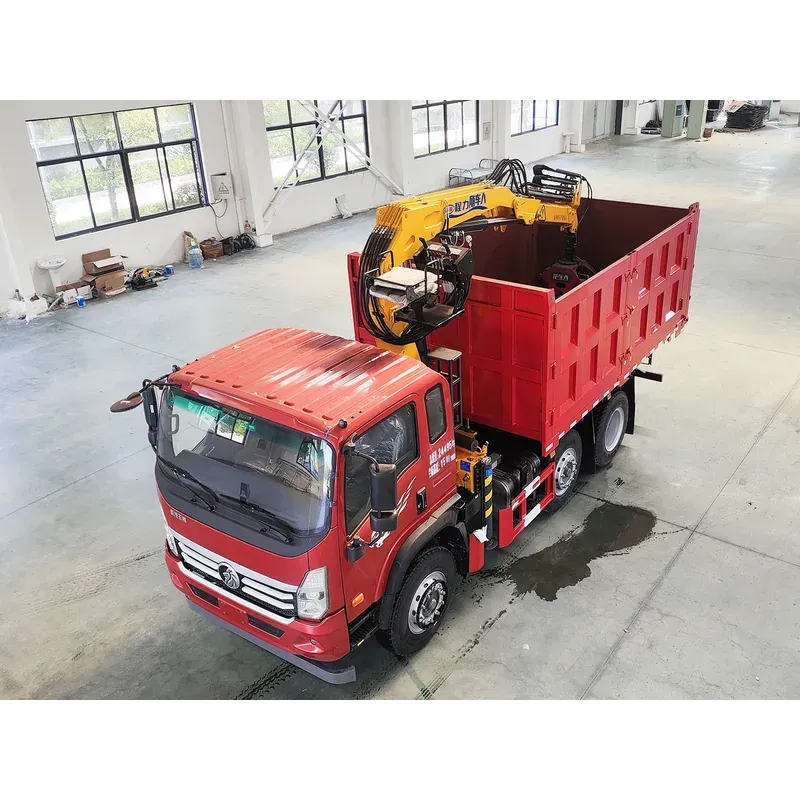

The crane is a 5 to 6.3 t three-section knuckle boom reaching 8.2 m with an 11.2 m working height, carrying a 3+2 grab or a 4-petal grab. Crane and grab head both rotate 360° continuously. This is the municipal-duty build: mixed refuse, bulky waste and green waste that cannot be handled by a rear-loading compactor.
The lifting axle raises off the ground when the truck runs light, which cuts tyre scrub and fuel burn on the way to and from the tip, then drops to carry the full 24,495 kg when the 4,300 × 2,430 × 1,500 mm body is loaded. Tipping is twin-ram, so the load leaves in one movement.
The body uses 3 mm side / 5 mm floor steel with densified cross members, 160/140 channel side-door posts and four tipping seats.
Options: Grab head type (3+2 or 4-petal).
