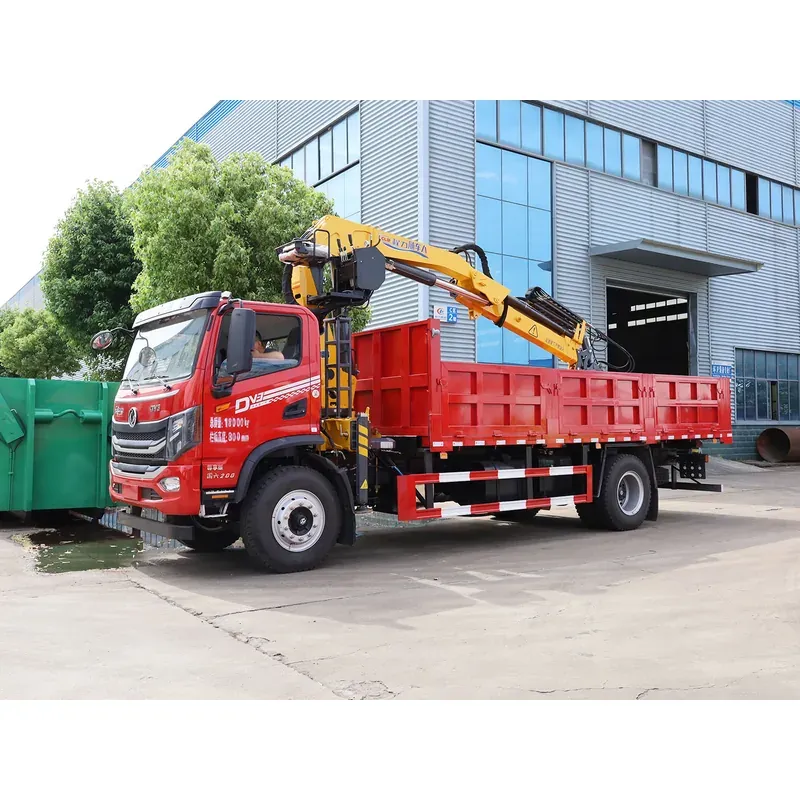

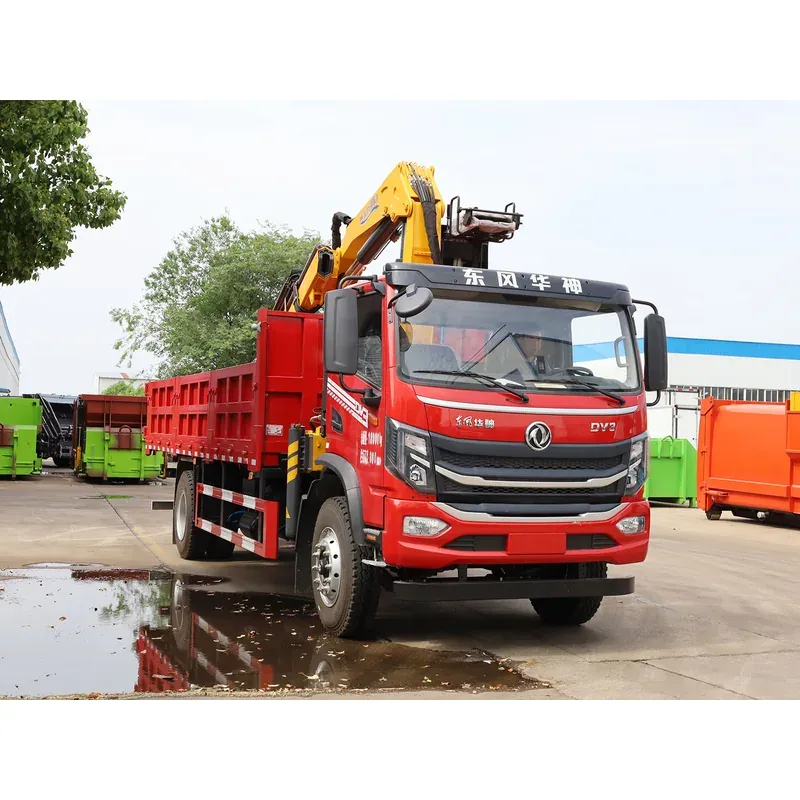

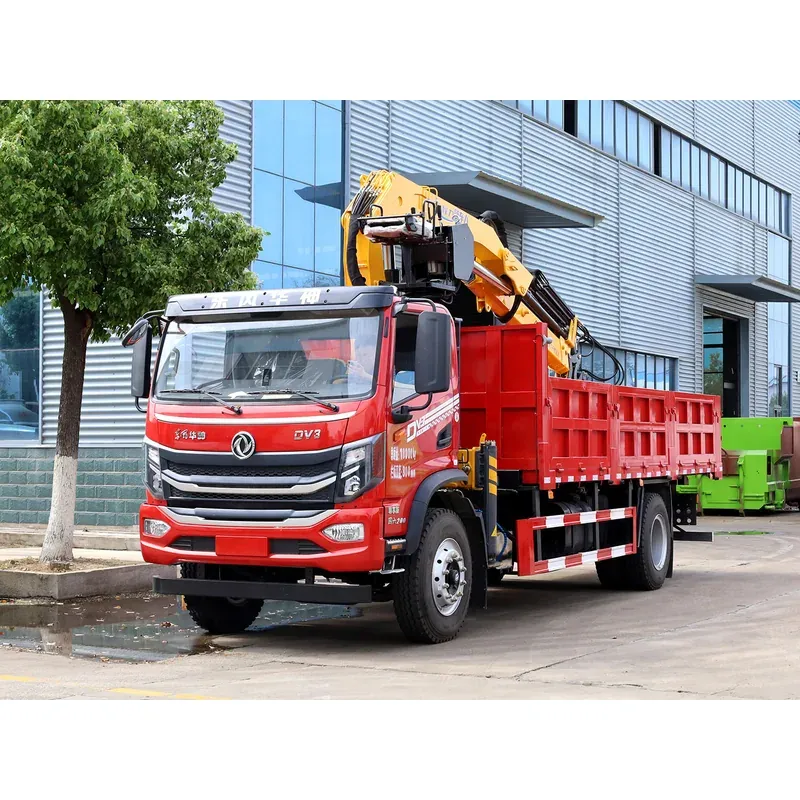

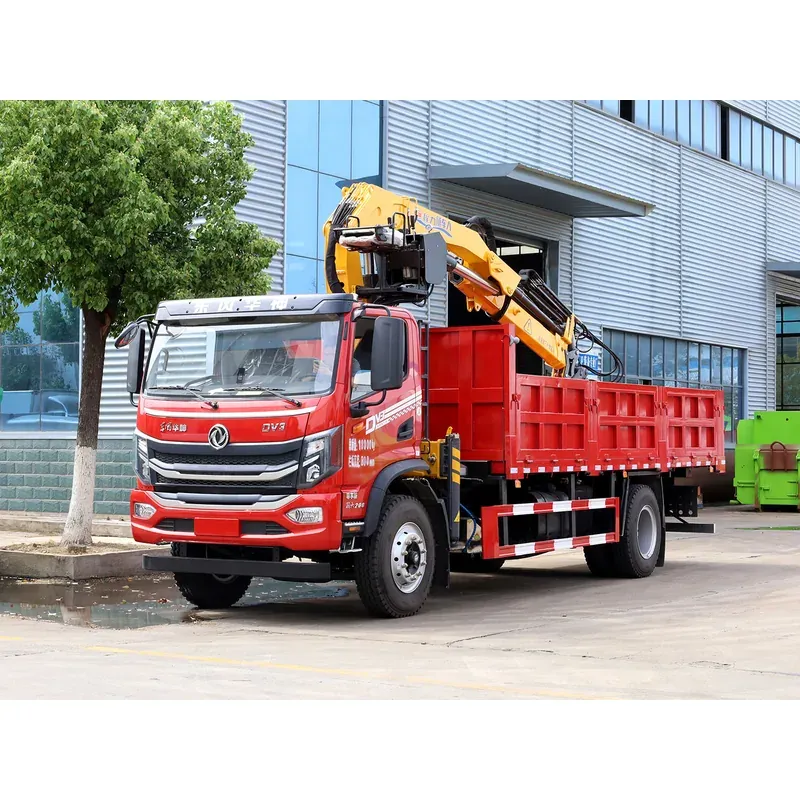

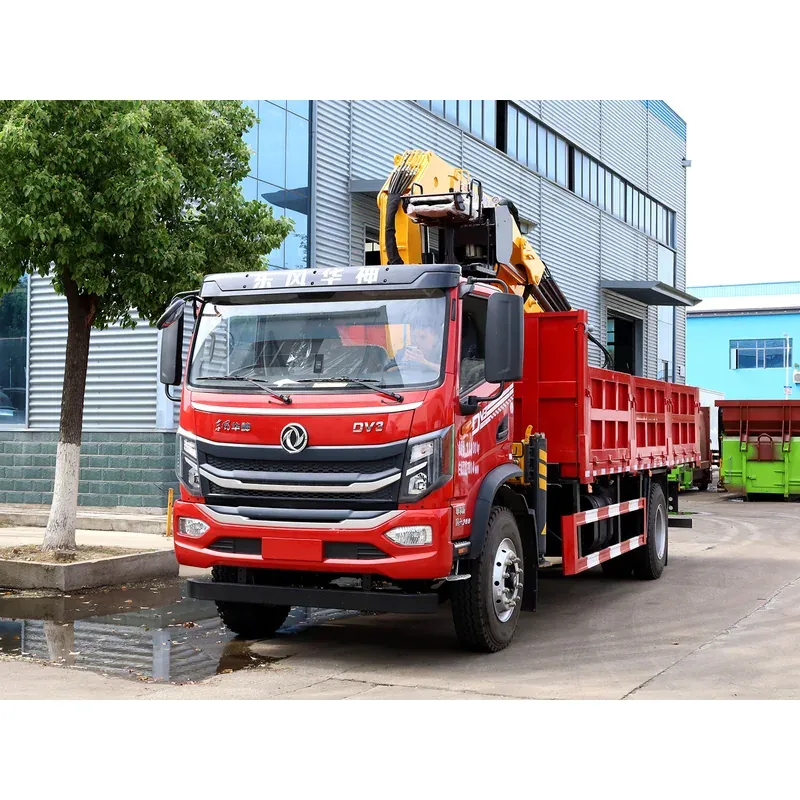

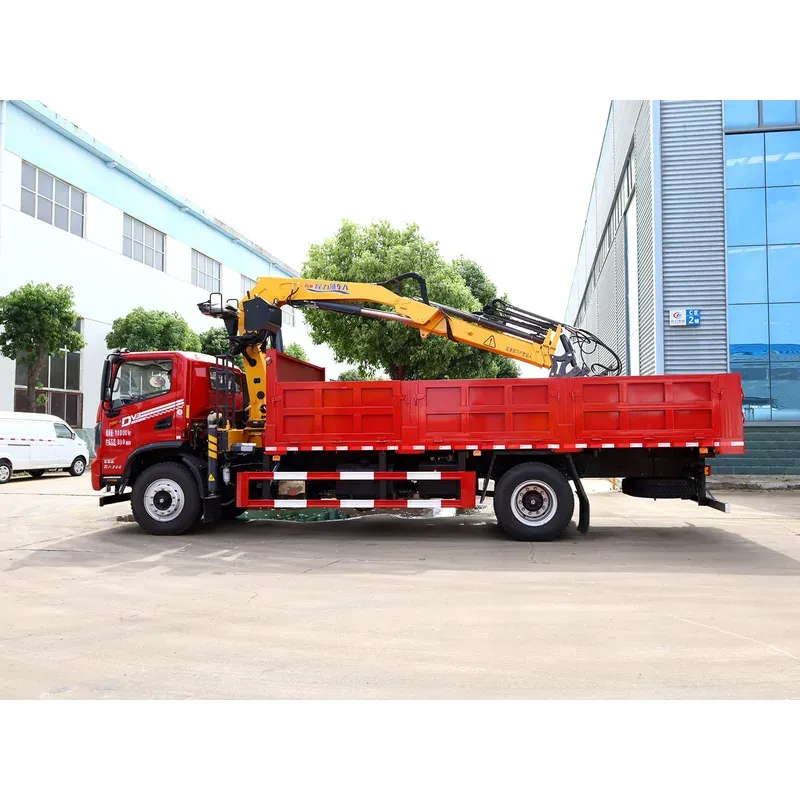

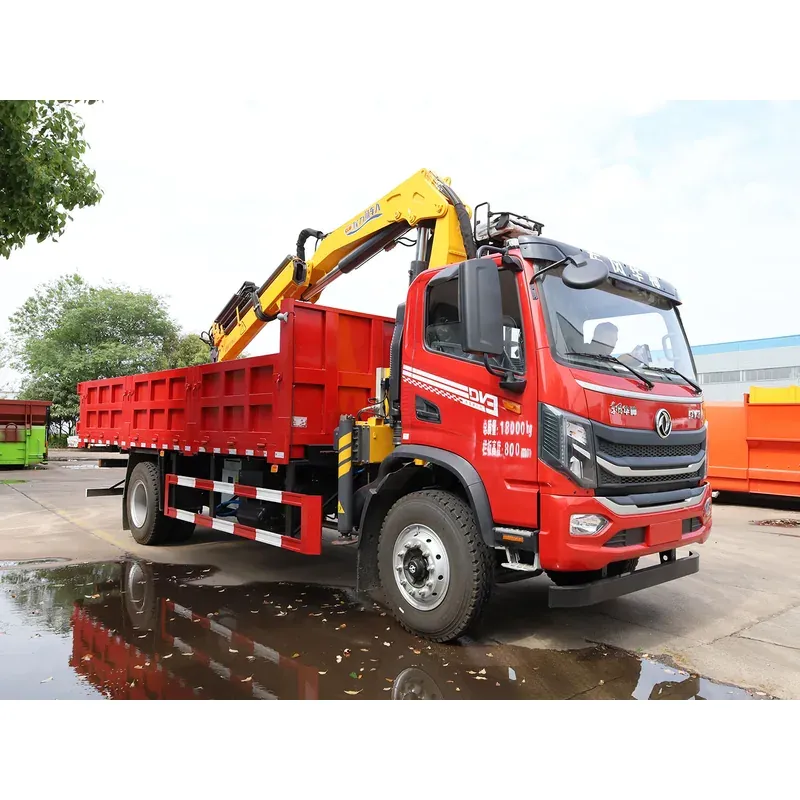

Truck-Mounted Grab with Magnet on Dongfeng Huashen DV3 — 6.3 t, 8.25 m Boom (TMG-DF2507)
Dongfeng Huashen DV3 grab truck with a self-powered high-frequency electromagnetic chuck. 18,000 kg GVW, 6.3 t three-section knuckle-boom crane, 8.25 m working radius, 850 kg grab load fully extended, 3+2 universal grab. Left-hand drive standard; right-hand drive available on request.
Short answer. This is an 18,000 kg GVW grab truck on the Dongfeng Huashen DV3 single-row cab, with a 6.3 t or 5 t three-section knuckle-boom crane at an 8.25 m working radius. With the boom fully extended the 3+2 universal grab handles 850 kg, and a self-powered high-frequency electromagnetic chuck picks up ferrous offcuts too small to grab. Power is a 200 hp Yuchai Euro VI four-cylinder engine through a Fast 8-speed gearbox on 3.6 t front / 10 t rear axles. Left-hand drive is standard; right-hand drive is available on request.
Published by Truck Crane China — we build truck-mounted cranes, grab trucks and wrecker trucks on Chinese chassis for export.
An 18,000 kg GVW grab truck on the Dongfeng Huashen DV3 single-row cab, with the 200 hp Yuchai Euro VI four-cylinder engine, Fast 8-speed gearbox, 3.6 t front and 10 t rear axles on a 280 mm straight-through three-layer frame.
Left-hand drive (LHD) is standard. Right-hand drive (RHD) is available on request and is built to order.
Complete Specifications
Parameter | Value |
|---|---|
Chassis | |
Steering | Left-hand drive (LHD) standard. Right-hand drive (RHD) available on request. |
Model | Dongfeng Huashen DV3 grab (CL5181ZZD6ABL) |
Cab | Single-row |
Front axle | 3.6 t |
Rear axle | 10 t |
Frame | 280 mm straight-through, three-layer |
Wheelbase | 5,100 mm |
Tyres | 10.00R20 steel-belted |
Engine | Yuchai four-cylinder 200 hp, Euro VI |
Gearbox | Fast 8-speed |
Equipment | New Huashen single-row cab with multi-lock set, power windows, remote central locking, air-suspension seat, driving recorder, sun visor, daytime running lights, air conditioning, multi-function steering wheel |
Crane and grab unit | |
Crane capacity | 6.3 t or 5 t, three-section knuckle boom |
Working radius | 8.25 m |
Grab load, fully extended | 850 kg |
Control | Electro-hydraulic 1-into-3 valve block, excavator-style joysticks |
Rotation | 360° continuous — grab head |
Grab type | 3+2 universal grab, rigid-linked, with lifting nose (lift and grab in one) |
Electromagnetic chuck | Self-powered, high-frequency |
Hydraulic cooler | Standard |
Body | |
Tipping | Centre-mounted twin-ram tipping |
Steel thickness | Side 3 mm / floor 5 mm |
Body build | 4 tipping seats, front and rear balance beams, densified cross members, side-door posts channel back-to-back |
Weights | |
GVW | 18,000 kg |
Kerb weight | 11,200 kg |
Stated payload | 6,605 kg |
Why this build
The crane is a 6.3 t (or 5 t) three-section knuckle boom with an 8.25 m working radius; with the boom fully extended the 3+2 universal grab handles 850 kg. Because the grab is rigid-linked with a lifting nose, the same attachment lifts on the hook and grabs on the grab — no change-over between tasks.
A self-powered high-frequency electromagnetic chuck is fitted, so ferrous offcuts that are too small to grab can be picked up magnetically. Both the grab head and the crane rotate 360° continuously.
The tipping body runs 3 mm side / 5 mm floor steel with centre-mounted twin rams, four tipping seats and densified cross members.
Options: Crane capacity as 5 t or 6.3 t; other attachments on request.
Questions buyers ask about this Dongfeng Huashen DV3 grab truck with magnet
What crane and grab are fitted?
A 6.3 t or 5 t three-section knuckle boom at an 8.25 m working radius, carrying a 3+2 universal grab rigid-linked with a lifting nose.
How much does the grab handle with the boom fully extended?
850 kg.
What is the electromagnetic chuck for?
It is a self-powered high-frequency chuck, so ferrous offcuts that are too small to grab can be picked up magnetically.
What are the weights?
18,000 kg GVW, 11,200 kg kerb weight and a stated payload of 6,605 kg.
What body does it carry?
A centre-mounted twin-ram tipping body in 3 mm side / 5 mm floor steel, with four tipping seats and densified cross members.
What options are there?
Crane capacity as 5 t or 6.3 t; other attachments on request.
