Truck-Mounted Log Grab 4x4 with Winch on Dongfeng DV3 — 8.1 m Boom, 2+2 Flat-Jaw (TMG-Y76)
Four-wheel-drive truck-mounted log grab on the Dongfeng Huashen DV3 deluxe cab: Yuchai 240 hp China VI engine, Fast Gear 10-speed with high/low range, 6.5 t front and 16 t rear hub-reduction axles, and an 8.1 m boom with a 2+2 flat-jaw grab and winch. Engineering dump body 4,500 × 2,450 × 1,000 mm in 700L high-strength steel. Left-hand drive standard; right-hand drive available on request.
Short answer. This four-wheel-drive log grab sits on the Dongfeng Huashen DV3 deluxe single cab, with an 8.1 m boom and a 2+2 flat-jaw grab plus a winch for drawing loads in from beyond the boom's reach. A 240 hp Yuchai China VI engine drives through a Fast Gear 10-speed gearbox with high/low range on 6.5 t front and 16 t rear hub-reduction axles. The engineering dump body measures 4,500 × 2,450 × 1,000 mm in 700L high-strength steel. Left-hand drive is standard, with right-hand drive available on request.
Published by Truck Crane China — we build truck-mounted cranes, grab trucks and wrecker trucks on Chinese chassis for export.

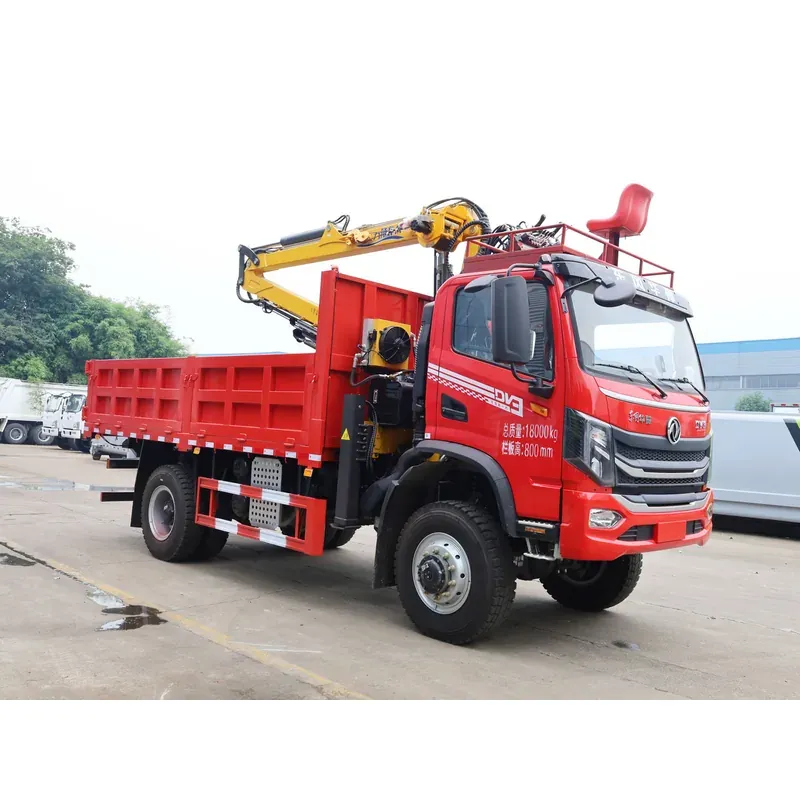

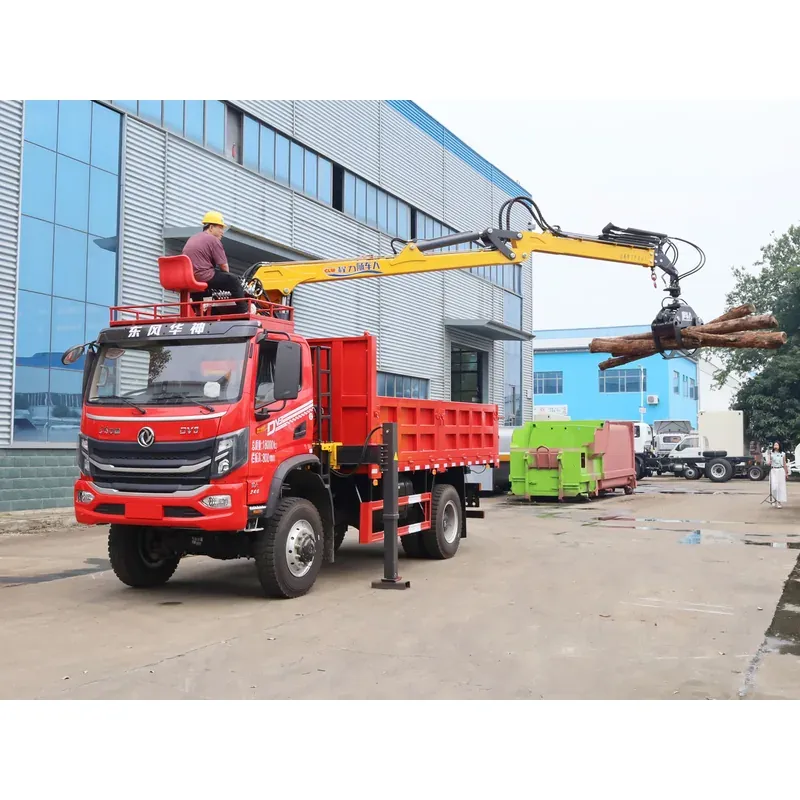

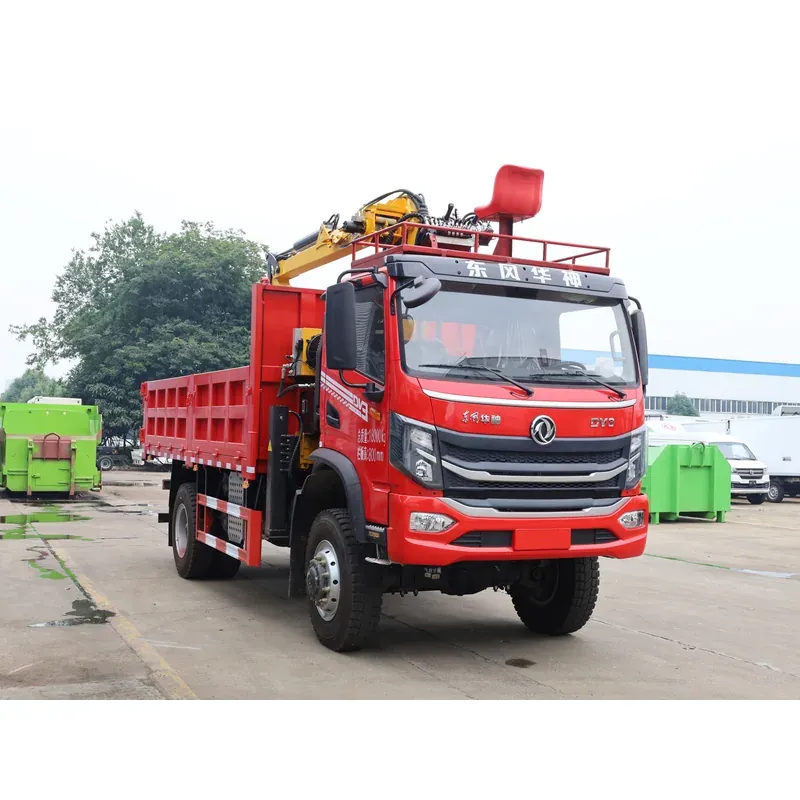

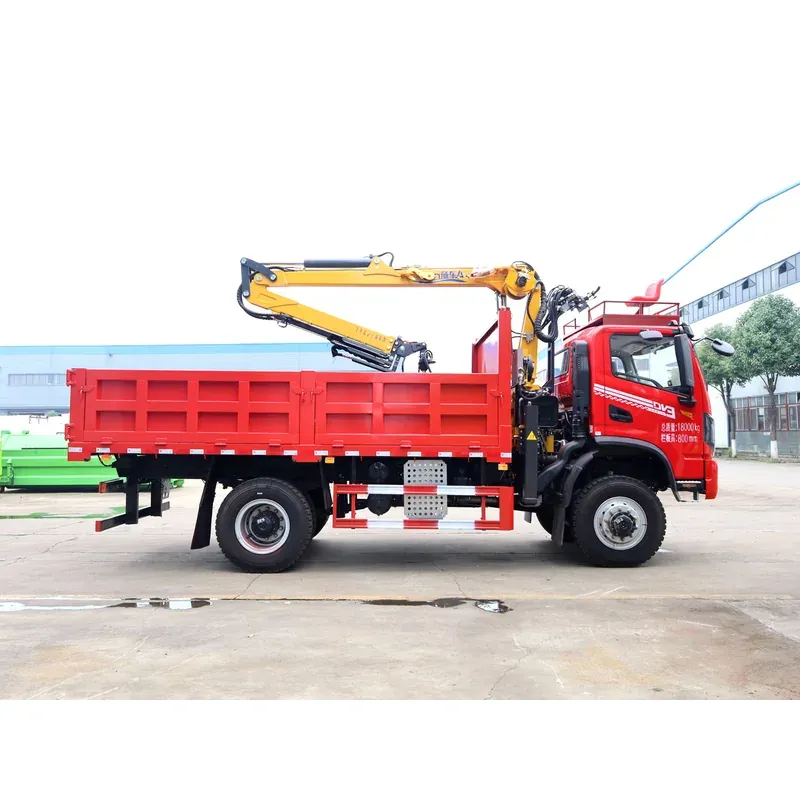

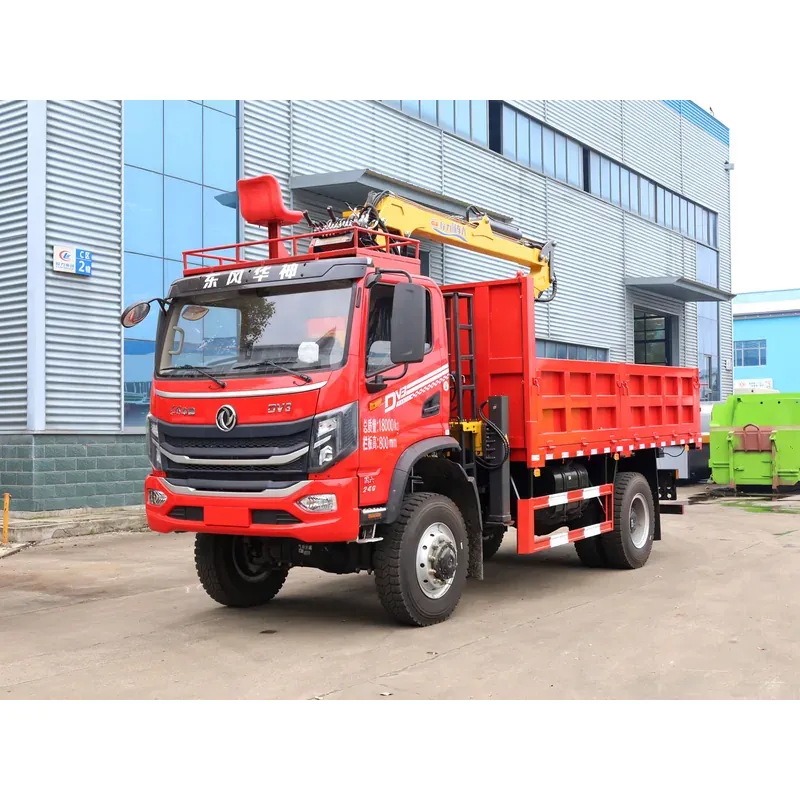

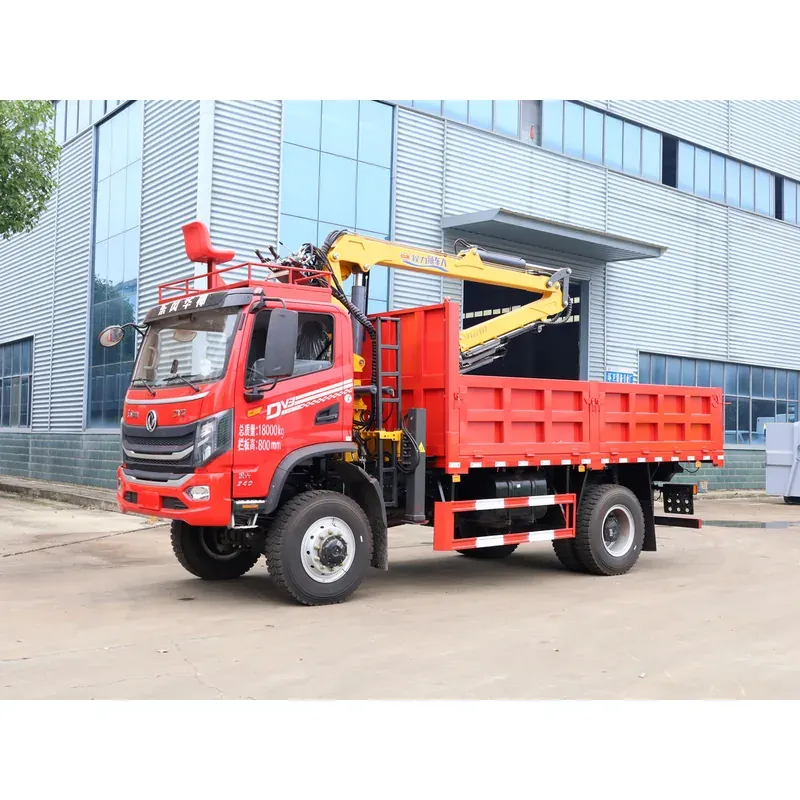

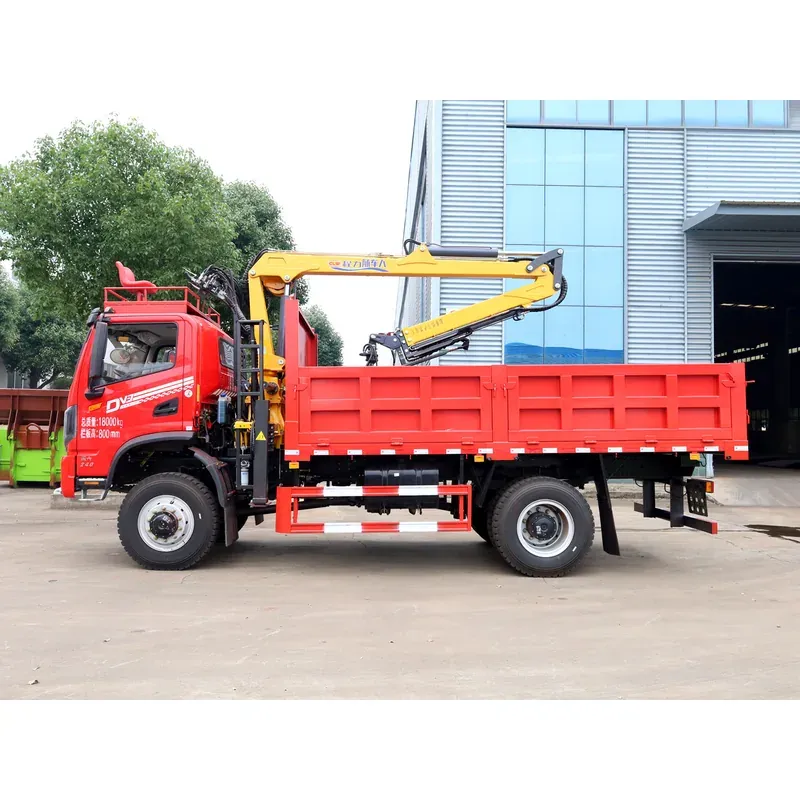

Four-wheel-drive log grab truck on the Dongfeng Huashen DV3 deluxe cab, with an 8.1 m boom and a 2+2 flat-jaw grab. The flat jaws close square onto sawn timber, bamboo poles and stacked roundwood, and the winch draws loads in from beyond the boom's reach. A 240 hp Yuchai China VI engine drives through a Fast Gear 10-speed gearbox with high/low range and a 4WD transfer case, on 6.5 t front and 16 t reinforced rear hub-reduction axles and 10.00 deep-lug tyres. Four-wheel drive keeps the unit working on soft yard ground and unsurfaced forest tracks. The engineering dump body measures 4,500 × 2,450 × 1,000 mm with 3 mm sides and a 5 mm floor, built from 700L high-strength folded steel at the gantry, stanchions and floor frame.
Left-hand drive (LHD) is standard. Right-hand drive (RHD) is available on request and is built to order.
Complete Specifications
Parameter | Value |
|---|---|
Vehicle model | ZZZ5189ZZDEQ6 |
Chassis | Dongfeng Huashen DV3 |
Cab | Dongfeng Huashen DV3, deluxe single cab |
Drive | 4x4 |
Steering | Left-hand drive (LHD) standard. Right-hand drive (RHD) available on request. |
Wheelbase | 3,950 mm |
Engine | Yuchai |
Max. power | 240 hp |
Emission standard | China VI |
Transmission | Fast Gear 10-speed, high/low range |
Transfer case | 4WD transfer case, model 980 |
Front axle | 6.5 t hub-reduction |
Rear axle | 16 t reinforced hub-reduction |
Frame | 280 mm deep, triple-layer, full length |
Tires | 10.00 steel-belted tyres, deep-lug off-road pattern |
Cab equipment | Cruise control, LCD instrument cluster |
Attachment | Log grab |
Reach | 8.1 m boom |
Grab | 2+2 flat-jaw grab |
Extras | Winch |
Body dimensions | 4,500 × 2,450 × 1,000 mm |
Body type | Engineering dump body with centre-mounted twin rams |
Plate thickness | 3 mm sides / 5 mm floor |
Body steel | 700L high-strength folded steel (gantry post, mid and rear stanchions, floor frame) |
Side doors | Five-door sides, grid-pattern stiffening |
Tailgate | Side-opening |
Gross vehicle mass | 18,000 kg |
Kerb weight | 8,000 kg |
Payload | 10,000 kg (gross vehicle mass less kerb weight) |
Chassis, body and attachment figures are confirmed by the manufacturer for this build. Options and attachment configuration are confirmed per order.
Questions buyers ask about this Dongfeng Huashen DV3 8.1 m log grab
What does the winch add on this model?
It draws loads in from beyond the boom's reach.
What grab does it carry?
A 2+2 flat-jaw grab that closes square onto sawn timber, bamboo poles and stacked roundwood.
What engine, gearbox and axles does it use?
A 240 hp Yuchai China VI engine, a Fast Gear 10-speed gearbox with high/low range, and 6.5 t front and 16 t rear hub-reduction axles.
What body does it carry?
An engineering dump body measuring 4,500 × 2,450 × 1,000 mm, with 3 mm sides and a 5 mm floor, built from 700L high-strength folded steel.
What tyres does it run?
10.00 steel-belted tyres in a deep-lug off-road pattern.
