Truck-Mounted Log Grab on SINOTRUK Wangpai — 7.8 m Boom, 3+2 Timber Grab (TMG-B74)
Log grab on a SINOTRUK Wangpai 1880 single cab with a 7.8 m boom and a 3+2 timber grab — 600 kg at full extension, 7,000 kg GVW, 3,500 mm tipping body. Left-hand drive standard; right-hand drive available on request.
Short answer. Built on the SINOTRUK Wangpai 1880 single cab, this log grab carries a 7.8 m twin-cylinder boom and a 3+2 timber grab. The grab opens to 1.2 m and lifts 600 kg with the boom fully extended, on a 3,500 × 2,000 × 600 mm tipping body; GVW is 7,000 kg, the kerb weight 4,300 kg and the payload 2,700 kg. Left-hand drive is standard, with right-hand drive available on request.
Published by Truck Crane China — we build truck-mounted cranes, grab trucks and wrecker trucks on Chinese chassis for export.

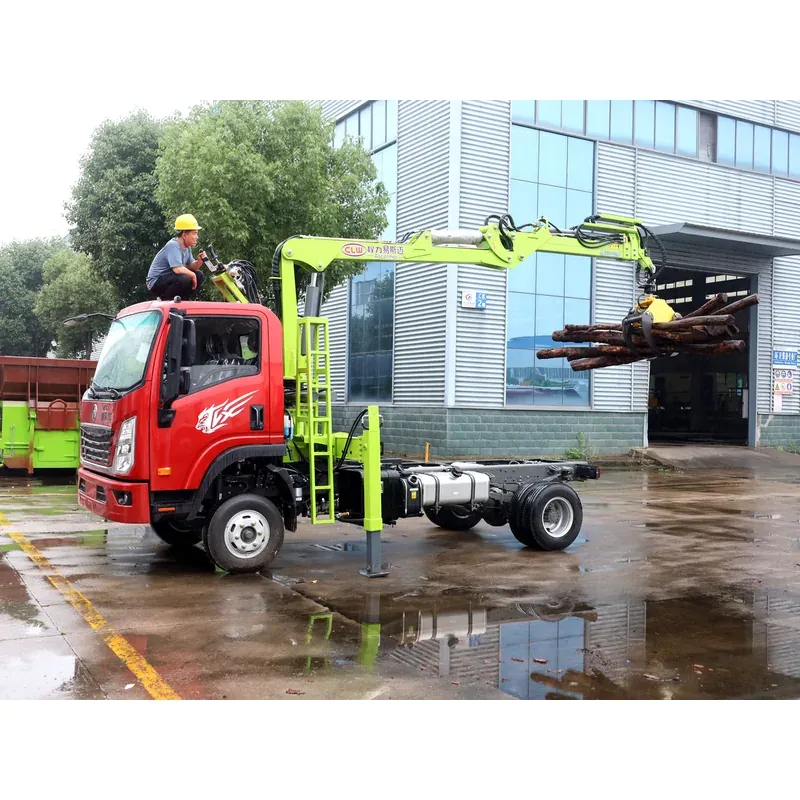

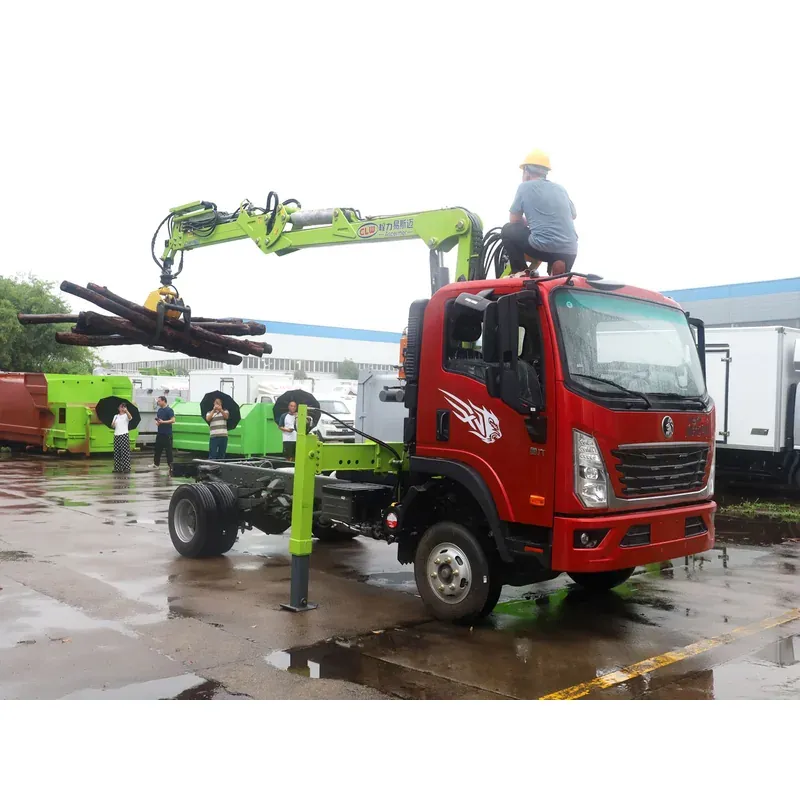

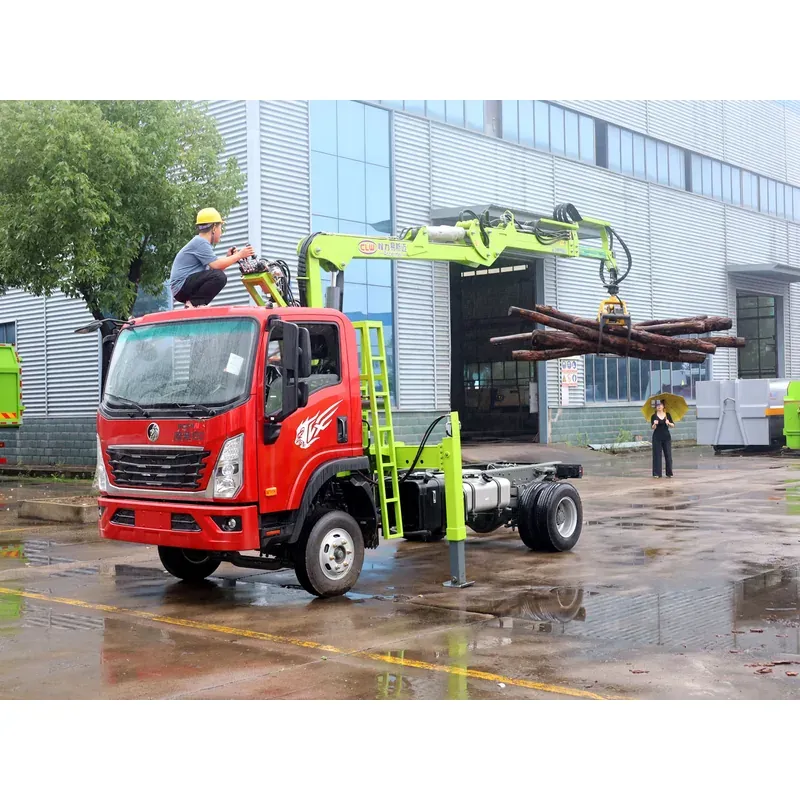

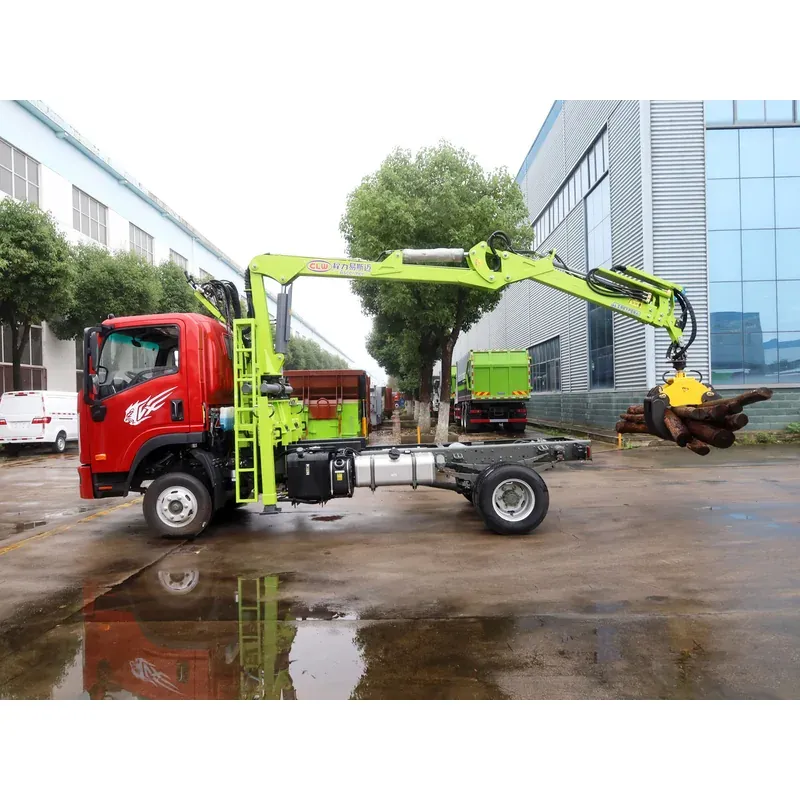

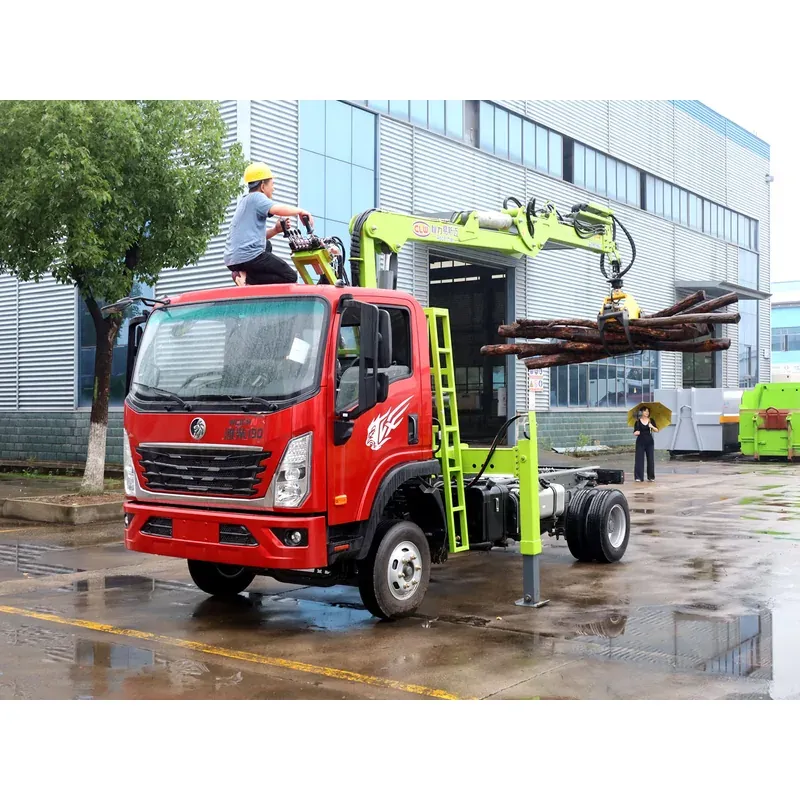

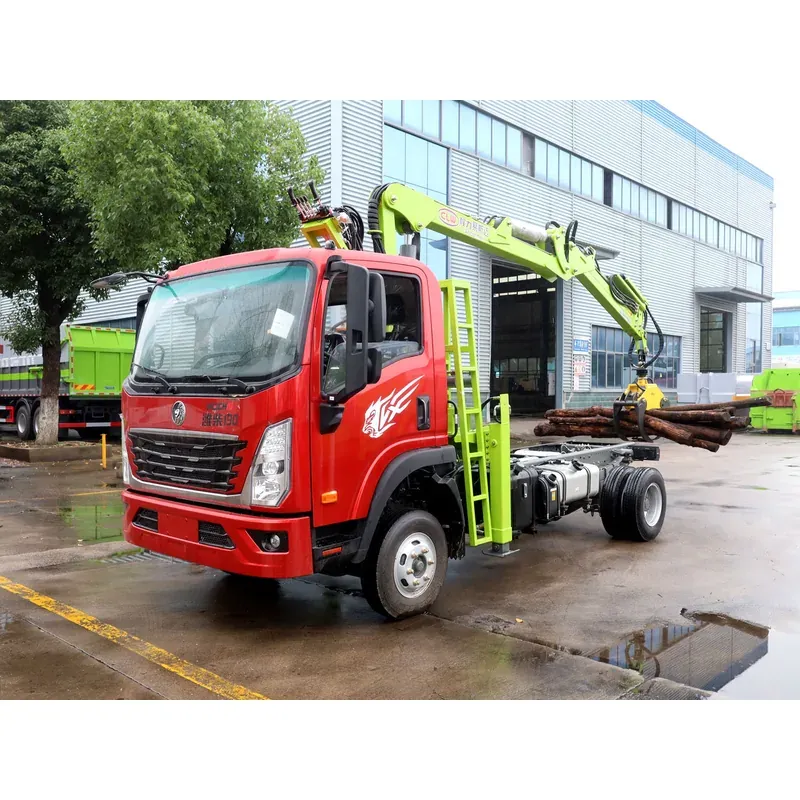

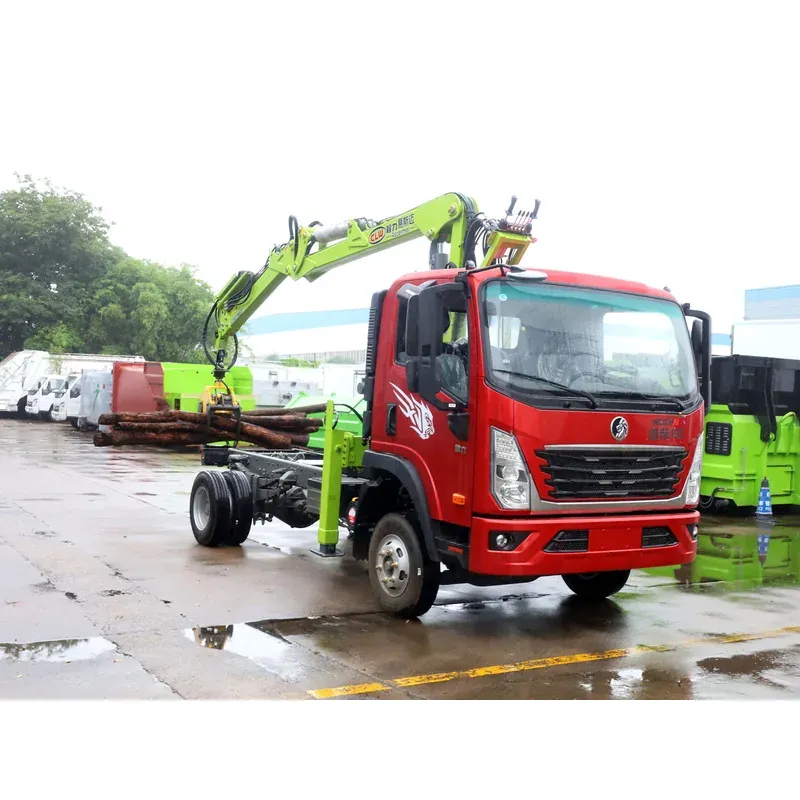

Built on a SINOTRUK Wangpai 1880 single cab, this log grab carries a 7.8 m twin-cylinder boom and a 3+2 timber grab. The grab opens to 1.2 m and lifts 600 kg with the boom fully extended — a compact 7 t platform for log yards and municipal greenery work.
Left-hand drive (LHD) is standard. Right-hand drive (RHD) is available on request and is built to order.
Complete Specifications
Parameter | Value |
|---|---|
Type-approval model | CAA5040TYHCD6 |
Chassis | SINOTRUK Wangpai 1880 |
Steering | Left-hand drive (LHD) standard. Right-hand drive (RHD) available on request. |
Cab | Wangpai 1880 single cab |
Wheelbase | 3,360 / 3,600 mm |
Engine | Yuchai 150 hp |
Gearbox | Fast 8-speed (Eaton) |
Rear axle | 1069 |
Frame | 200 × 6 mm, partially double-layer |
Tyres | 7.00 steel-belted |
Brakes | ABS; air-cut spring parking brake |
Cab equipment | Factory air conditioning, multi-function steering wheel, power windows |
Body type | Tipping body |
Body dimensions | 3,500 × 2,000 × 600 mm |
Overall dimensions | 5,995 × 2,090 × 3,250 mm |
Gross vehicle mass | 7,000 kg |
Kerb weight | 4,300 kg |
Payload | 2,700 kg (gross vehicle mass less kerb weight) |
Log grab | Chengli Suicheren 7.8 m, twin-cylinder, 3+2 grab |
Working radius | 7.8 m |
Capacity at full extension | 600 kg |
Timber grab opening | 1.2 m |
Hydraulics | Imported or first-tier domestic components |
Options | Log grab or folding grab can be specified |
The specification table lists the details confirmed by the manufacturer for this build. Grab type, body height and options are confirmed per order.
Questions buyers ask about this SINOTRUK Wangpai 1880 7.8 m log grab
How much does it lift with the boom fully extended?
600 kg, over a 7.8 m working radius.
How far does the timber grab open?
1.2 m.
What are the weight figures?
GVW is 7,000 kg, the kerb weight 4,300 kg and the payload 2,700 kg.
What grab unit is fitted?
A Chengli Suicheren 7.8 m twin-cylinder 3+2 grab.
What body and overall dimensions does it have?
A 3,500 × 2,000 × 600 mm tipping body, with overall dimensions of 5,995 × 2,090 × 3,250 mm.
What grab options can be specified?
A log grab or a folding grab can be specified.
